Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.
Main Features

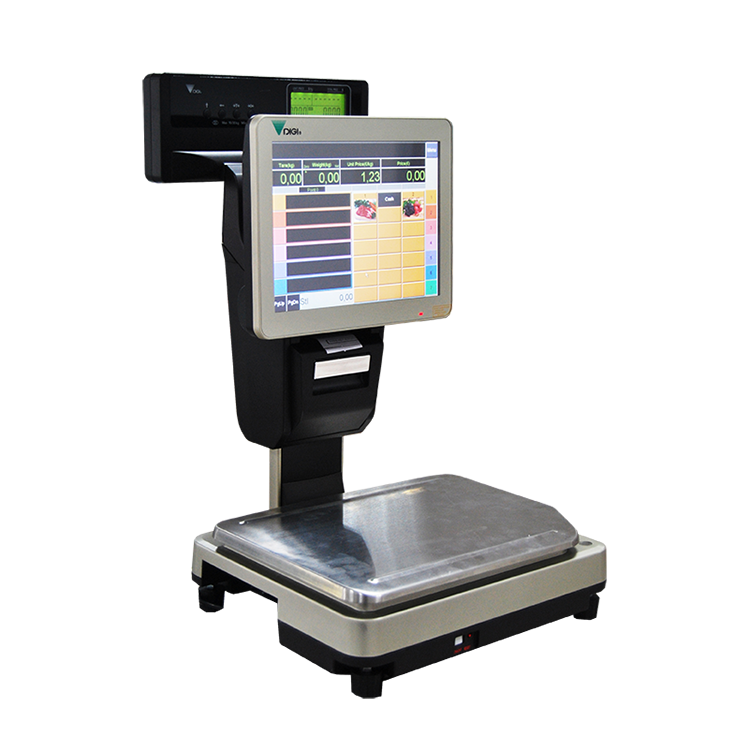

The RM-5800II is a sister model of the RM-5800, and can be used with existing POS software to process any weighing data.

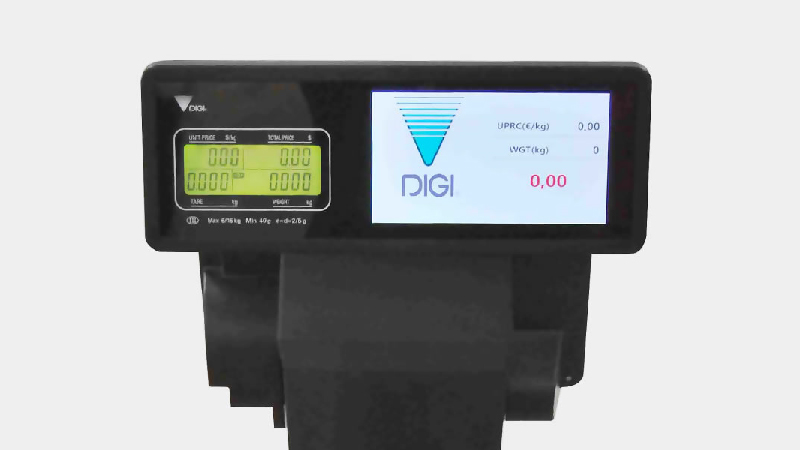

Convenient customer display
7"TFT-LCD(800x480) and LCD with backlight help customers quickly read necessary information.

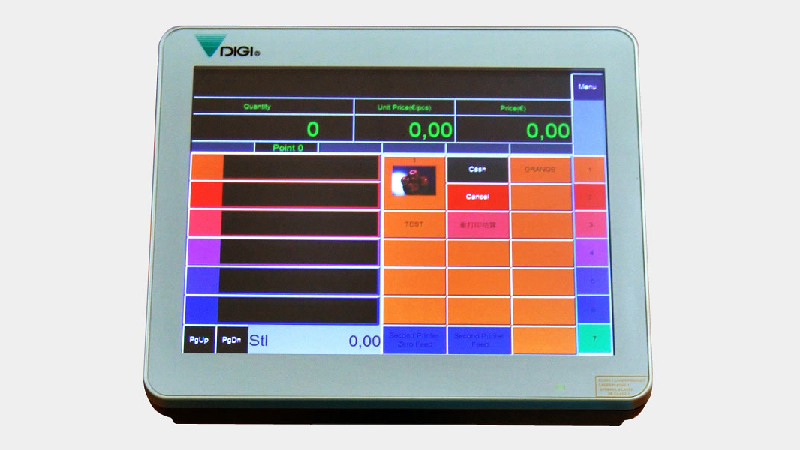

Color touch panel
Large 12.1-inch TFT LCD for simplified operation.

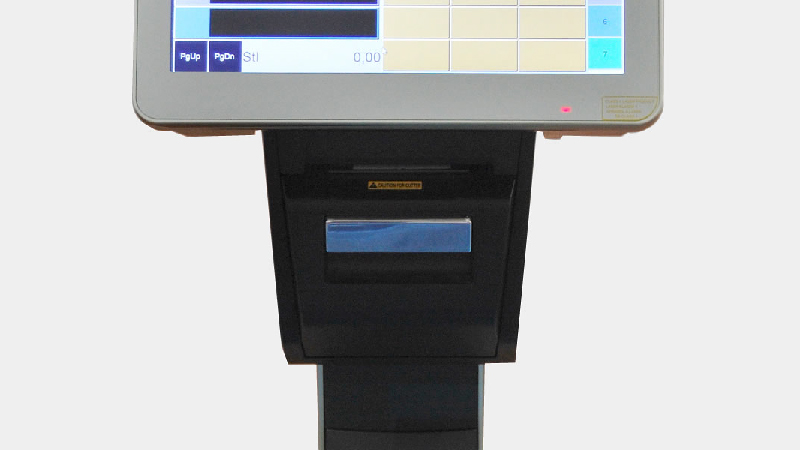

Wide thermal printer
Features an 80mm-wide thermal head with auto-cutter.

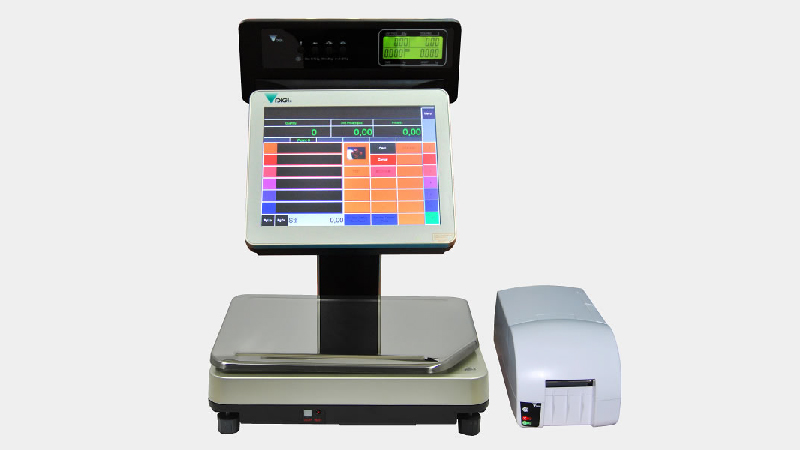

Link with printers
RM-5800Ⅱcan link with an invoice or accounting printer via standard parallel, serial, USB, and Ethernet interfaces.

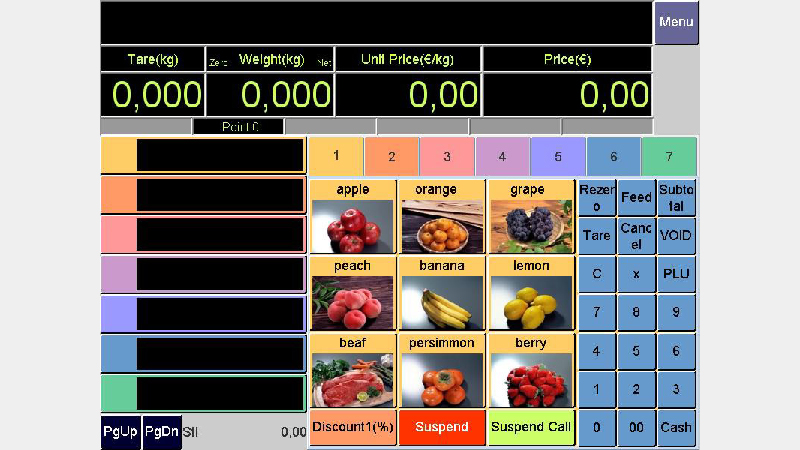

Application software for efficient operation
Works efficiently with MaxPOS, a unique application software that integrates price computing scales with POS functions.

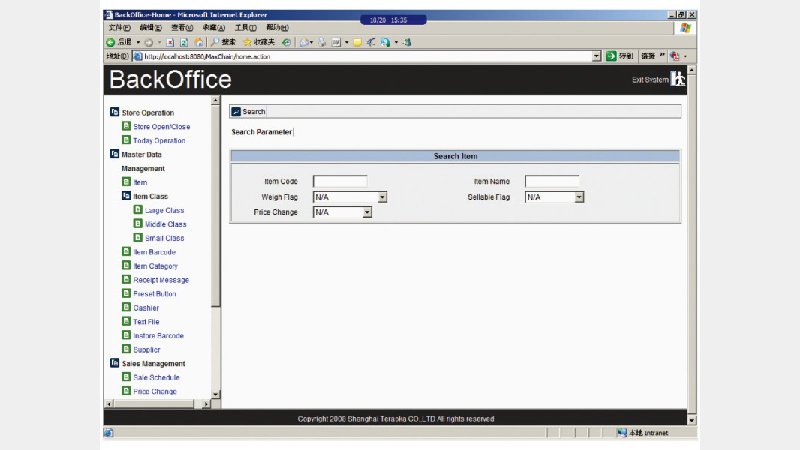

Web-based back office/HQ system
The RM also works with MaxChain, a web-based back office/HQ system for comprehensive operations management, such as sales, purchase, and warehouse control.
Specifications

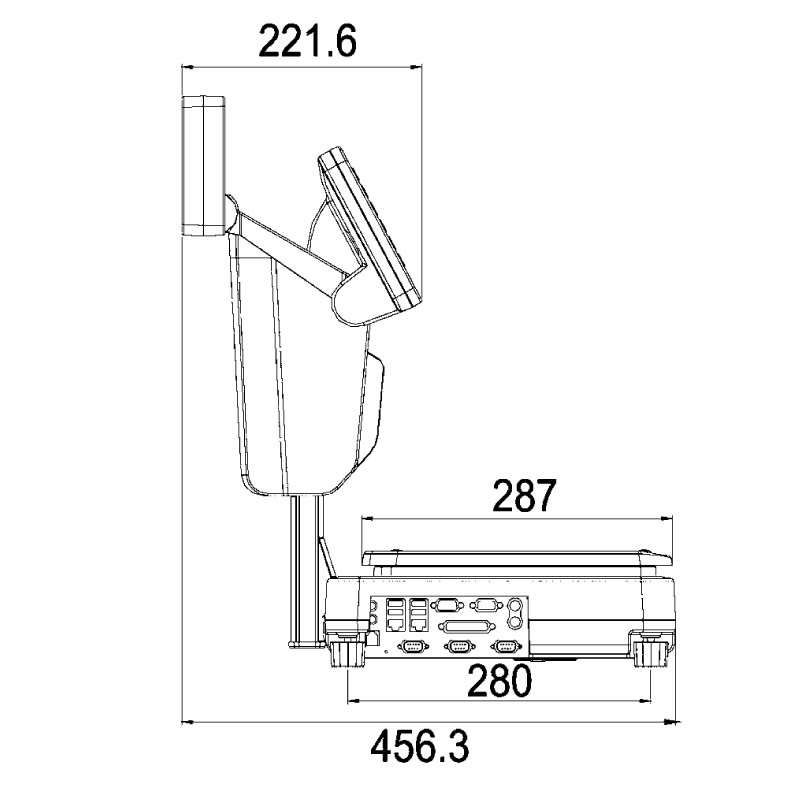

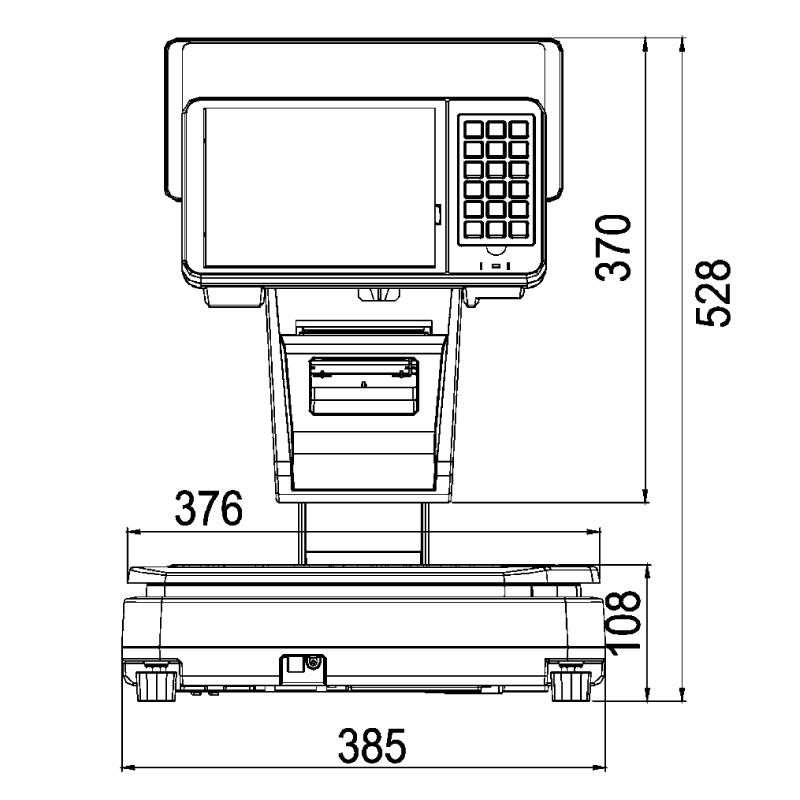

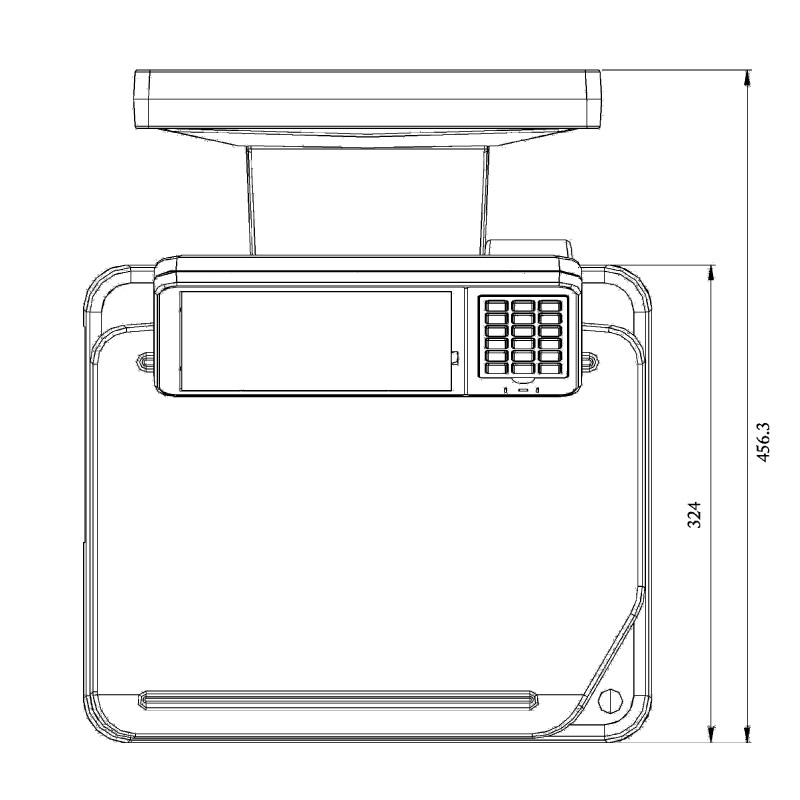

Dimensions
Weighing
| Capacity | Max 3/6 kg | Max 6/15kg | Max 30kg |
|---|---|---|---|
| Interval | 1/2g | 2/5g | 5/10g |
Display
| Operator Display | 12.1 inchesTFT LCD Panel(1024x768)+ LCD with Backlight and Control Keys(for scale) |
| Customer Display | 7" TFT-LCD(800x480)+ LCD with Backlight(for scale) |
Operation and general specification
| Memory Capacity | 1xDDR2 533 DIMM socket (Maximum memory size up to 2GB) |
|---|---|
| Standard Interface | USB, Ethernet, Serial, PS/2 |
Receipt
| Receipt Printing Size | Receipt 80mm x 220mm Label 60mm x 220mm (RM-5800II-T and RM-5800II-TB) |
|---|---|
| Paper Width | 80mm for Receipt |
| Printing Speed-Receipt | Up To 220mm/s* |
* To achieve maximum high speed, high sensitivity thermal paper is necessary. Contact DIGI for details.
Options
| Memory Capacity 1GB/2GB |
| Wireless LAN I/F (10/100mbps) |
| Cash Drawer I/F |
Variations

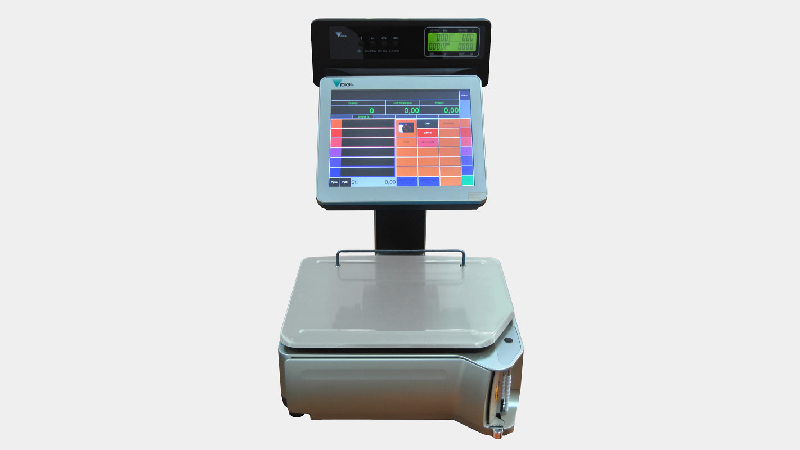

Elevated with 7" TFT LCD customer display
RM-5800II(B)
