Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.
Main Features

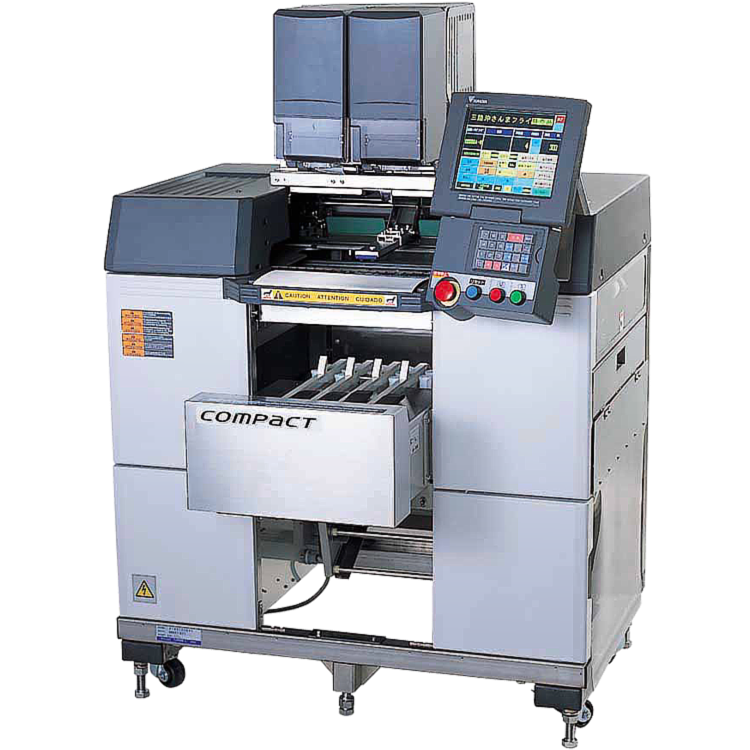

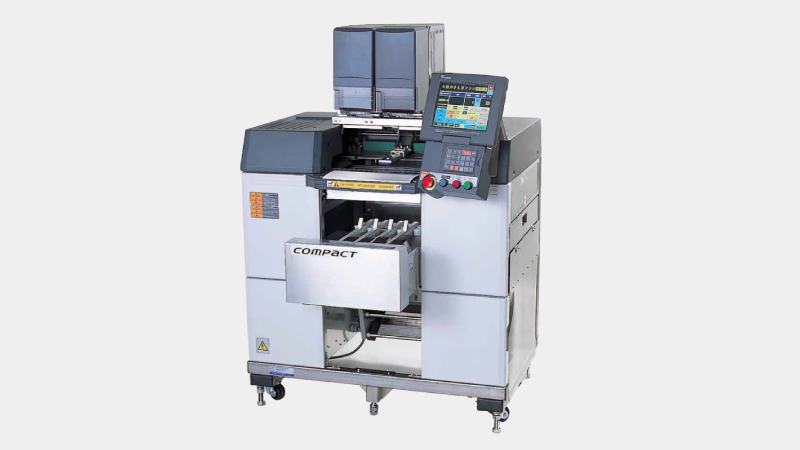

AW-4600CP is an automatic weigh-wrap-label system capable of handling from small to large items with a compactly and robust designed body. Easy to operate with high visibility color touch screen.
High Productivity

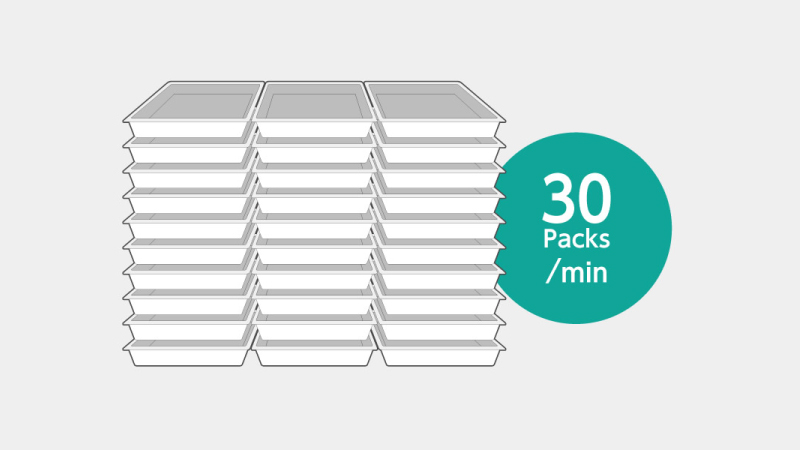

Contributes to greater operational efficiency with a maximum processing capacity of 30 packs/minute.
Easy cleaning

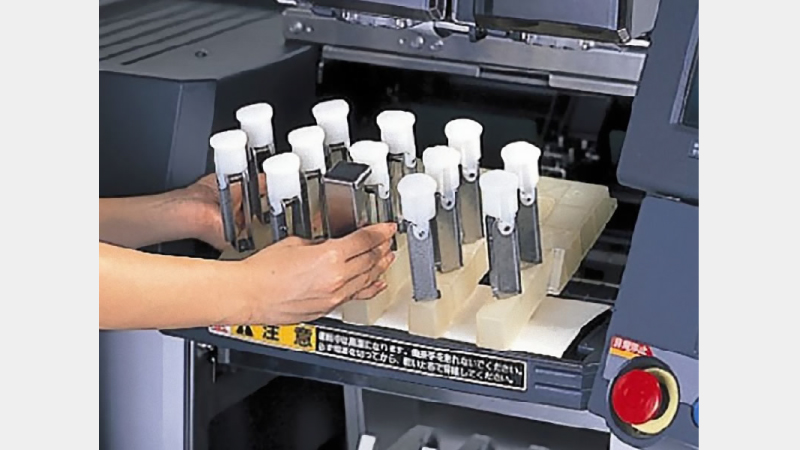

Parts that touch the product, such as the elevator head and scale tray, are made of anti-bacterial material. They can all be easily removed and washed in water. Helps maintain hygienic work conditions.
Specifications

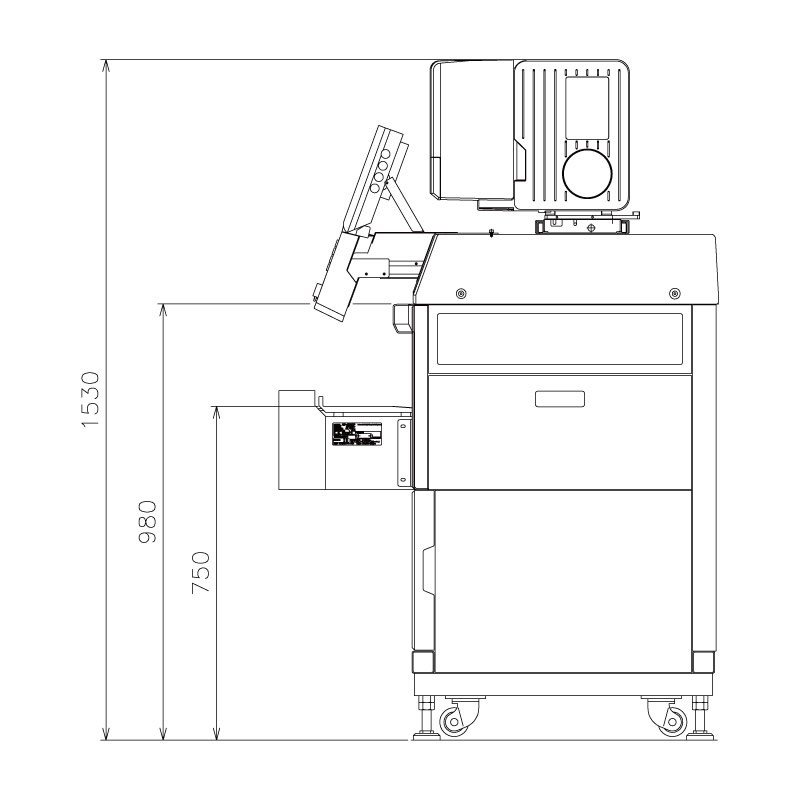

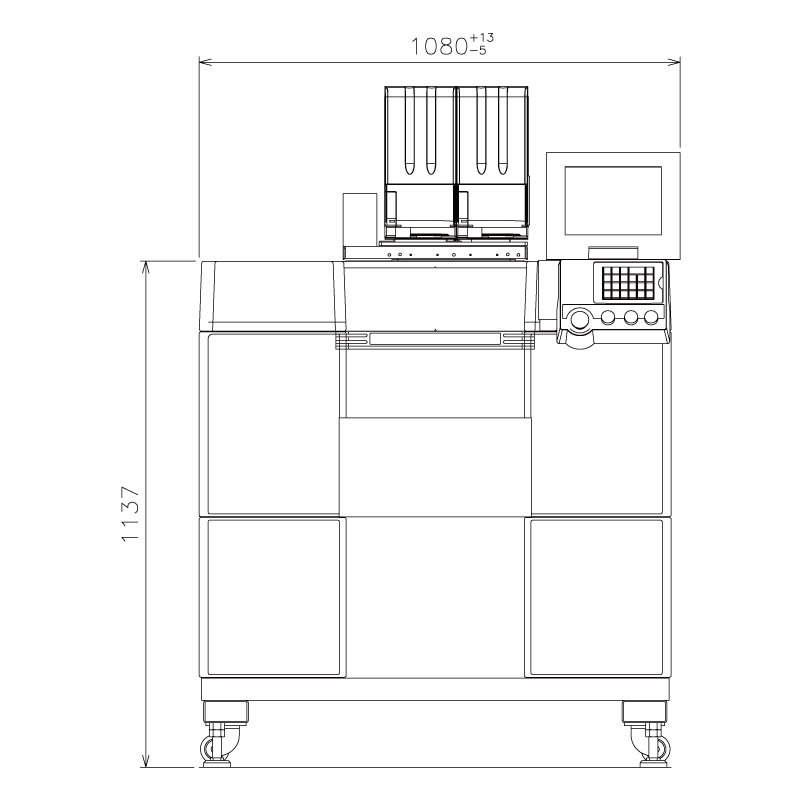

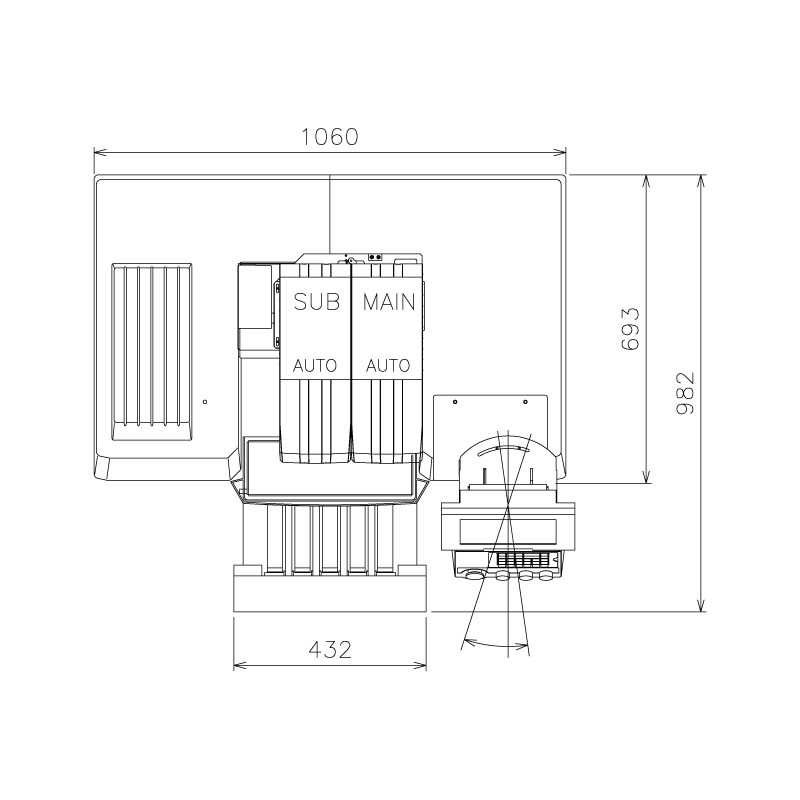

Dimensions
Wrapping
| Wrapping Speed | Max. 30 packages/min. |
|---|---|
| Package Size | Width: 130 to 380mm / Height : 10 to 150mm / Depth : 80 to 260mm
The maximum combination of the above dimension is not available and the
available package size depends on the film width. |
| Film Roll Capacity | One |
| Film Size | Accepts 300 to 500mm rolls |
Weighing
| Multi interval | Single interval | |||
| Capacity | Max. 6/15kg | Max. 3/6kg | Max. 30 lb | |
| Scale Interval | e=2/5g | e=1/2g | e=0.01 lb | |
Labeling
| Label Type | Thermal paper |
|---|---|
| Labeling Application | Manual / Automatic |
| Label Size | Width: 40 to 80mm |
| Net Weight | 280kg
Single labeler type
|
|---|
Variations
Twin labeler
Allows two different types of labels to be selected according to application.
