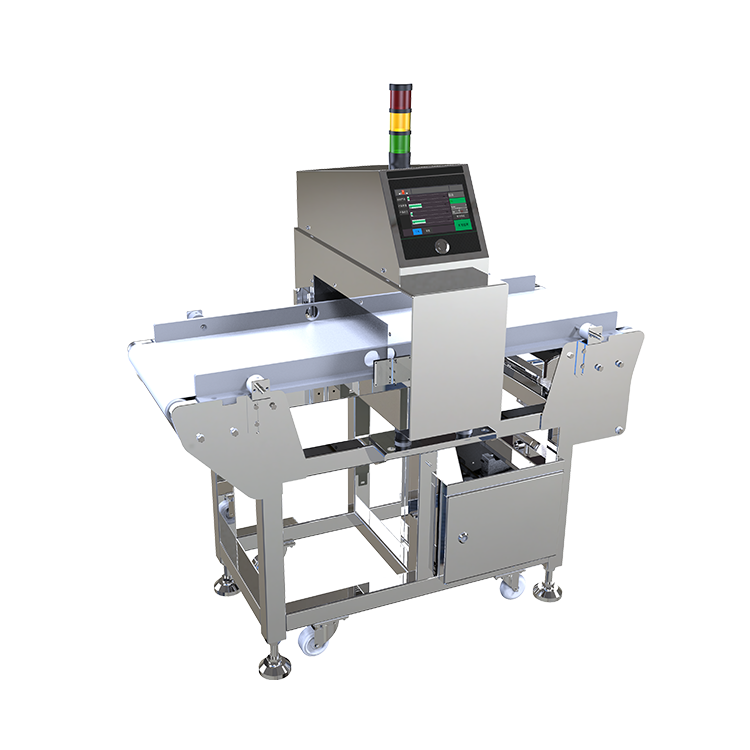

Digital Metal Detector
DMD-200
Gıda EndüstrisiAna Özellikler
The DMD-200 is designed to safeguard product integrity by preventing or detecting foreign objects within packages. Its advanced automatic phase adjustment effectively eliminates product interference, enhancing detection sensitivity across various packaging types.
Enhanced detection with automatic phase adjustment
Automatic phase adjustment technology is adopted to effectively suppress product effects and achieve detection sensitivity. The multi-frequency technology is applied for all application requirements.

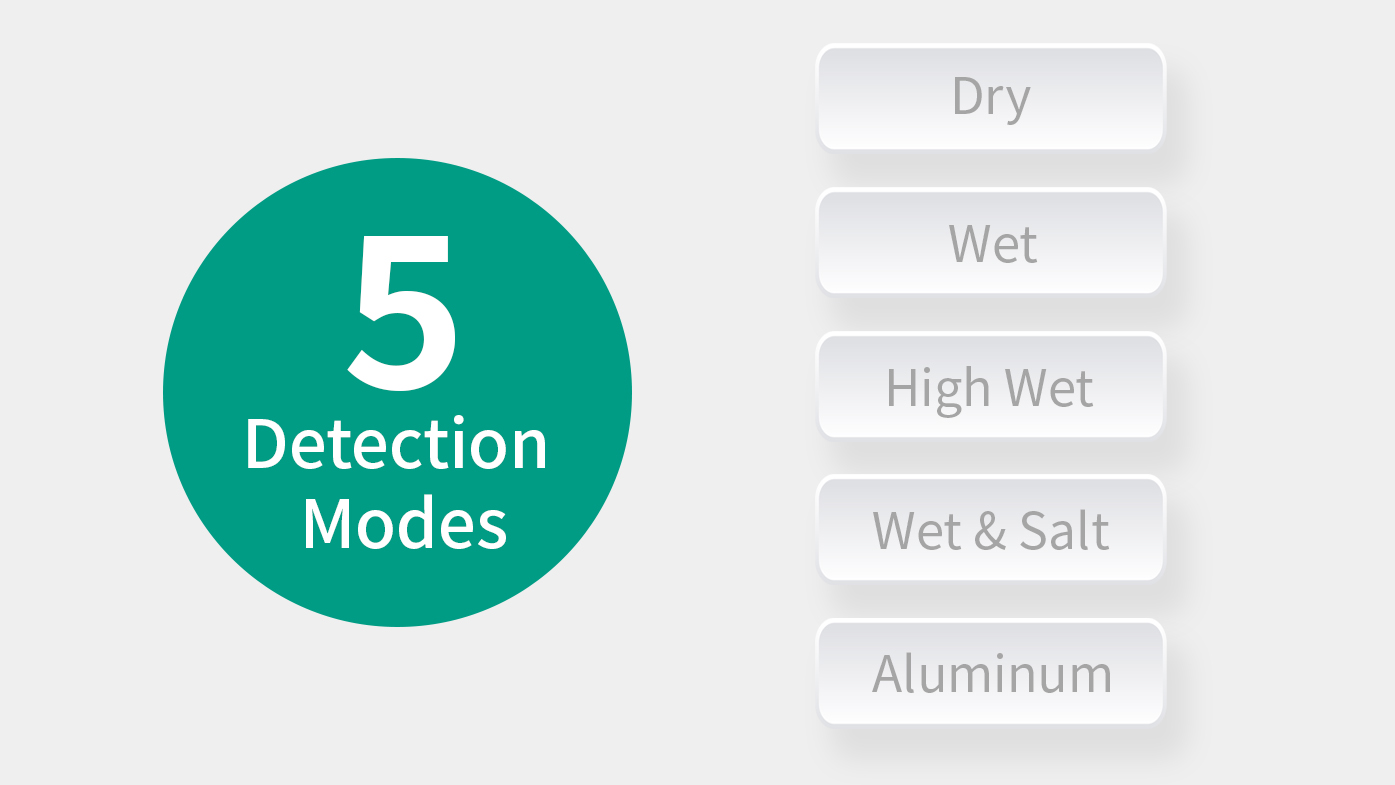

5 Detection modes
Five built-in detection modes can detect dry, wet, high-wet, wet & salty, and aluminum film packaging items. With multi-frequency detection, ferrous, stainless steel, non-ferrous, and other metal foreign matter can be detected sensitively.

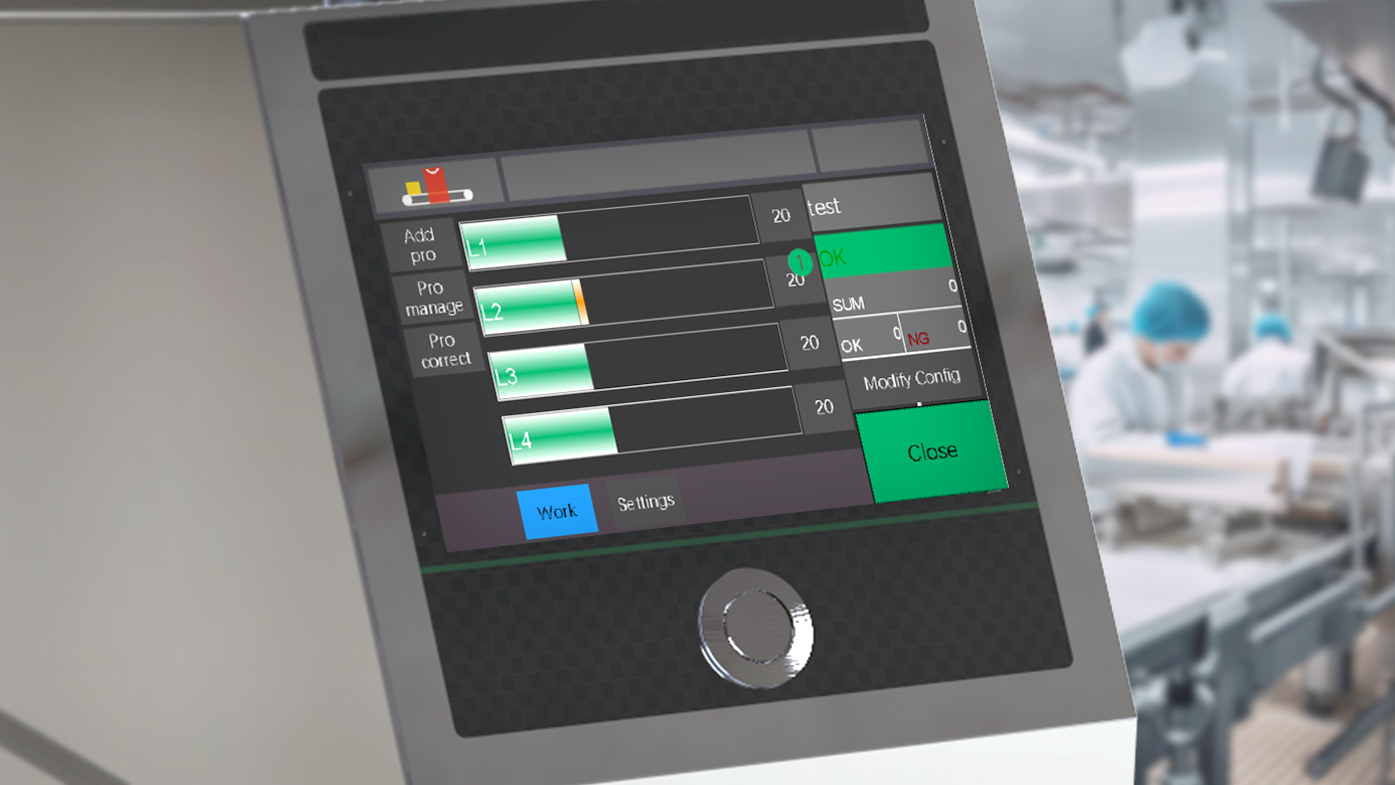

Easy to operate

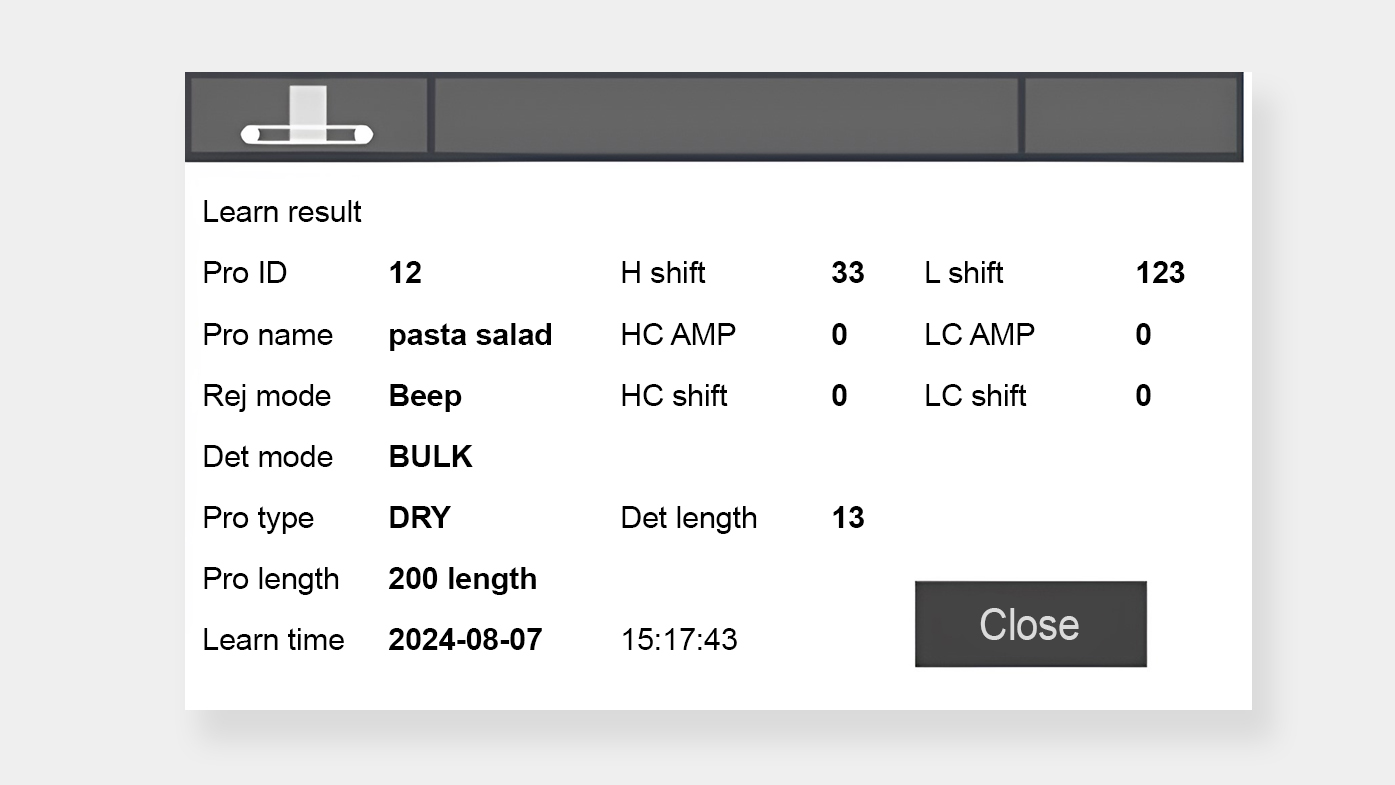

With smart settings and automatic self-learning, new product setup can be done in just simple two steps.
Durable and easy to clean
Waterproof construction with high IP rating and easy to clean. With one-touch replacement of the belts, maintenance is fast and simple.
Teknik Özellikler

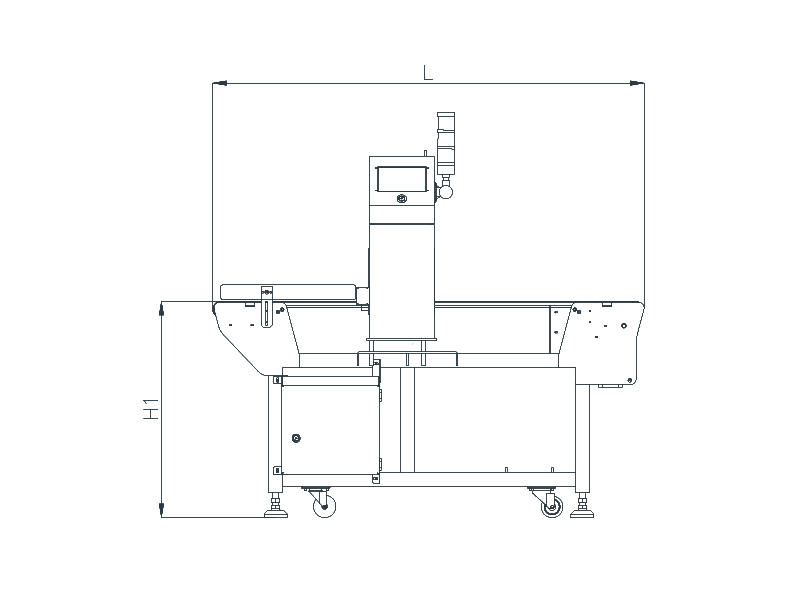

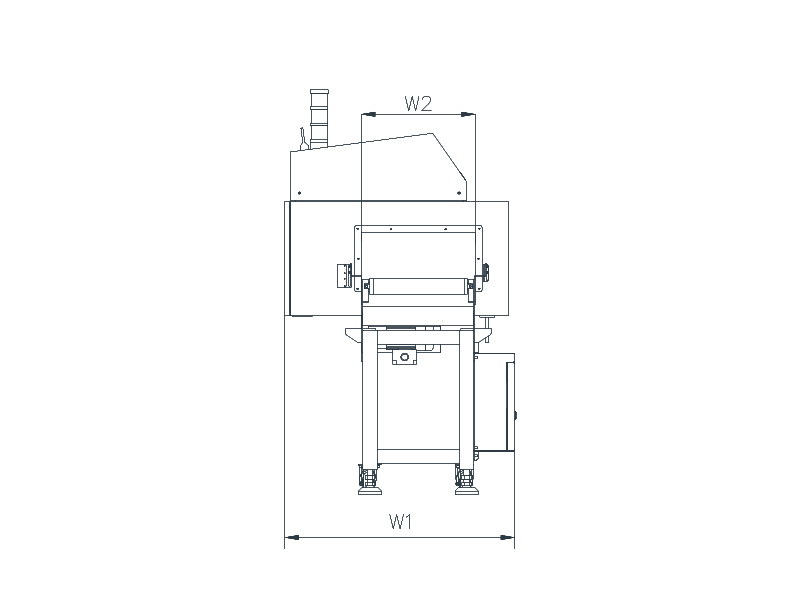

Dimensions
| Model | 40 | 50 |
|---|---|---|
| Length (mm) | 1200/1500/1800 | |
| Conveyor Height H1 (mm) | Customizable | |
| Machine Width W1 (mm) | 820 | 920 |
| Channel Width WP (mm) | 400 | 500 |
| Machine Length | 1.2m, 1.5m, 1.8m | |
|---|---|---|
| Detection Frequency | Built-in 5 groups of frequencies,optional dual frequency combination | |
| Can detect dry,wet,wet salt,aluminized film packaging items | ||
| Display | 7 inches TFT LCD display with Touch panel | |
| External Interface | USB/LAN/Printer/4G Remote Control/AI Remote Control | |
| Conveyor Speed | 20,30,40 meter/minutes(Optional) | |
| Power | AC220V,50/60Hz | |
| Alarm Mode | Sound-light Alarm/Alarm Stop/Automatic Sorting System(Optional) | |
| Conveyor Material | Food grade PU Belt/Chain Belt | |
| Operating Temperature | 0~45C | |
| Humidity | 30~85% Humidity, non-condensing | |
| Environmental Sealing | IP66 | |
| Machine Material | SUS304,Surface Drawing Process/Mirror Surface/Scrub(Optional) | |
