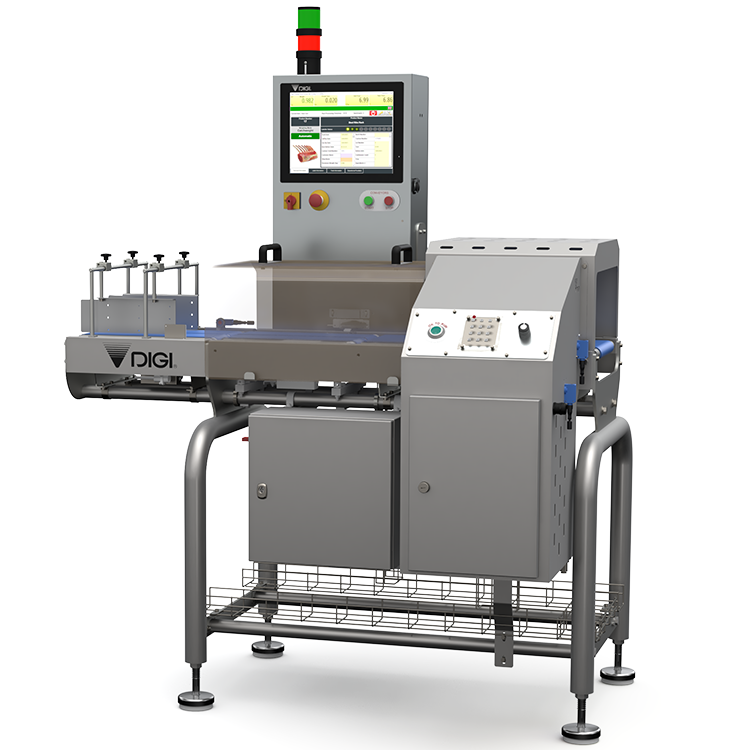

Checkweighing System With Integrated Rejection
CW-800RJ
Gıda EndüstrisiAna Özellikler
The CW-800RJ is a fully-automated checkweighing system with integrated rejection, capable of processing 150 packs per minute. Its high productivity will ensure targets are met, whilst your brand is protected by ensuring target weight is met.
![cw800rj_WP04_01](./product_file/file/cw800rj_WP04_01.jpg)

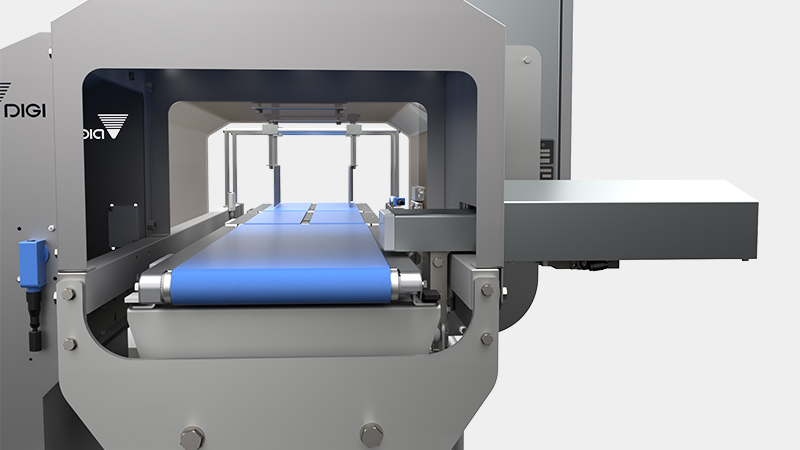

Integrated Rejector
With the CW-800RJ, you will have complete control of the weight of your batches, accepting all that meet your specified weight and rejecting those that do not.
![cw800rj_WP04_02](./product_file/file/cw800rj_WP04_02.jpg)

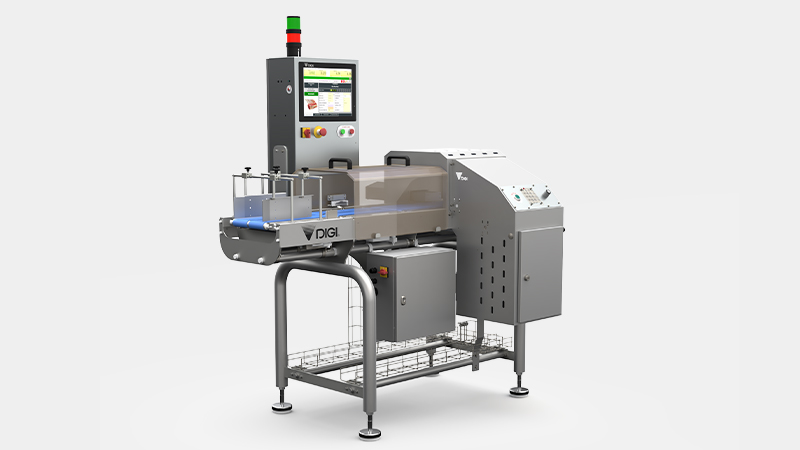

Automatic Checkweighing of up to 150ppm
Understanding the demands of the modern production environment, the CW-800RJ has been designed with a direct drive conveyor system that provides reliable processing of up to 150 packs per minute.
![cw800rj_WP04_03](./product_file/file/cw800rj_WP04_03.jpg)

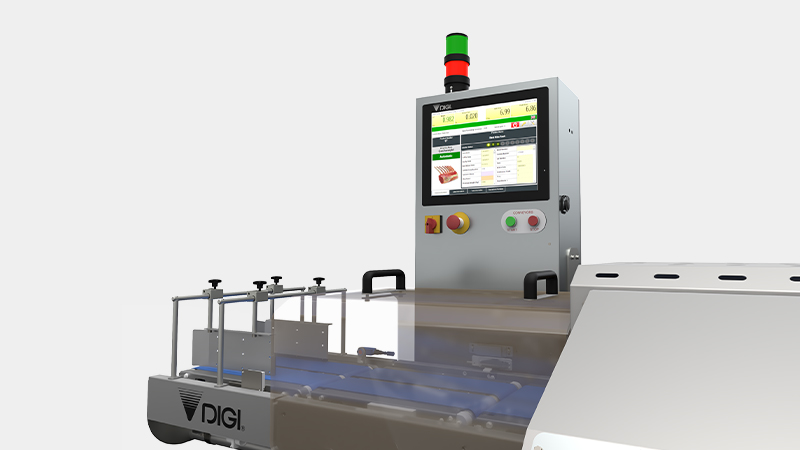

User-Friendly Interface
The CW-800RJ uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labellers.
Teknik Özellikler

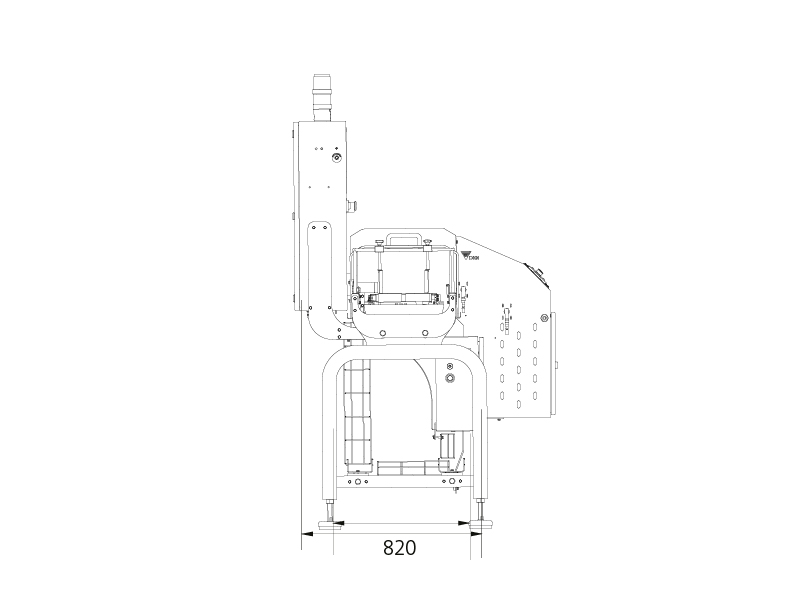

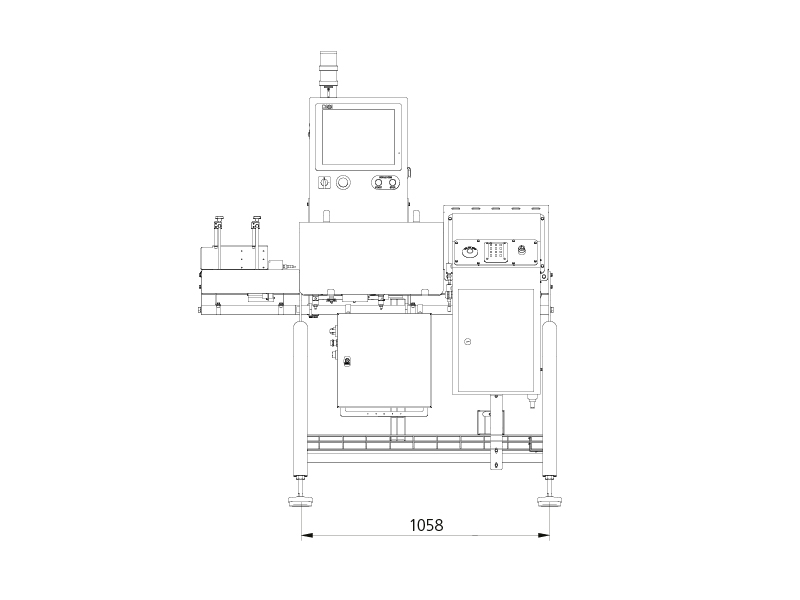

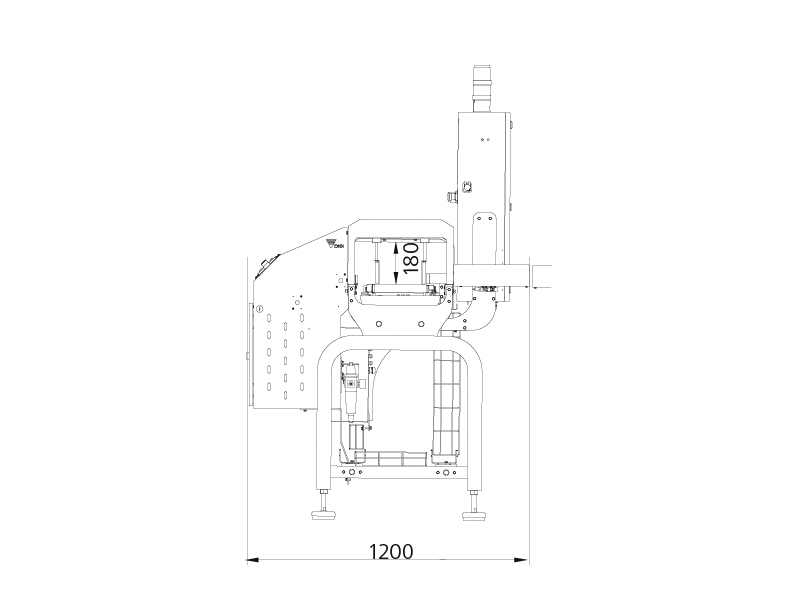

Dimensions
Weighing
Capacity | Max 6 kg | ||
---|---|---|---|
Single Interval | e= 1g | ||
Pack Speed | up to 150 packs per minute | ||
Pack Size | L80-300mm x W40-250mm |
Display
Screen | 15" Colour LCD touchscreen |
---|---|
Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
Weighing Modes | Fixed Weight, Average (Emark) |
---|---|
Communication | Ethernet, USB, RS232 |
Operating System | Windows 10 OS |
Language | Multi-lingual Unicode |
Software | WorldView (embedded application) |
Database | SQL |
Connectivity | Remote programming and control |
Connectivity to meet industry standards | |
Customisable output data | |
Interconnectivity to back-office data management |
General
Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
---|---|
Operating Temperature | 0 to +30°C |
Standard Features
Scale Cover | 'lift-off' formed polycarbonate |
---|---|
Sensors | Overhead retro reflective |
Pack Guides | Adjustable width pack guides |
Conveyors | Blue belts |
Modeller
![cw800rj_WP07_01](./product_file/file/cw800rj_WP07_01.jpg)

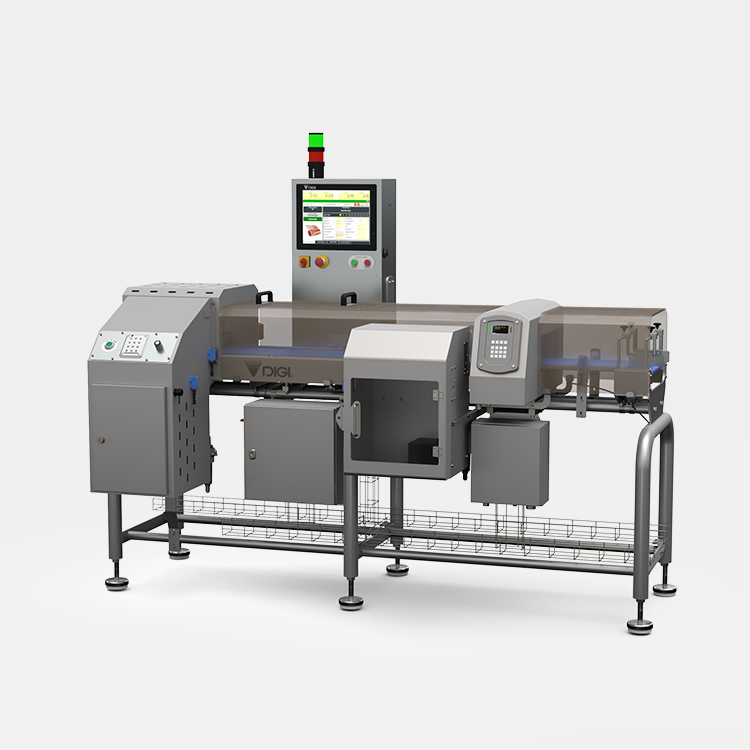

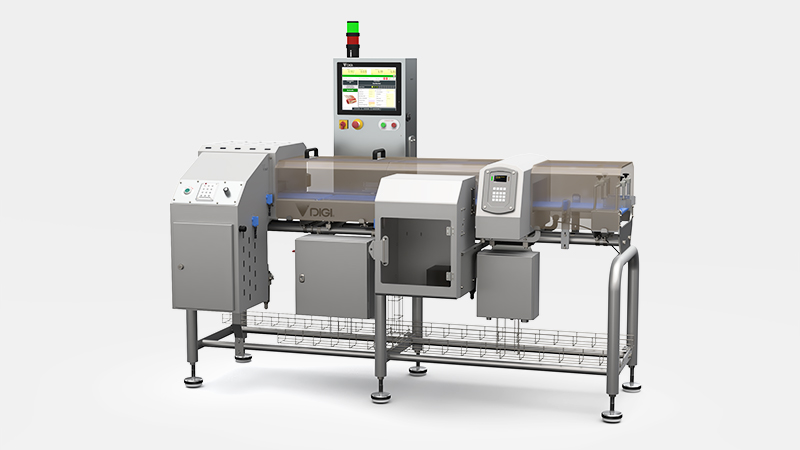

CW-800 with Metal Detection and Rejection (CW-800 Combi)
![cw800rj_WP07_02](./product_file/file/cw800rj_WP07_02.jpg)
