Mid-Speed Weigh Price Labeller For Wider Products
MI-700W II
Gıda EndüstrisiAna Özellikler
The MI-700W ll is a mid-range Weigh Price Labeller, featuring a single frame design and wider conveyors, processing wider products at a speed of up to 80ppm. Running PC-based software, networking and integration with existing machines and back office systems is straightforward.
![mi700w-2_WP04_01](./product_file/file/mi700w-2_WP04_01.jpg)
Wide Conveyors
The 400mm wide conveyor allows the processing of packs up to 400mm wide at a speed of up to 80ppm.
![mi700w-2_WP04_02](./product_file/file/mi700w-2_WP04_02.jpg)
Signature Labeller
The high speed signature labeller provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.
Teknik Özellikler

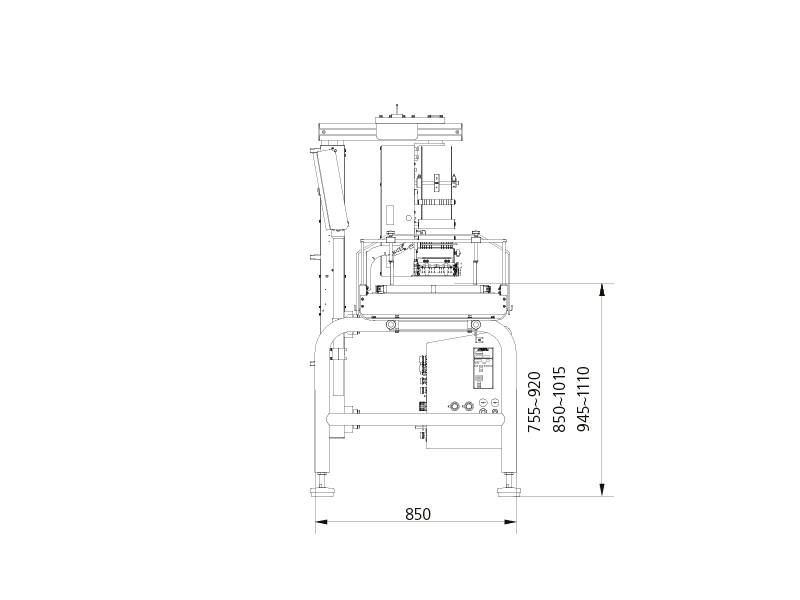

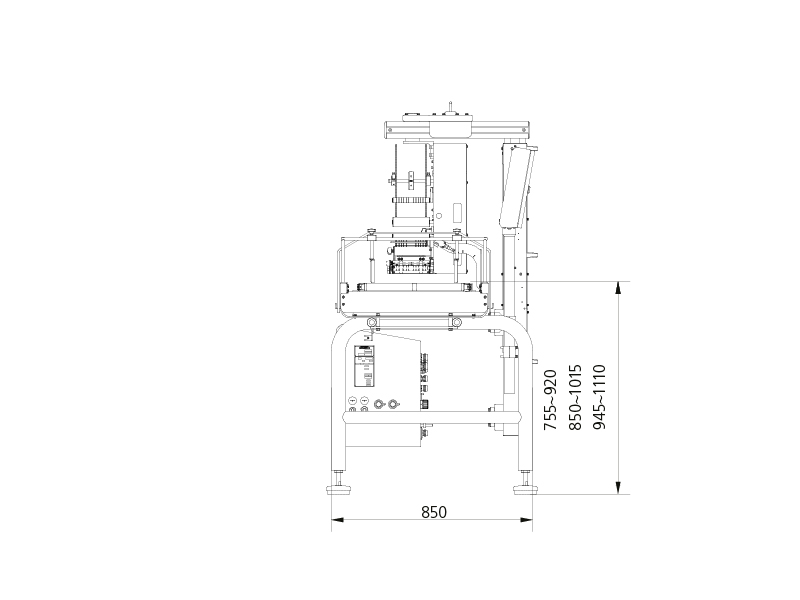

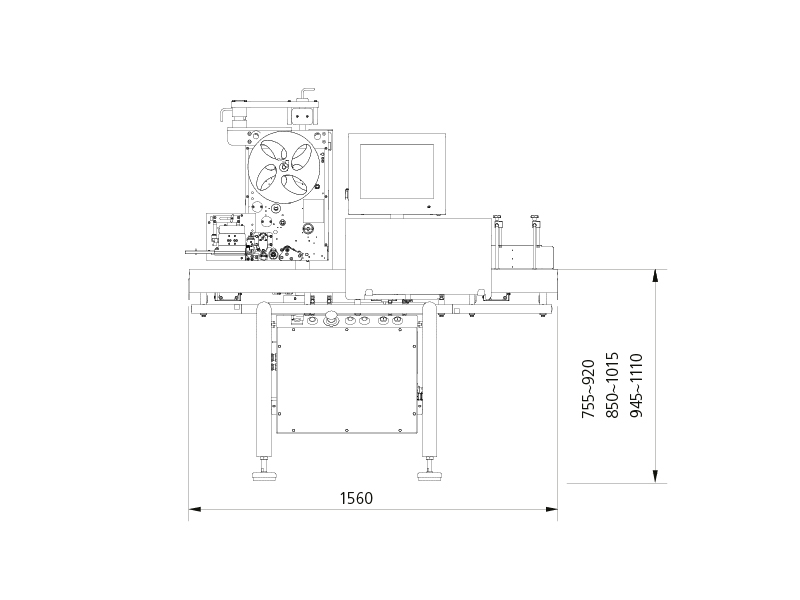

Dimensions
Weighing
Capacity | Max 6 kg (or greater) | Max 12kg (or greater) | ||||
---|---|---|---|---|---|---|
Single Interval | e= 1g | e= 2g | ||||
Pack Speed | up to 80 packs per minute | |||||
Pack Size | L80-300mm x W40-400mm x H180mm |
Display
Screen | 15" Colour LCD touchscreen |
---|---|
Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
Weighing Modes | Catch Weight, Fixed Weight/Price, Average (Emark) |
---|---|
Labellers | Multiple labellers/printers |
Communication | Ethernet, USB, RS232 |
Operating System | Windows 10 OS |
Language | Multi-lingual Unicode |
Software | WorldView (embedded application) |
Database | SQL |
Connectivity | Remote programming and control |
Connectivity to meet industry standards | |
Customisable output data | |
Interconnectivity to back-office data management |
General
Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
---|---|
Operating Temperature | 0 to +30°C |
Standard Features
Scale Length | 400mm |
---|---|
Scale Cover | 'lift-off' formed polycarbonate |
Sensors | Overhead retro reflective |
Labellers | Signature |
Pack Guides | S100 tall guides |
Conveyors | Split blue belts |
