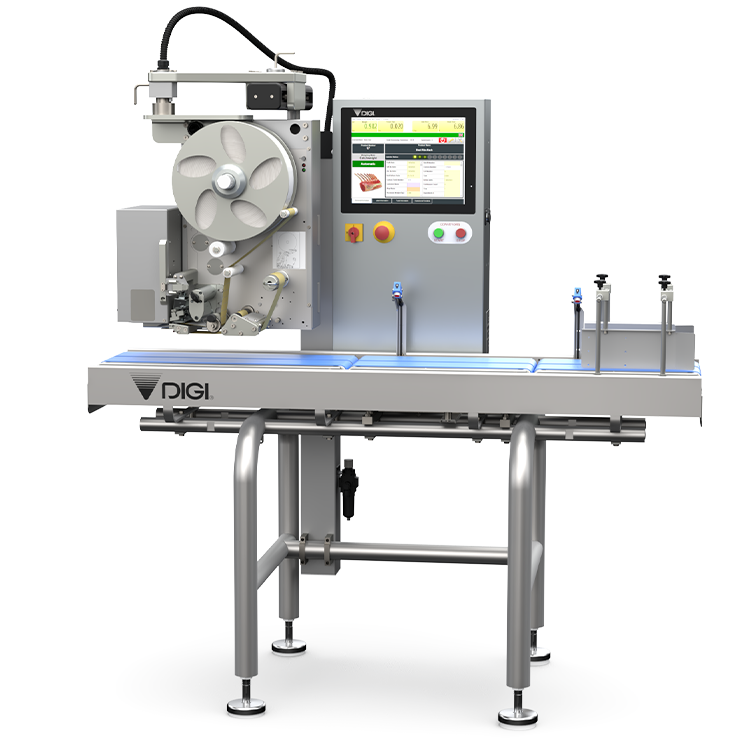

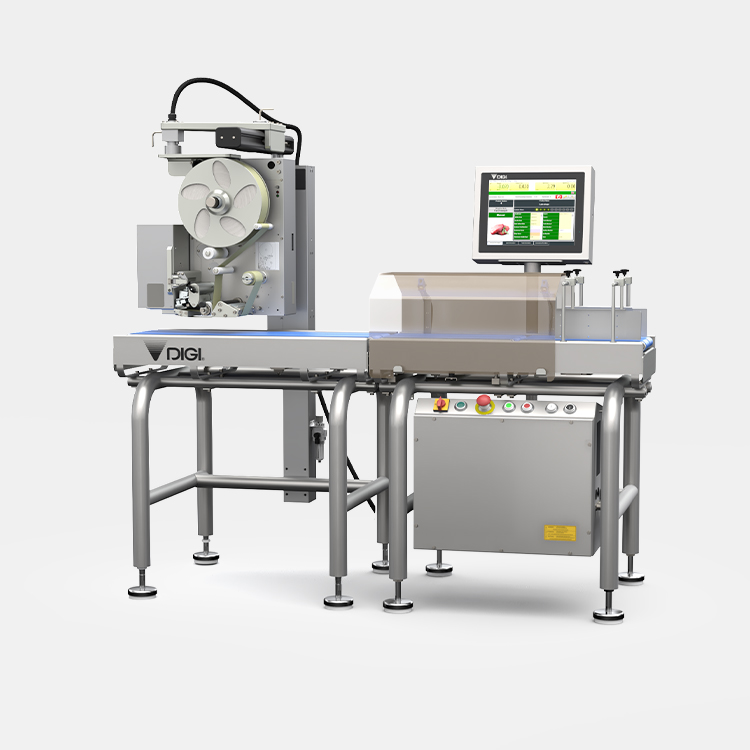

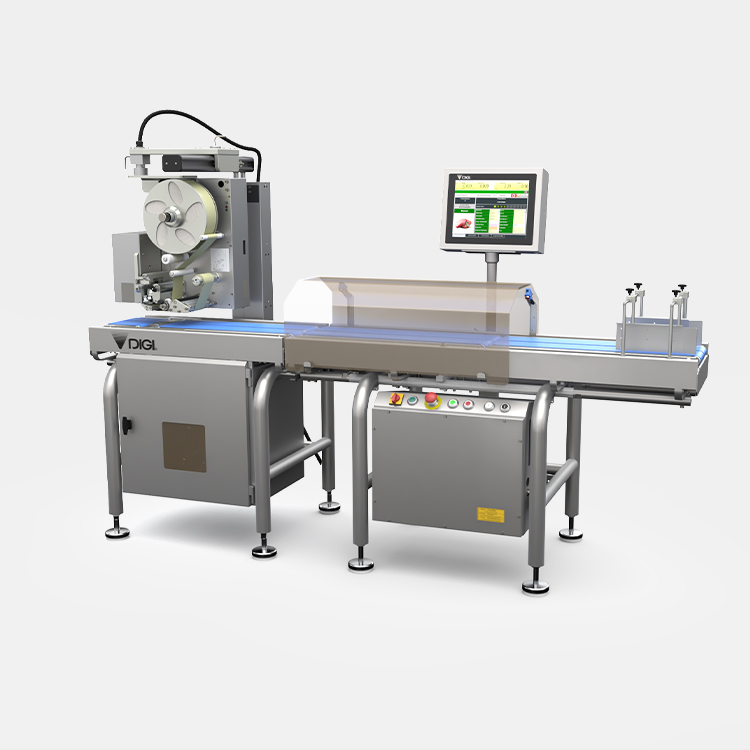

Dynamic Weigh Price Labeler

LI-700 II

Food Industry

Main Features

The LI-700 ll Weigh Price Labeler is designed for medium productivity environments, processing up to 65ppm. Featuring a single frame design running PC-based software, networking and integration with existing machines and back office systems is straightforward.

li700-2_WP04_01

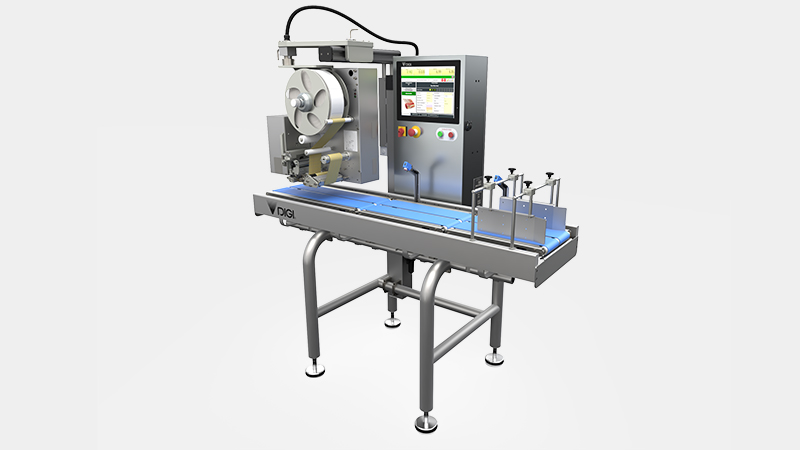

Compact Design

The LI-700 II's single frame design is compact, taking up 1560mm x 695mm of floor space, making it ideal for production lines where space is limited.

li700-2_WP04_02

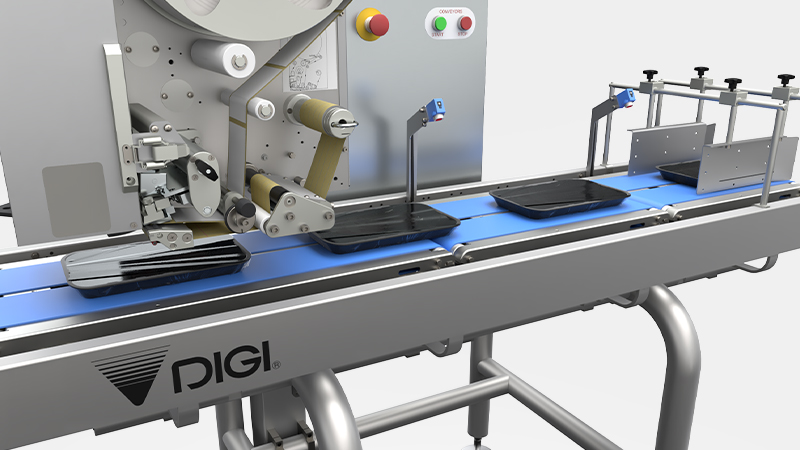

Signature Labeler

The high speed signature labeler provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.

li700-2_WP04_03

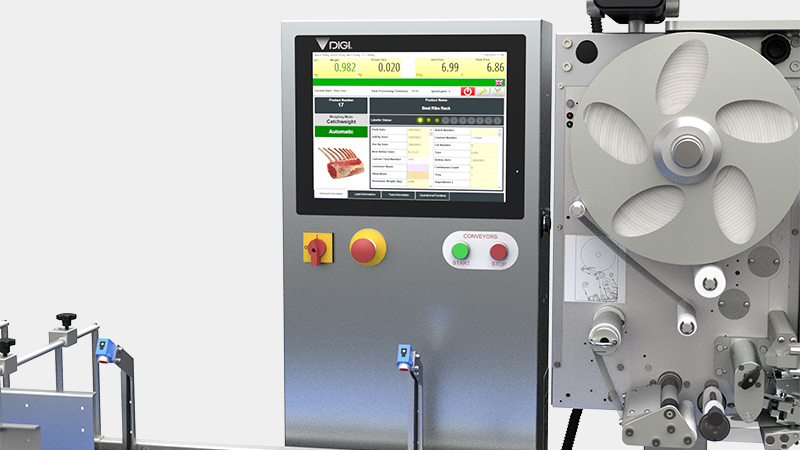

WorldView Operating Software

The LI-700 ll uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labellers.

Specifications

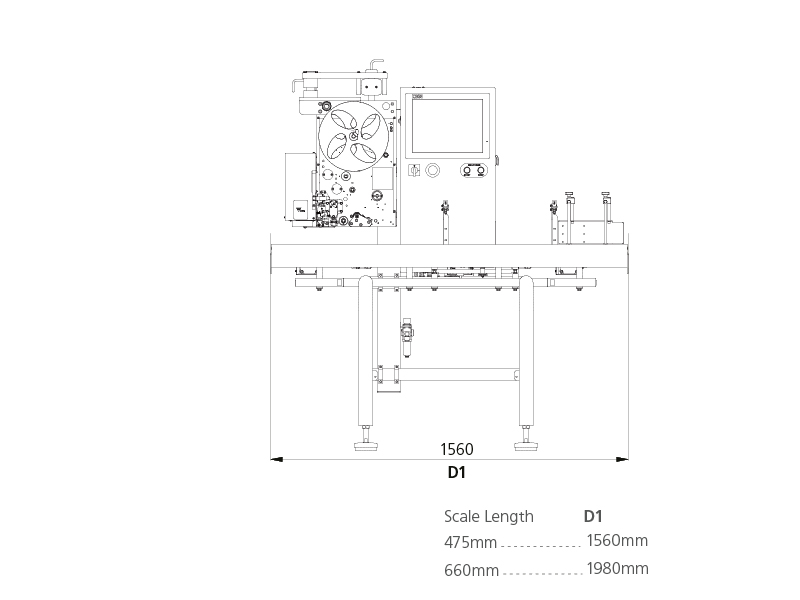

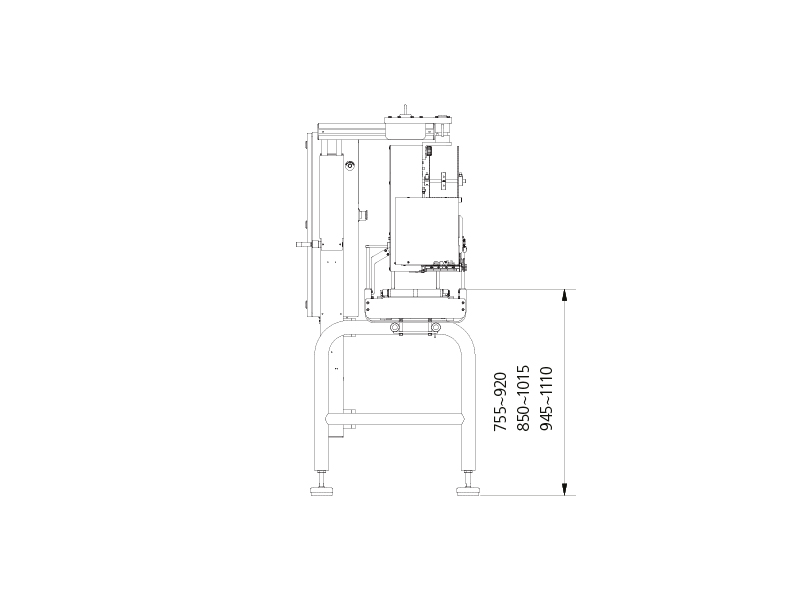

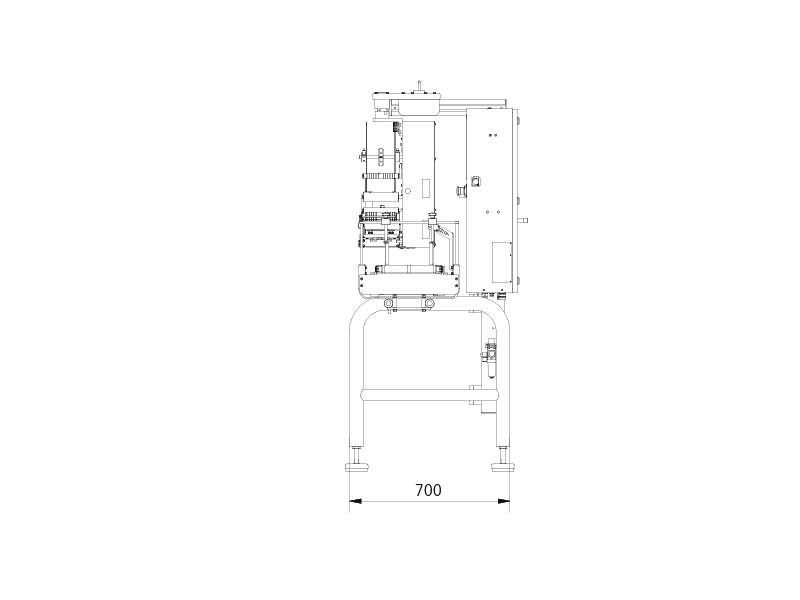

Dimensions

  • li700-2_wp05_01
  • li700-2_wp05_02
  • li700-2_wp05_03

Weighing


Capacity
2g min on 660mm scale
Max 6 kg Max 10kg
Single Interval e= 1g e= 2g
Pack Speed up to 65 packs per minute
Pack Size   L80-300mm x W40-250mm x H180mm L80-485mm x W40-250mm x H180mm
(660mm scale)


Throughput dependant on product weight and size.

Display


Screen 15" Colour LCD touchscreen
Touch panel XGA a-Si TFT LCD Resistive touch


Operation

Weighing Modes Catch Weight, Fixed Weight/Price, Average (Emark)
Labelers Multiple labelers/printers
Communication Ethernet, USB, RS232
Operating System Windows 10 OS
Language Multi-lingual Unicode
Software WorldView (embedded application)
Database SQL
Connectivity Remote programming and control
Connectivity to meet industry standards
Customisable output data
Interconnectivity to back-office data management


General


Power Supply 220-240V(115V Option) 50/60Hz AC Single Phase
Operating Temperature 0 to +30°C


Standard Features

Scale Length 475mm or 660mm
Scale Cover 'lift-off' formed polycarbonate
Sensors Overhead retro reflective
Labellers Signature
Pack Guides S100 tall guides
Conveyors Split blue belts

Variations

li700-2_WP07_01

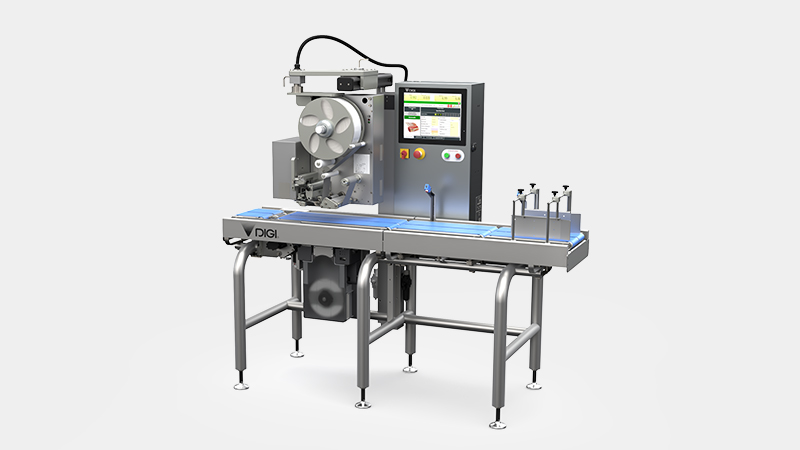

Top and Bottom Labeling

Additional labelers can be integrated into the Weigh Price Labeler, giving extra flexibility to label both the top and under side of each pack simultaneously. (Image shows bottom labeler as optional Cassette labeler)

Options

li700-2_WP09_01

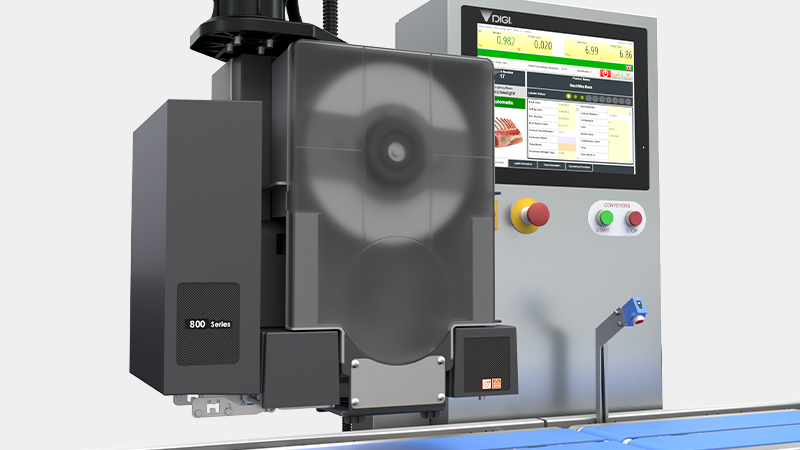

Casette Labeler

The LI-700 II can use the Cassette labeler as well as or instead of the Signature labeler. Please contact Sales for specifications.
li700-2_WP09_02

Auto Labeler Height Adjustment (Signature)

The height of the Signature labeller can be automatically adjusted via the Product Look Up (PLU).

Options

Options Pre-printed label applicator, Direct protocol Honeywell (PM43/45), Direct protocol Zebra (ZPL II), Windows printers, High level warning beacon, Rejector, Gravity infeed/outfeed rollers, Pack sensors, 2 or 3 conveyors (3 available on 475mm scale)
