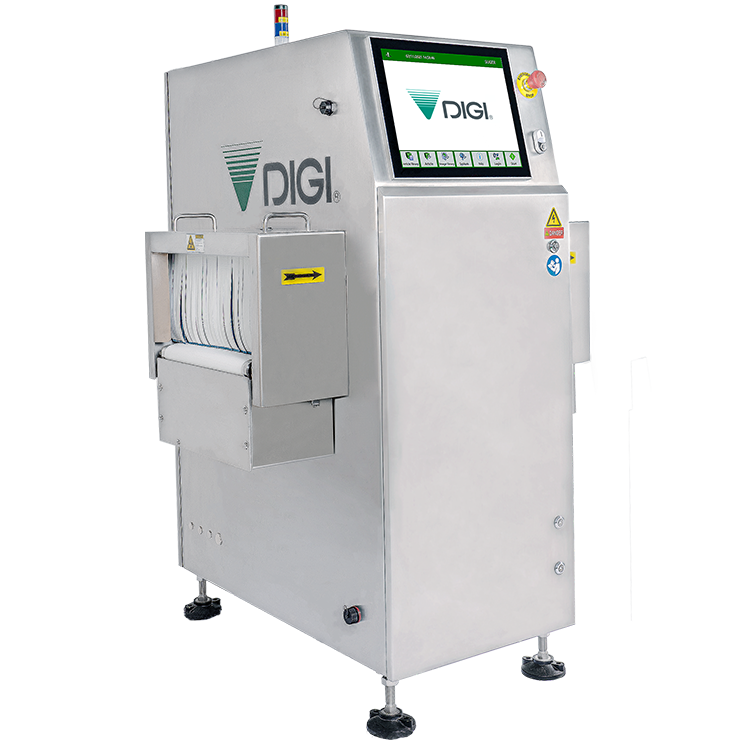

High-performance X-ray inspection system
SR Series
Food IndustryMain Features
The SR Series X-Ray inspection system provides high performance in-line contaminant checking for a wide range of products. The advanced technology and intelligent software can detect even the smallest contaminants. With a robust system and reliable hardware, the SR inspection system helps customers increase production efficiency and safety.
No blind areas in tunnel
Creative u-shape detector and top-down beam design ensures there are no blind areas in the tunnel to avoid missing any potential contamination.
Advanced self-learn feature
Self-learn not only learns algorithm parameters but also learns kV and mA meters to achieve optimum results.
Designed with high saftey measures
CE conformity: Risk assessment
Machinery safety directive
Low voltage directive and safety circuit design
Friendly operation software
A 15 inch capacitive wide screen with simple UI/UX for comfortable operability and simple training.
Specifications

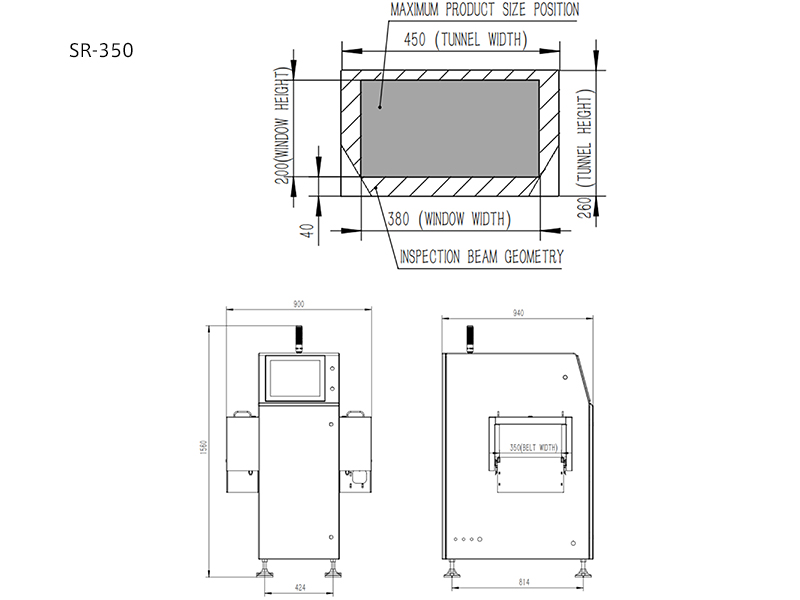

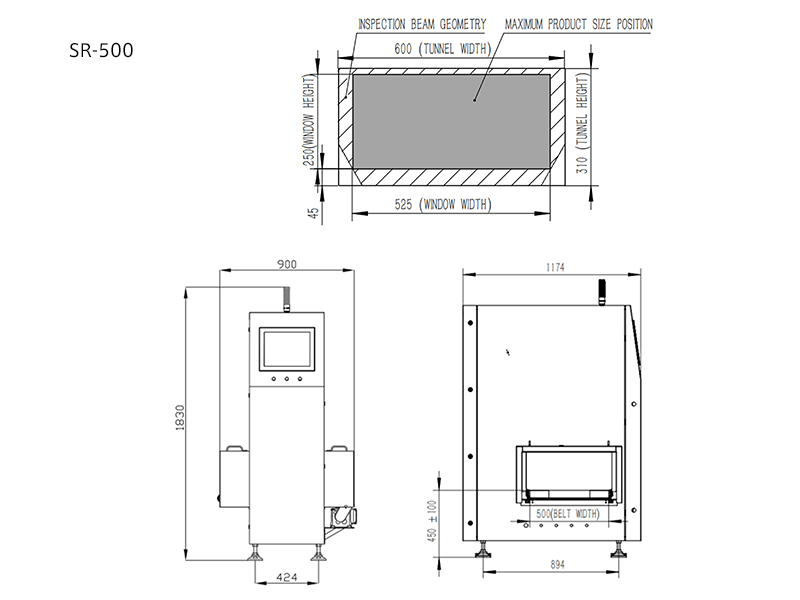

Dimensions
Feature | SR350 | SR500 |
---|---|---|
Conveyor speed | 10-60m/min | 10-30m/min |
Lane configuration | Single lane | |
Throughputs | up to 300 pcs/min (depending on size) | |
Conveyor length (A-A) | 900mm | |
Conveyor length (B-B) | 350mm | 500mm |
Max product height | 200mm | 250mm |
Max load on belt | 10g | 25g |
X-Ray generator | max 150w, up to 85kv, glass tube | max 210w, up to 85kv, glass tube |
X-Ray beam | Single vertical beam | |
X-Ray leakage | <1 uSv/hr | |
Cooling method | Air Conditioner | |
Operating humidity | Up to 90% RH | |
Operating temp. | 0 - 40°C | |
Power supply | 200 - 240 VAC, 1 phase, 50 - 60 Hz, Max 10 A | |
Pneumatic supply | Pneumatic supply | |
Casing material | 304 Stainless Steel | |
Ingress protection | IP54 Standard or IP65 Optional | |
System conveyor | FDA and food use approved TPU belt, 90W Oriental motor, 38mm diameter rollers |
FDA and food use approved TPU belt, 25W SEW motor, 50mm diameter rollers |
Terminal | 15” capacitive touch screen | |
Contamination handling | Pusher rejecter, Drop down rejecter, Stop on alarm, etc. |
