High performance pre-pack scale printer

DPS-5600II

Retail

Manual Weigh Labelers

Main Features

DPS-5600II is a high-performance pre-pack scale printer. It reduces work load with easy and simplified operation, and conserves label consumption by linerless label auto-sizing and auto-cut feature to achieve lower cost and a smaller environmental footprint.

Download brochure here

High performance prepack scale printer

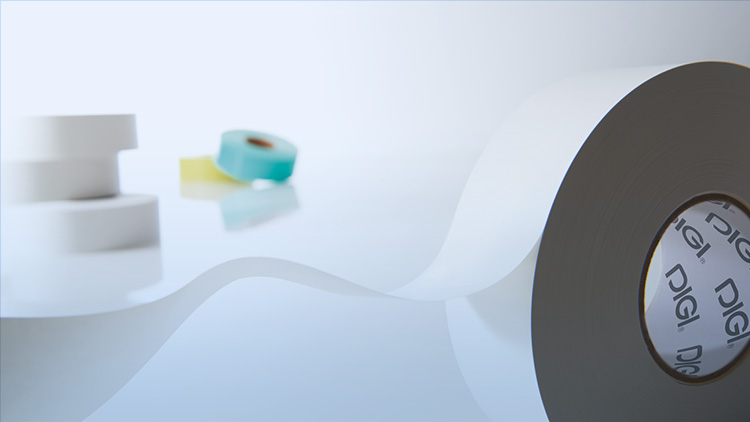

DIGI's linerless solution with auto-cutting, auto-sizing technology. This realizes flexible label format from a single roll.

High productivity

Reduces work load by aggregating two labels into one. The 15-inch color touch screen provides easy operation. Label contents can be easily checked on the display at any time, helping to prevent labeling errors.

Economical & Ecological

The linerless auto-label-sizing function compresses wasteful margin areas, thereby helping in the conservation of label usage. Use of linerless labels also minimizes waste and waste disposal efforts, making the daily operation more efficient and environmentally friendly.

Effective presentation through various labels

Flexible label design without restriction to a single label size enables you to highlight not only the common product information, but also product characteristics and freshness. Printing information such as recipe tips for consumers enhances promotional value. Shelf labels help improve productivity, while wrap-around labels deliver an impression of quality.

Specifications

Dimensions

Capacity

Interval type	Multi interval				Single inerval
Capacity	Max 3/6 kg	Max 6/15 kg	Max 15/30 kg	Max 30/60 lb	Max 30 lb
Scale interval	e=1/2 g	e=2/5 g	e=5/10 g	e=0.01/0.02 lb	e=0.01 lb
Weighing range	20 g-6 kg	40 g-15 kg	100 g-30 kg	e=0.01-0.02 lb	0.20-30 lb

Thermal printer

Label type	Die-cut label	Linerless label
Label width	25 - 80 mm/0.98-3.1 inches	44-59 mm/1.73-2.3 inches
Label length	20-150 mm/0.79-5.9 inches	20-500 mm/0.79-19.7 inches * Maximum printing length is 300 mm/11.8 inches

Operation console

Display panel	TFT LCD color (15 inches) touch panel
Operation keys	Mechanical keys and touch screen
Memory for programmable files	18 GB

General

Power source and power consumption	AC120 V; 60 Hz; 1.5 A,125 W AC220-240 V; 50/60 Hz; 1.0 A,125 W
Net weight	Main unit (Standed configuration) Single labeler type:16.5 kg/36.4 lb
	Main unit (Modular configuration) Single labeler type:19.7 kg/43.4 lb Twin labeler type:25.7 kg/56.7 lb
	Scale platform 3.8 kg/8.4 lb
