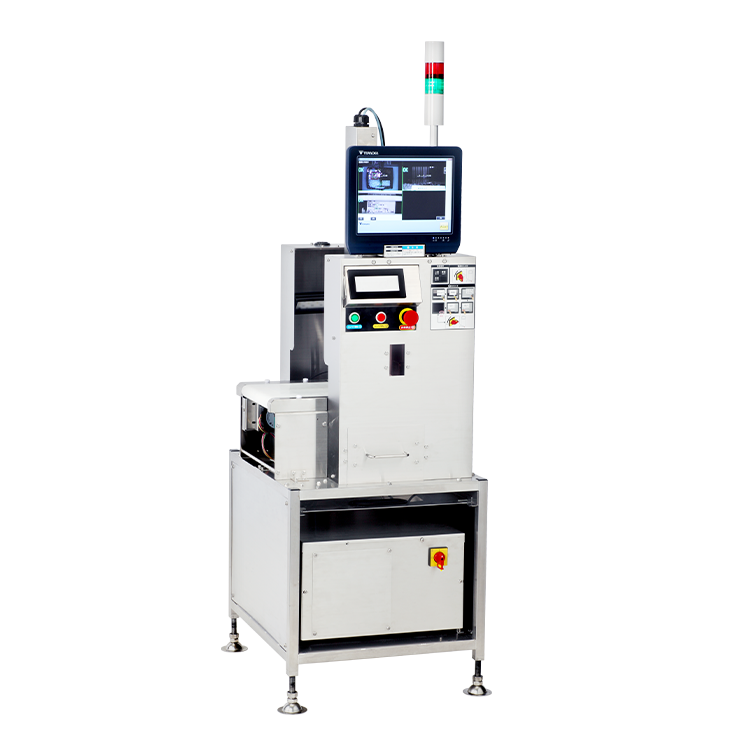

Expert automatic production line package inspection using a high-precision camera/scanner combination.
A variety of inspection/verification checks allows fully automatic detection of labeling defects to substantially save on labor in the label inspection process.
LIS-CS series
Food IndustryMain Features
The LIS-CS series easily installs on existing automatic price labeling lines in your food processing facility to provide expert detection of a wide range of labeling defects. Issues such as incorrect labels, missing labels, mismatch of top and bottom labels, and incorrect bar code data are automatically detected at high speed for every product passing through the line. Equipped with a high-precision camera, the LIS-CS series can detect both the type of POP label and the image printed on the packaging material. Its leading-edge scanning system scans the barcode and verifies the readability and the code data in one step. In addition, the barcode data is checked against the image captured by the camera to confirm that there is a match.
![liscs_WP04_01](./product_file/file/liscs_WP04_01.jpg)

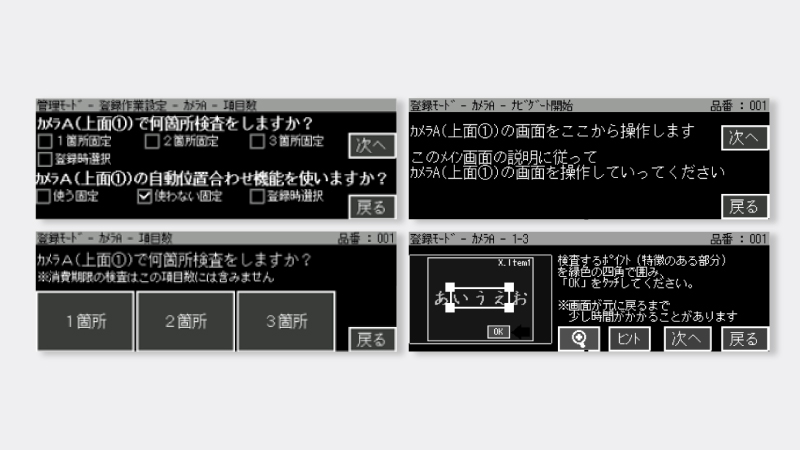

Easy new product entry and set-up
Up to now image-based inspection systems required an experienced operator with extensive know-how and knowledge of the settings to successfully input new product entries - not just any operator could do it. With the LIS-CS series, you simply run a sample product through once and follow the on-screen guidance to complete the entry operation. Now anyone can input new product entries with ease.
![liscs_WP04_02](./product_file/file/liscs_WP04_02.jpg)
Different models to handle a wide range of foods
Food categories have unique labeling characteristics and requirements. Whether it's ready meals, sandwiches or box lunches, factors such as the label position, packaging material position, and processing method can be entirely different among categories. The LIS-CS series offers a range of models optimized for the inspection needs of various food processing methods - a label and package inspection model for most any type of food.
![liscs_WP04_03](./product_file/file/liscs_WP04_03.jpg)

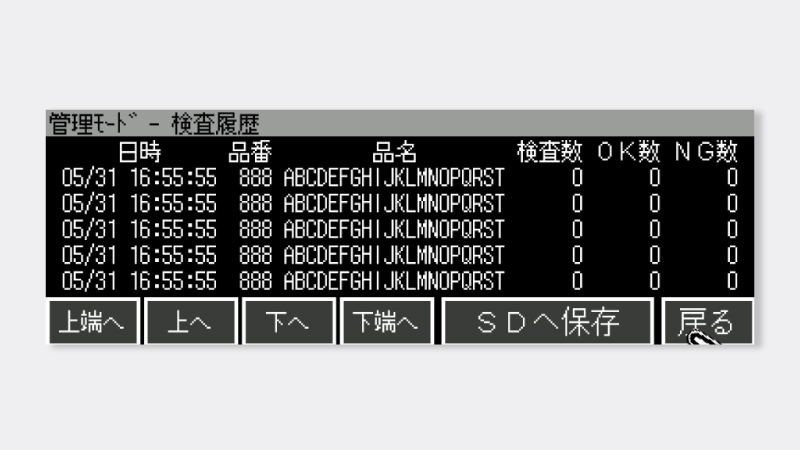

Enhanced inspection history management functionality
The LIS-CS series is equipped with an SD card slot for saving inspection results to a removable media. You can use the SD card to move the data to a PC for later viewing and long-term storage.
Seamless interoperability with DIGI equipment is standard

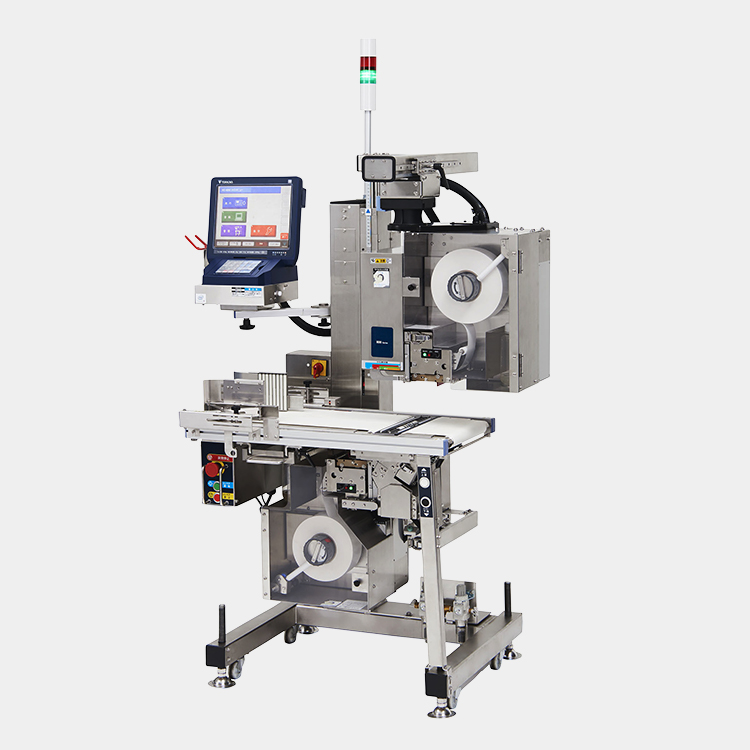

The LIS-CS series is designed to directly connect with specific models of DIGI automatic thermal labelers. When used in combination with the DIGI 700 or 800 series labelers, the LIS-CS will automatically switch to the correct product type when you select the product on the labeler.
Specifications

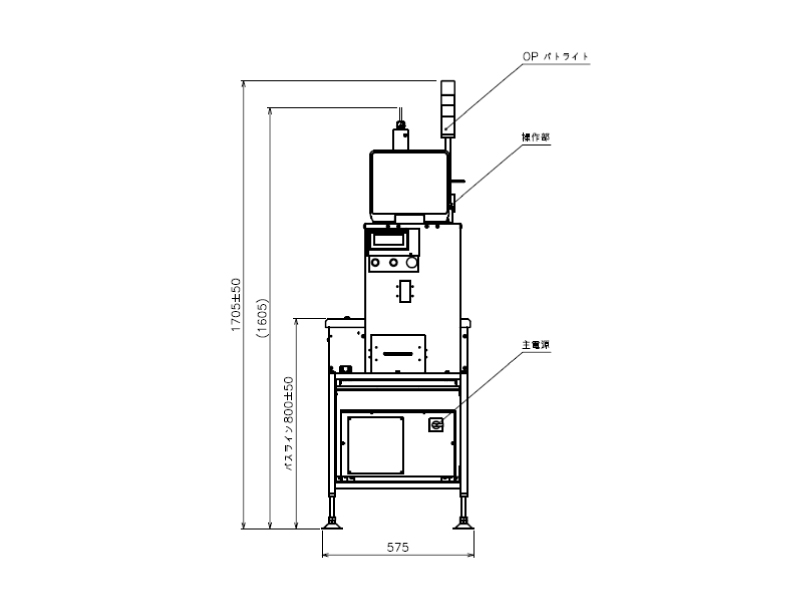

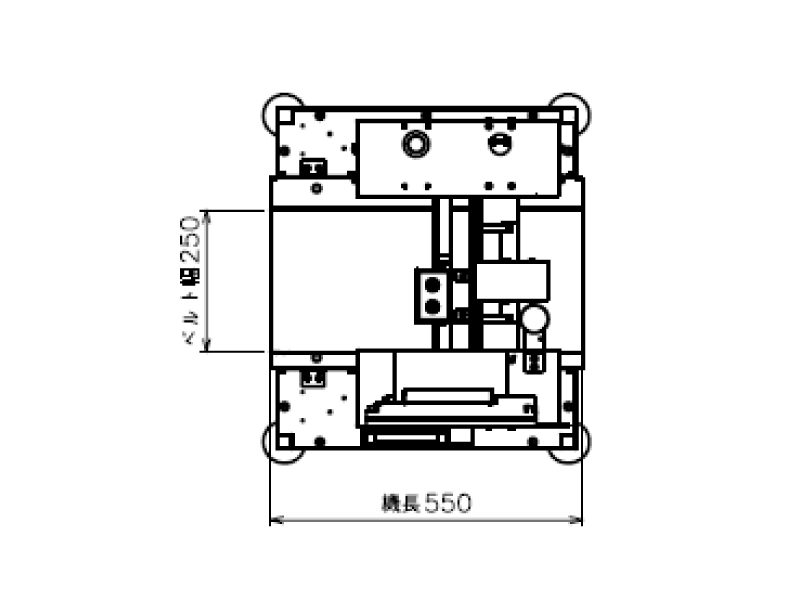

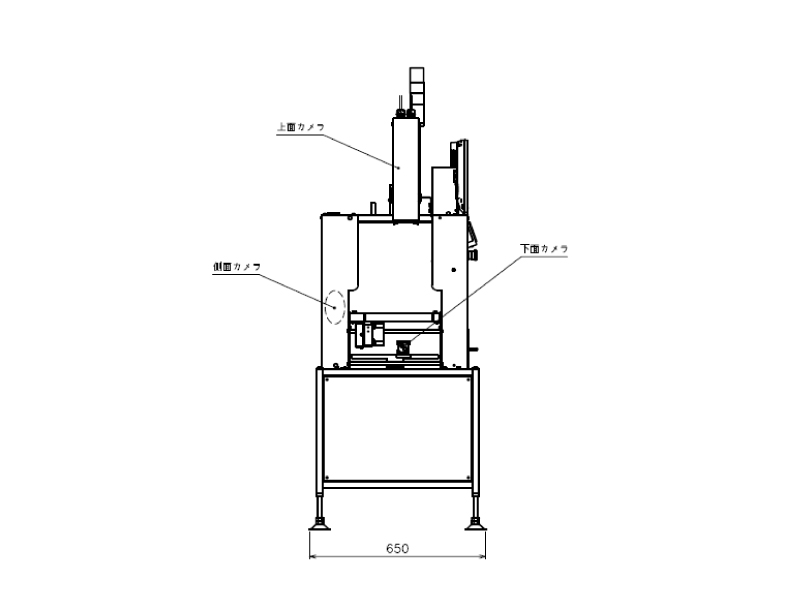

Dimensions
Common specification
Power-supply voltage | AC100V 50/60Hz |
---|---|
Maximum number inspection history saved | 4000 cases *1 |
Number of items that can be registered | 999 variety |
Maximum inspection capacity | 72 pieces/min. |
*1: One item for each item number change
General purpose model
LIS-CS USBC
|
LIS-CS UCBS
|
||
---|---|---|---|
Intended use | For tray packs, general food packs | ||
Device | Upper side: Scanner Lower side: Camera |
Upper side: Camera Lower side: Scanner |
|
Dimensions of main unit | Conveyor length | 550 mm | |
Depth | 550 mm | ||
Height | 1410 to 1560 mm | ||
Belt width | 230mm | ||
Path line | 750 mm to 850 mm | ||
Power consumption | 56 W (Max) *2 | ||
Integrated air sorting | × |
Specific use model
LIS-CS1
|
LIS-CS PLW
|
LIS-CS SND
|
||
---|---|---|---|---|
Intended use | For triangular rice ball inspection only | For Reverse pillow packaging rice ball inspection only | For sandwich inspection only | |
Device | Horizontal side: Camera Horizontal side: Scanner |
Upper side: Scanner Lower side: Camera |
Upper side: Camera Lower side: Scanner |
|
Dimensions of main unit | Conveyor length | 500 mm | 539 mm | 550 mm |
Depth | 550 mm | 665 mm | ||
Height | 1180 to 1330 mm | 1278 to 1378 mm | 1410 to 1560 mm | |
Belt width | 45 mm | 73.5 mm | 230 mm | |
Path line | 700 to 850 mm | 750 to 850 mm | ||
Power consumption | 27 W *2 | 30 W *2 | 50 W (Max) *2 | |
Integrated air sorting | ◯ |
** When considering, please check with the sales representative beforehand if the target product can be inspected with this product.
