주요 제원

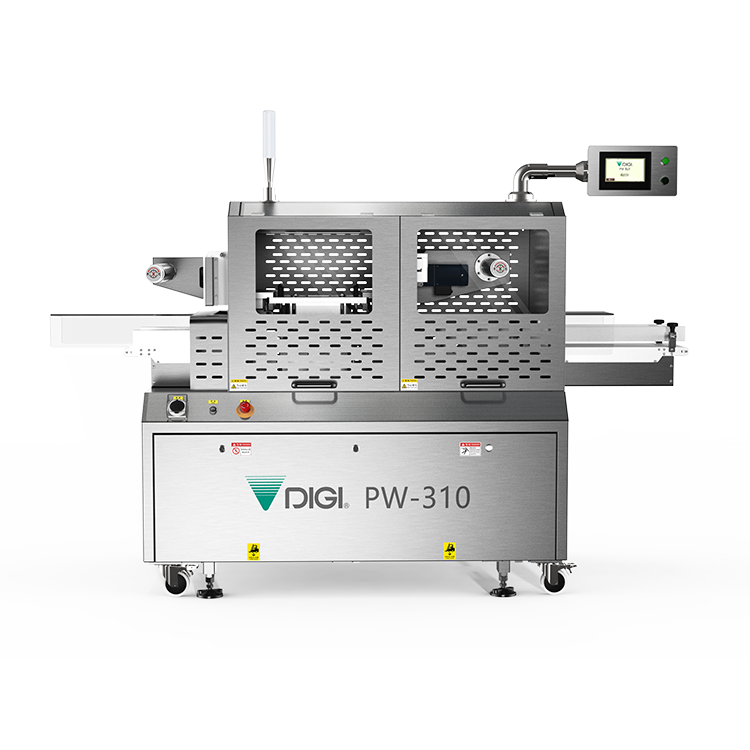

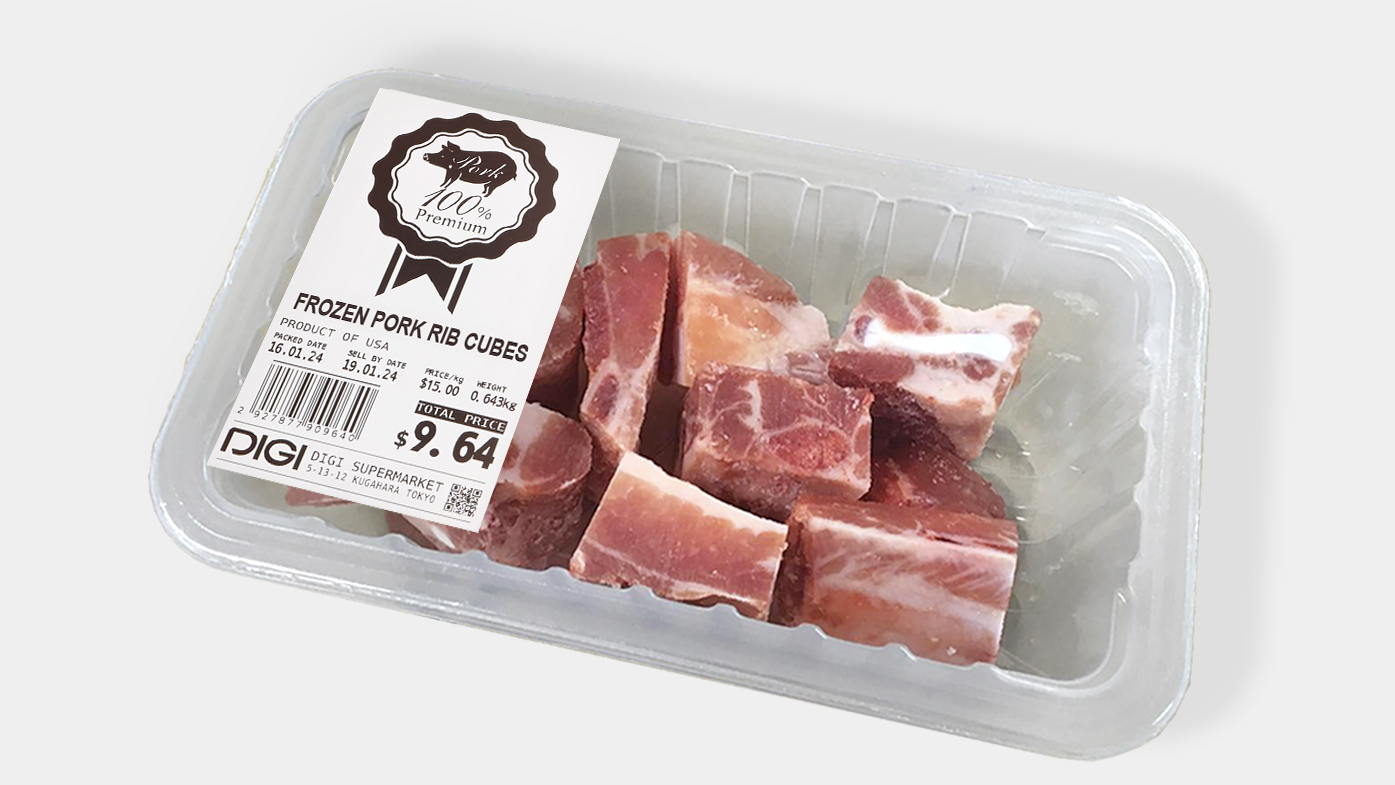

PW-310MA is a compact gas flush MAP packaging machine ideal for packaging meat, seafood, vegetables and cooked foods. MAP packaging effectively extends the shelf life of food while protecting its original freshness, flavor, and appearance.
Extend Product Shelf Life
MAP packaging for food preservation can greatly extend the product shelf-life, lock in the nutritional components, and retain natural flavor of the food - reducing food-loss and creating a more sustainable retail ecosystem.
Improve Productivity
Compared to traditional vacuum pump equipment, the PW-310MA's gas flush design can achieve the required gas percentage in the tray faster - Using MAP mode the maximum production capacity is 12 cycles per minute, while switching to normal mode (seal only) the maximum production capacities 15 cycles per minute.

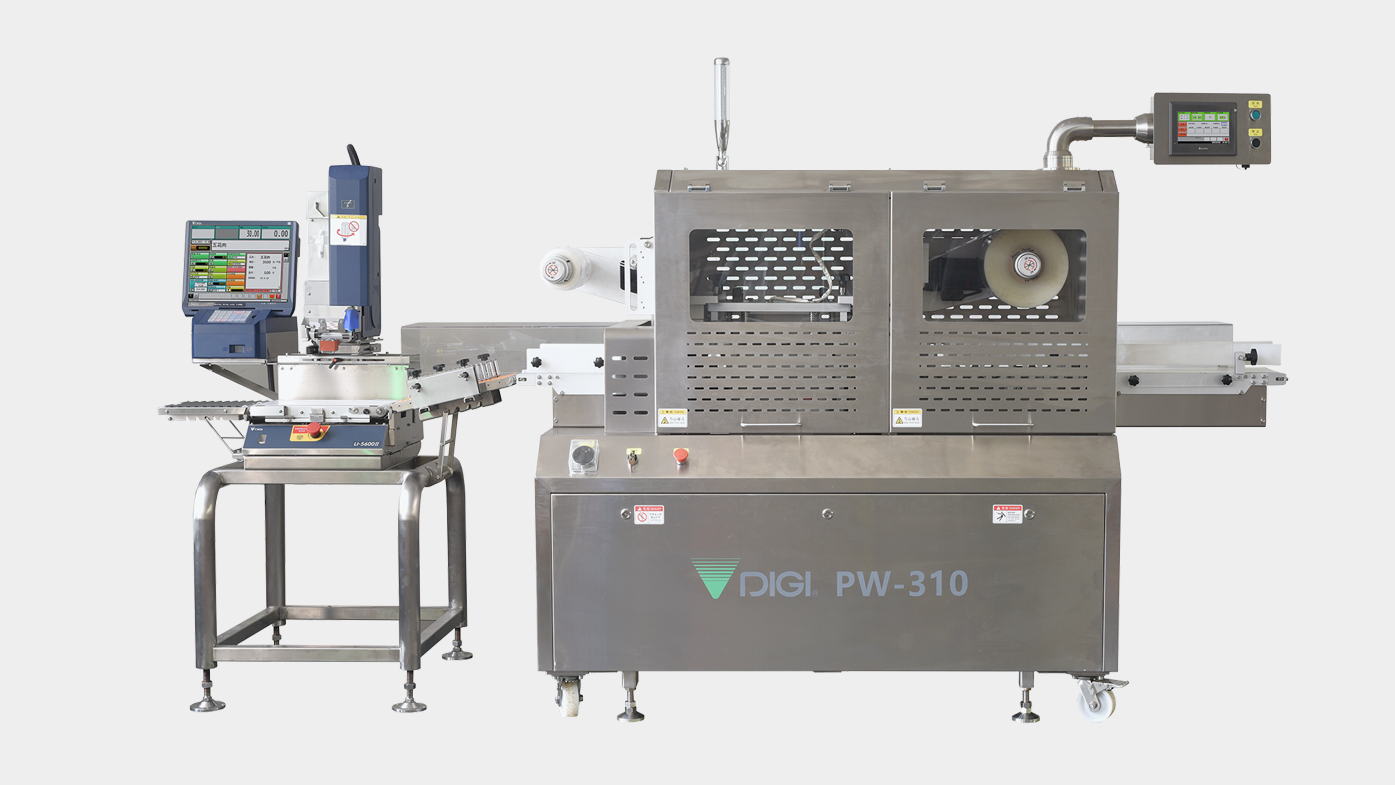

Seamless integration with DIGI labelers
The PW-310MA integrates smoothly with DIGI's labeling solutions, enabling efficient and sustainable operations through the implementation of eco-friendly, versatile length Linerless Labels.
Easy maintenance

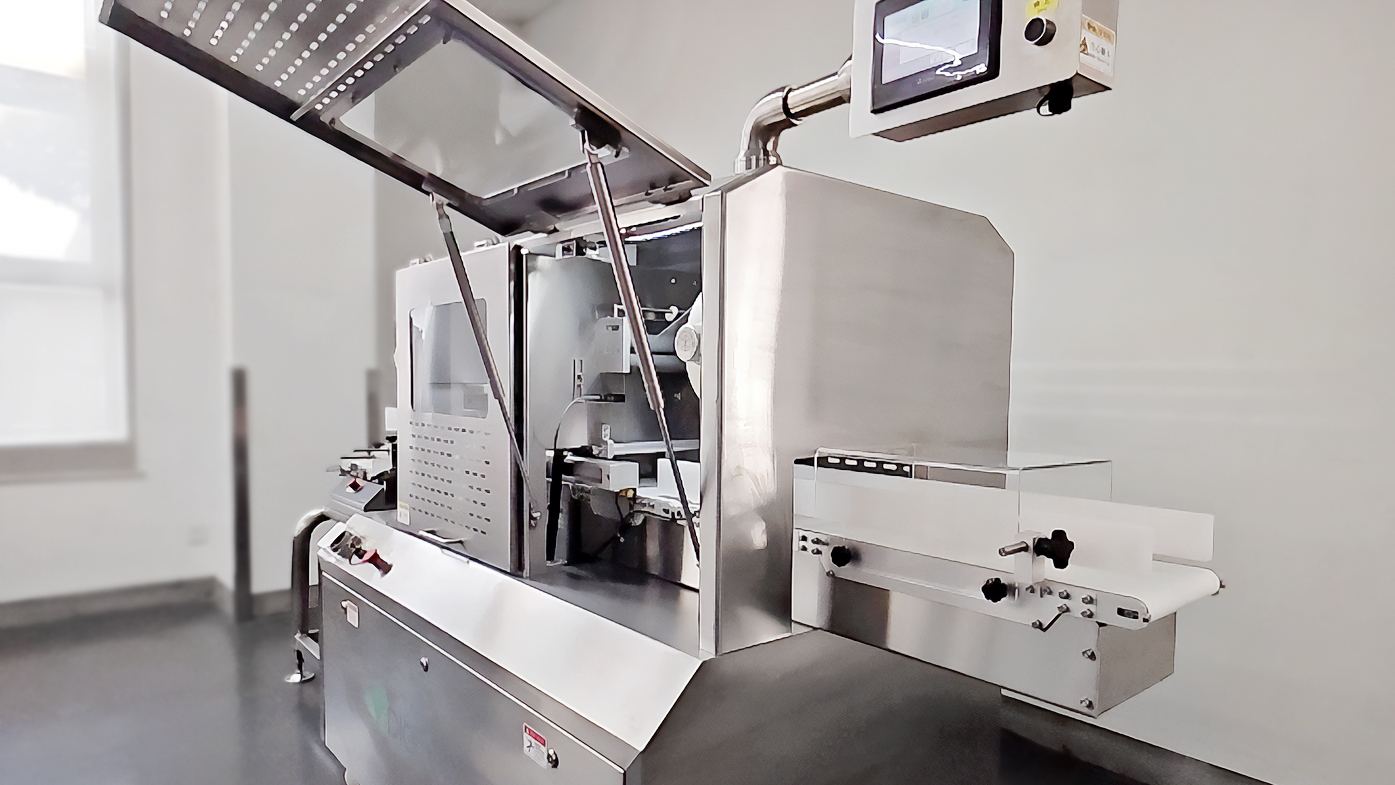

The machine's casing features large access panels for swift maintenance and troubleshooting.
사양
규격
| Packaging Type | Gas Flush MAP, Seal Only | |
|---|---|---|
| Packaging Item | Tray | |
| Packaging Speed | Cycles/min MAP: 10-12 | |
| Cycles/min SEAL ONLY: 12-15 | ||
| Power Supply | AC 220V/100V | |
| Power Consumption | 3 kW | |
| Film | ||
| Film Material | Composite Film | |
| Film Width (mm) | Max. 250 | |
| Film Thickness | 25 µm | |
| Diameter of Film Roll (mm) | Max. 260 | |
| Core Diameter of Film Roll (mm) | 76 | |
| Tray | ||
| Mold | 1 set of die | |
| Size of Packed Tray (L mm x W mm) | Max. 260 x 177 | |
| Min. 180 x 120 | ||
| Machine Weight (kg) | 570 | |

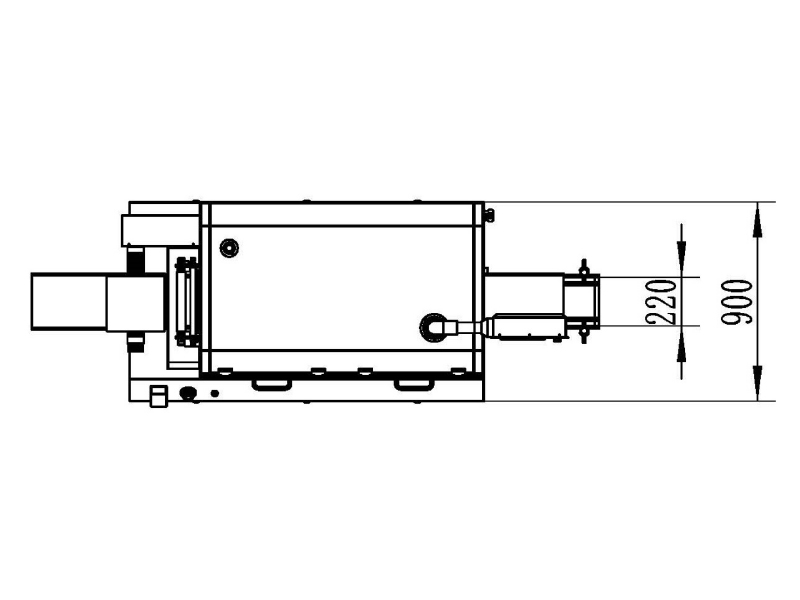

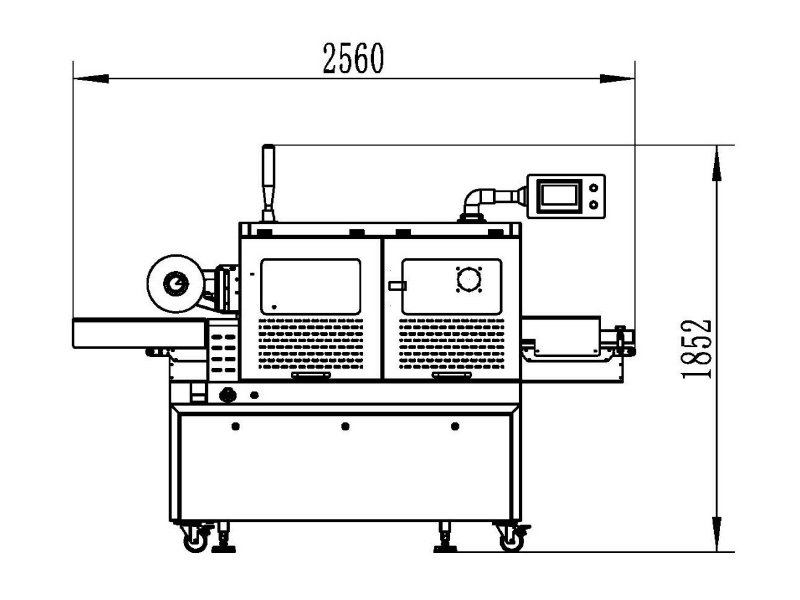

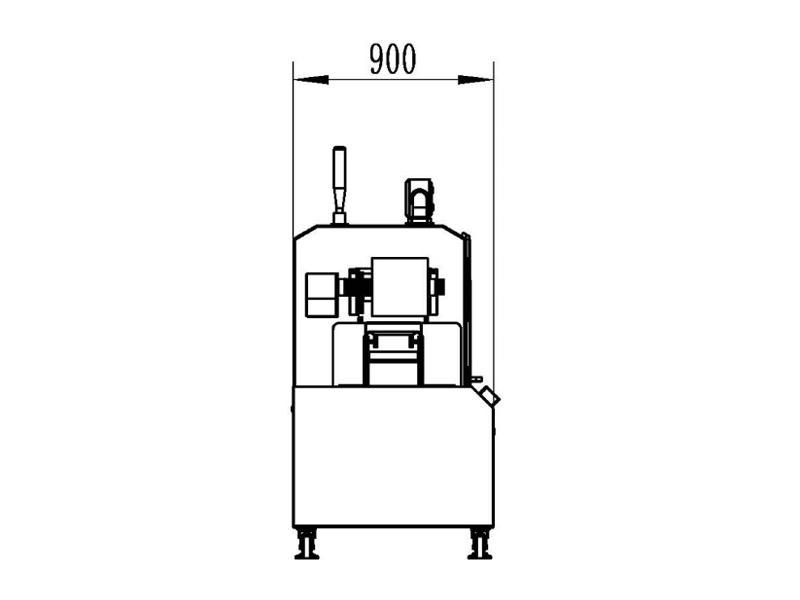

| Machine Size (L mm x W mm x H mm) | 2550 x 900 x 1852 | |
