주요 제원

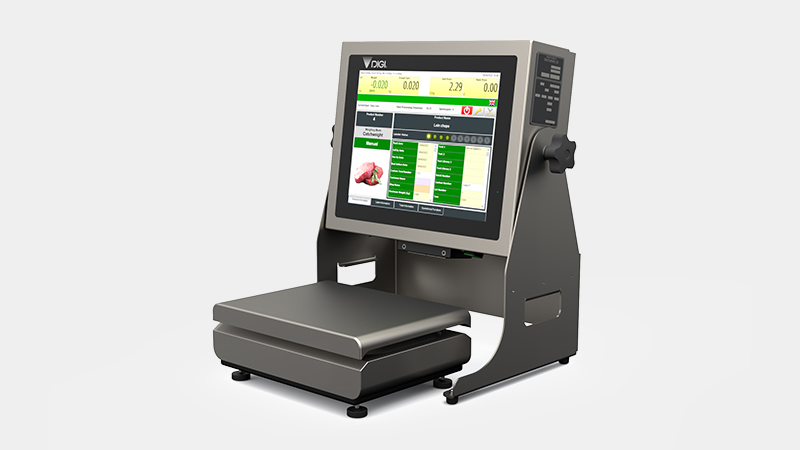

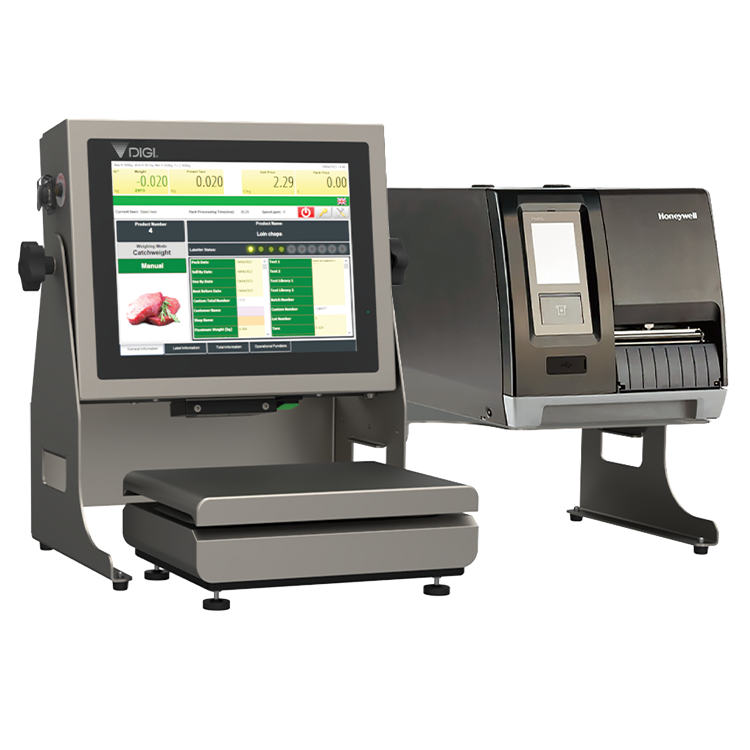

The DPS-800 II manual weigh price labeller is a versatile system with various printer and mounting options, making it ideal for almost any environment or application.
![dps800-2_WP04_01](./product_file/file/dps800-2_WP04_01.jpg)

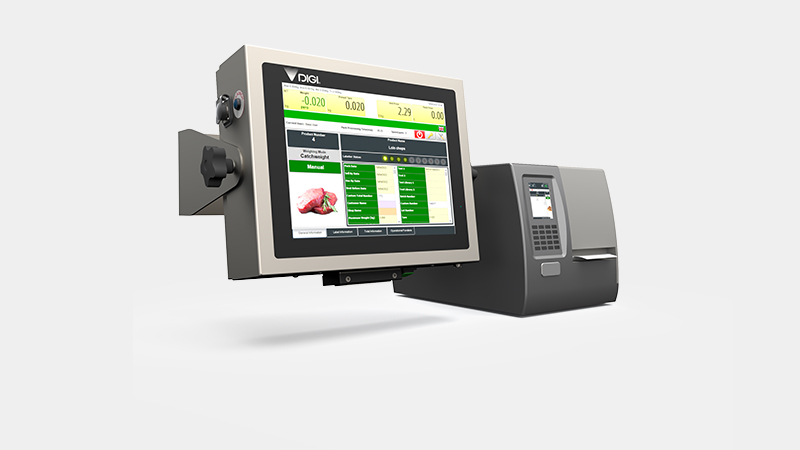

Simple and Efficient Operation
Manual weigh labelling of packs is straightforward with the DPS-800 II. With the 15" touchscreen, users can manage label design and weighing modes amongst other settings.
![dps800-2_WP04_02](./product_file/file/dps800-2_WP04_02.jpg)
Quality Features
As a weigh-price-labeller, the DPS-800 II can be used in catch weight and fixed weight modes and can be employed in a range of different settings. Its networking capabilities allow it to be easily integrated into existing lines and provide back-office data collection as well as online programming and monitoring.
![dps800-2_WP04_03](./product_file/file/dps800-2_WP04_03.jpg)

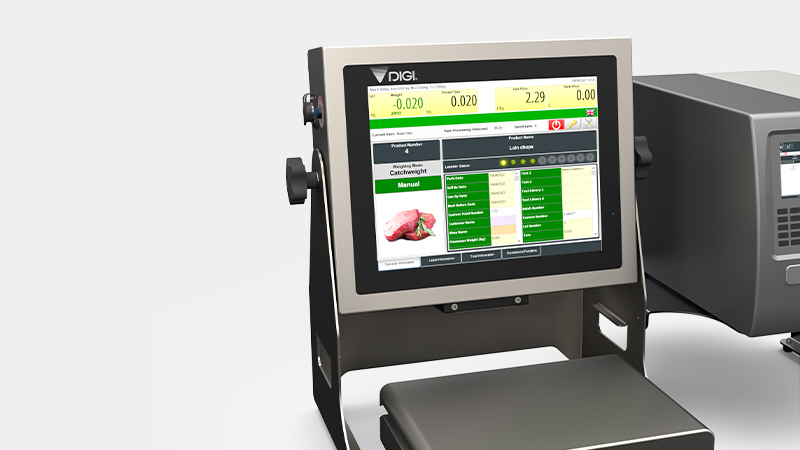

User-Friendly Interface
The DPS-800 II utilises DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labellers.
사양
규격

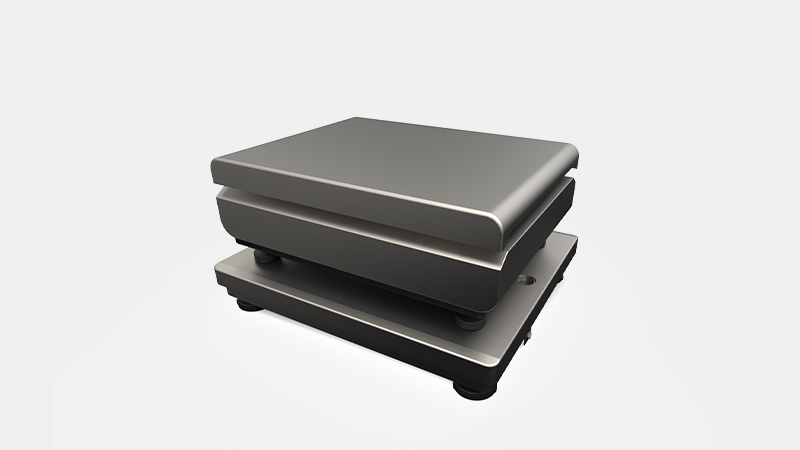

Weighing
Capacity | Max 6 kg | Max 6kg | Max 15kg | Max 30kg | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Single Interval | e= 1g | e= 2g | e= 5g | e= 10g | ||||||||
Multi Interval 15kg Platform |
Max 6kg | Max 15kg | ||||||||||
e= 2g | e= 5g | |||||||||||
Multi Interval 30kg Platform |
Max 15kg | Max 30kg | ||||||||||
e= 5g | e= 10g |
Display
Screen | 15" Colour LCD touchscreen |
---|---|
Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
Weighing Modes | Catch Weight, Fixed Weight/Price, Manual (Non-Weighing) |
---|---|
Communication | Ethernet, USB, RS232, Additional Ethernet and USB optional |
Operating System | Windows 10 OS |
Language | Multi-lingual Unicode |
Software | WorldView (embedded application) |
Database | SQL |
Connectivity | Remote programming and control |
Connectivity to meet industry standards | |
Customisable output data | |
Interconnectivity to back-office data management |
General
Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
---|---|
Operating Temperature | -10 to +40°C non-condensing |
