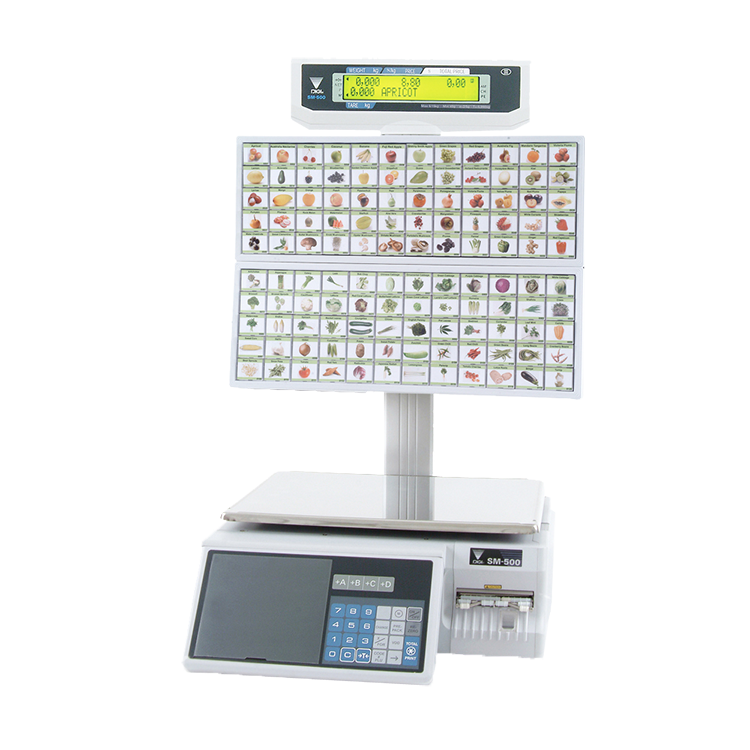

Robustly engineered, high throughput self service system scale

SM-500MK4 BS

소매

무인용 저울

주요 제원

The SM-500MK4BS self service type system scale with a fast processing and printing speed up to 150mm/s will demonstrate its ability to reduce queues with its high throughput capability and efficiency.

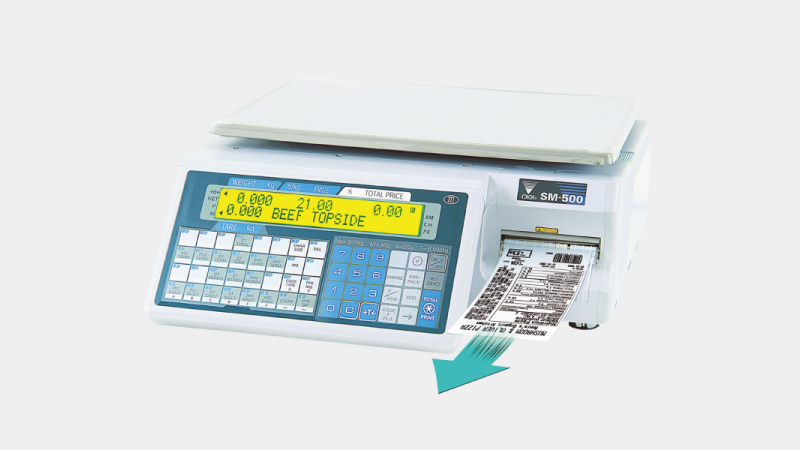

Fast processing and printing speed

Equipped with a faster processor and printing speed for higher performance in terms of throughput and operation efficiency.

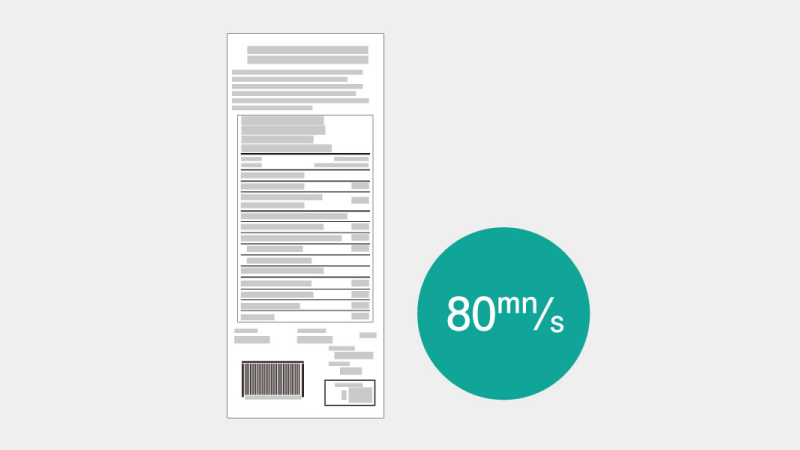

80mm wide printing capability

80mm wide printing capability satisfies most of the need for information to be printed on a label. Mandatory information such as ingredients, nutritional information and traceability data are covered.

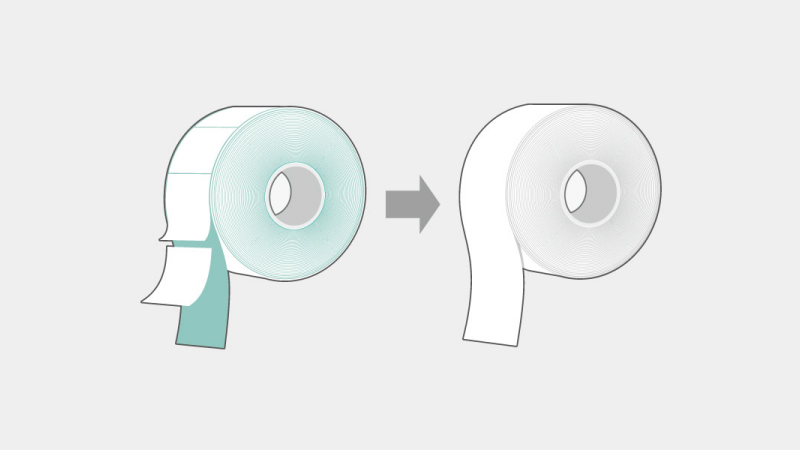

Linerless printing capability

Without the release liner, the number of labels per roll will be increased significantly. This translates to fewer roll changes as well as a reduction in label changing downtime. Label consumption is minimized when label length becomes flexible, saving money while being environmentally friendly.

Security features and diagnostic functions

Prevent unauthorized scale manipulation with the security features including:

-Audit trail

-Date and time stamp

-Price override lock

-Password protection

-Wireless network security

(WPA/WEP/LEAP)

The remote diagnostic function monitors scale status and conducts firmware upgrades from one location, saving time and money by reducing on site maintenance.

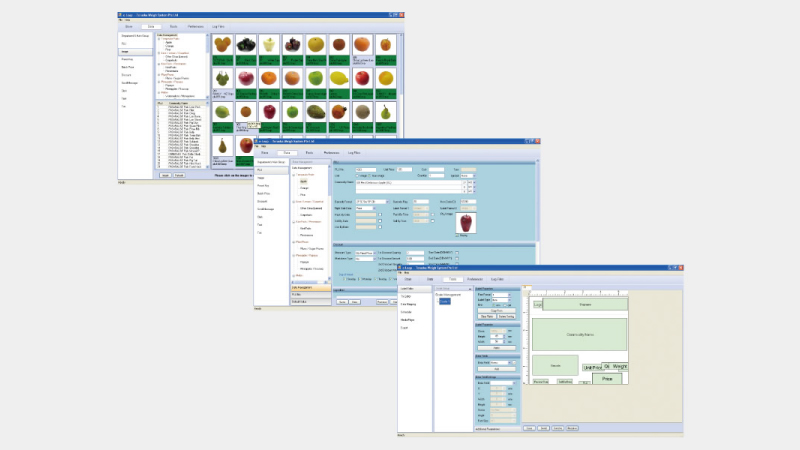

Scale application software

Besides remote diagnostics, PLU data programming, preset key assignment, label format editor and user security can also be done from one centralized location with the scale application e.Leap. The e.Leap application can also generate essential sales reports promptly from the system for management assessment.

사양

규격

Weighing

Capacity		Max 6kg	Max 15kg/ 30lb	Max 30kg
Single Interval	1/ 3,000	e= 2g	e= 5g/ 0.01lb	e= 10g
Single Interval	1/ 6,000 or 1/ 7,500	e= 1g	e= 2g	e= 5g
Capacity		Max 3/ 6kg	Max 6kg/ 15kg	Max 15kg/ 30kg
Multi Interval	1/ 3,000	e= 1/ 2g	e= 2/ 5g	e= 5/ 10g

Display		LCD with Backlight (16x134 Dots)
Number of Preset Keys		96 or 120
Memory Capacity		2MB (Std), 10MB (Max)
Display Resolution		1/ 3,000, 1/ 6,000, 1/ 7,500
Label Size		72mm x 240mm (Max)
Label/ Receipt Roll Diameter		105mm
Paper Width	Label	80mm
	Receipt	60mm
Printing Speed	Label	Up To 150mm/s*
	Receipt	Up To 150mm/s*
Power Source		AC 100/ 110/ 220/ 230/ 240 Volts (50/60Hz)
Operating Temperature		-10°C to +40°C
Humidity		15% to 85% RH
Standard Interface		RS232C, Ethernet 10/ 100 Base T, PS2 Keyboard, Cash Drawer
Net Weight		17.1kg

* To achieve maximum high speed, high sensitivity thermal paper is necessary. Contact DIGI for details.

선택

Option	Description
Wireless LAN (IEEE 802.11b/g)	Enjoy more freedom with the wireless option and position your scale according to your preference.
Linerless Receipt Cassette	Reduce waste through the linerless receipt cassette option to save money and the environment.

Factory Option	Description
Preset Keys	56 or 100 keys (Pole & Elevated), 48, 60, 96 or 120 keys (Self Service)
Memory Expansion Board (8MB)	Expand your memory capacity up to 10 MB (Max) from the standard 2MB with the memory expansion board.
RS-485	Factory preset.
