주의: 이 제품은 더 이상 판매를 하지 않고 지원이 되지 않습니다. 이 모델 또는 교체 모델에 대한 유지보수에 대하여 현지 담당자와 상담을 해주시기 바랍니다.
주요 제원

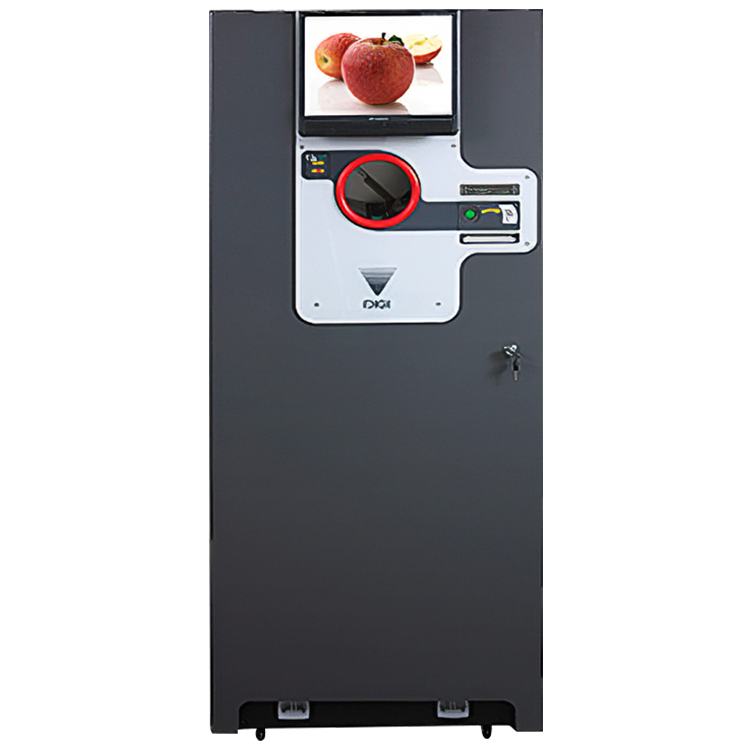

The DRV-800 is a standalone reverse vending machine for returns of non-refillable PET bottles and cans (without compacting). With its small footprint, this model is ideal for small stores (gas stations, convenience stores, etc.).
Compact size

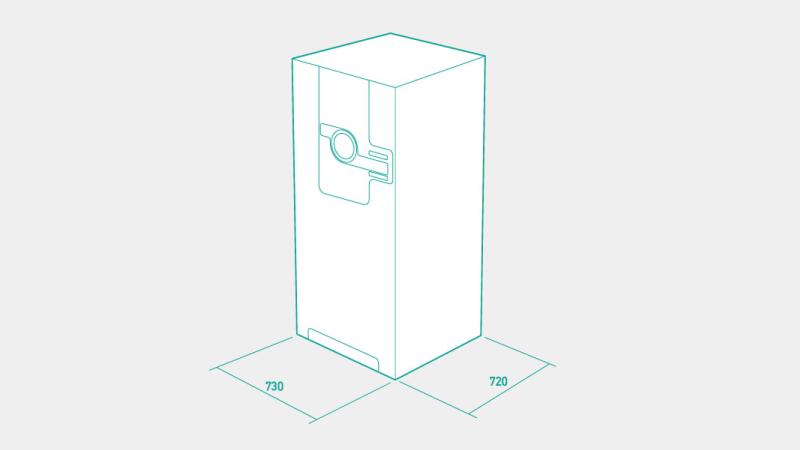

Its small footprint of 730mmx720mm (WxD) saves installation space.
Choose your design

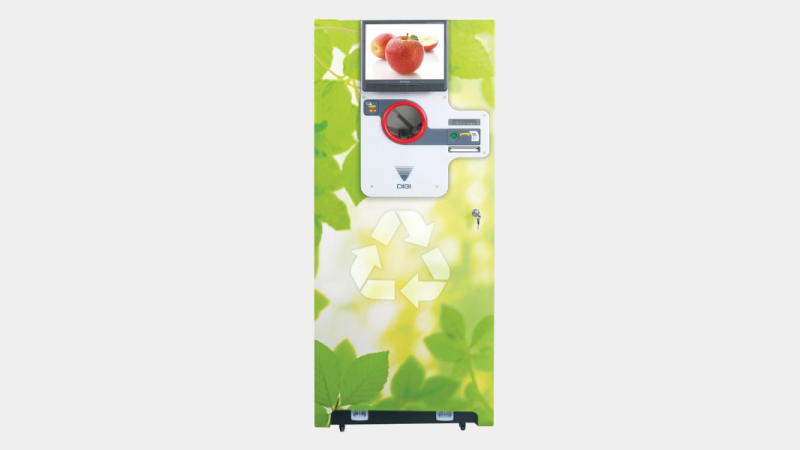

Customized graphic design can be applied to the front (optional) to help you build your branding and CSR image.
Advertising
An optional stand-alone LCD screen is available for displaying advertisements.
사양
규격
Basic data
| Model name | DRV-800 |
|---|---|
| Dimentions (mm) | W: 730 x D: 1,830 x H: 720 |
| Net weight (Approx.) | 130kg |
| Power source | 220-240V, 50-60Hz |
| Power consumption | 350W |
| Operating temparature | 10 to 35 degrees C |
| Operating humidity | 90%RH (max) |
Type of containers
| Model name | DRV-800 |
|---|---|
| Refillable PET | See 'FAQ' |
| Glass | |
| Crate | |
| Non-refillable PET | ● |
| Can | ● |
Container Recognition
| Model name | DRV-800 |
|---|---|
| Container feeding | Horizontal, 1 insertion slot |
| Container feeding rate | Up to 30 containers per minute |
| Container types | Non-refillable PET bottles, cans |
| Container size | φ52mm diameterx150mm-φ130mm diameterx360mm |
| Container recognition | Barcode, Safety mark |
| Container weight detection |
Storage Box
| Model name | DRV-800 |
|---|---|
| Storage box size (mm) | W: 600 x D: 650 |
| Number of storage box | 1 storage box |
Display & Printer
| Model name | DRV-800 |
|---|---|
| Display | VFD 16 Digits (5 x 7 dots), 2 lines |
| Number of display | 1 unit |
| Receipt printer | Thermal printer for text, images and barcodes. |
| Number of printer | 1 unit |
| Receipt roll size | φ80mm diameter, 57.5mm width |
선택

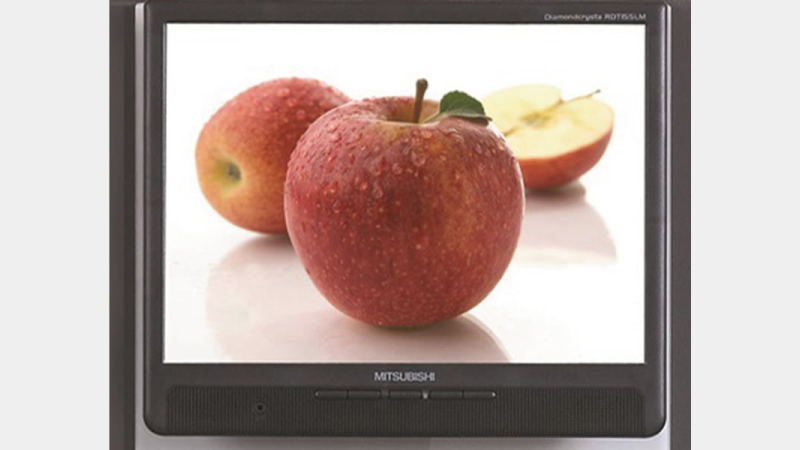

LCD screen for advertisements
An optional stand-alone screen is available for displaying advertisements.
자주하는 질문
-
Can the DRV-800 sort refillable PET bottles and cans?No, the DRV-800 can't sort refillable PET bottles and cans. If sorting capability is necessary, please select the DRV-1000 or the DRV-5000.
-
How many beverage containers can ordinarily be collected in one storage box?It depends on the type and size of the containers. One storage box will hold approximately 160 non-refillable PET bottles or 450 cans (without compacting).
