주의: 이 제품은 더 이상 판매를 하지 않고 지원이 되지 않습니다. 이 모델 또는 교체 모델에 대한 유지보수에 대하여 현지 담당자와 상담을 해주시기 바랍니다.
주요 제원

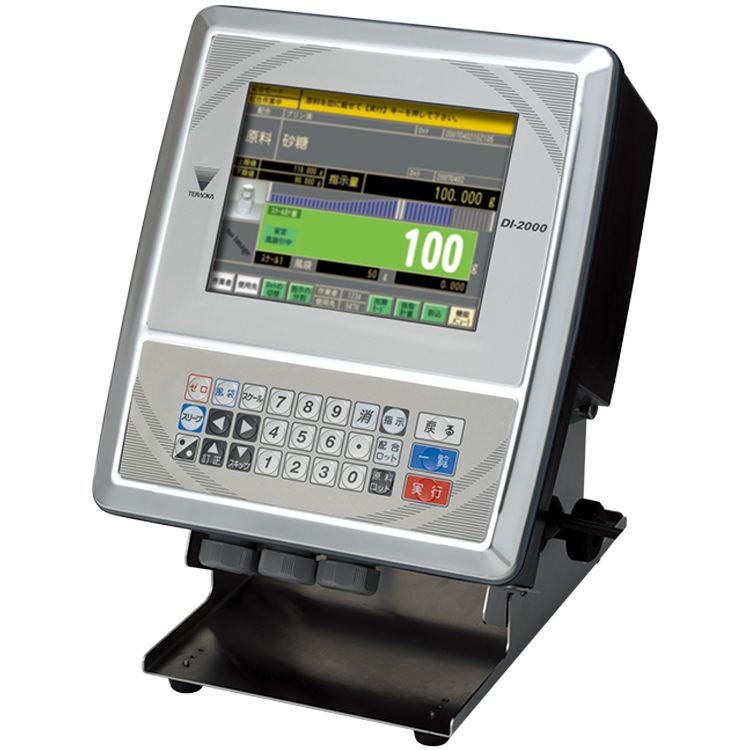

The DI-2000 II is a dust and waterproof indicator designed for weighing of blending ingredients at food and manufacturing facilities. It can be connected to up to 3 scales, allowing indication of a large range of weights with a single unit. During blending operations, workers follow displayed instructions interactively for all steps from ingredient verification to weighing, helping to prevent errors. Weighing history is automatically stored in indicator memory. Weighing systems incorporating the DI-2000 II help make great quality improvements, reduce work cost and help rationalize traceability of blended products.
Efficiency enhancement through networking
The DI-2000 II can exchange data with existing systems by USB memory or by LAN connection, enabling output of blending instruction entries and history data. When adopted together with the It-Matex III shipping/receiving/inventory management system, weighing histories and instruction data transferred can be used for dual purposes, such as printing labels and managing inventory. This dramatically increases work efficiency.
사양
규격
| Display resolution | Max. 1/20,000 |
|---|---|
| Internal resolution | 1/600,000 |

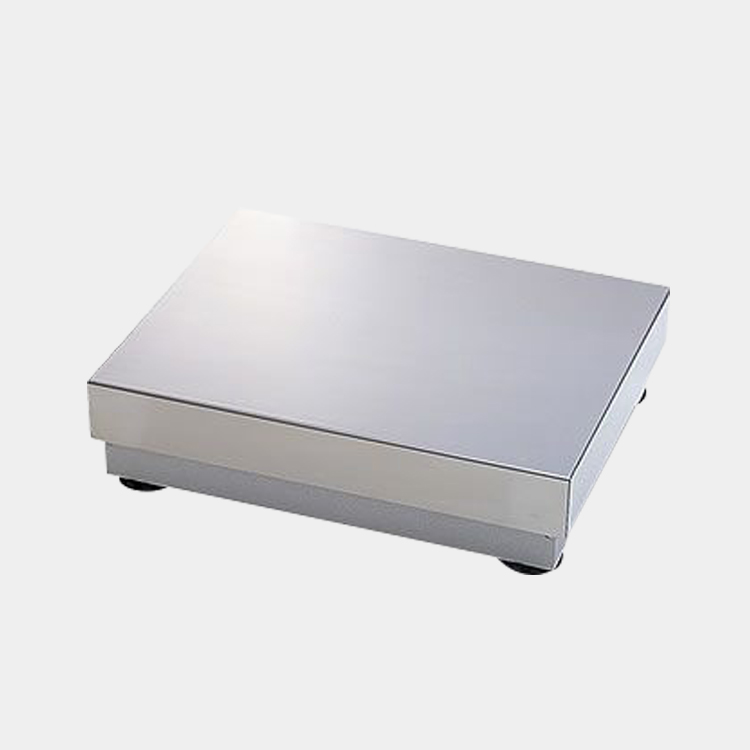

| Scale connection | Max. 3 scales |
| Display |
8.4-inch color LCD touch panel
VGA 480(H)x640(W) dots
|
| Programmable items |
Ingredient: 10,000
Combination: 2,000
Recipe: 2,000 （max. 50 ingredients/recipe)
|
| Input/ output signal | Open Collector OUT5 IN5 |
| Power source | AC100V, 35W |
| Service environment |
Temperature: 0 to 40 degrees C (no condensation)
Humidity: Under 80%(no condensation)
|
| Weight | Approx. 5.5 kg (Approx. 7.7 kg with a stand) |
선택

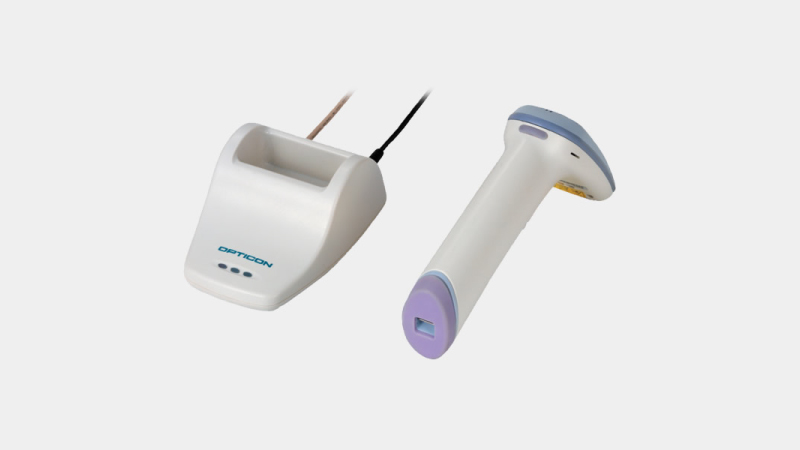

Wireless scanner

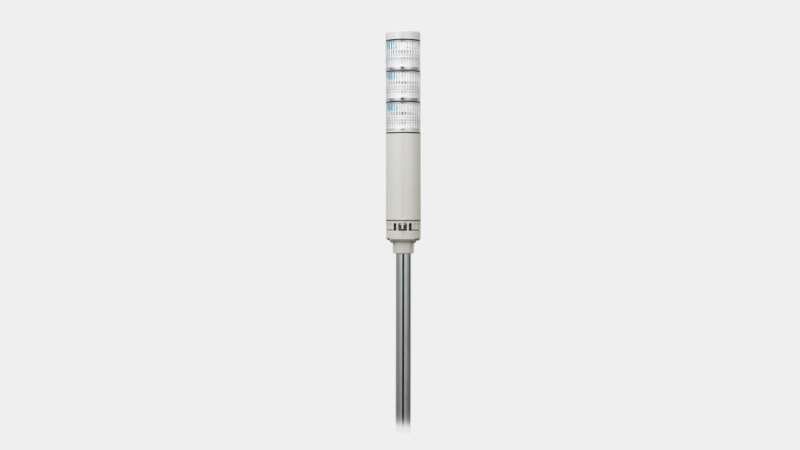

Alert lamp & buzzer
자주하는 질문
-
Can blending data that has been prepared on a computer be sent to the DI-2000 II?Yes. Data prepared as a CSV file in the prescribed data format can be loaded onto the DI-2000 II via USB memory or LAN.
