Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.
Main Features

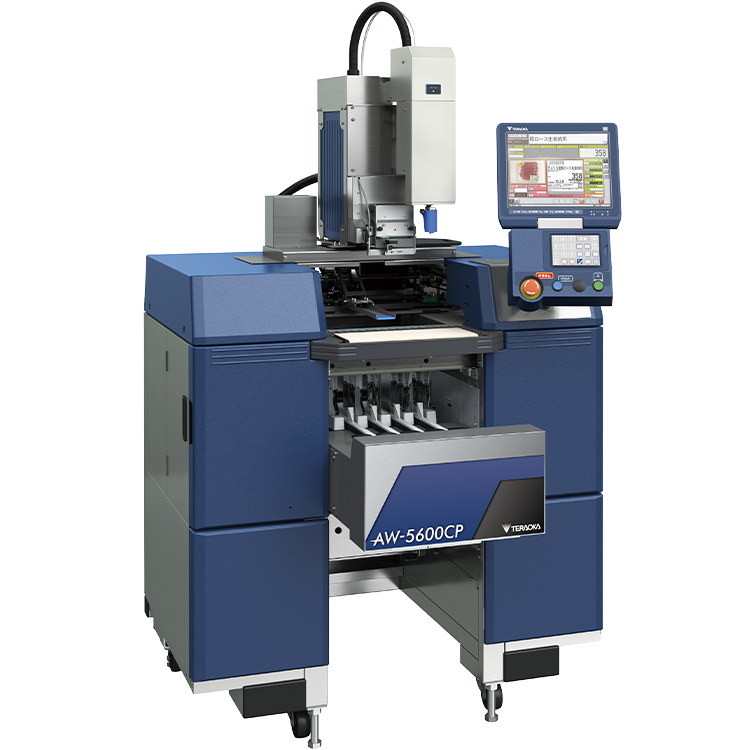

AW-5600CP is the basic model of the 5600 series, providing an impressive 30 packages/minute throughput in a reduced-cost design. The compact form factor retains the full-spec 300 dpi high-res printer and extra-large full-color touchscreen display that are standard with the 5600 series. The newly developed rotational labeler arm allows fully automatic application of linerless labels. Variations include models with manual or automatic label application.
High Productivity

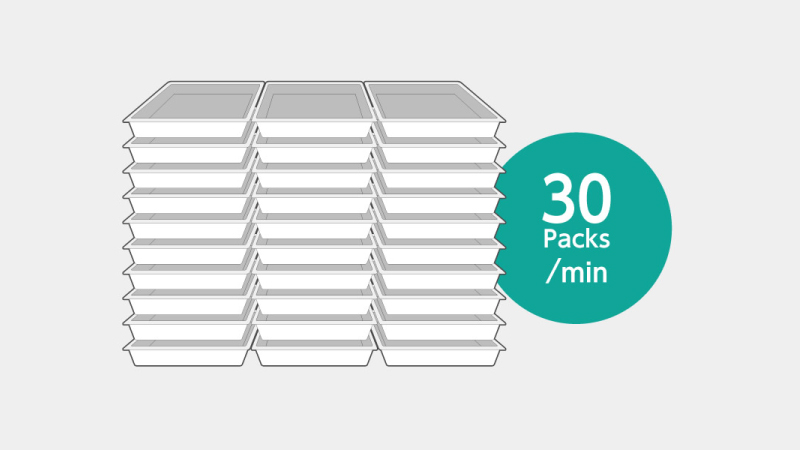

Weighing, wrapping, and labeling can be done in one step at a maximum processing speed of 30 packages/minute. The user friendly extra-large 12.1" full color touch screen allows label print content to be previewed on the display, helping to prevent labeling errors.
Economical & Ecological

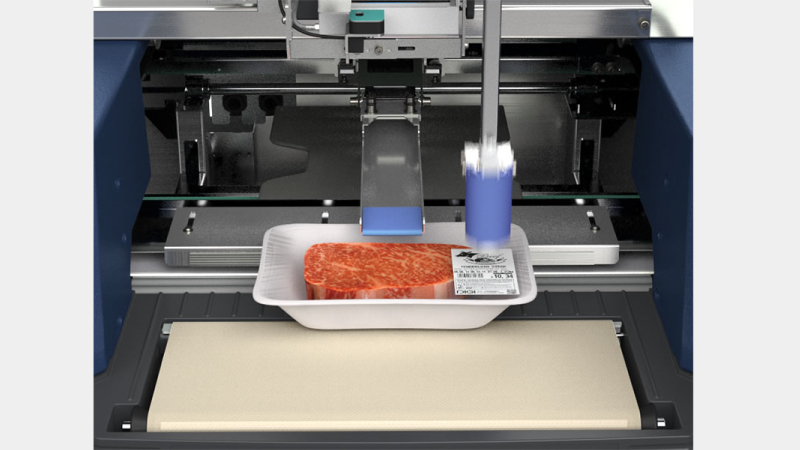

A linerless auto-label-sizing feature eliminates unused space on the label and automatically adjusts the label size. Use of linerless labels minimizes waste, integrating environmental friendliness into your everyday work process. AW-5600CP AUTO adopts a newly designed rotational labeler arm to enable automatic label placement of linerless labels.
Easy Clean-Up, Every Time
AW-5600CP is designed to be incredibly easy to clean. The parts that come into direct contact with food can be removed in seconds and washed in water. Also, the main unit sits well above the floor to accommodate mopping and sweeping.
Specifications

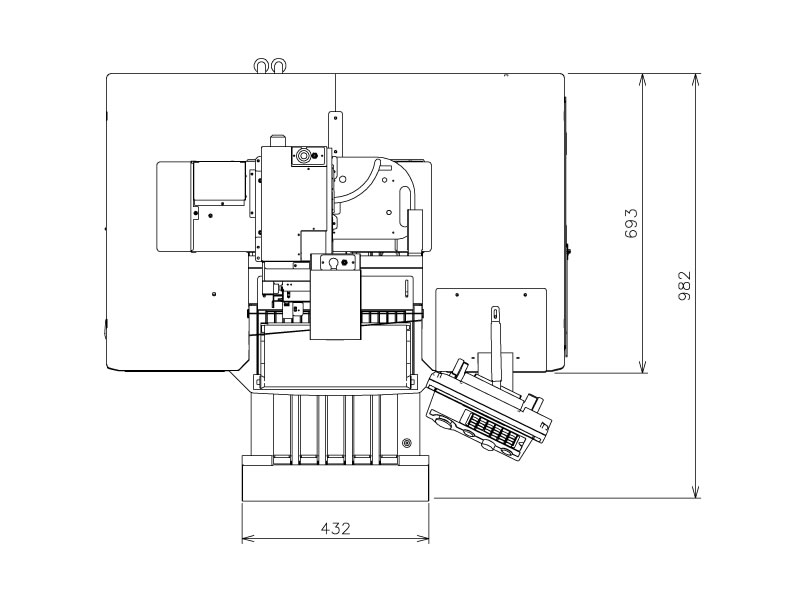

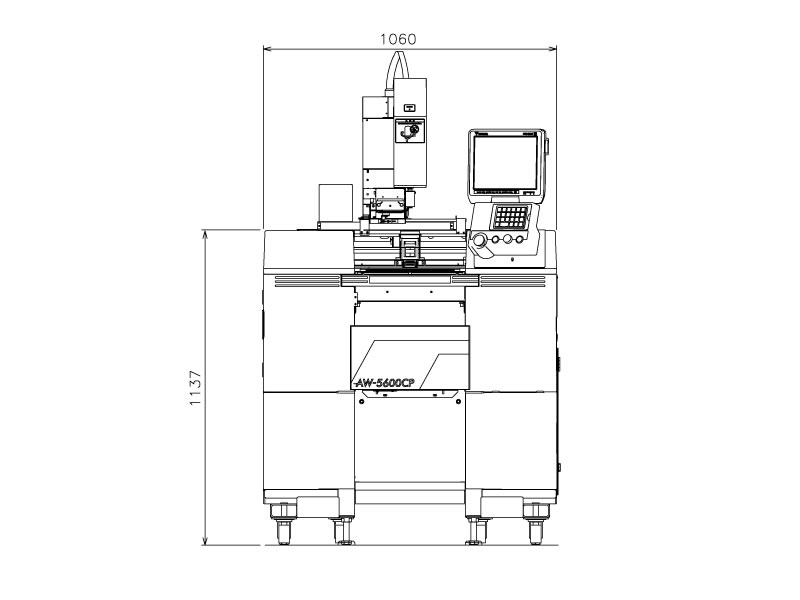

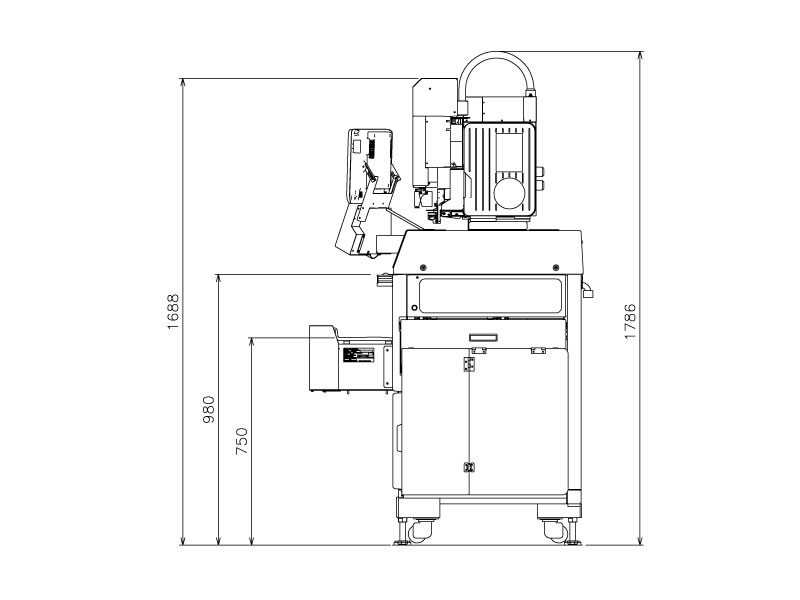

Dimensions
Wrapping
| Wrapping Speed | Max. 30 packages/min. |
|---|---|
| Package Size | Width: 130 to 350 mm / Height : 10 to 130 mm / Depth : 80 to 230 mm * The combination of maximum size in each dimension cannot be used. The size of the package that can be wrapped also depends on the film used. |
| Film Size | Accepts 300 to 500 mm rolls |
Weighing
| Multi interval | Single interval | |||
| Capacity | Max. 6/15kg | Max. 3/6kg | Max. 30 lb | |
| Scale Interval | e=2/5g | e=1/2g | e=0.01 lb | |
| Weighing Range | 40 g - 15 kg | 20 g - 6 kg | 0.20 - 30 lb | |
Labeling
| Label Type | Die-cut Label | Linerless Label |
|---|---|---|
| Labeling Width | Automatic label application: 40 - 80 mm Manual label application: 25 - 80 mm |
44/59 mm |
| Label Length | Automatic label application: 28 - 105 mm Manual label application: 20 - 150 mm |
Automatic label application: 28 - 105 mm Manual label application: 20 - 500 mm* * Maximum printing length is 300 mm |
| Net Weight | Approx. 355kg |
|---|
Variations
Twin labeler
AW-5600CP TWIN
