Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.

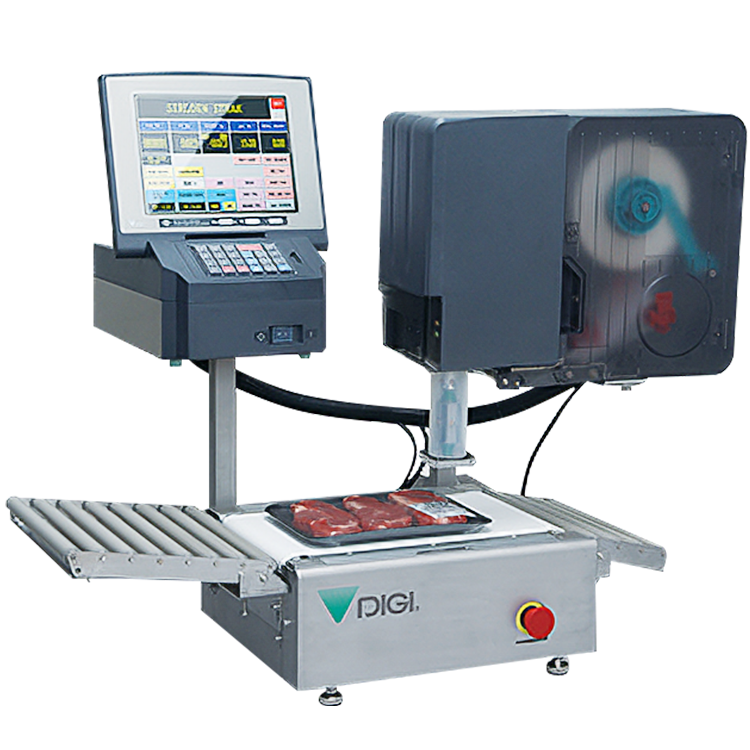

LI-4600-WP02

Automatic weigh-label system

LI-4600

Retail

Main Features

The LI-4600 maximizes efficiency of in-store pre-packaging operation and has a compact, space-saving design. Compact design provides opportunities in various applications that require a simple, unique solution for automatic and semi-automatic labeling. The LI-4600 can be easily connected with existing equipment, such as MAP packaging machines in the pre-packaging area.

LI-4600-WP04-1

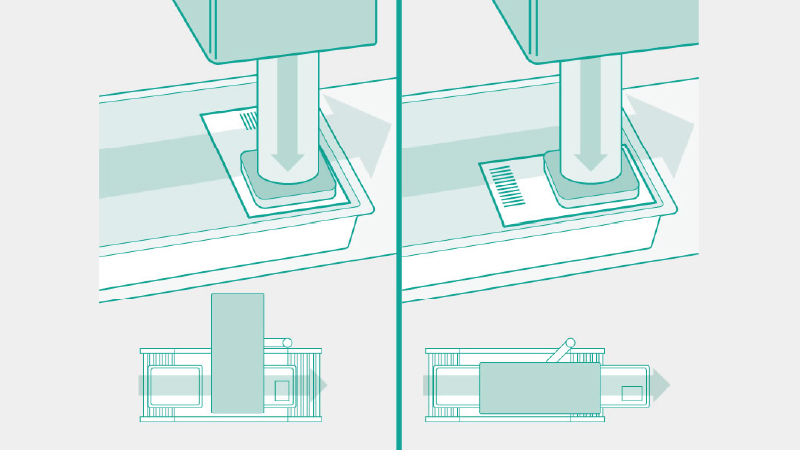

Flexible and accurate labeling

Stamp applicator for accurate labeling rotates 90 degrees to suit the direction of item flow.

LI-4600-WP04-2

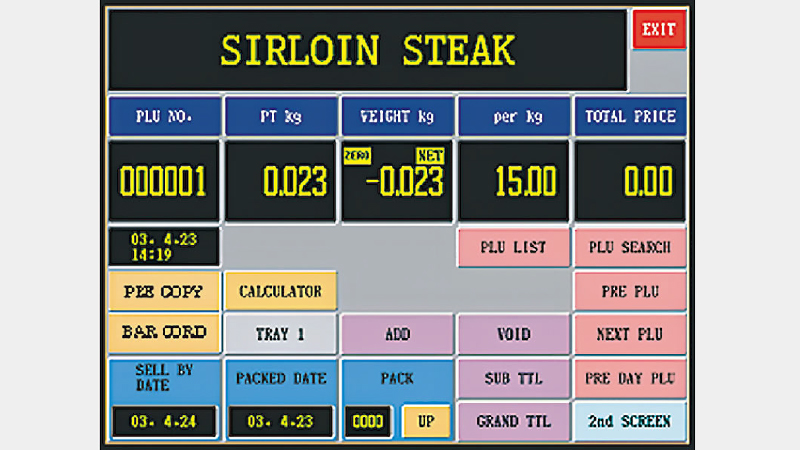

User-friendly operation

Large color touch screen provides various functions to simplify operation, such as easy PLU searching, convenient print viewing and free key layouts to increase speed and efficiency.

LI-4600-WP04-4

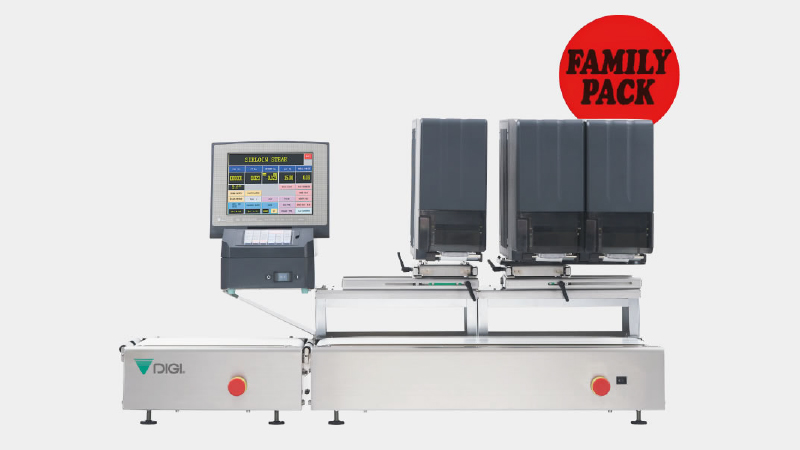

2nd labeler and POP labeler are available as options

Option labelers are available to improve store operations.

Specifications

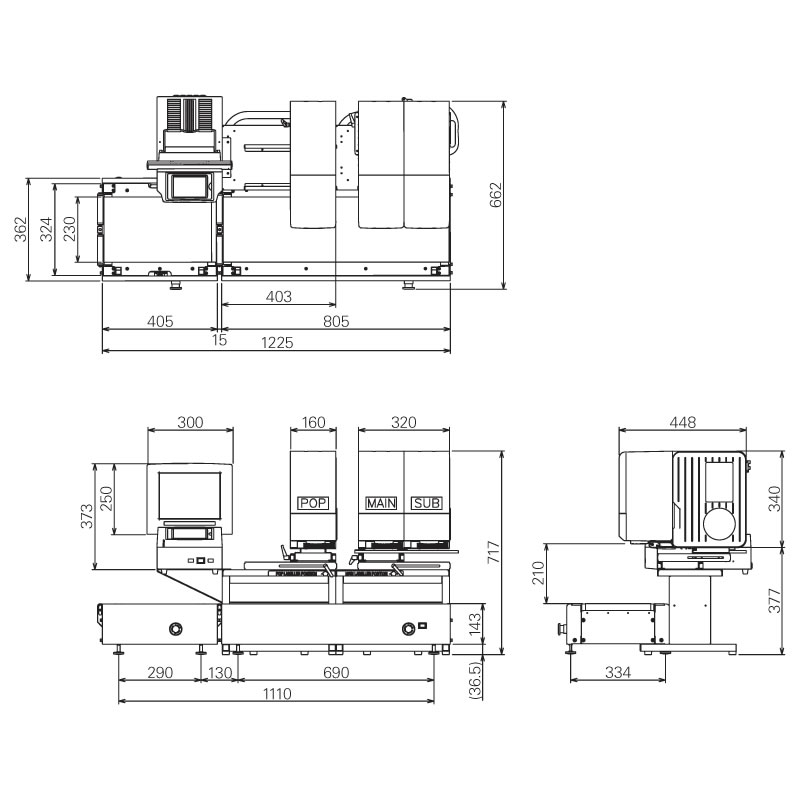

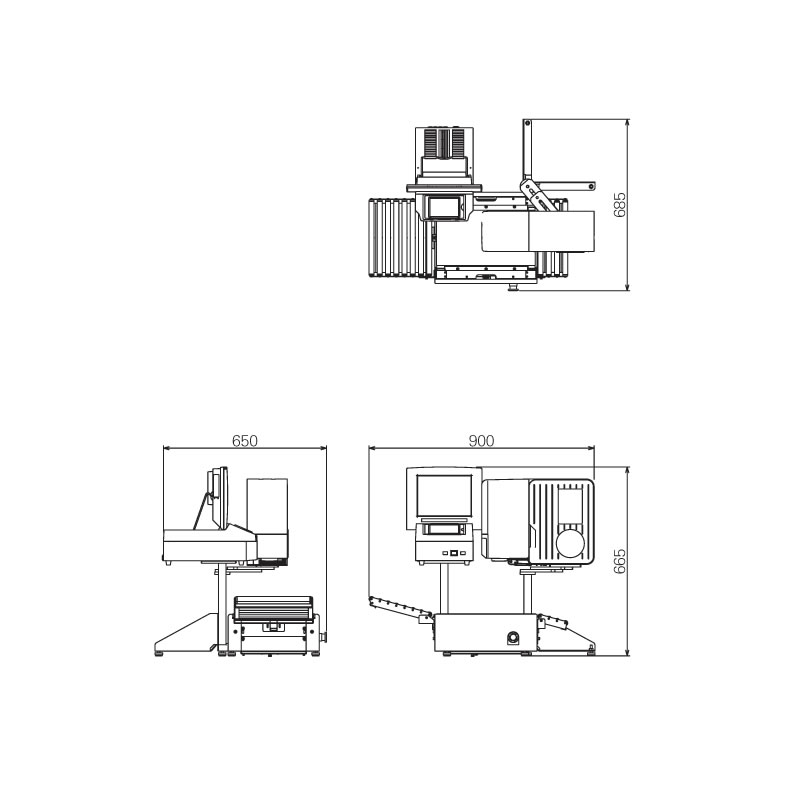

Dimensions

  • LI-4600-WP05-1
  • LI-4600-WP05-2

Conveyor

Model Type A Type B
Package Size Width 50-390mm/1.9-15.3 inches
Height
(Vertical labelling)
Long Pole:
1-150mm/0.04-5.9inches
1-150mm/0.04-5.9inches
Short Pole:
1-100mm/0.04-3.9inches
Height
(Horizontal labelling)
Long Pole:
1-100mm/0.04-3.9inches
1 - 120mm/0.04-4.7inches
Short Pole:
1-50mm/0.04-1.9inches
Depth 50-230mm/1.9-9inches
Speed Max. 25 packages/min. Max. 30 packages/min.
Direction
Left -> Right or Right->Left
(factory option)
Left -> Right

Weighing

Model Type A Type A and B
Capacity Max 2kg Max 4kg Max 10lb
Scale interval e=1g e=2g e=0.005lb
Weighing range 20g-2kg 40g-4kg 0.1-10lb
Conveyor capacity Max 2kg Max 4kg Max 10lb

Labeling

Model Type A Type B
Label type Thermal paper
Labeling application Automatic and Manual application Automatic application
Label size Automatic application Width 40-80mm/1.6-3.1inches
Length 28-100mm/1.1-3.9inches
Manual application Width 40-80mm/1.6-3.1inches
Length 20-150mm/0.8-5.9inches

Console/Display/User Interface

Display panel 10.4 inches TFT color
Keypad Pictogram or English

General

Model Type A Type B
Externals Resin and stainless steel construction
Power source and power consumption
100-120V, 50/60Hz, 120W
220-240V, 50/60Hz, 150W
220-240V, 50/60Hz, 150W
Net weight Approx. 50kg/110 lb Approx. 90kg/198lb (without Option)
Operation humidity 90%RH (max.)



Variations

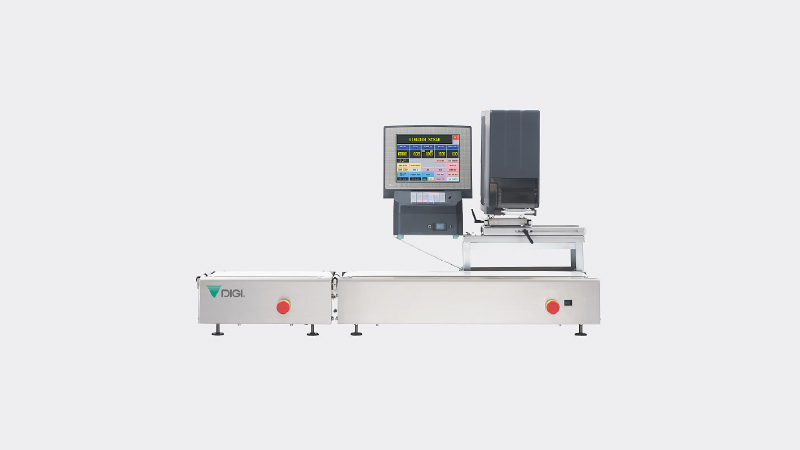

LI-4600-WP07-1

Single labeler type

LI-4600 type B Single

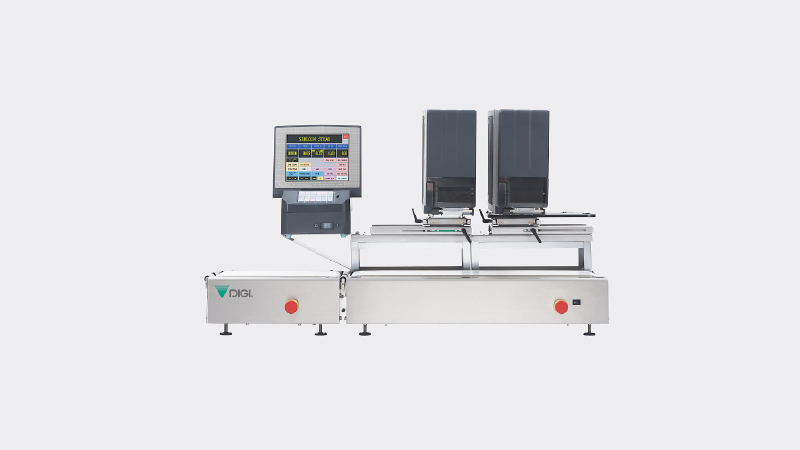

LI-4600-WP07-2

Twin labeler type

LI-4600 type B Twin

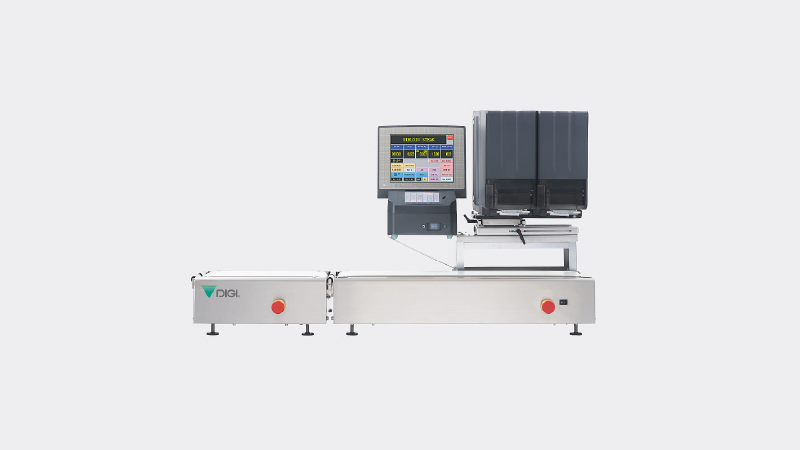

LI-4600-WP07-3

Single labeler with POP labeler

LI4600-type B Single with POP

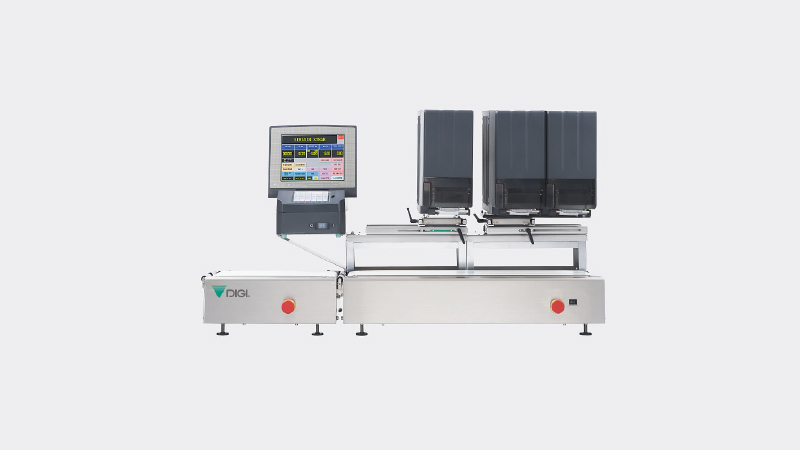

LI-4600-WP07-4

Twin labeler with POP labeler

LI4600-type B Twin with POP
