Remarque : Ce produit n’est plus vendu et pourrait ne pas être pris en charge.
Veuillez consulter votre revendeur local en ce qui concerne l'entretien de ce modèle ou le remplacement des modèles.

aw5600cpr_WP02_01

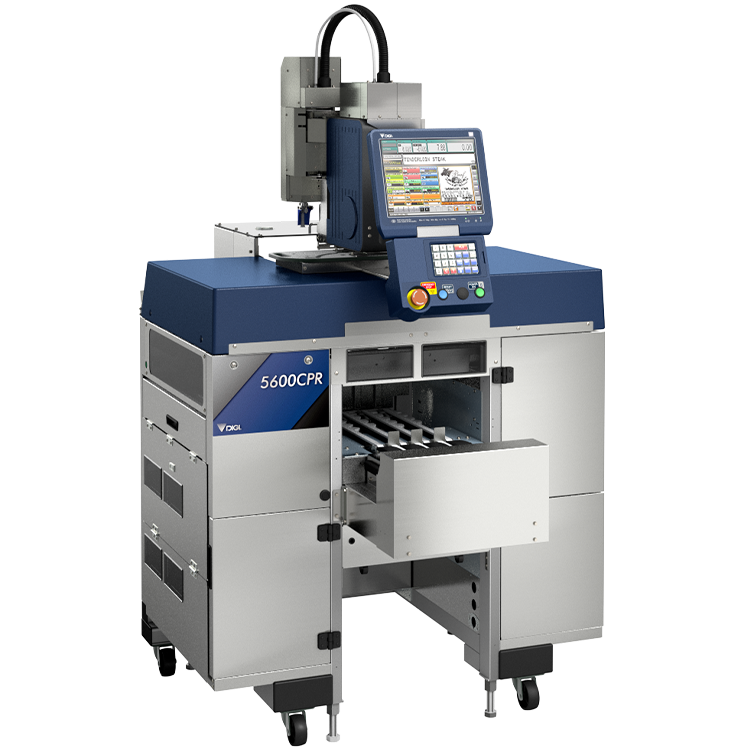

Create space-efficient production lines with this all-in-one integrated in-line weigh-wrap-label system

AW-5600CPR

Retail

Présentation

AW-5600CPR is a fully automatic, integrated weigh-wrap-label system designed for in-line operation. Even with its compact form factor, it can wrap large packages at a maximum rate of 30 packages per minute.

aw5600cpr_WP04_01

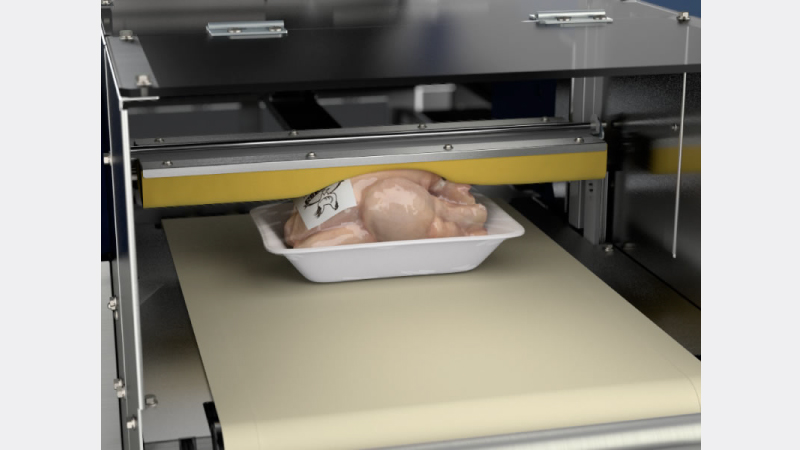

High productivity

In addition to maintaining a high maximum packaging speed,  performance improvements to AW-5600CPR have pushed its average wrapping speed well beyond that of previous models.

The combination of tray presser and enhanced heater conveyor ensures a tight film seal and a beautiful finish for the packaged product.

aw5600cpr_WP04_02

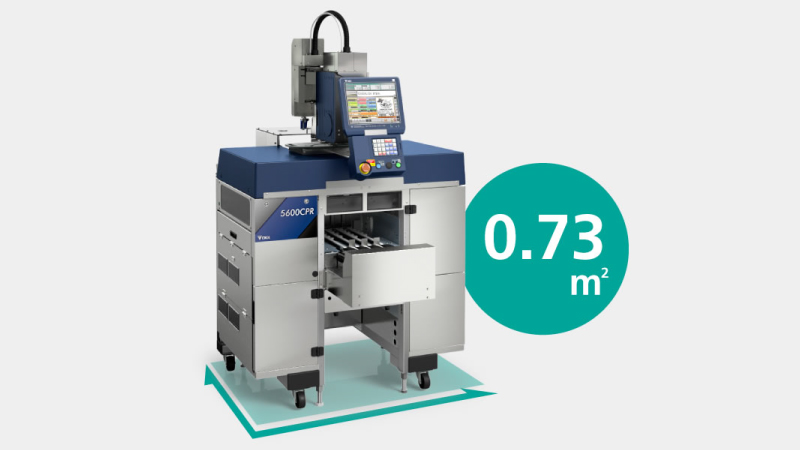

Space-efficient production lines

AW-5600CPR's remarkably compact 0.73 m2 footprint (excluding conveyor) helps you design an inline weighing and wrapping operation with maximum space efficiency.

aw5600cpr_WP04_03

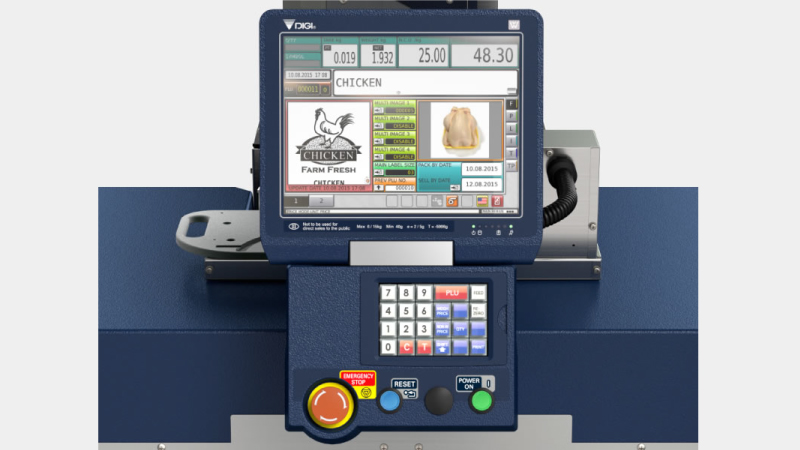

Easy operation

AW-5600CPR’s user interface allows quick response to store needs. With fewer screens to tap through, creating and printing labels is quick and simple, even for first-time users. Operators can preview labels on the 12.1” full-color display and print only what they need.

aw5600cpr_WP04_04

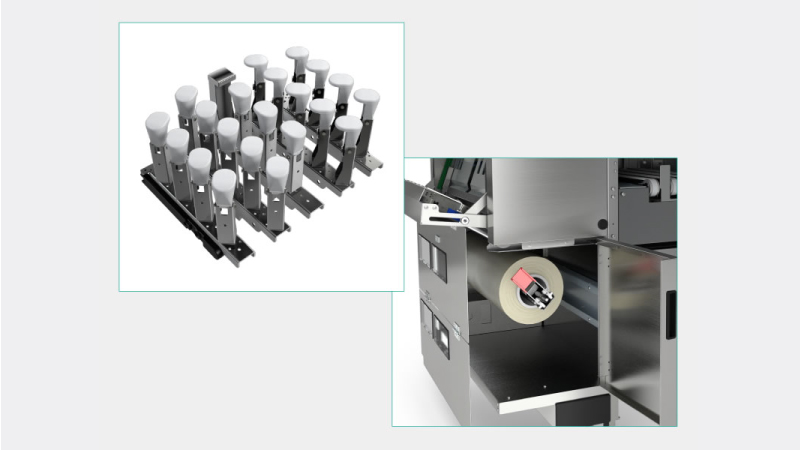

Quick film loading and easy clean-up

A new quick film loading mechanism lets you change film sizes with minimal downtime.

Easy access to the detachable elevator head helps take the effort out of daily cleaning.

aw5600cpr_WP04_05

Variable length label printing using auto-sizing and auto-cutting

Linerless labels automatically adjust the label size to the content, using a continuous roll of adhesive label material. This means you can print a different-sized label for each product, and longer labels are simple to print.  DIGI's auto-cutting feature assures that the label has a clean, smooth edge.

Caractéristiques

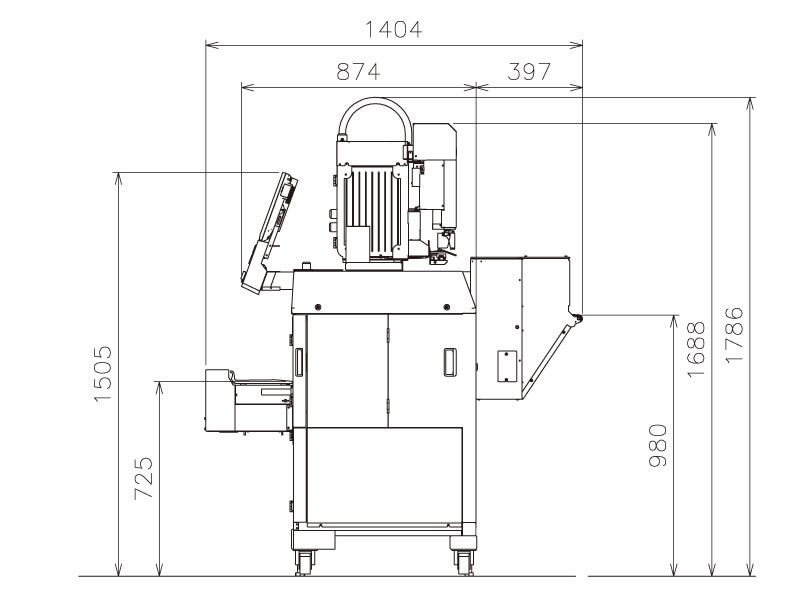

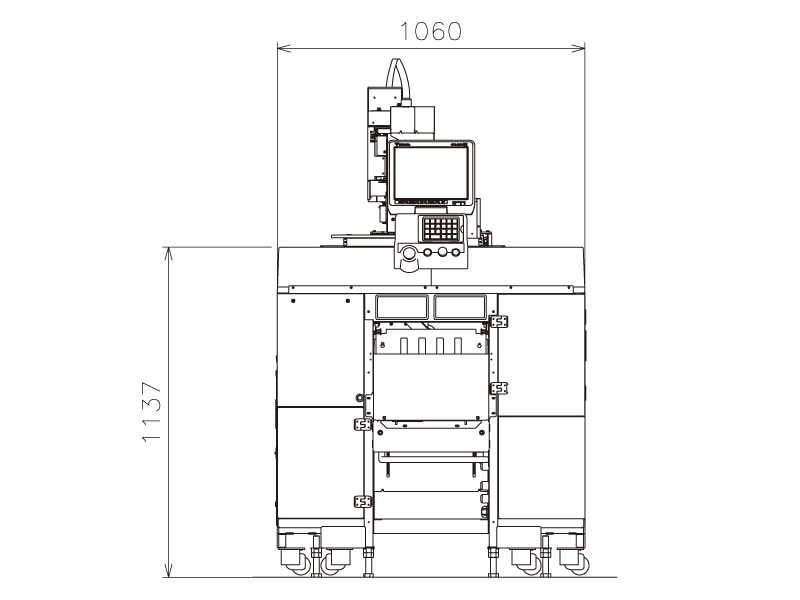

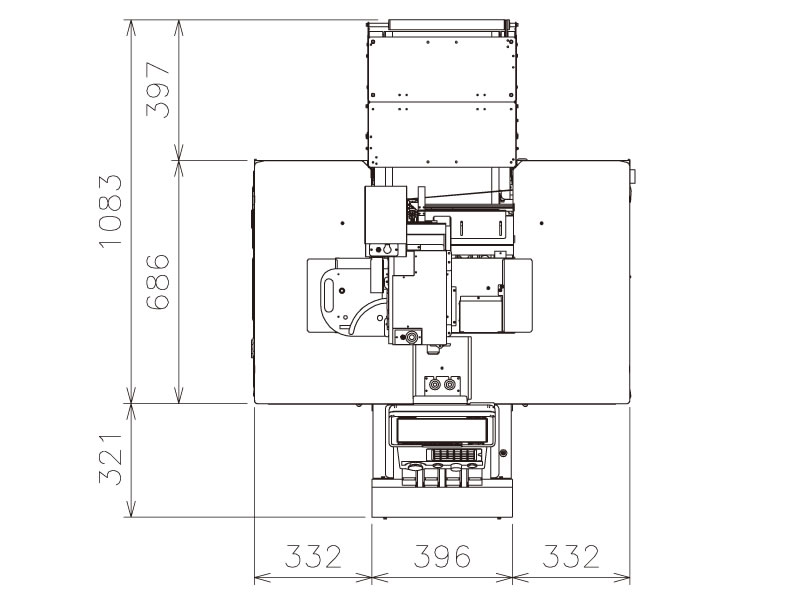

Dimensions

  • aw5600cpr_WP05_01
  • aw5600cpr_WP05_02
  • aw5600cpr_WP05_03

Thermal printer

Label type Die-cut label Linerless label
Label width 40-80mm/ 1.6-3.1 inches 44-59mm/ 1.73-2.3 inches
Label length 28-105mm/ 1.1-4.14 inches 28-105mm/1.1-4.1 inches*
*Maximum printing length is 300mm/ 11.8 inches
Label roll diameter Max. 210mm (8.2 inches)
Label roll core diameter 76mm (3.0 inches)
Dot density 12 dot/mm (300dpi)


Operation console

Display panel TFT LCD color (12.1 inches) touch panel
Operation keys Mechanical keys and touch screen
Memory for programmable files 8.8 GB


General

Power source and 208/240V; 3φ; 50/60Hz; 2.1kVa
Power consumption 220-240V; 1φ; 50/60Hz; 2.0kW
Net weight Approx. 340kg (AW-5600CPR Single Labeler Type)

Modèles

aw5600cpr_WP07_01

Twin labeler

AW-5600CPR Twin

AW-5600CPR Twin lets you switch between two different labels to be applied to packages. This is useful when handling different items or destinations.
aw5600cpr_WP07_02

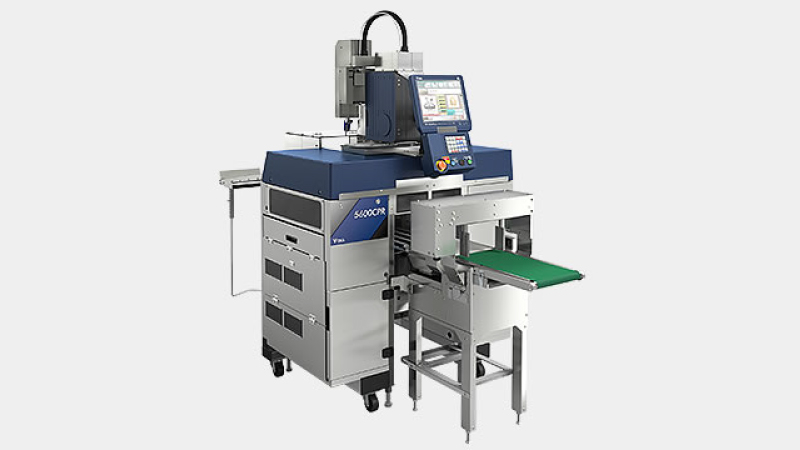

Auto infeed

AW-5600CPR IWC

AW-5600CPR IWC offers an automatic infeed conveyor, so items can feed in directly from the conveyor in the previous stage.  A centering device  corrects the package orientation to reduce wrapping errors.

Options

aw5600cpr_WP09_01

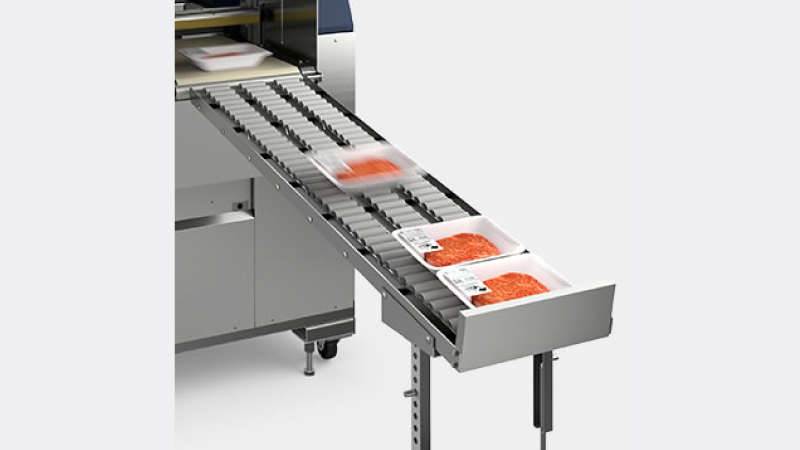

Outfeed conveyor
