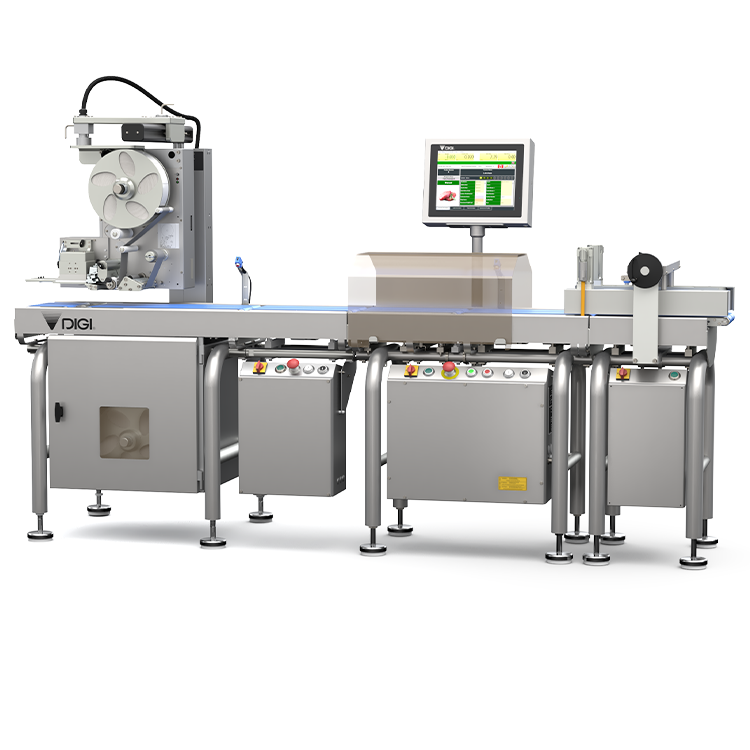

Multi-Labeling High Speed Dynamic Weigh Price Labeler

HI-700HS II

Industria Alimentaria

Balanzas etiquetadoras automáticas

Características principales

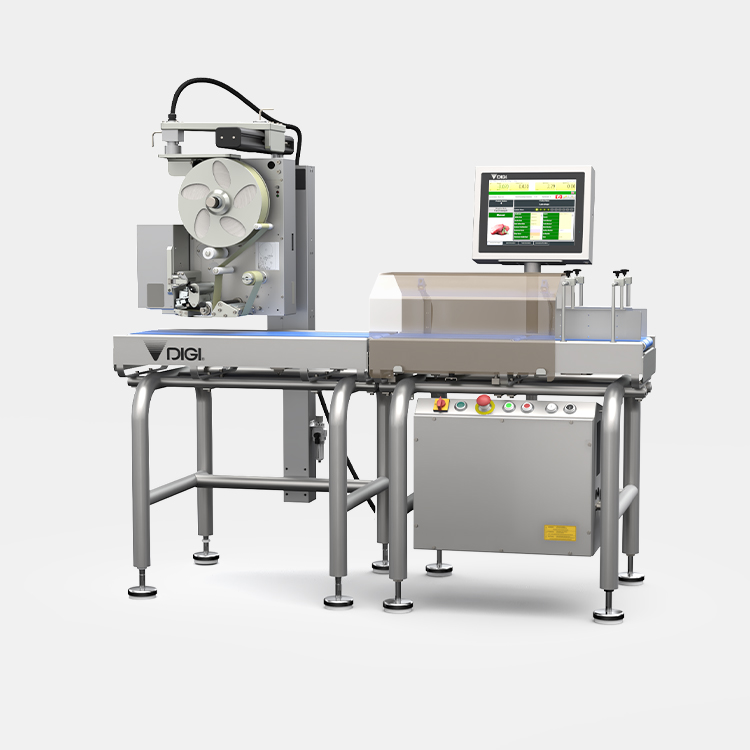

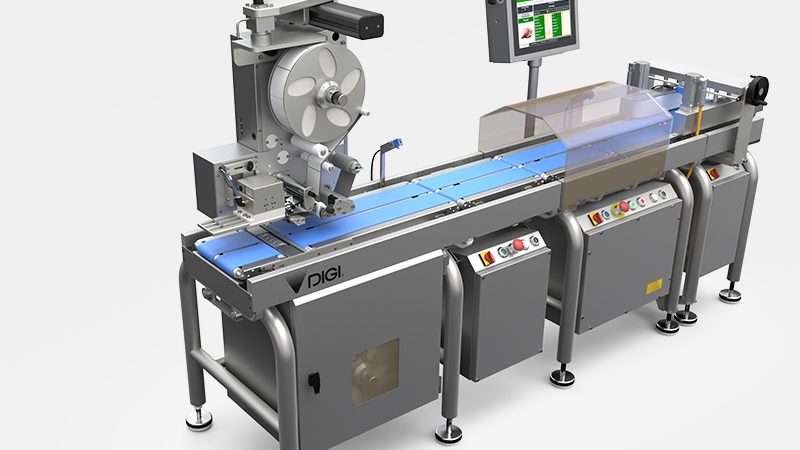

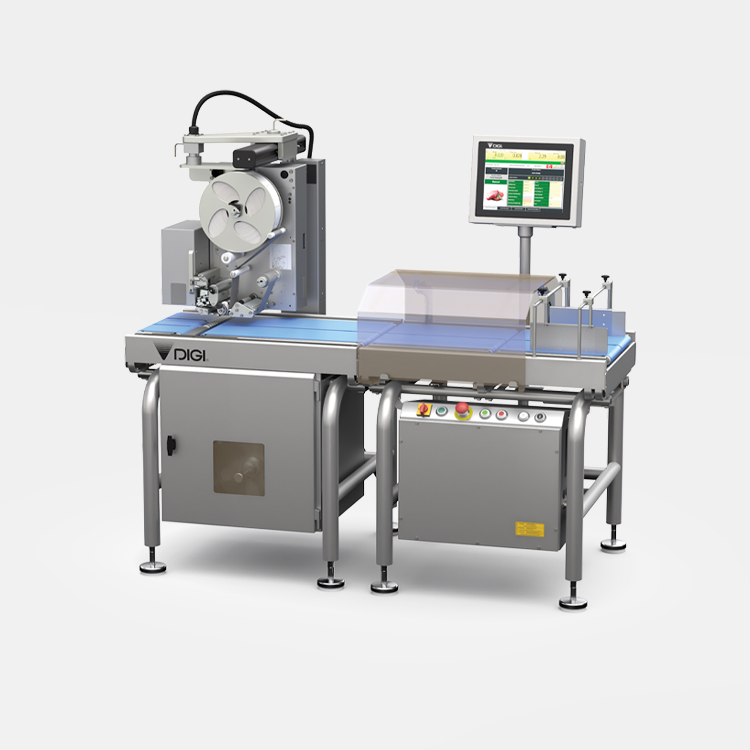

The HI-700HS ll high speed Weigh Price Labeler offers both increased efficiency and flexibility. Being powered by PC-based software means networking and integration with existing machines and back office systems is straightforward. Dynamic weighing coupled with DIGI’s high speed Signature labeler allows powerful weigh-price-labelling at up to 160ppm.

Descargue el folleto aquí

Fast Throughput

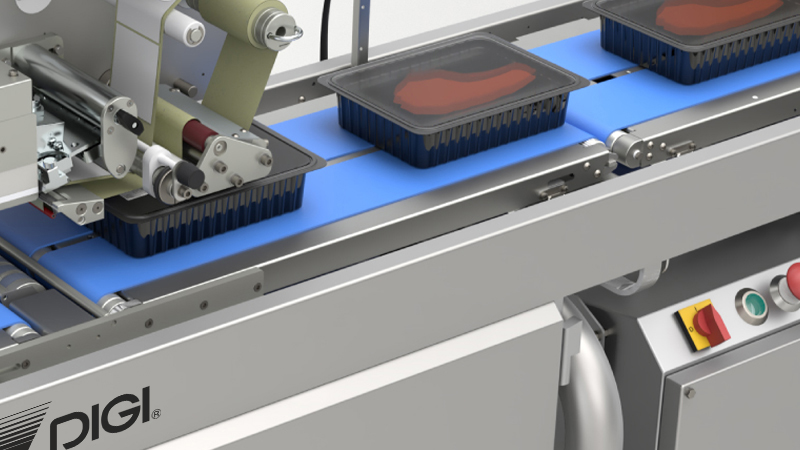

The HI-700HS II is designed to meet the fast-throughput required in many factory settings, and this is achieved thanks to features such as a servo belt driven infeed, direct drive conveyor system and DIGI's Signature labeler.

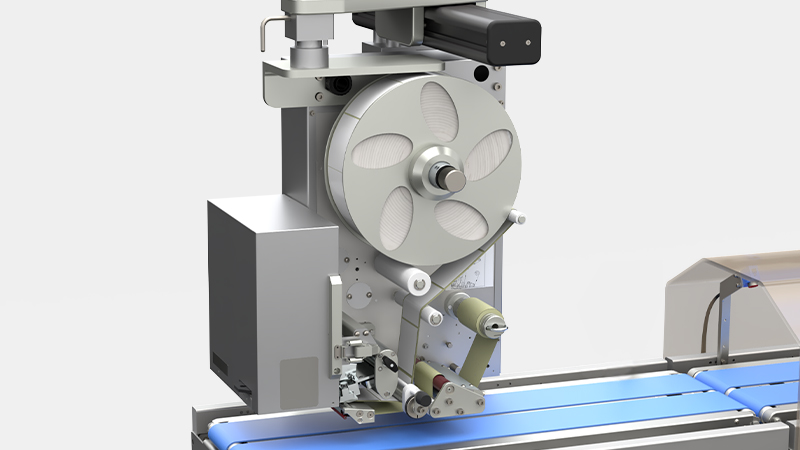

Signature Labeler

The high speed signature labeler provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.

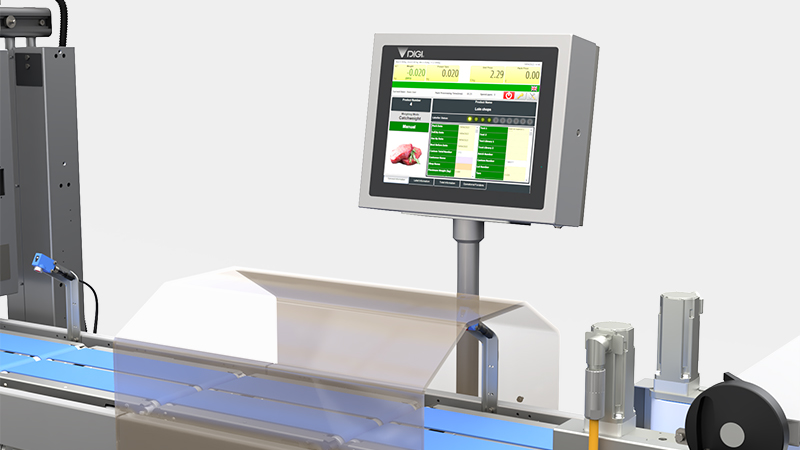

WorldView Operating Software

The HI-700HS ll uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labellers.

Modular Design

The modular design allows for the addition of extra labelling stations. Add more top and bottom labelers as required, providing a flexible solution to meet your requirements.

Especificaciones

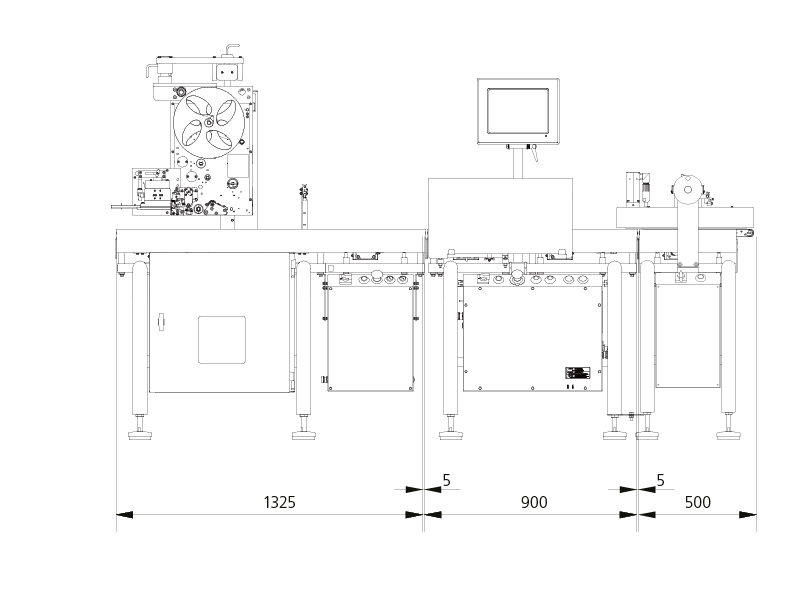

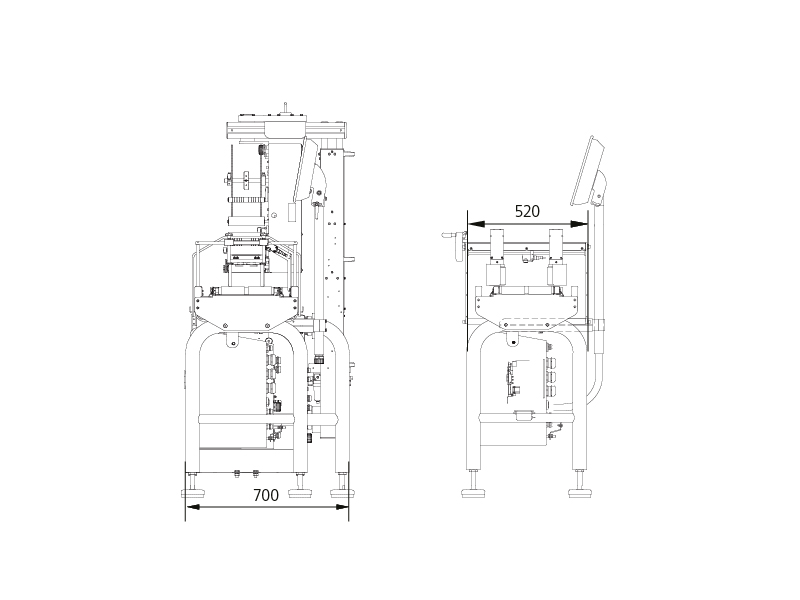

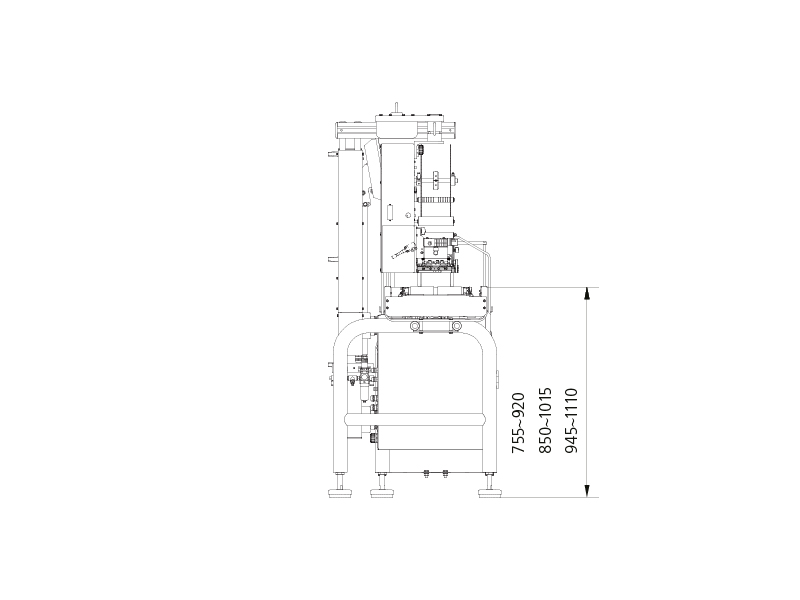

Dimensiones

Weighing

Capacity	Max 6 kg
Single Interval	e= 1g
Pack Speed	up to 160 packs per minute
Pack Size	L80-300mm x W40-250mm x H180mm

Throughput dependant on product weight and size.

Display

Screen	15" Colour LCD touchscreen
Touch panel	XGA a-Si TFT LCD Resistive touch

Operation

Weighing Modes	Catch Weight, Fixed Weight/Price, Average (Emark)
Labelers	Multiple labelers/printers
Communication	Ethernet, USB, RS232
Operating System	Windows 10 OS
Language	Multi-lingual Unicode
Software	WorldView (embedded application)
Database	SQL
Connectivity	Remote programming and control
	Connectivity to meet industry standards
	Customisable output data
	Interconnectivity to back-office data management

General

Power Supply	220-240V(115V Option) 50/60Hz AC Single Phase
Operating Temperature	0 to +30°C

Standard Features

Scale Length	400mm
Scale Cover	'lift-off' formed polycarbonate
Sensors	Overhead retro reflective
Labelers	Signature
Pack Guides	S100 tall guides
Conveyors	Split blue belts

Variaciones

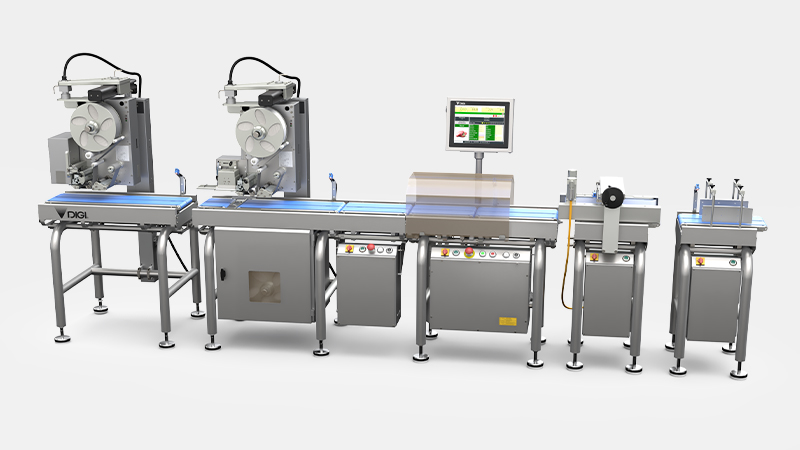

Top and bottom labeling

Additional labelers can be integrated into the Weigh Price Labeler, giving extra flexibility to label both the top and under side of each pack simultaneously.

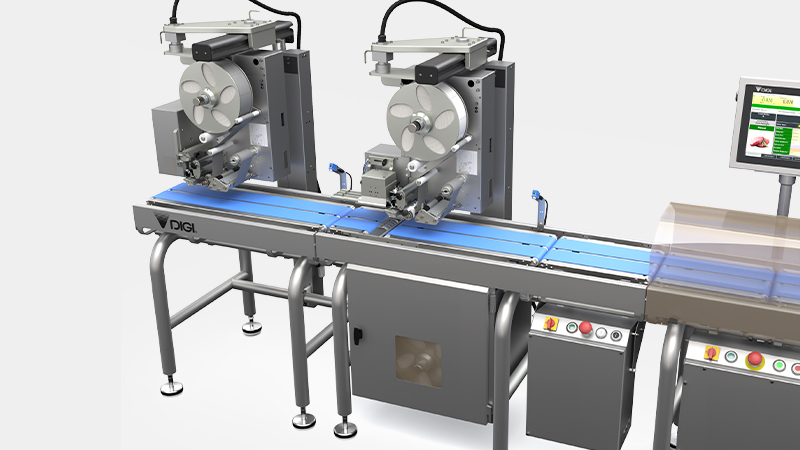

Multi Labeler

Adding additional labelers will allow automatic switching of labelers when one has run out of labels, further limiting the amount of downtime.

Opciones

Auto Labeler Height Adjustment

The height of the Signature labeller can be automatically adjusted via the Product Look Up (PLU).

Frame Height Adjustment

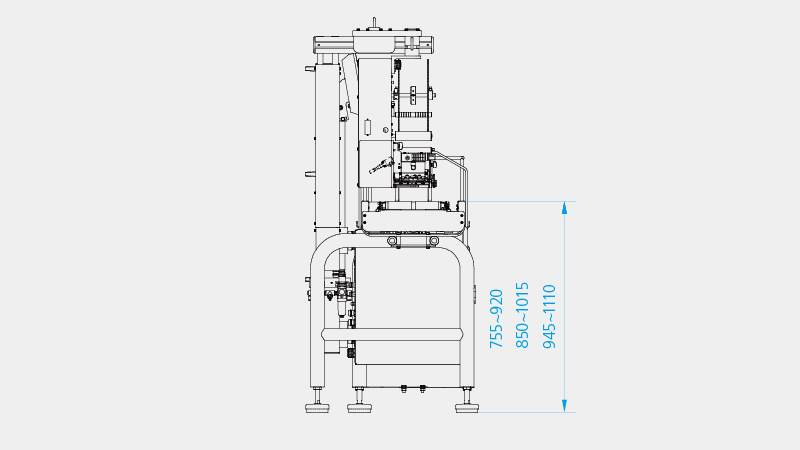

The height of the HI-700 II's frame can be adjusted to better integrate with existing lines.

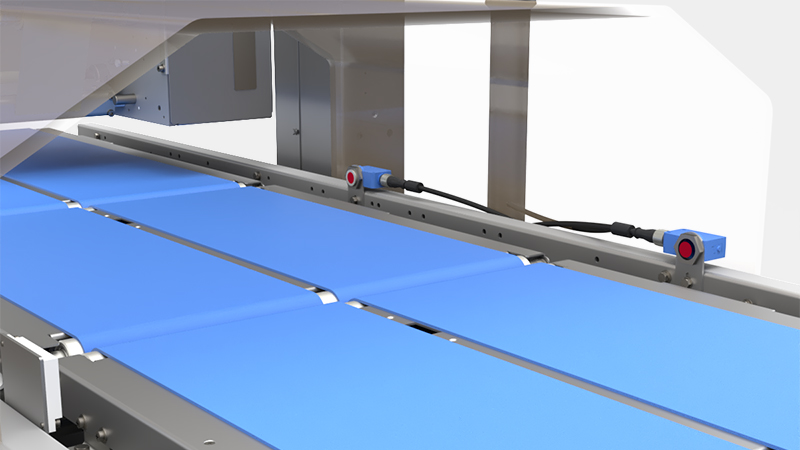

Pack Sensors

Difference pack sensors are available, further optimising the HI-700HS II to suit the desired factory setting.

Options

Options	Pre-printed label applicator, Direct protocol Honeywell (PM43/45), Direct protocol Zebra (ZPL II), Windows printers, High level warning beacon, Rejector
