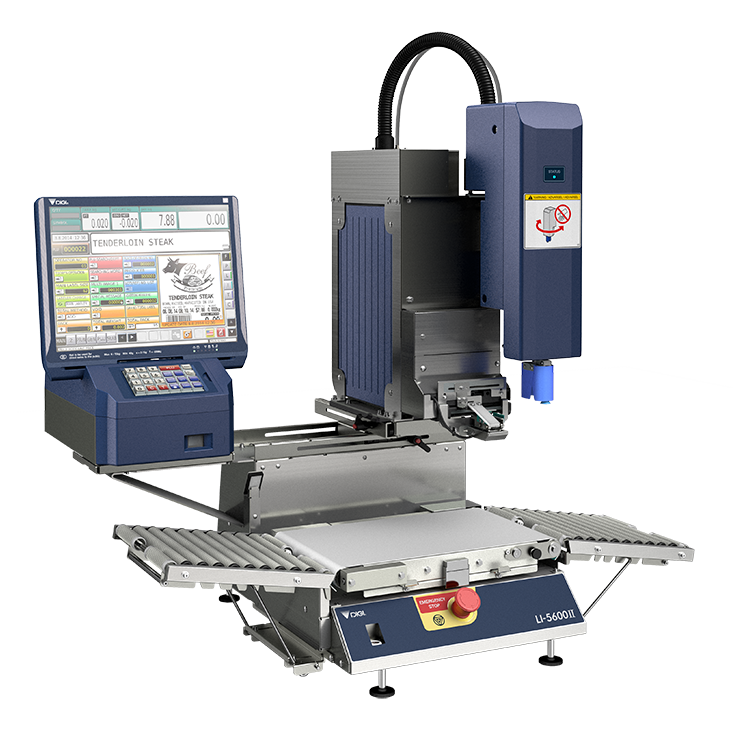

A convenient and complete solution for a wide range of in-store applications
LI-5600II
RetailCaracterísticas principales
The LI-5600II maximizes the efficiency of in-store pre-packaging operation and has a compact, space-saving design. Its compact design provides opportunities in various applications that require a simple, unique solution for automatic and semi-automatic labeling. The LI-5600II is also highly compatible with existing equipment such as MAP packaging machines in the pre-packaging area.
Automatic weigh-label-system, a convenient and complete solution for a wide range of in-store applications
The LI-5600II, automatic weigh-label system, maximizes efficiency in the pre-packing operation and has a compact and space saving design. Easy to be combined into existing equipment in the pre-packing area.
![li5600-2_WP04_01](./product_file/file/li-5600_WP04_01.jpg)

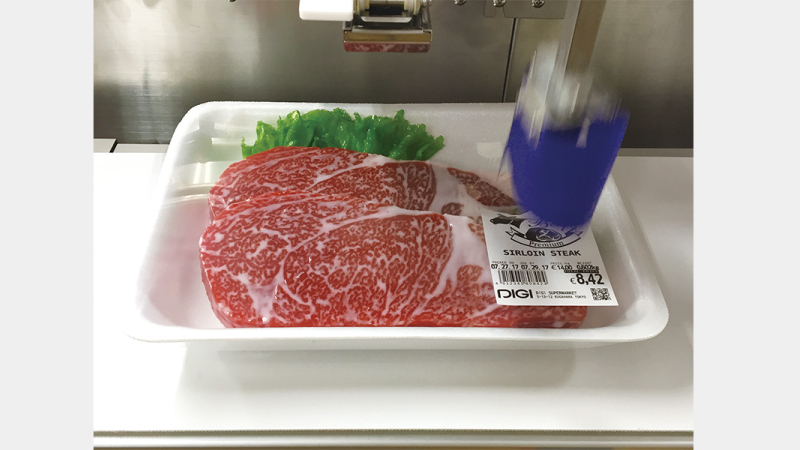

Fast, accurate and flexible labeling
![li5600-2_WP04_02](./product_file/file/li5600-2_WP04_02.jpg)

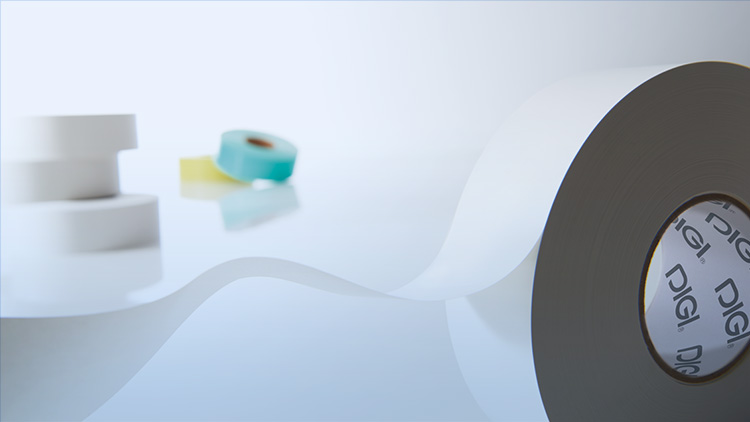

Catch the Shoppers' Eyes While Generating Savings on Labels
![li5600-2_WP04_03](./product_file/file/li5600-2_WP04_03.jpg)

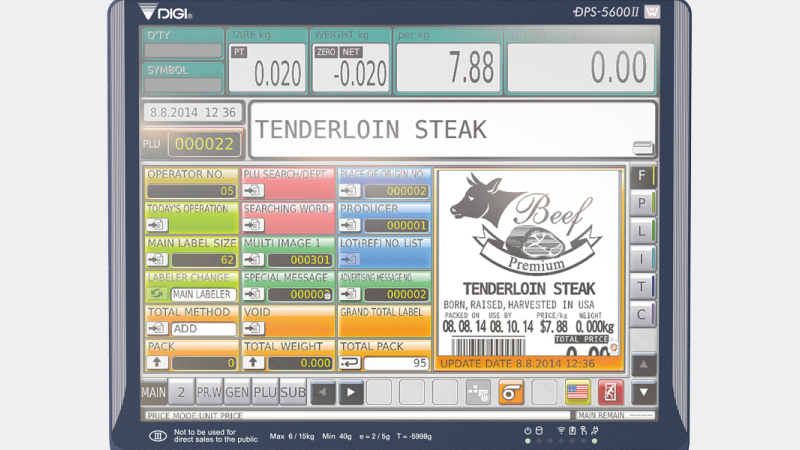

User-friendly operation
![li5600-2](./product_file/file/li-5600_WP04_04.jpg)

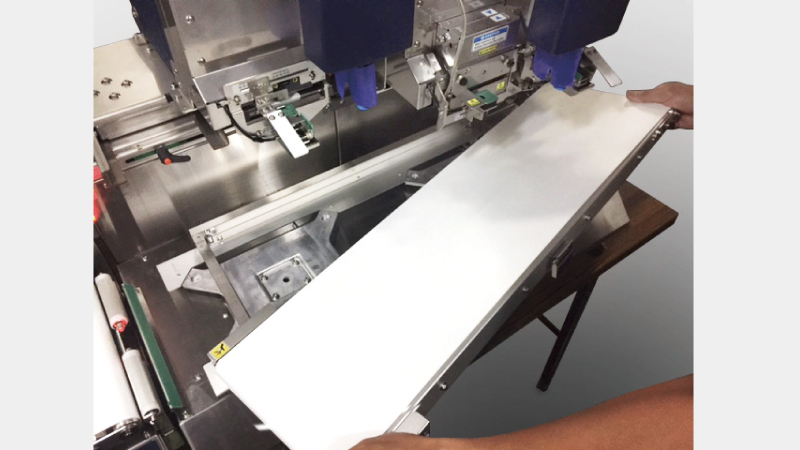

Detachable conveyor for easy cleaning
Especificaciones

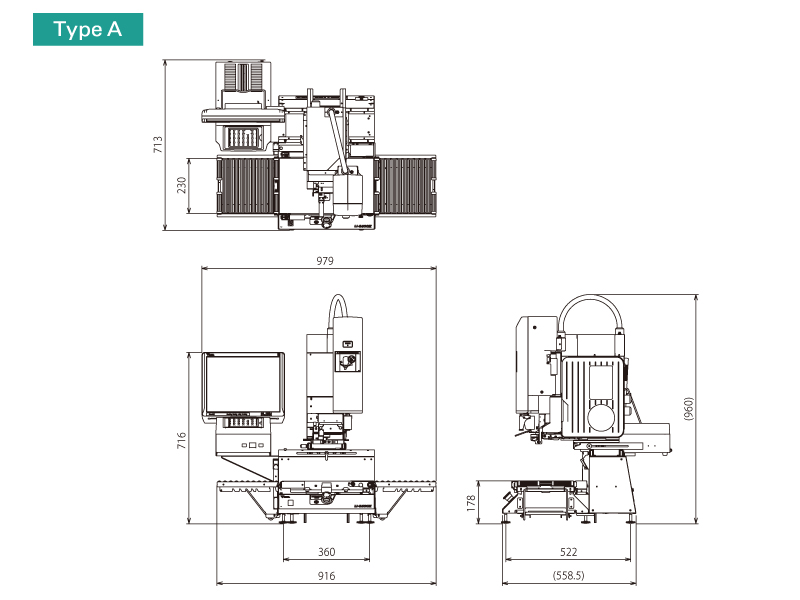

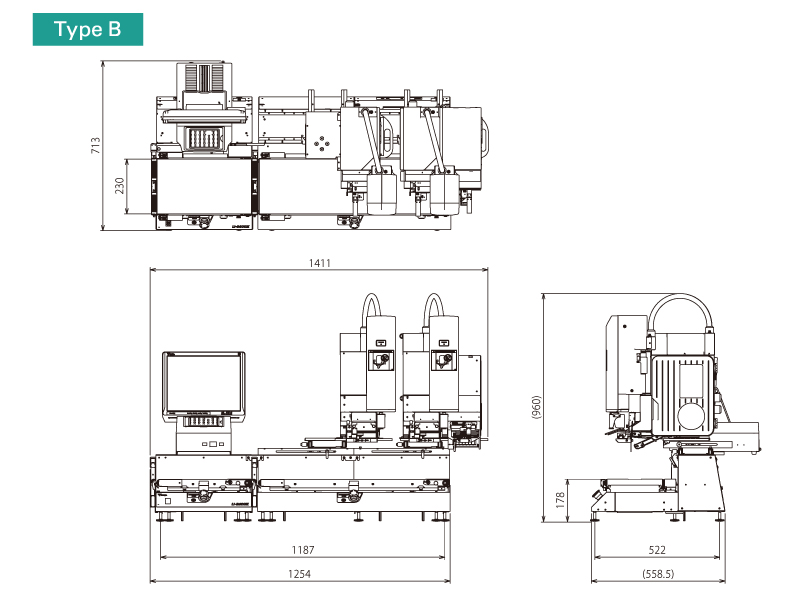

Dimensiones
Conveyor
Model | Type A | Type B |
---|---|---|
Speed | Max. 26 packages/min. | Max. 35 packages/min. |
Package Size | Width: 50-390 mm/1.9-15.4 inches Height: 1-150 mm/0.04-5.9 inches Depth: 50-230 mm/1.9-9.1 inches |
|
Direction | Left → Right or Right → Left |
Weighing
* Unit varies by countryInterval type | Multi-interval | Single-interval | |
---|---|---|---|
Capacity | Max 3/6 kg | Max 6/15 kg | Max 30 lb |
Scale interval | e=1/2 g | e=2/5 g | e=0.01 lb |
Weighing range | 20 g-6 kg | 40 g-15 kg | 0.20-30 lb |
Conveyor capacity | Max 6 kg | Max 15 kg | 30 lb |
Thermal printer
* Maximum printing length is 300 mm/11.8 inchesModel | Type A and B | |||
---|---|---|---|---|
Labeling application | Automatic application | Manual application | ||
Label type | Die-cut Label | Linerless Label | Die-cut Label | Linerless Label |
Label size | Width: 40-80 mm/ 1.57-3.15 inches Length: 28-105 mm/ 1.10-4.13 inches |
Width: 44-78 mm/ 1.73-3.07 inches Length: 28-105 mm/ 1.10-4.13 inches |
Width: 40-80 mm/ 1.57-3.15 inches Length: 20-150 mm/ 0.79-5.91 inches |
Width: 44-78 mm/ 1.73-3.07 inches Length: 20-500 mm/ 0.79-19.69 inches* * Maximum printing length is 300 mm/11.8 inches |
Labeling angle | 0 or 90 or 180 or 270 degree | |||
Font | True type font |
Operation console
Display panel | TFT LCD color (15 inches) touch panel |
---|---|
Memory for programmable files | 32 GB |
General
Model | Type A | Type B |
---|---|---|
Power source and power consumption | 230 V;1 φ;50/60 Hz;0.7 A;160 W | Scale Conv: 230 V;1 φ;50/60 Hz;0.8 A;160 W Labelling Conv: 230 V;1 φ;50/60 Hz;0.9A;165 W |
Net weight | Approx. 59 kg | Approx. 112 kg (TWIN + POP labeler type) |
Variaciones
![li5600-2WP07_01](./product_file/file/li5600-2WP07_01.jpg)

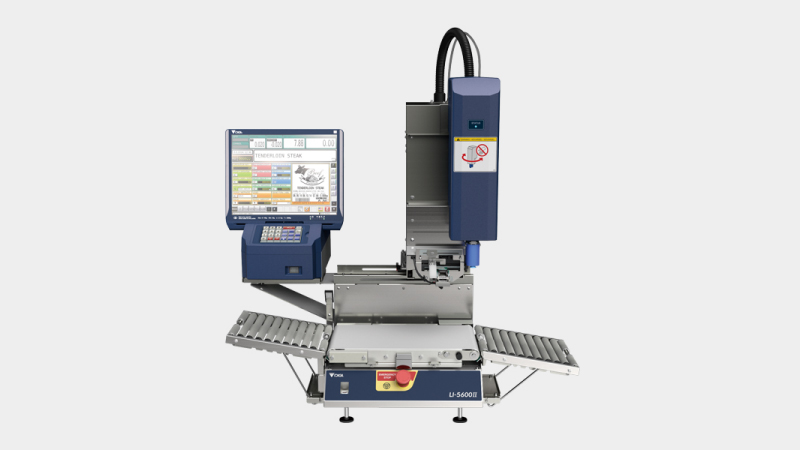

Single labeler type
![li5600-2WP07_02](./product_file/file/li5600-2WP07_02.jpg)

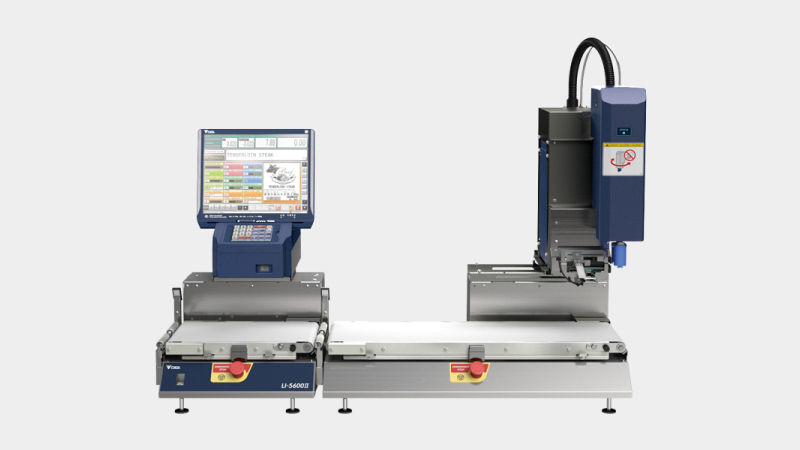

Single labeler type
![li5600-2WP07_05](./product_file/file/li5600-2WP07_05.jpg)

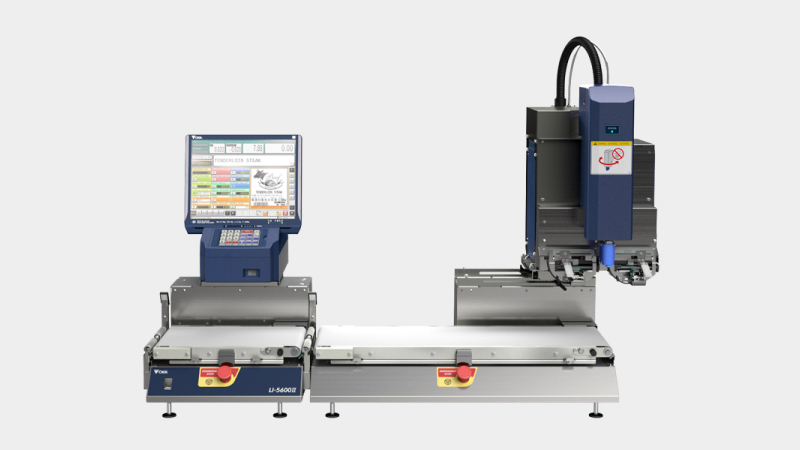

Twin labeler type
![li5600-2WP07_03](./product_file/file/li5600-2WP07_03.jpg)

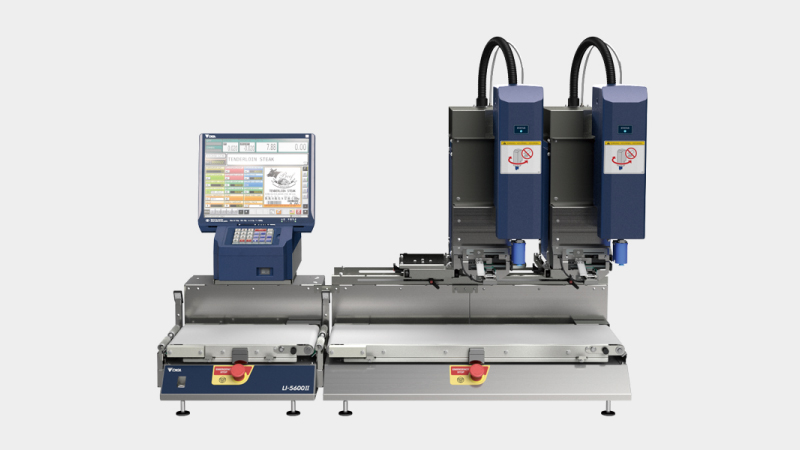

Single labeler with POP labeler
![li5600-2WP07_04](./product_file/file/li5600-2WP07_04.jpg)
