A practical, functional printer scale

SM-100CS+

Retail

Características principales

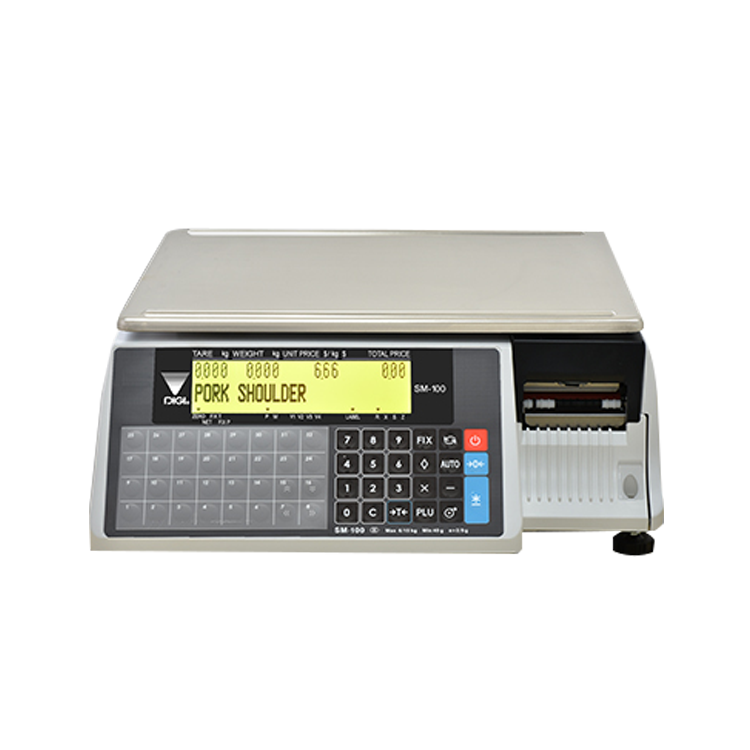

SM-100CS+ is a cassette version of scale printer with versatile functions.

  • Quick weight stabilization and fast printing
  • Reliable printing mechanism
  • Easily programmable with nutritional facts and traceability information
  • Connects to a barcode scanner
  • Quick loading of label/ receipt rolls


Quick loading of label/ receipt rolls

Cassette makes changing label or receipt rolls easier than ever.

Powerful communication capabilities

Standard Ethernet and RS-232C interface with optional wireless LAN capability lets the SM-100CS easily connect with a networking system for data exchange.

Especificaciones

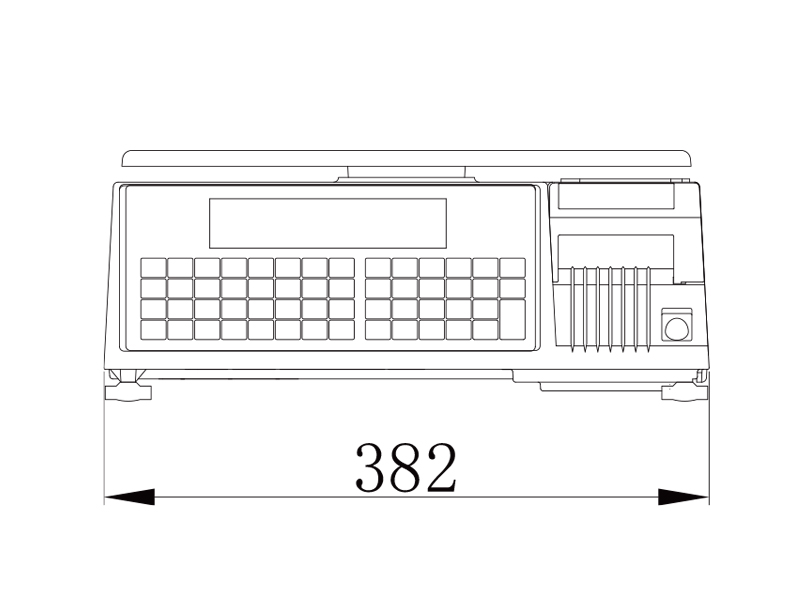

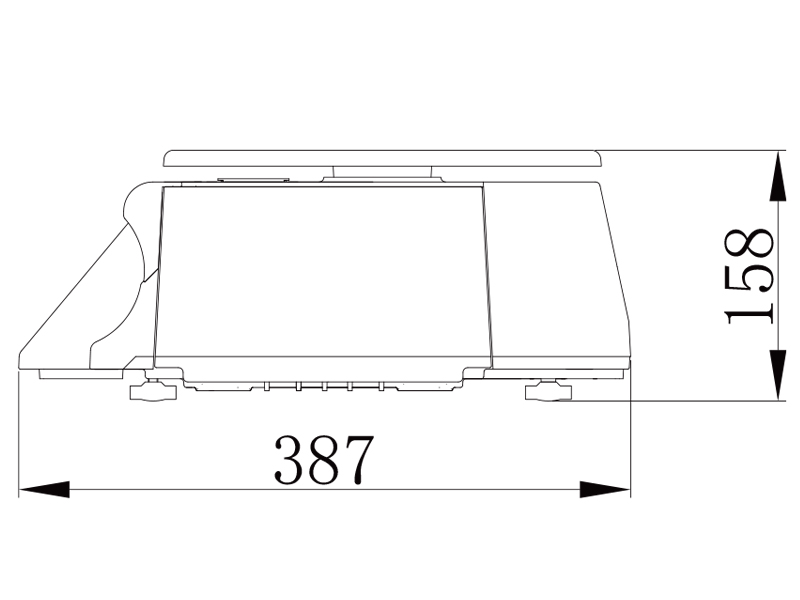

Dimensiones

  • sm100cs+_WP05_01
  • sm100cs+_WP05_02
  • sm100cs+_WP05_03

Basic

Model SM-100CS+
Capacity 3/6 kg 6/15 kg 15/30 kg
Display resolution 1/3000
Memory 2M (standard) 4M or 8M (optional)
OP Display 202 x 32 pixels FSTN type LCD with back-light
CU Display Tare Weight display: 4digits, Weight display: 5 digits, Unit Price display: 6 digits, Total Price display: 7 digits
Number of Preset Keys SM-100BCS+ SM-100PCS+
32 56
Standard Interface 1xRJ45; 1xRS232; 1xRJ9 Cash drawer
Printer High reliability thermal head printer
Resolution: 203dpi
Max Printing Width: 56mm
Max Paper Width: 60mm (receipt) / 60mm (label)
Printing speed: Maximum 105 mm / sec
Life span: 100 million pulses, 100km or more
Power source AV 100V~240V ; 50/60Hz
WIFI (Optional) WIFI IEEE 802.11a/b/g/n



Variaciones

sm100cs+_WP07_01

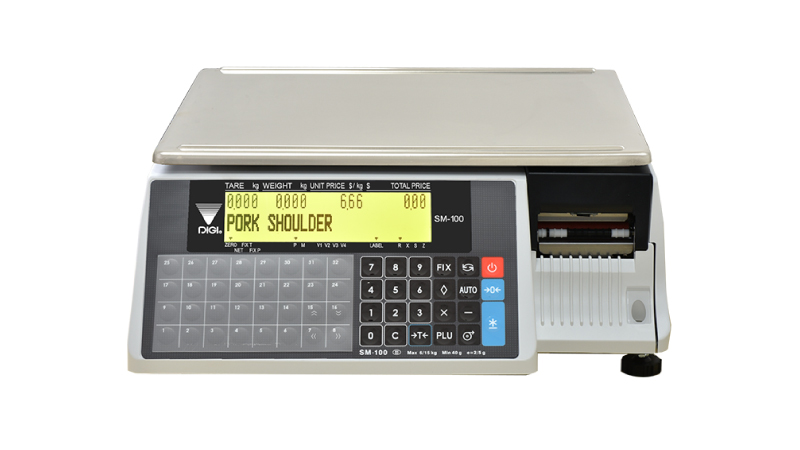

Bench Type

SM-100BCS+

382 (W) x 387 (D) x 158 (H) mm
sm100cs+_WP07_02

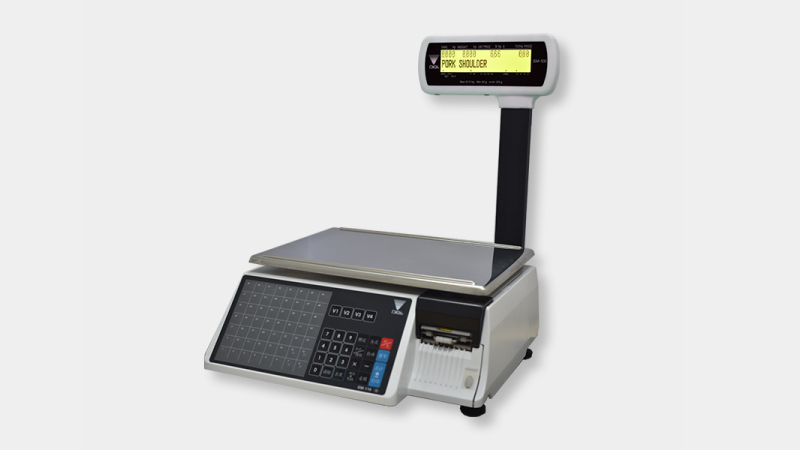

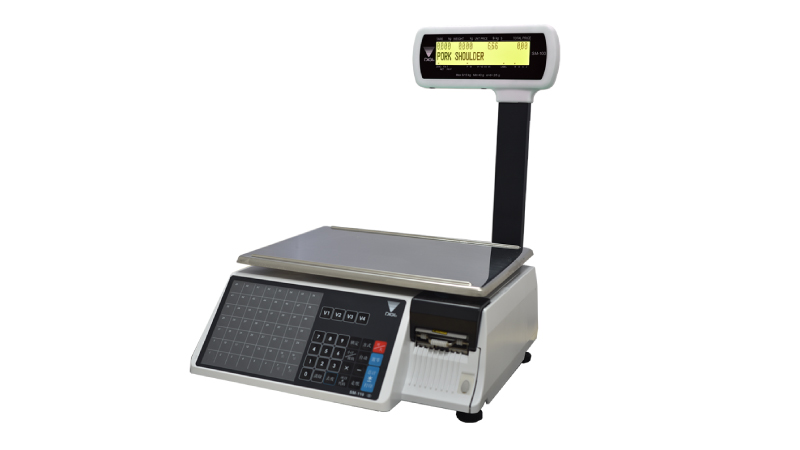

Pole Type

SM-100PCS+

382 (W) x 419 (D) x 517 (H) mm
