sws6000e_WP02_01

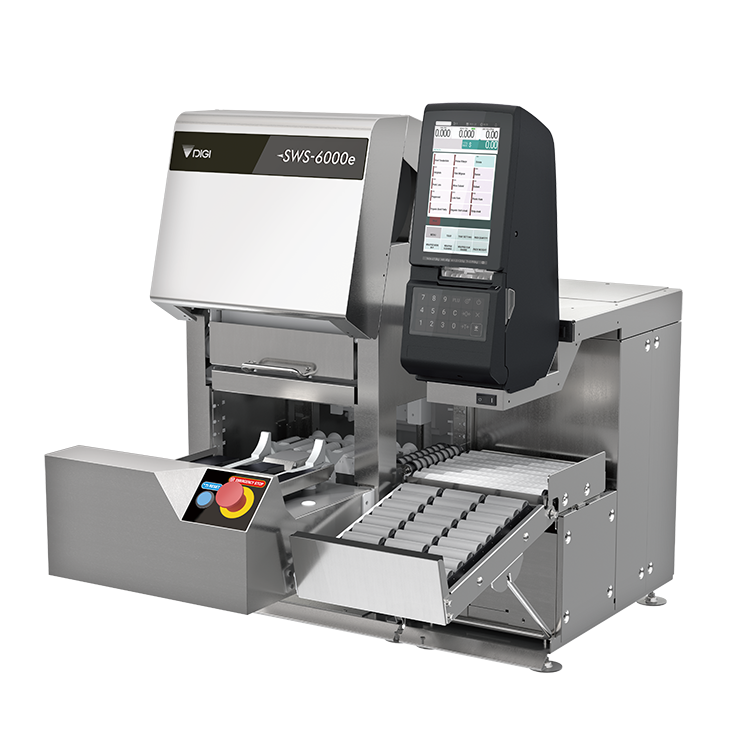

A tabletop tray sealer with integrated weigh-seal-label functionality

SWS-6000e

Einzelhandel

Überblick

A tabletop weigh-seal-label system that improves productivity and operational efficiency of sales counters.

Efficiency and added-value for counter sales

Sales clerks can use idle time to pack and stock prepacked items, allowing them to focus on providing excellent customer service during peak time.

wp04

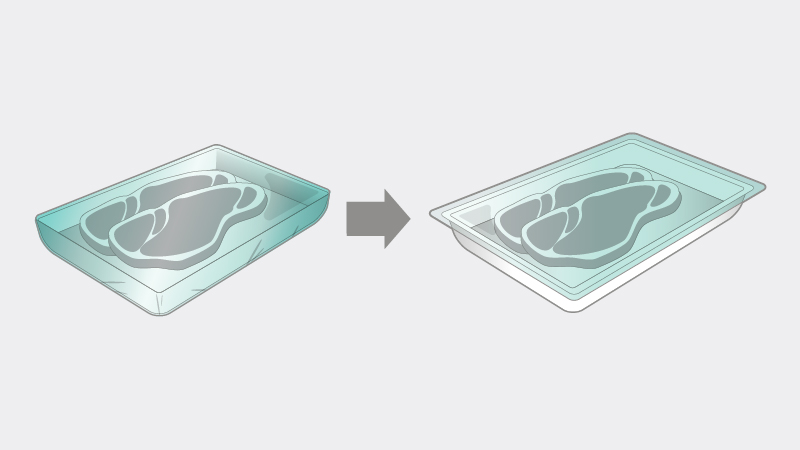

Top seal packing reduces plastic use

Rather than wrapping film the whole way around the tray, this machine utilizes top seal packing, which attaches a sheet of film to only the top of the tray. This leads to a significant decrease in film usage compared to conventional wrapping methods. The environmental impact can further be reduced by using trays made from recycled materials.

Weigh, seal, and label with a single machine

Only one machine is needed for weighing, sealing, and labeling, leading to increased productivity. It’s a solution that provides increased value for consumers operators, and the environment.

wp04

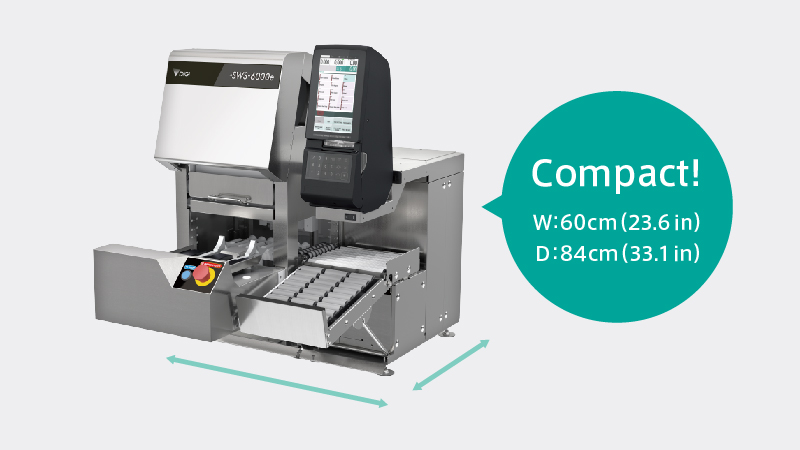

Space-saving compact footprint

The footprint of SWS-6000e is 60 cm (W) x 84 cm (D). Its compact design allows it to be easily placed in narrow spaces, such as behind the sales counter.

Spezifikationen

Basisdaten

  • WP05
  • WP05
  • WP05

Packing

Package Size Width: 240mm (9.4 inches)
Depth: 140mm or 190mm (5.5 or 7.5 inches)
Height: 30-80mm (1.2-3.1 inches)
Packing Speed Max. 10 packages/min
Number of Film Rolls 1 roll
Film Width 250mm (9.8 inches)


Weighing

Interval Type Multi-interval Single interval
Capacity Max. 3/6kg Max. 30lb
Scale Interval e=1/2g e=0.01lb
Weighing Range 20g-6kg 0.20lb-30lb
Max. Packing Capacity 50g-1kg 0.11lb-2.2lb


Thermal Printer

Label Type Linerless Label
Label Print Width Max. 61mm (2.4 inches)
Label Print Length Max. 350mm (13.8 inches)
Dot Density 12 dot/mm (300dpi)


General

Display Panel 8" TFT WVGA with Capacitive Touch (480 x 800)
Power Consumption 220-240V;1φ;50/60Hz;1.0Kw
Net Weight 97.5kg
Operating Temperature 10 to 30℃ with no condensation
Operating Humidity 80% RH (Max.) with no condensation
