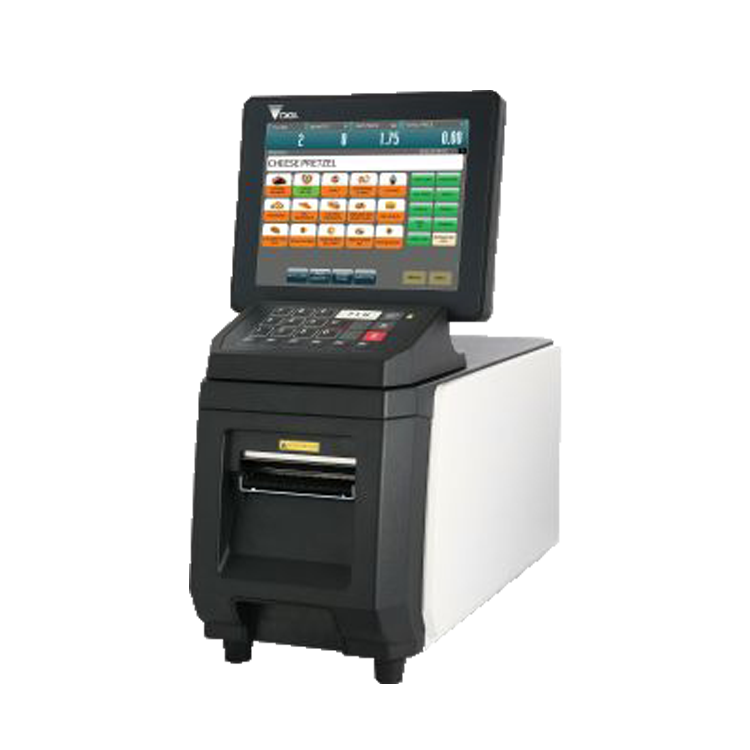

dp5000e_WP02_01

Versatile printer designed for small work space

DP-5000e

Einzelhandel

Überblick

The DP-5000e PC based compact printer offers a versatile printing solution with a space-saving design. With a high speed performance printer, it alleviates prepacking operation to achieve high efficiency without compromising floor space.

dp5000e_WP04_01

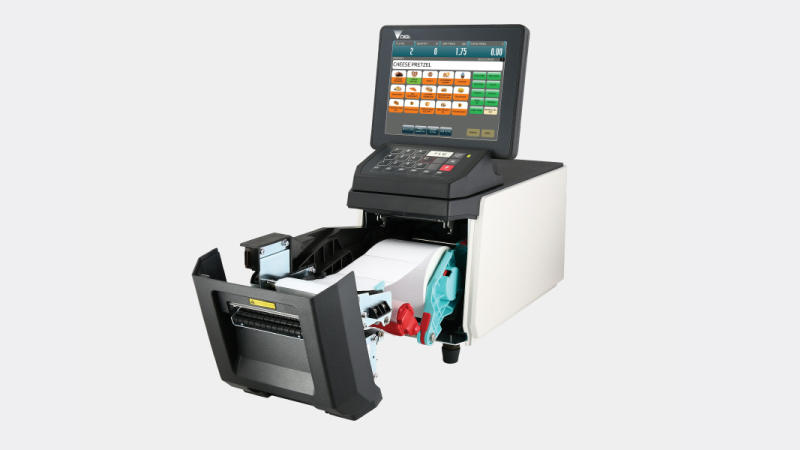

Front Label Loading

The loading mechanism of the DP-5000 is designed at the front to cater for easier and faster label change. This feature greatly bolsters operation efficiency during the prepacking process.

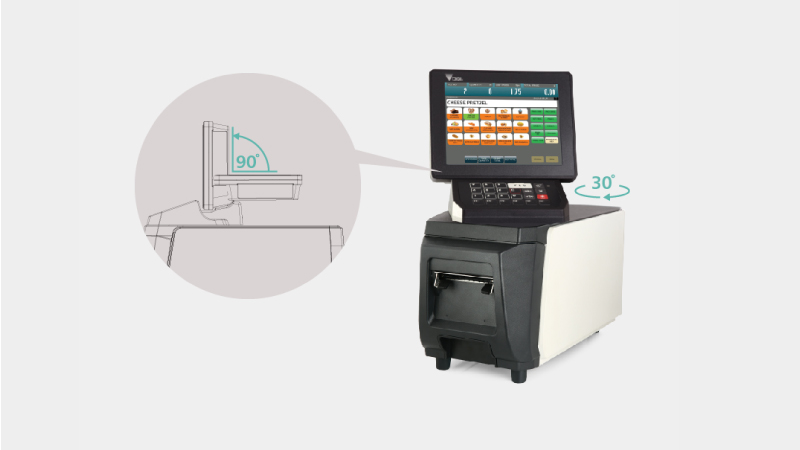

dp5000e_WP04_02

Flexible Operator Display

The 8.4" TFT touch screen can be adjusted easily to offer eye-catching details at optimal viewing comfort. The ergonomic user interface comes with a customisable screen layout that further enhances the operation process.

dp5000e_WP04_03

Fast and Efficient Printing

Built for both speed and performance, DP-5000e delivers high-resolution 300dpi printing with a crisp and appealing presentation for high readability.

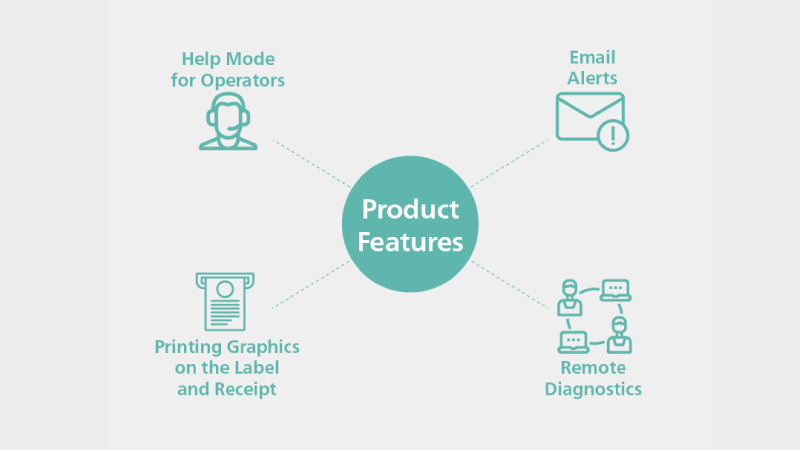

dp5000e_WP04_04

Other Features

The DP-5000e also includes notable features like remote diagnostics, email alerts, printing graphics on the label and receipt, and help mode for operators.

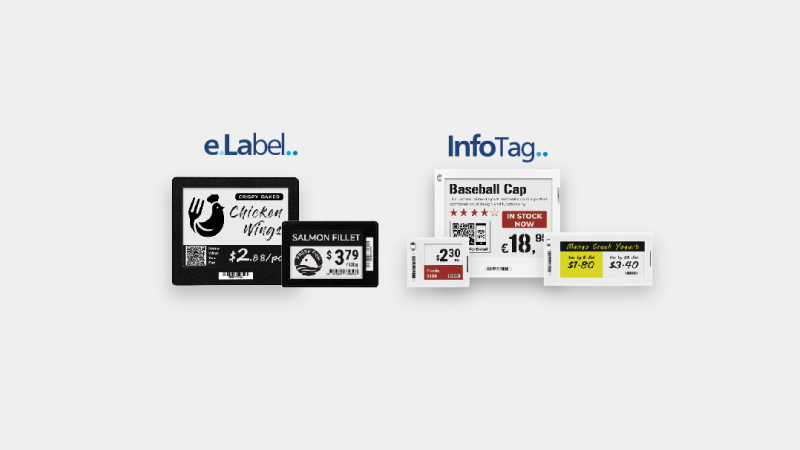

dp5000e_WP04_05

Electronic Shelf Label (ESL)

DIGI's enterprise-grade electronic shelf label (ESL) is developed to accelerate in-store digitisation with its error-free wireless price updates.

• Integrated QR code and Near Field Communication (NFC) capabilities
• Seamless integration with scale via USB base station for automatic price synchronisation

Spezifikationen

Basisdaten

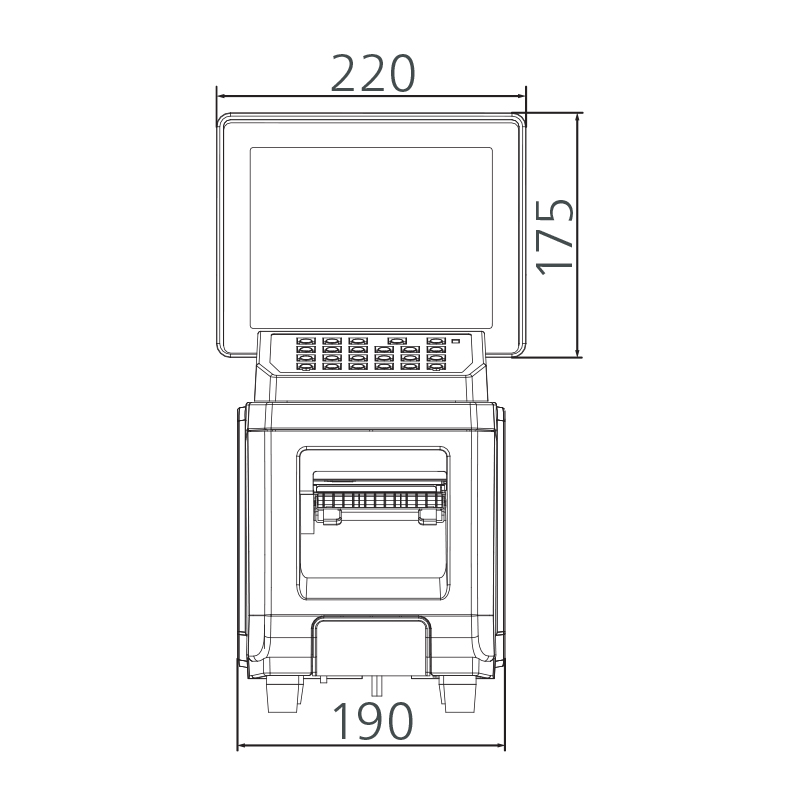

  • dp5000e_WP05_01
  • dp5000e_WP05_02
  • dp5000e_WP05_03

Specification

Model DP-5000e

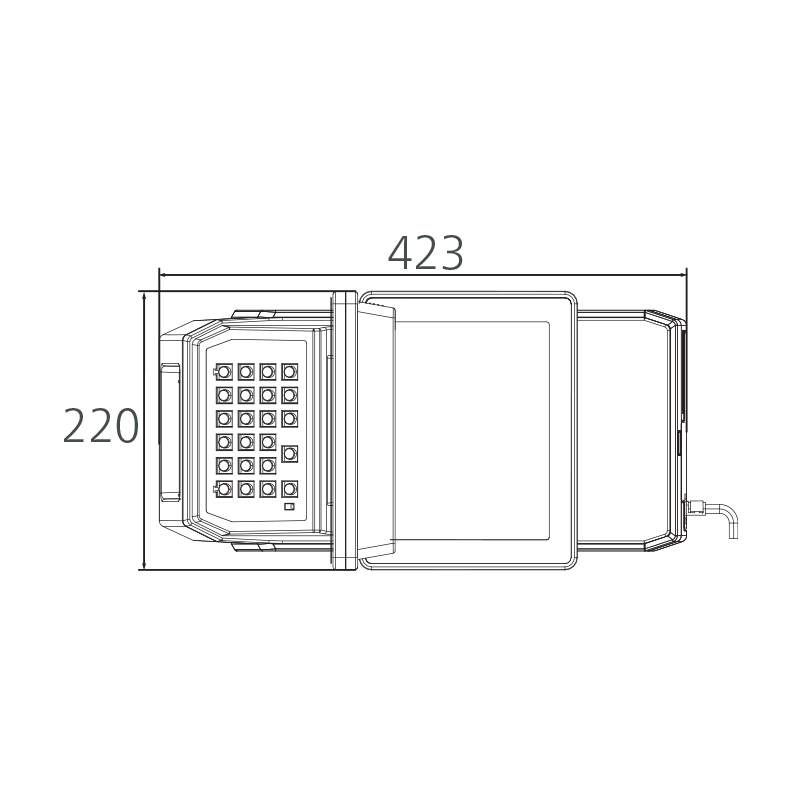

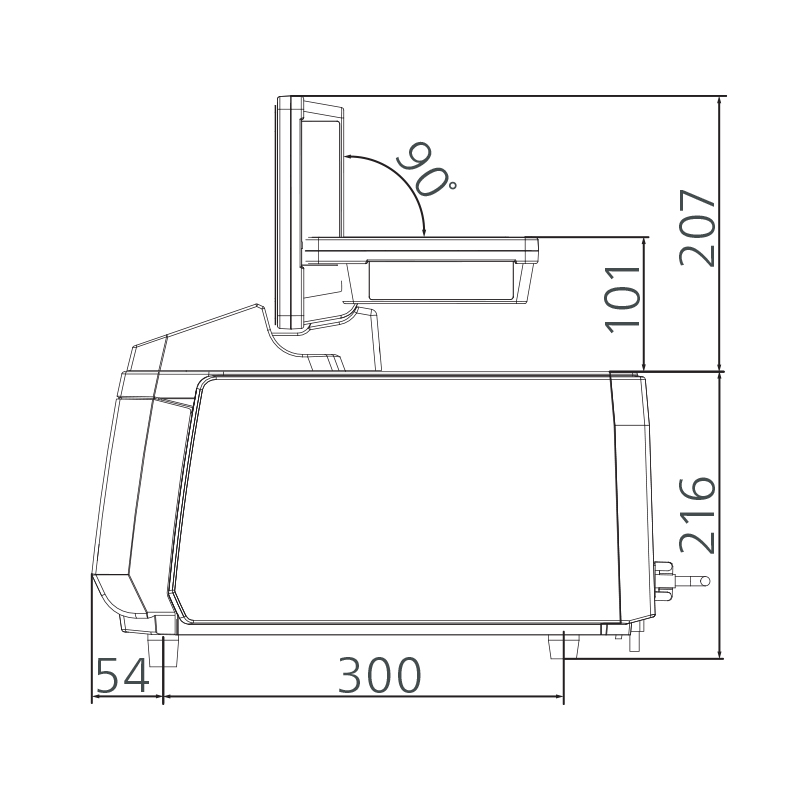

Dimension W x D x H (mm) 220 x 423 x 423
Operation Display 8.4" TFT SVGA with Touch Panel
Display Size W x D (Pixels) 800 x 600
Display Rotatable Degree + / - 30 degree left and right ; 90 degree up and down
Label / Receipt Types Liner Linerless with Auto-Cutter
Roll Diameter Max 125mm Max 125mm
Roll Width Max 80mm Max 80mm
Print Width Max 80mm Max 80mm
Printing Speed Max 150mm / second* Max 150mm / second*
Print Resolution 300 dpi 300 dpi
Barcode Type Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, RSS, PDF417 (For Receipt Only), GS1, QR Code, Datamatrix
Power Source AC 100V / 220V
Operating Temperature -10℃ to +40℃
Humidity 15% to 85% RH Non-Condensation
Standard Interface 2 x RS232C, Ethernet 10 / 100 Base T, 4 x USB 2.0, SD Socket
Net Weight 10.8 kg
*To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for more details.


Optionen

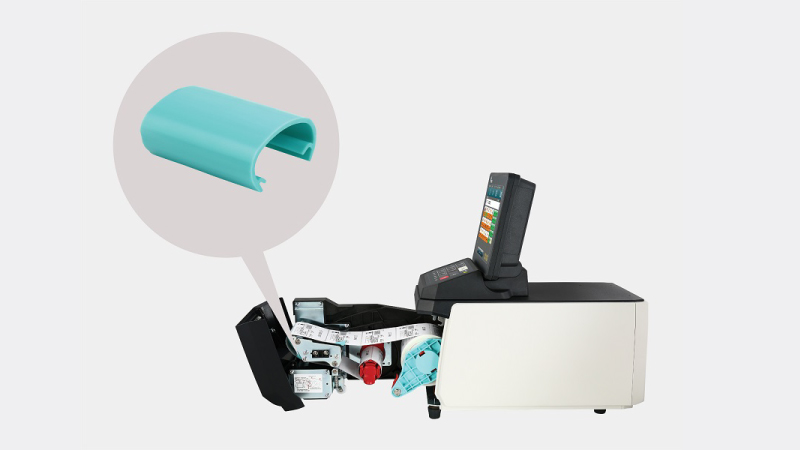

dp5000e_WP09_01

Internal Rewinder Kit

Accomodates batch printing by winding up dispensed labels into a neat roll.
dp5000e_WP09_02

Long Label Holder

Prevents long label from falling off when dispensed.

Option

Options Wireless LAN IEEE 802.11 a / b / g / n / ac, InfoTag, e.Label with Hi-Touch, Base Station
Factory Option  Linerless Printer with Auto-Cutter
