Manual Weigh Price Labeler

DPS-800 II

Industrie agroalimentaire

Présentation

The DPS-800 II manual weigh price labeler is a versatile system with various printer and mounting options, making it ideal for almost any environment or application.

dps800-2_WP04_01

Simple and Efficient Operation

Manual weigh labeling of packs is straightforward with the DPS-800 II. With the 15" touchscreen, users can manage label design and weighing modes amongst other settings.

dps800-2_WP04_02

Quality Features

As a weigh-price-labeler, the DPS-800 II can be used in catch weight and fixed weight modes and can be employed in a range of different settings. Its networking capabilities allow it to be easily integrated into existing lines and provide back-office data collection as well as online programming and monitoring.

dps800-2_WP04_03

User-Friendly Interface

The DPS-800 II utilises DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labelers.

Caractéristiques

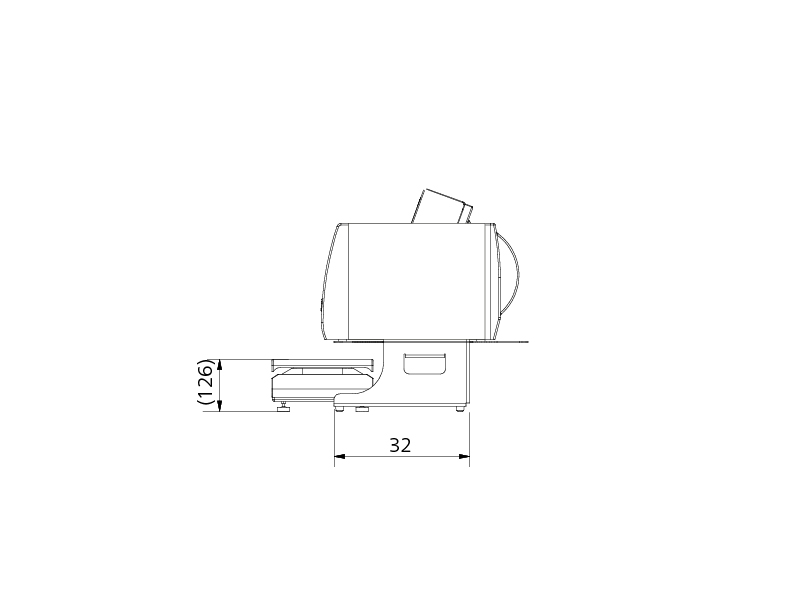

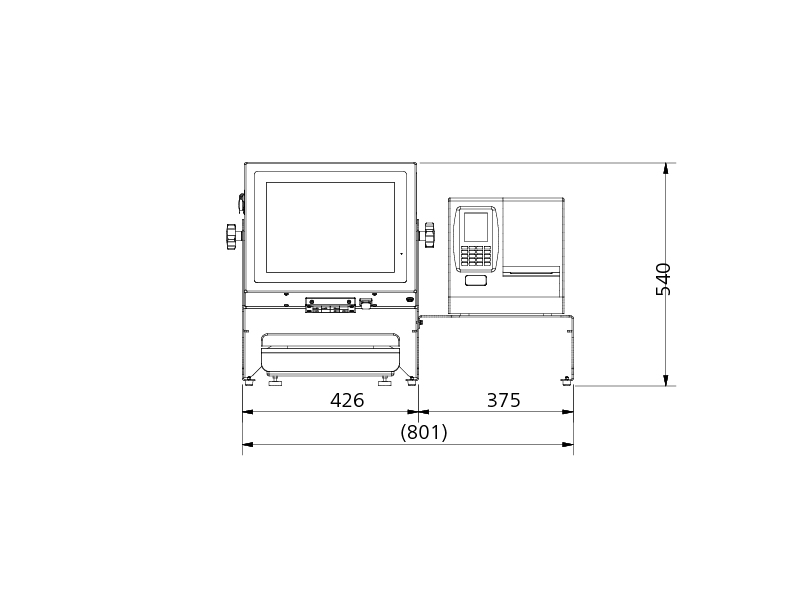

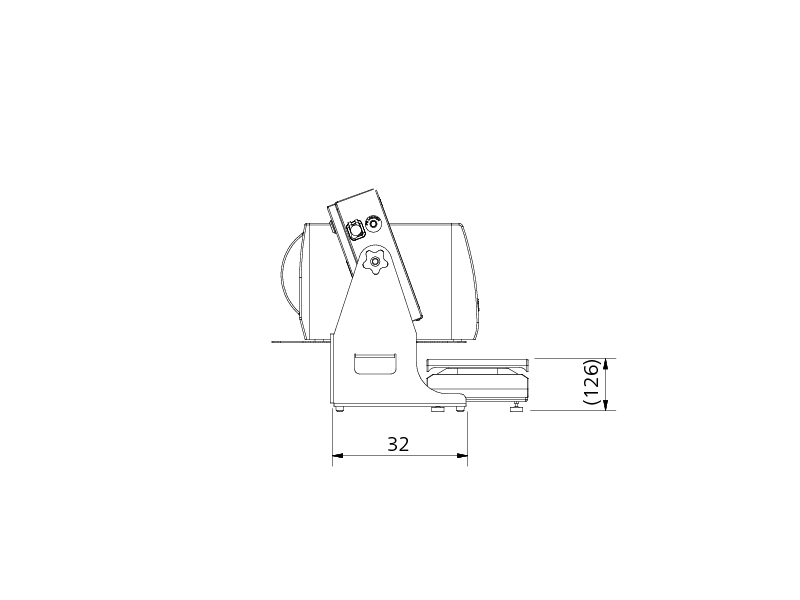

Dimensions

  • dps800-2_WP05_01
  • dps800-2_WP05_02
  • dps800-2_WP05_03

Weighing


Capacity Max 6 kg     Max 6kg     Max 15kg     Max 30kg
Single Interval e= 1g  e= 2g  e= 5g e= 10g
Multi Interval
15kg Platform
Max 6kg Max 15kg
e= 2g e= 5g
Multi Interval
30kg Platform
Max 15kg Max 30kg
e= 5g e= 10g



Display


Screen 15" Colour LCD touchscreen
Touch panel XGA a-Si TFT LCD Resistive touch


Operation

Weighing Modes Catch Weight, Fixed Weight/Price, Manual (Non-Weighing)
Communication Ethernet, USB, RS232, Additional Ethernet and USB optional
Operating System Windows 10 OS
Language Multi-lingual Unicode
Software WorldView (embedded application)
Database SQL
Connectivity Remote programming and control
Connectivity to meet industry standards
Customisable output data
Interconnectivity to back-office data management


General


Power Supply 220-240V(115V Option) 50/60Hz AC Single Phase
Operating Temperature  -10 to +40°C non-condensing


Options

dps800-2_WP09_01

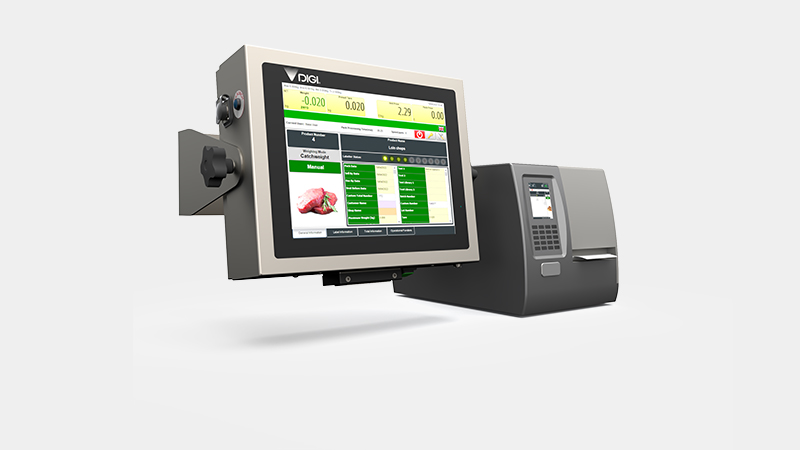

Wall Mounted with Optional Printer

dps800-2_WP09_02

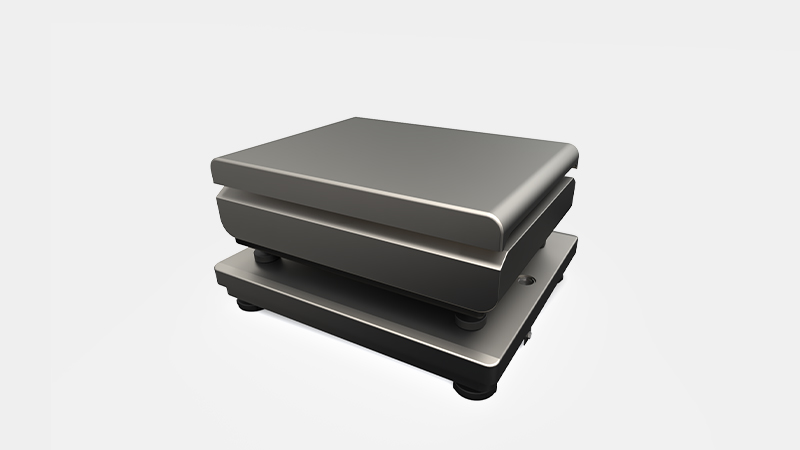

Range of Standard DIGI Platforms

Options

Options Waterproof printer enclosure, Wall mount, Bench mount, Printer bench stand, Barcode scanners, USB communication, Direct protocol (ZPLII protocol), Multiple printers, Windows printers
