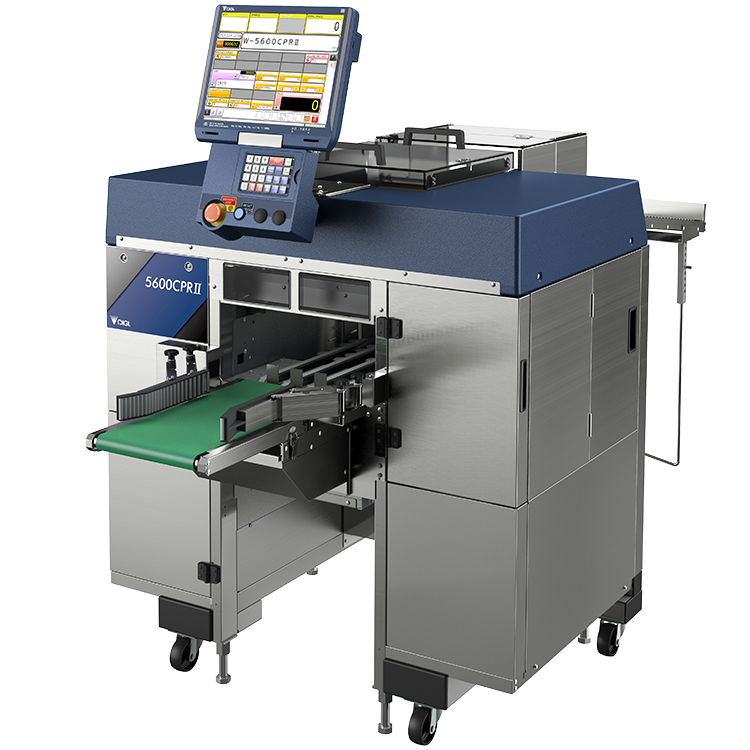

The latest in-line automatic wrapping solution
W-5600CPRII
RetailPrésentation
The W-5600CPRII is an automatic in-line wrapping solution offering a maximum 30 packages/minute throughput, with the wrapped items discharged at the machine's rear side.
It is ideal solution for producers, mushroom farms, meat plants, supermarket processing centers and others who need to wrap large amount of products with high efficiency and reliability. The W-5600CPRII provides great flexibility in implementing production lines to maximize productivity and efficiency.
The easy and quick film change, as well as easy cleaning and daily maintenance ensures user-friendly operation, stable performance, high level hygienic condition and extraordinary user satisfaction.
In-line automatic wrapping system
The latest in-line automatic wrapping system to meet various layout options.
![w5600cpr-2_WP04_01](./product_file/file/w5600cpr-2_WP04_01_TRK.jpg)

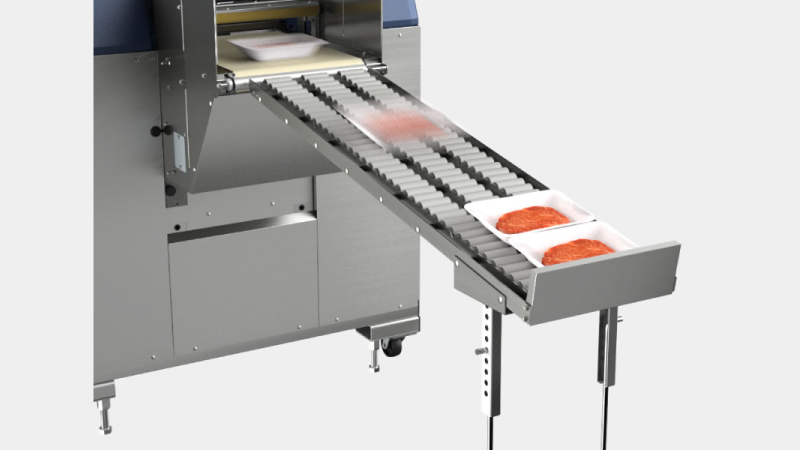

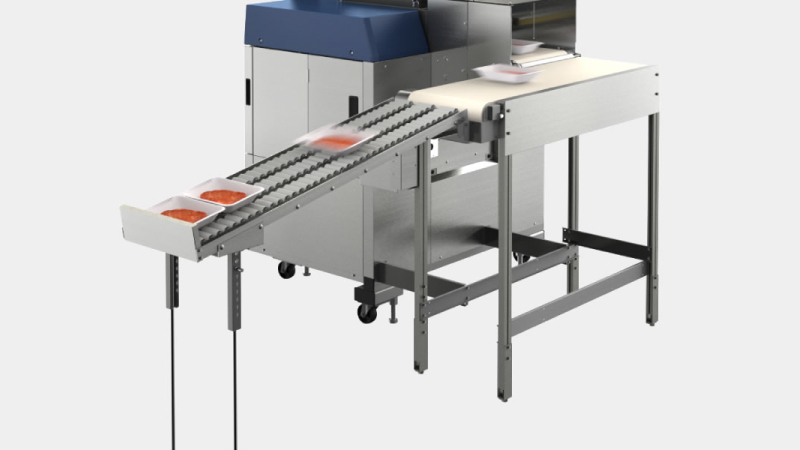

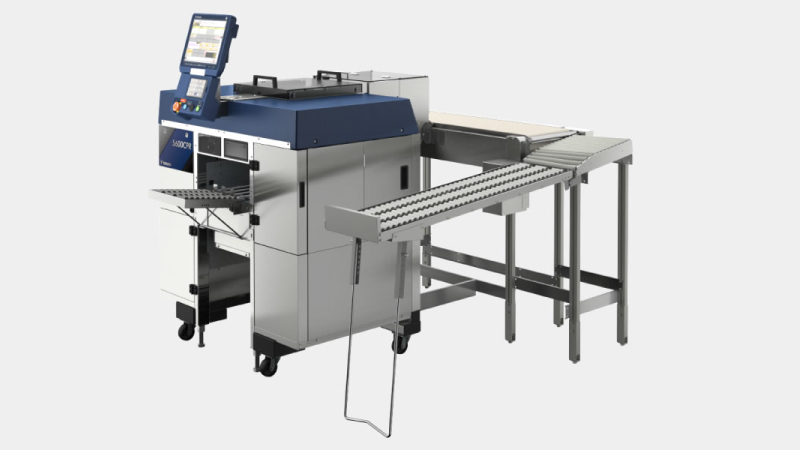

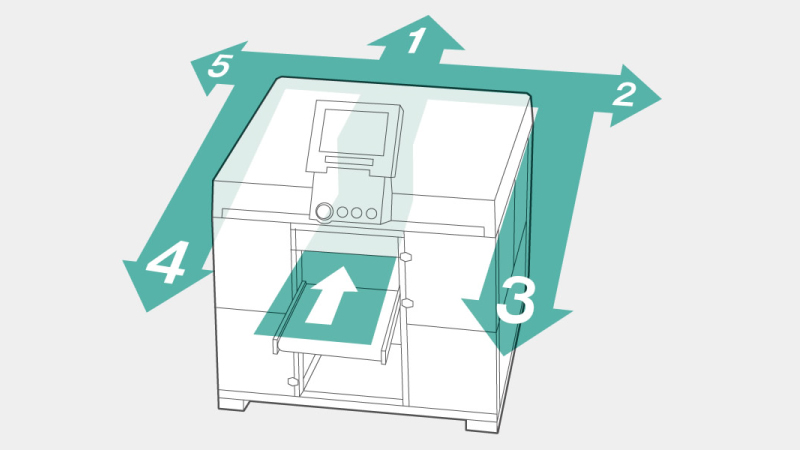

Flexible production layout
The W-5600CPRII enables flexible production layout by providing various package discharging options in order to meet customer demands to achieve the most efficient operation and productivity.
![w5600cpr-2_WP04_02](./product_file/file/w5600cpr-2_WP04_02_TRK.jpg)
Secure and beautiful finish
On top of the long heater conveyor that provides sufficient heat on package bottom, a tray press is also used to push down packages on the heater conveyor to ensure that the bottom is properly sealed. This prevents the opening and loosening of the packages during transportation, as well as to maintain tight and beautiful presentation.
![w5600cpr-2_WP04_03](./product_file/file/w5600cpr-2_WP04_03_TRK.jpg)
Easy film replacement
The simple mechanical design makes it extremely easy to change film rolls, needing less than a minute, which minimizes machine down time and ensures maximum efficiency. It also makes shifting to different film sizes for different trays and products very easy and fast, without the need for any tools. This adds flexibility, optimizes film usage, and guarantees consistently beautiful wrapping finish.
![w5600cpr-2_WP04_04](./product_file/file/w5600cpr-2_WP04_04_TRK.jpg)
Easy cleaning and daily maintenance
Parts that have contact with the package are easily accessible and detachable for cleaning and daily maintenance, which guarantees the W-5600CPRII's reliable and consistent performance as well as its superb hygienic condition.
Caractéristiques

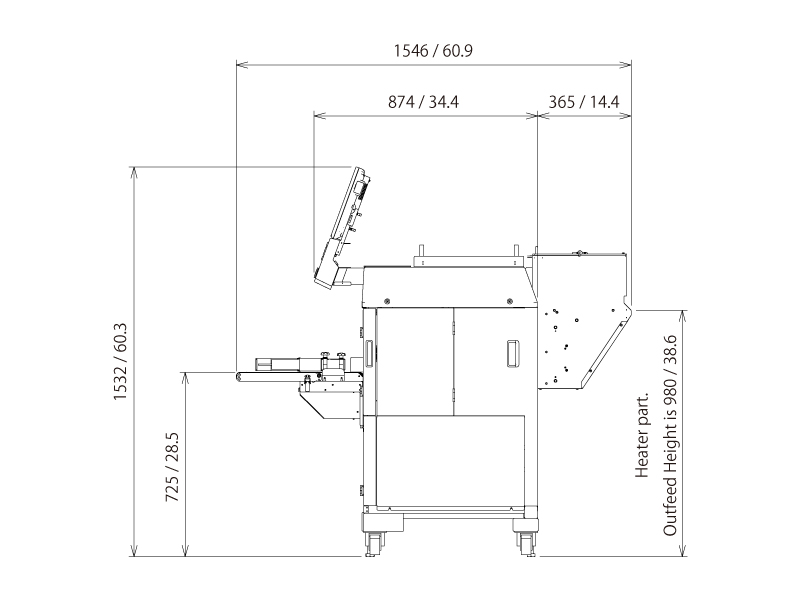

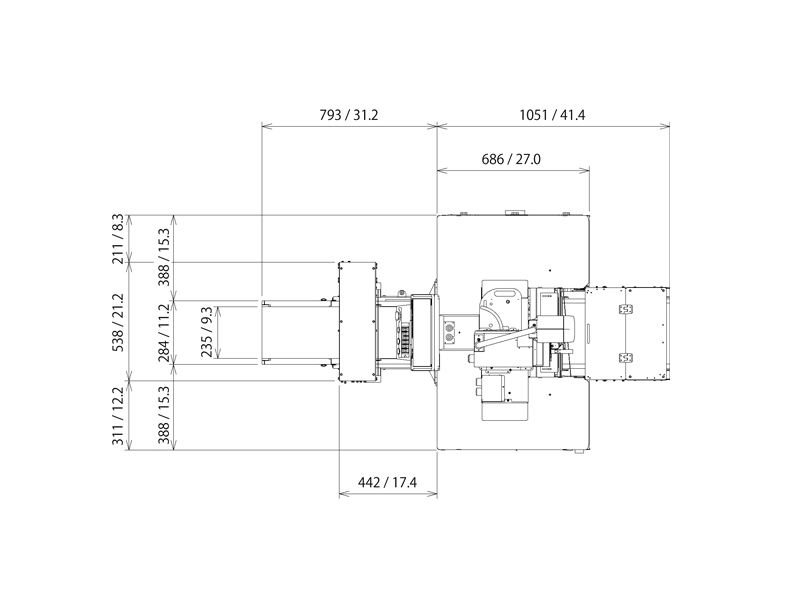

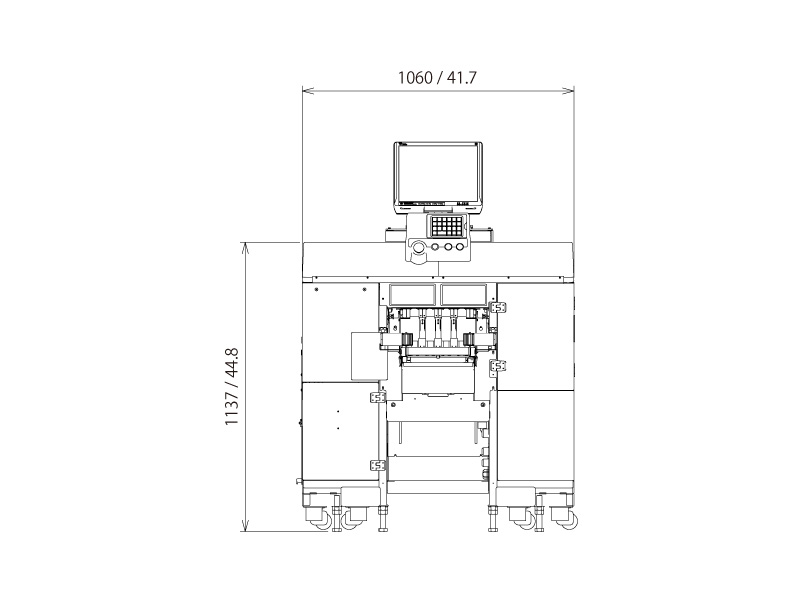

Dimensions
Wrapping
Wrapping Speed | Max. 30 packages/min. |
---|---|
Package Size | Width: 130-350 mm/ 5.1-13.8 inches Height: 10-150 mm/ 0.4-5.9 inches Depth: 80-230 mm/ 3.1-9.0 inches Packages with the combined maximum measurements of the 3 dimensions cannot be accommodated. The available sizes of package also depends on the film size. |
Film width | One |
Film Size | 300 to 500 mm |
Operation console
Display panel | TFT LCD color (15 inches) touch panel |
---|---|
Operation keys | Mechanical keys and touch screen |
Mechanical keys and touch screen | 18 GB |
General
Power source and power consumption | 208-240 V; 1 φ/3 φ; 60 Hz; 2.2 kVA,2.0 kW 220-240 V; 1 φ; 50/60 Hz; 2.2 kVA,2.0 kW |
---|---|
Net Weight | Approx. 340 kg |
