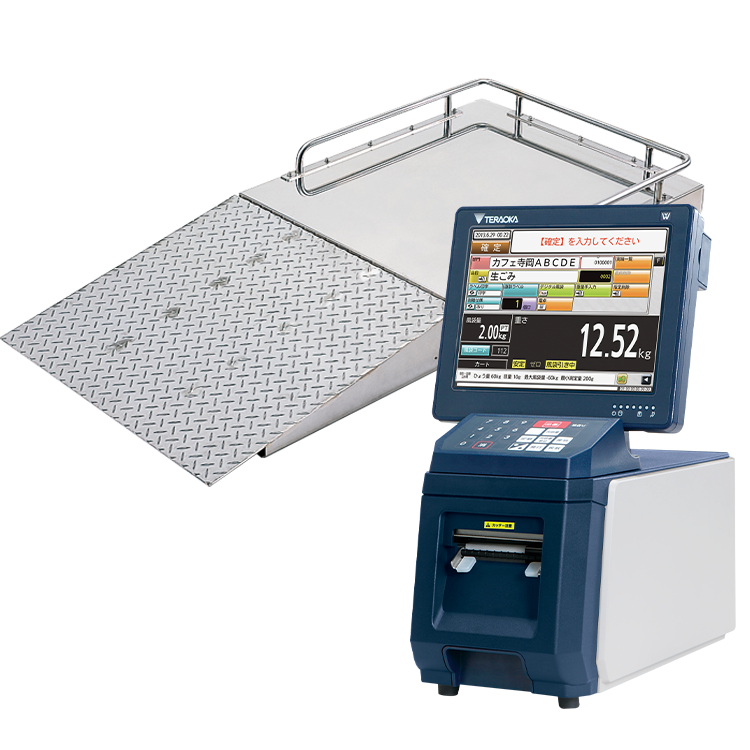

![環境Navi-WS02](./product_file/file/kan-navi_WP02_01.png)
A waste weighing & management system for visualizing your garbage disposal situation
Weisys
RetailMain Features
Weisys is a total management system to grasp when, where, what kind of and how much the garbage are generated in your place. By having these information consolidated in the central PC for analysis, you will have full control of the situation to reduce the total volume of the garbage.
![Easy operation by barcode scanning](./product_file/file/kan-navi_WP04_01.jpg)

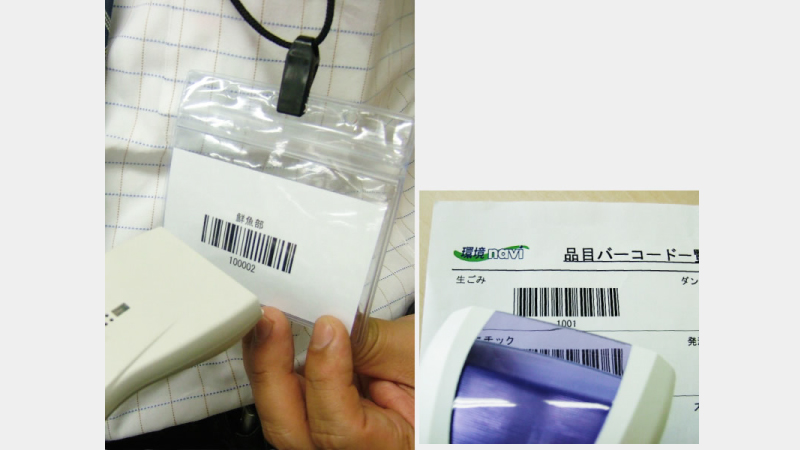

Easy operation by barcode scanning
The system can be intuitively operated even by a person using it for the first time. A barcode scanner with large touch panel helps prevent operator errors.
![Enforcing waste sorting with weight labels](./product_file/file/kan-navi_WP04_02_GLB.jpg)
Labels for thorough waste management
Weisys prints weight labels upon completion of weighing. Labels attached to waste help you verify that all waste is weighed and sorted, and ensure accuracy of overall waste management.
![](./product_file/file/kan-navi_WP04_03_GLB.jpg)
Network capability
Various network capabilities provide you with easy and quick grasp of your waste situation. Reports are available in CSV and PDF.
Specifications
Dimensions
Console | Display panel | 7.7 inches color LCD |
---|---|---|
Printer | Type | Thermal printer |
Printing width | 25 to 80mm | |
General | Printing Length | 20 to 150mm |
External dimension (mm) | W: 203 X D: 365 X H: 392.5 | |
Net weight | 8.8kg | |
Power supply | 100V 50Hz/60Hz | |
Power consumption | 17.7W(Idling)/85W(Printing) |
Variations
![環境Navi-WP07-1](./product_file/file/kan-navi_WP07_01.jpg)

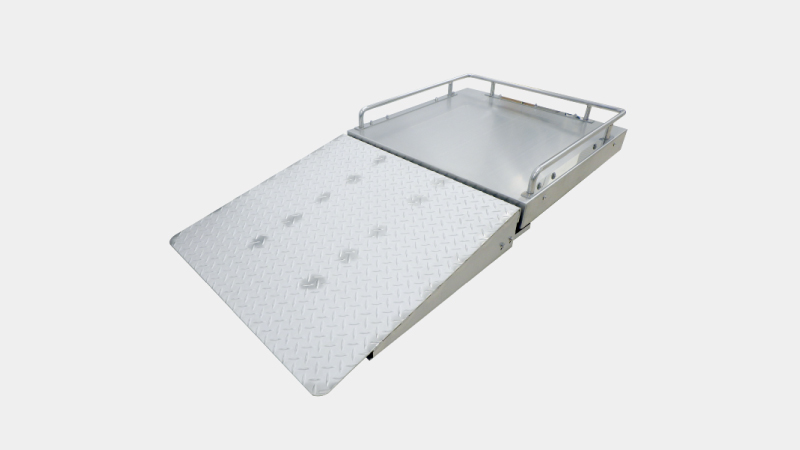

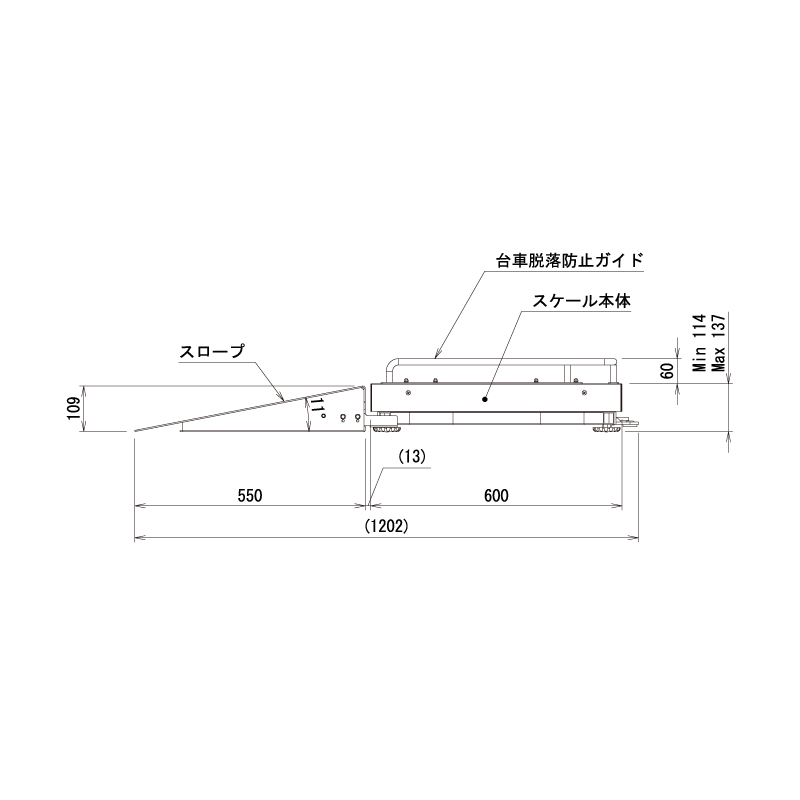

Large scale with ramp
S-UKS150(G)
Large, 150kg scale with connectable ramp. Equipped with side guards to prevent wheels of platform carts from going over the edge.
Capacity: 150kg
Interval: 20g (50g)
Weighing area: W600×D700mm
![環境Navi-WP07-2](./product_file/file/kan-navi_WP07_02.jpg)

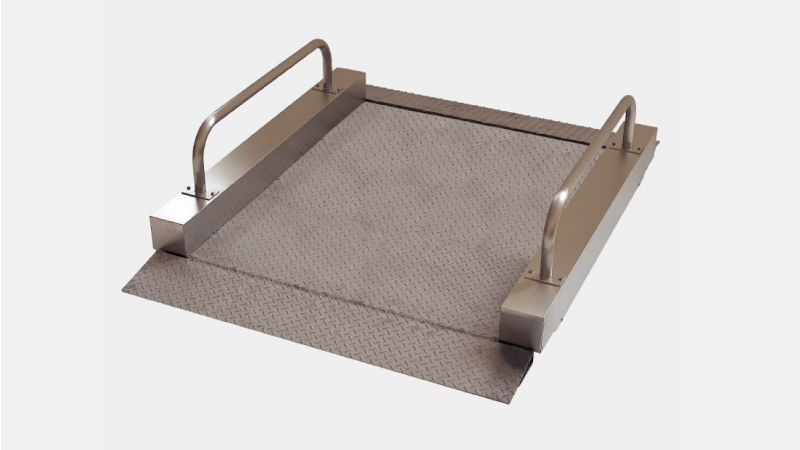

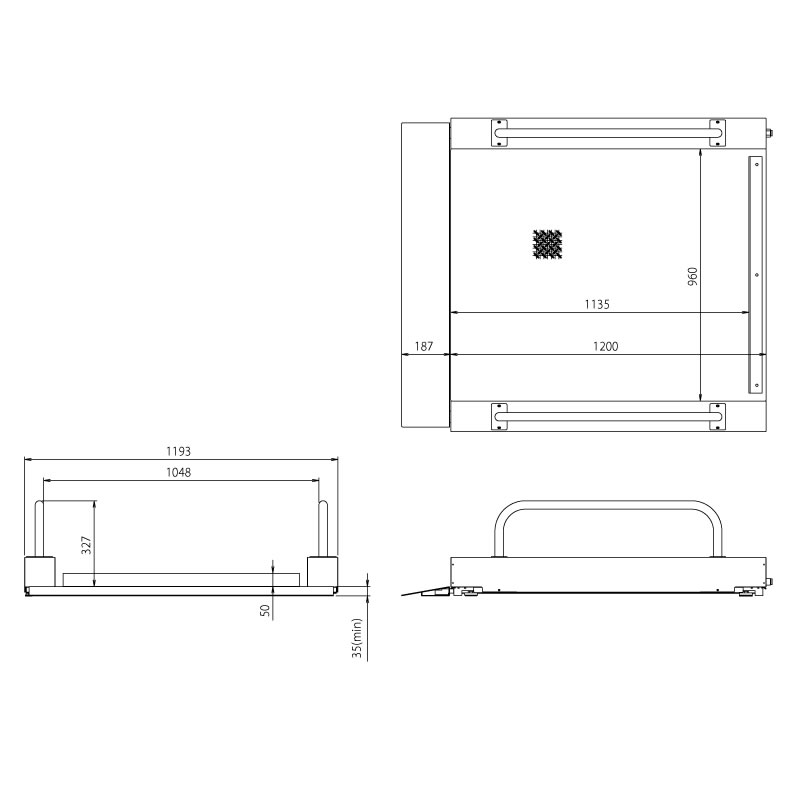

Low platter scale
S-LP300
Low profile scale which does not require to pit to install the weighing platform.
Capacity: 300kg
Interval: 100g
Weighing area: W960×D1200mm
Weighing area: W960×D1200mm
![環境Navi-WP07-3](./product_file/file/kan-navi_WP07_03.jpg)

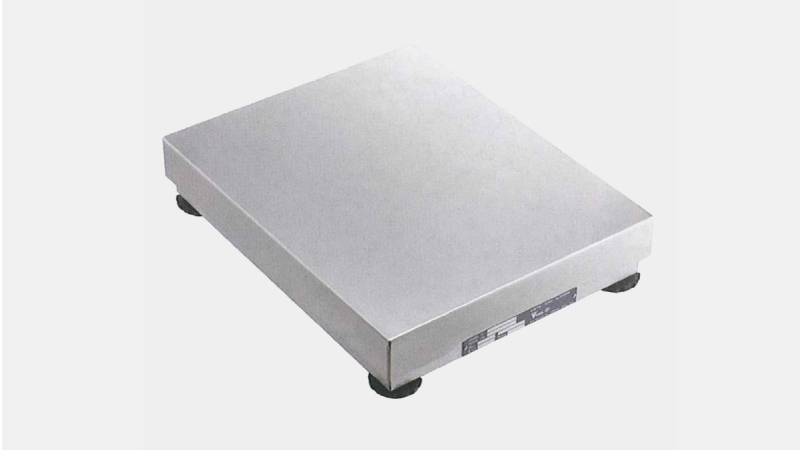

Medium-size scale
S-TKS60
Medium-size 60kg scale for use in restricted spaces.
Capacity: 60kg
Interval: 10g(20g)
Weighing area: W960×D1200mm
