Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.

AP-700-WS02

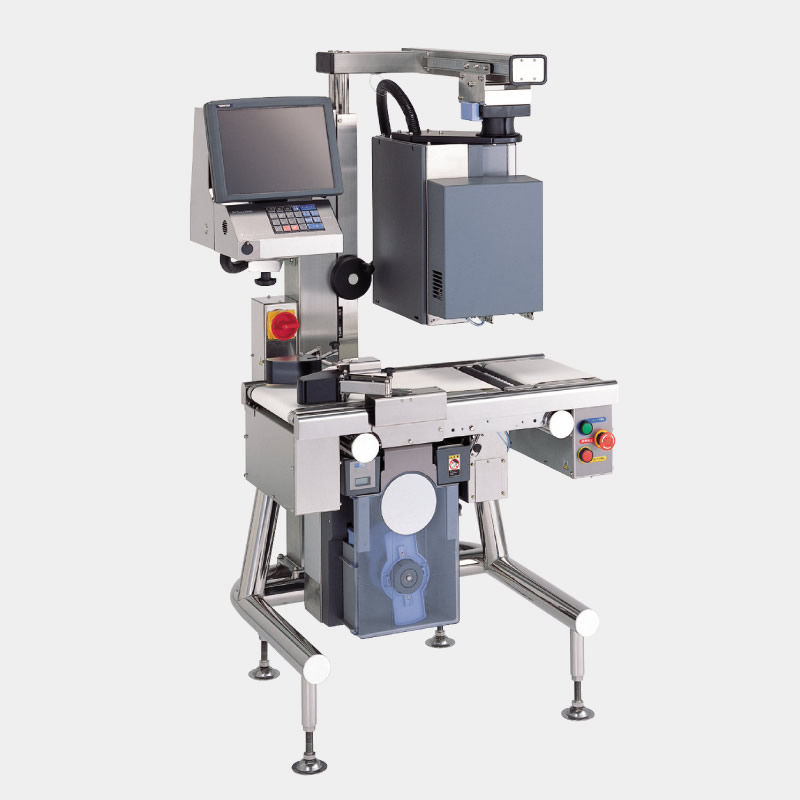

Versatile automatic thermal labeler

AP-700

Food Industry

Main Features

AP-700 is a general purpose automatic labeler with easy to use large color display. Flexibly meets various demands for new label layout and format.

AP-700-WP04

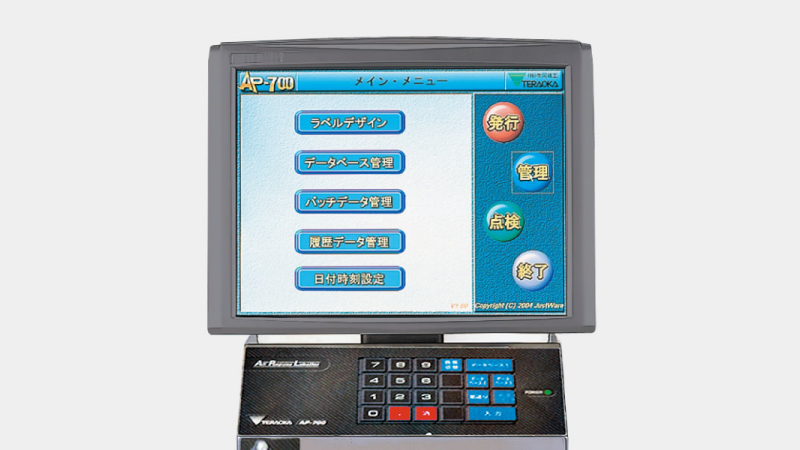

Large display for easy operation

A 12.1-inch LCD display has high visibility and makes operation very easy. Label format design can be done flexibly by following instructions on the screen.

AP-700-WP04

Clear print image

A 300dpi thermal print head together with a wide variety of fonts provides excellent printing. Also prints QR codes.

AP-700-WP04

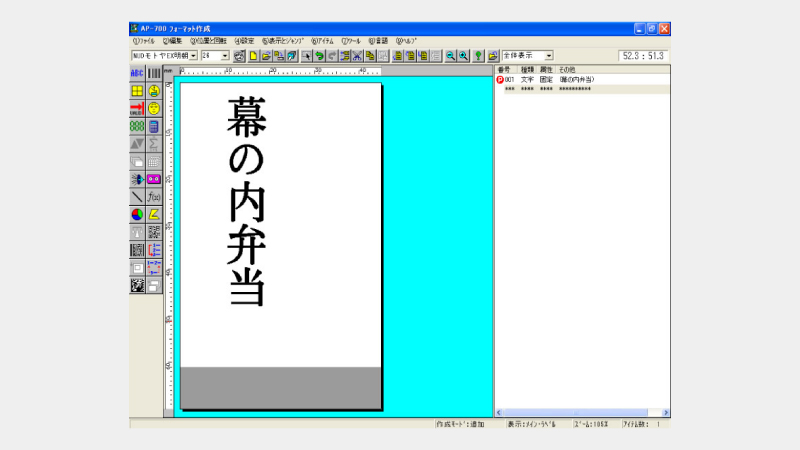

Flexible and easy label designing

Designing new label formats is very easy for anybody. Labels and product databases can be created on a computer, and then transferred to the labeler via a USB memory.

Specifications

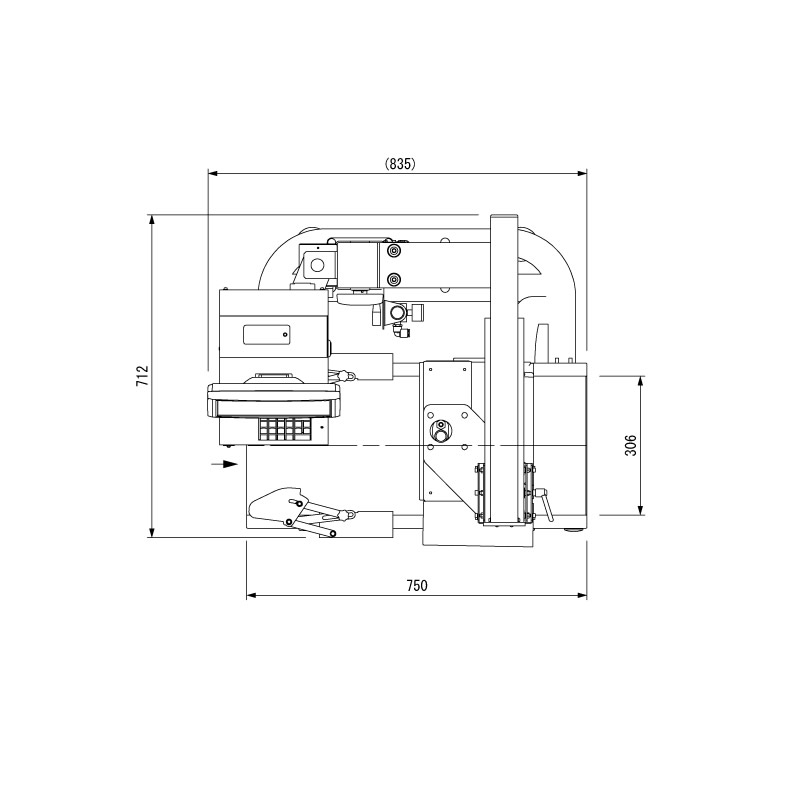

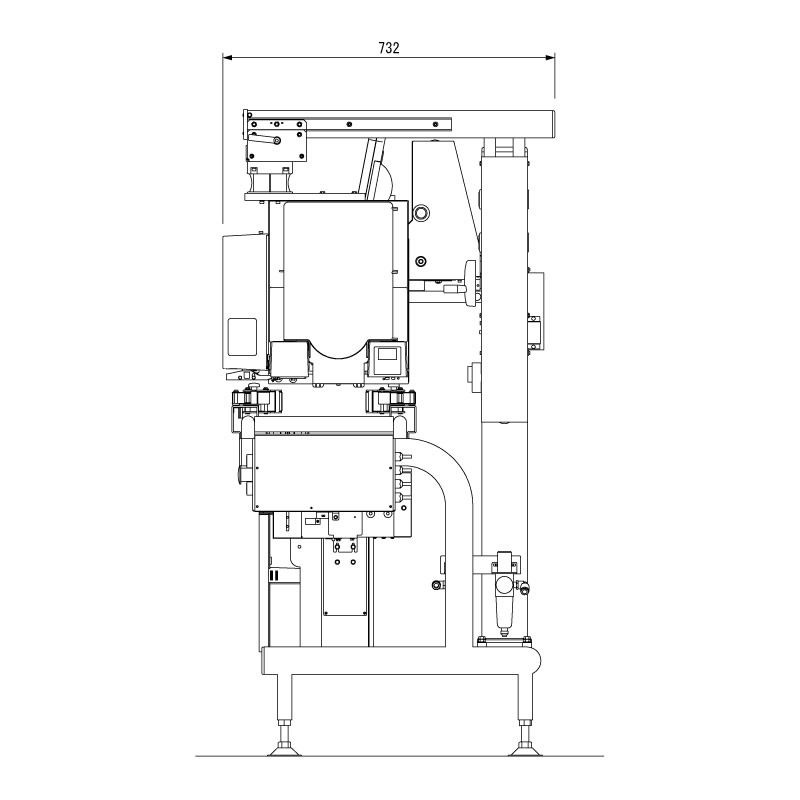

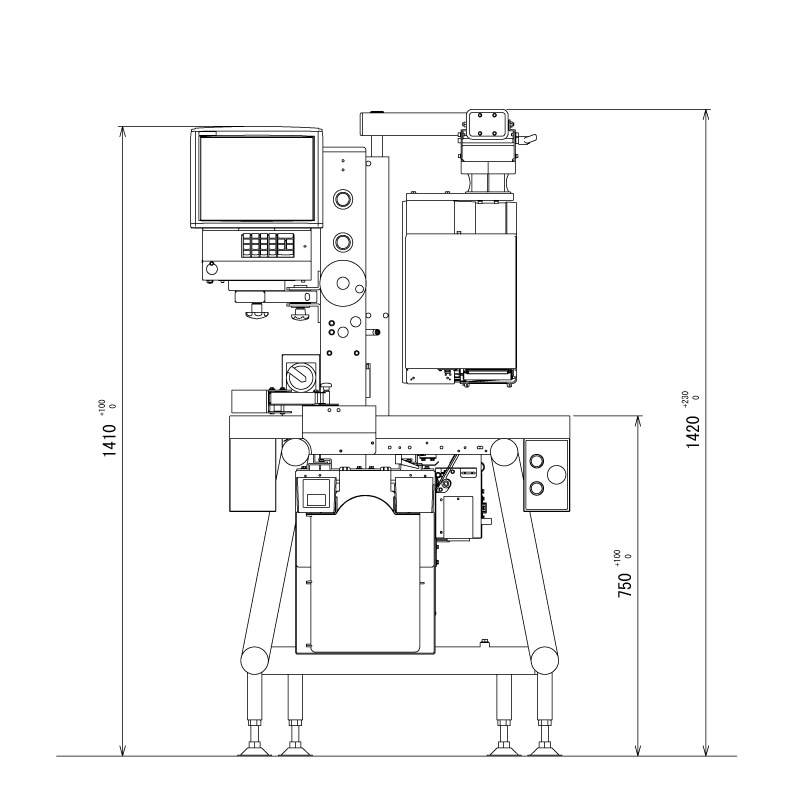

Dimensions

  • AP-700-WP05-1
  • AP-700-WP05-2
  • AP-700-WP05-3
Printing method Thermal printing
Label print speed max. 200mm/sec.
Package size Width: 50 to 240 mm
Length: 70 to 350mm
Height: 15 to 190mm
Label size (for U type) Width: 40 to 80mm
Length: 28 to 100mm
Label size (for U type/High precision applicator) Width: 20 to 80m
Length: 20 to 100mm
Label size (for B type) Width: 40 to 80mm
Length: 28 to 80mm
Label outer diameter 200mm with 76mm core
Power consumption 59.2 to 86.5W/270 to 540W (dependig on configuration)
Measurement (mm) W: 681 x L: 750 x H: 1545
Conveyor height 800±50mm
Power supply 100V  or 220 to 240V single phase
Conveyor speed 0 to 50mm/min.(adjustable)
Air source Top application max. 1.61ℓ/label Bottom application max. 2.36ℓ/label

Variations

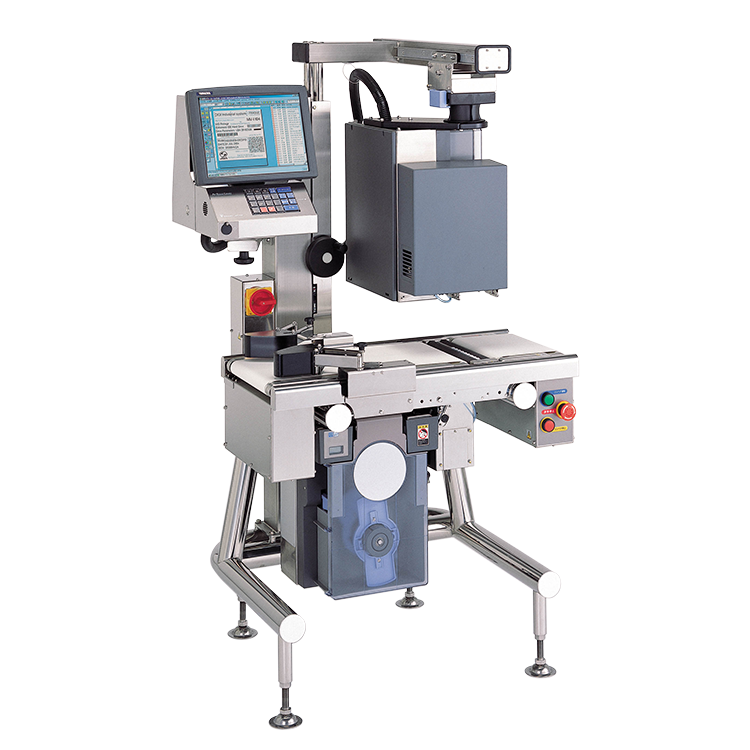

Top and bottom applicator

Model AP-700UB AP-700U AP-700B
AP-700UB AP-700U AP-700B

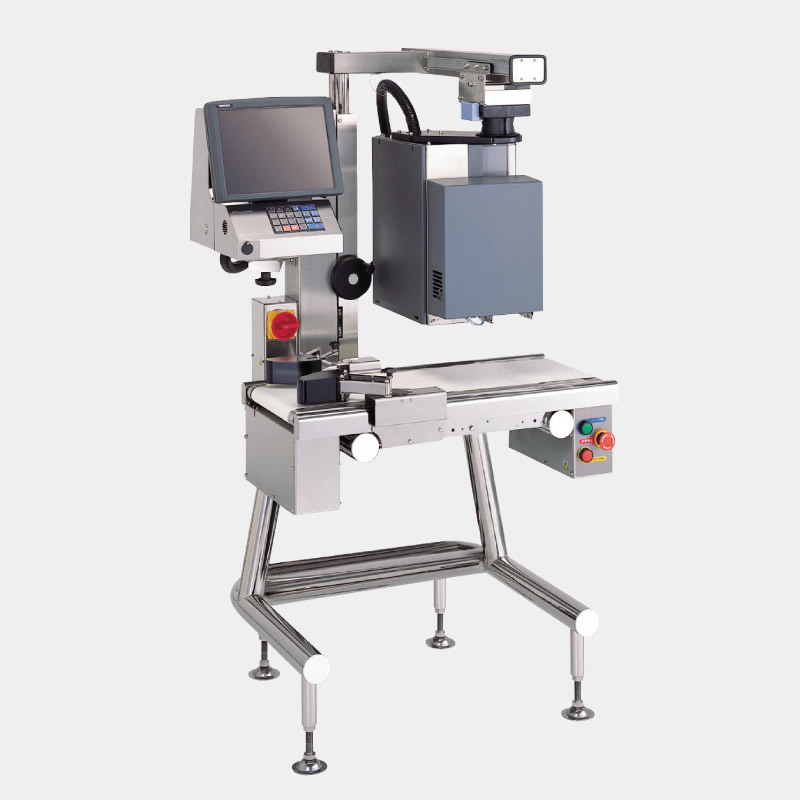

Top applicator

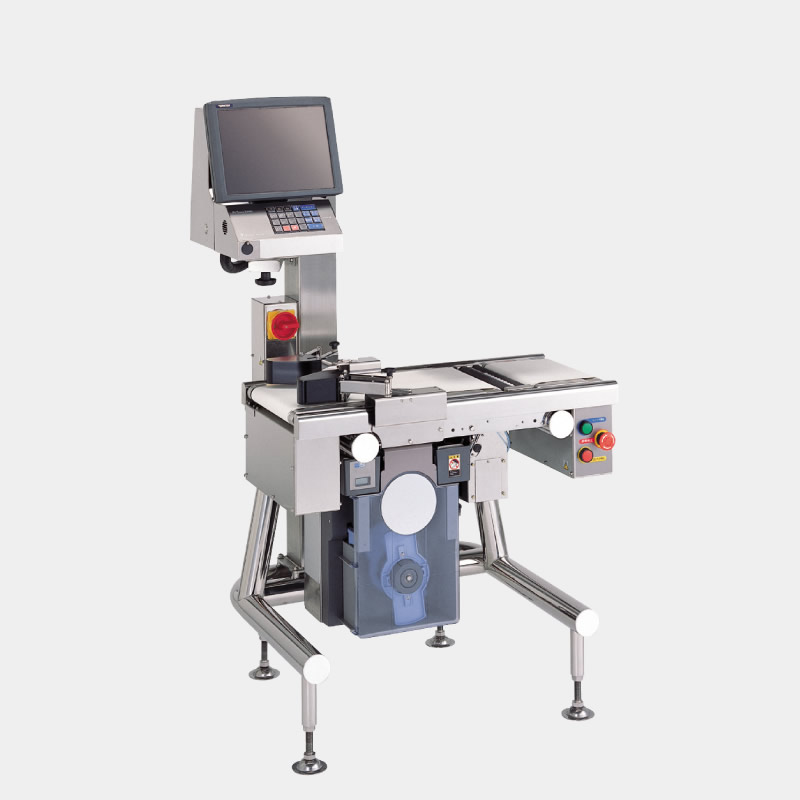

Bottom applicator

Options

AP-700-WP09-1

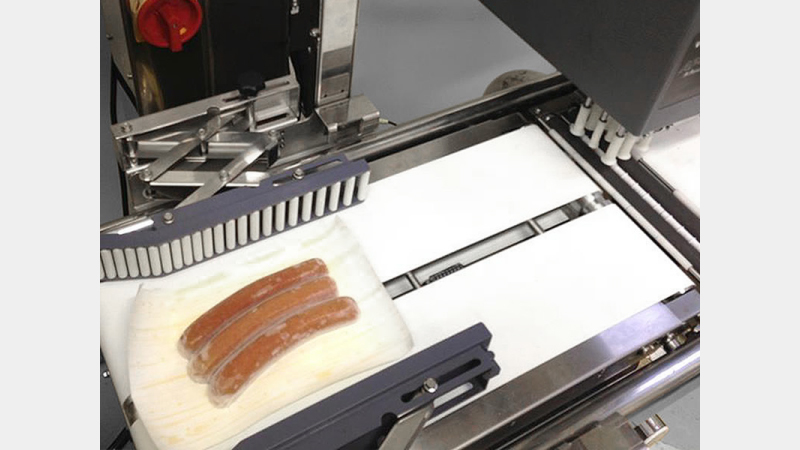

Split conveyor

Suitable for thin products.
AP-700-WP09-1

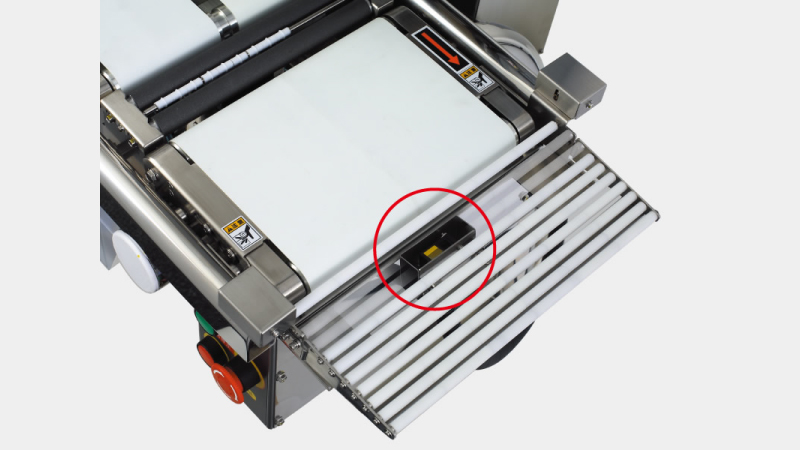

Automatically checks labels placed on the bottom side of the product.  Different options available.

Option name description
Head checker Print head checking to prevent erroneous labels
