Long Scale Dynamic Weigh Price Labeller
HI-700L II
IndustrieBelangrijkste kenmerken
The HI-700L ll Weigh Price Labeller offers both increased efficiency and flexibility, designed for dynamic weighing and labelling of longer packs at up to 60ppm.
![hi700l-2_WP04_01](./product_file/file/hi700l-2_WP04_01.jpg)

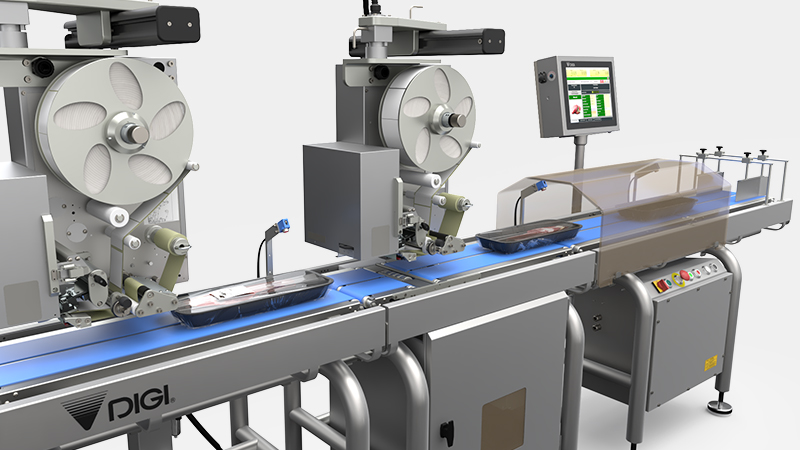

Long Conveyor
The 780mm long conveyor of the HI-700L II allows processing of packs up to 605mm in length, at a speed of up to 60ppm.
![hi700l-2_WP04_02](./product_file/file/hi700l-2_WP04_02.jpg)

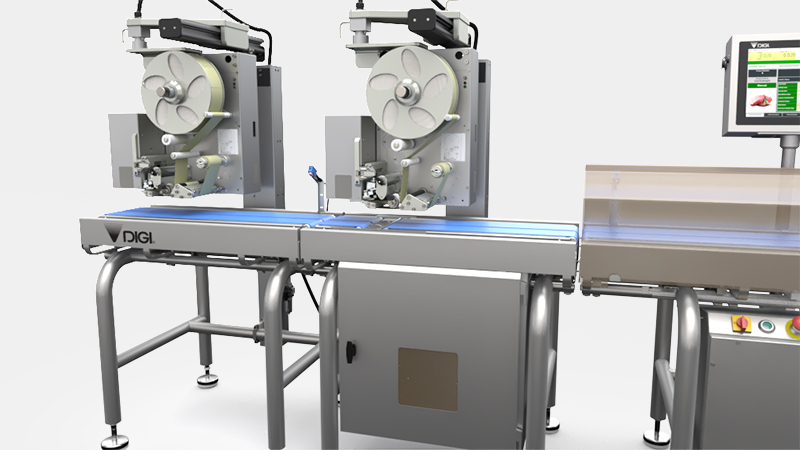

Signature Labeller
The high speed signature labeller provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.
![hi700l-2_WP04_03](./product_file/file/hi700l-2_WP04_03.jpg)

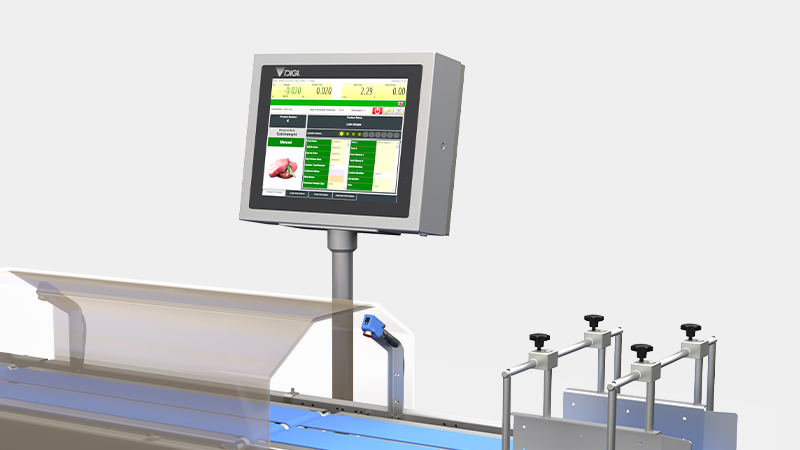

WorldView Operating Software
The HI-700L ll uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labellers.
![hi700l-2_WP04_04](./product_file/file/hi700l-2_WP04_04.jpg)

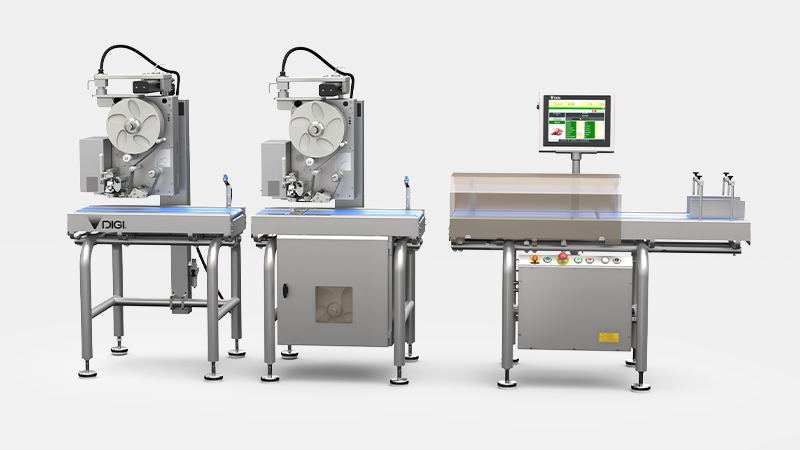

Modular Design
The modular design allows for the addition of extra labelling stations. Add more top and bottom labellers as required, providing a flexible solution to meet your requirements.
Specificaties

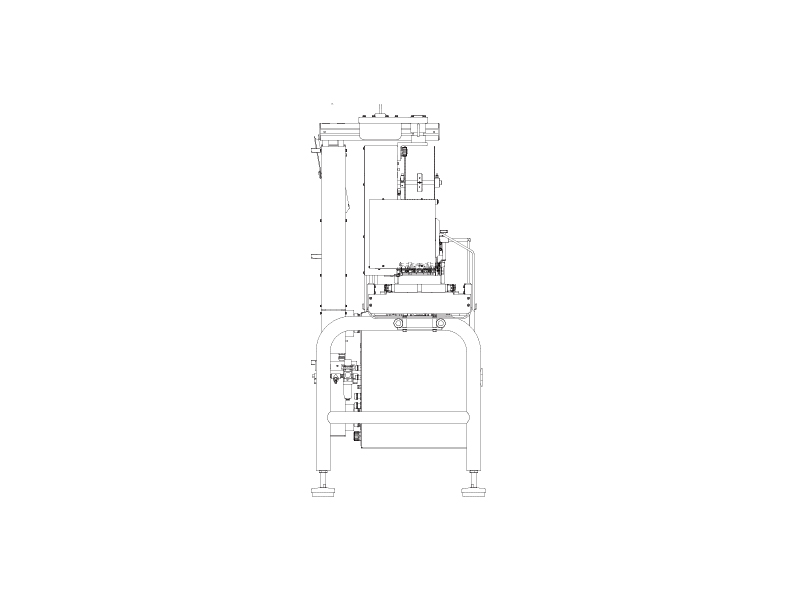

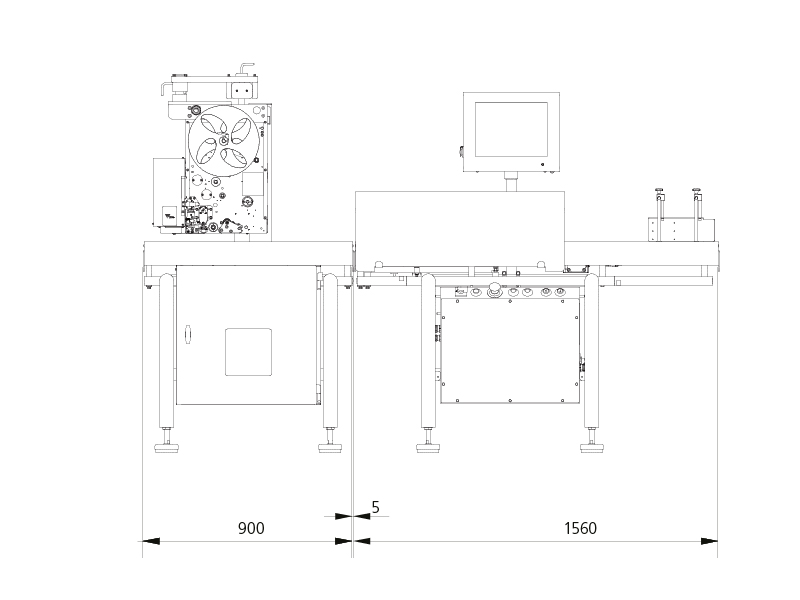

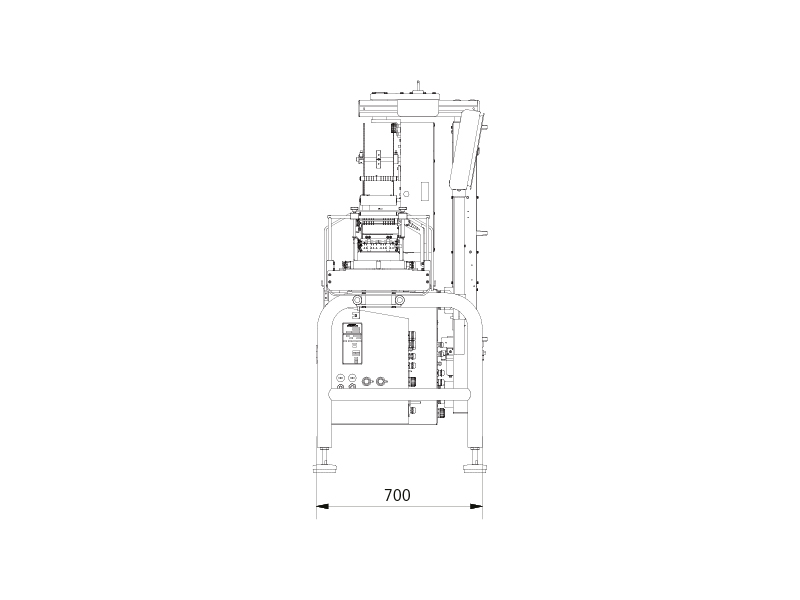

Afmetingen
Weighing
Capacity | Max 12 kg | ||
---|---|---|---|
Single Interval | e= 2g | ||
Pack Speed | up to 60 packs per minute | ||
Pack Size | L80-605mm x W40-250mm x H180mm |
Display
Screen | 15" Colour LCD touchscreen |
---|---|
Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
Weighing Modes | Catch Weight, Fixed Weight/Price, Average (Emark) |
---|---|
Labellers | Multiple labellers/printers |
Communication | Ethernet, USB, RS232 |
Operating System | Windows 10 OS |
Language | Multi-lingual Unicode |
Software | WorldView (embedded application) |
Database | SQL |
Connectivity | Remote programming and control |
Connectivity to meet industry standards | |
Customisable output data | |
Interconnectivity to back-office data management |
General
Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
---|---|
Operating Temperature | 0 to +30°C |
Standard Features
Scale Length | 780mm |
---|---|
Scale Cover | 'lift-off' formed polycarbonate |

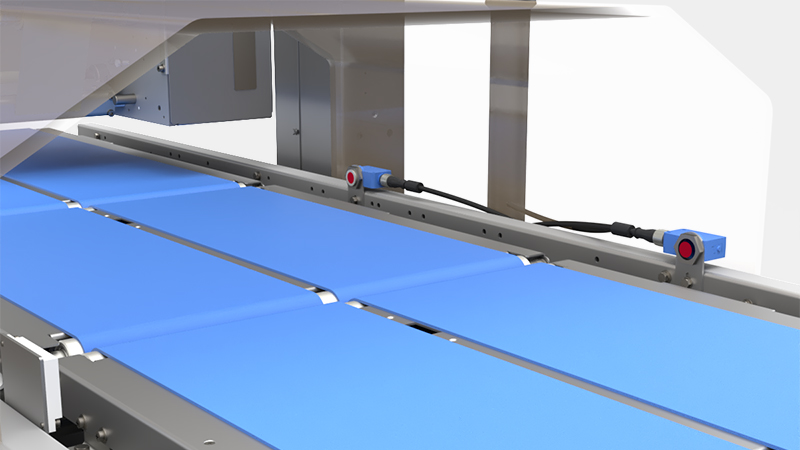

Sensors | Overhead retro reflective |
Labellers | Signature |
Pack Guides | S100 tall guides |
Conveyors | Split blue belts |

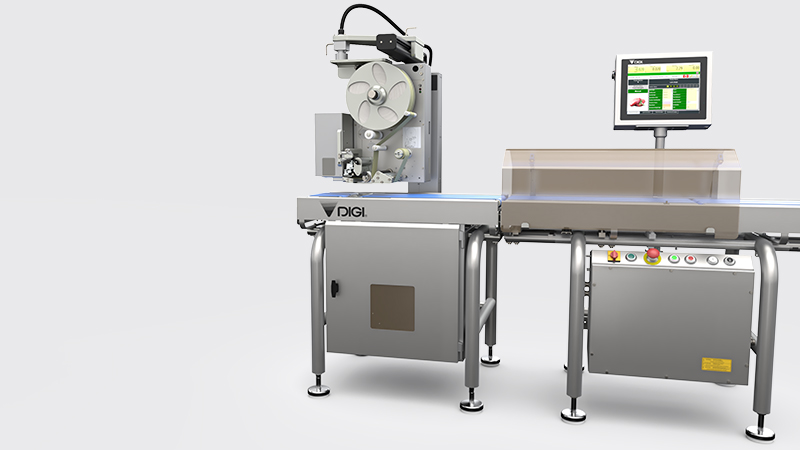

Variaties
![hi700l-2_WP07_01](./product_file/file/hi700l-2_WP07_01.jpg)

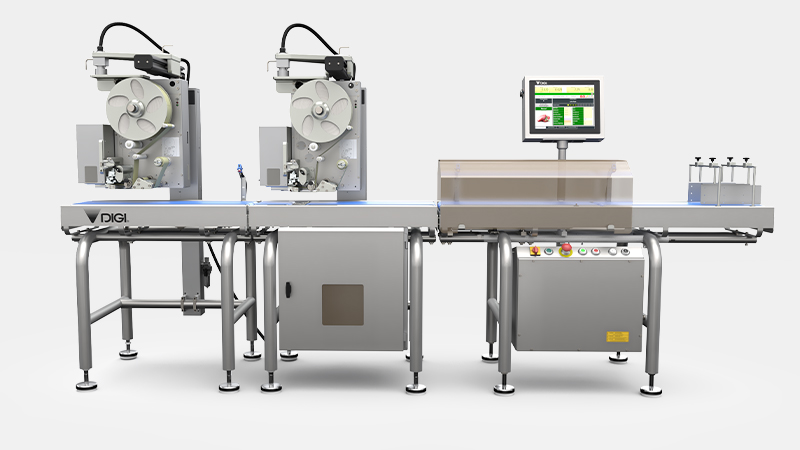

Top and Bottom Labelling
