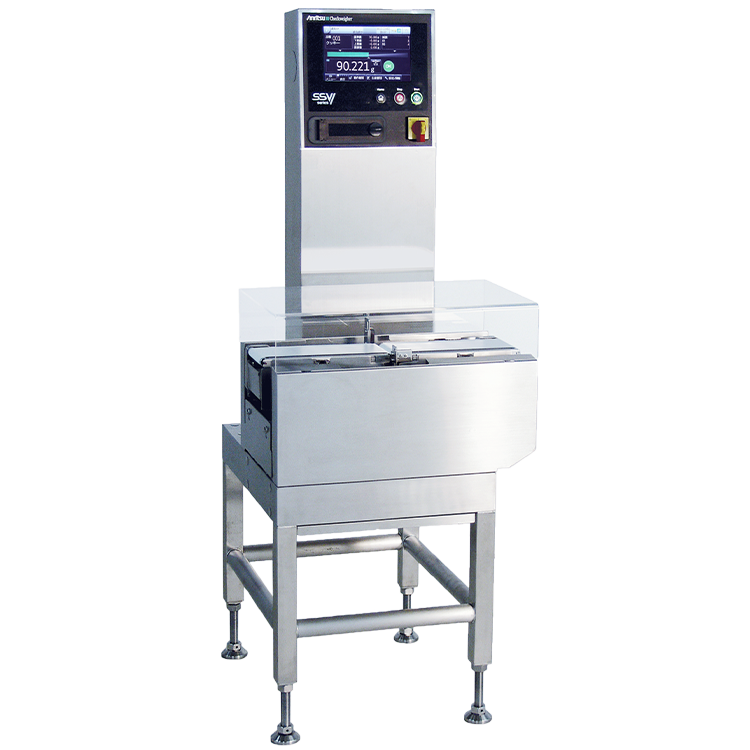

![Checkweighing Systems](./product_file/file/checkweighingsystems_WP02_01.png)
High accuracy, high speed weighing solution
Checkweighing Systems
IndustrieBelangrijkste kenmerken
Checkweighers play a vital role in food and pharmaceutical manufacturing by ensuring consistency of product weight. Anritsu's checkweighers not only weigh products at a high speed and with a high accuracy but also respond to diverse customers' needs ranging from feedback control for filling machines to HACCP and GMP support.
![WP04_01](./product_file/file/checkweighingsystems_WP04_01.jpg)

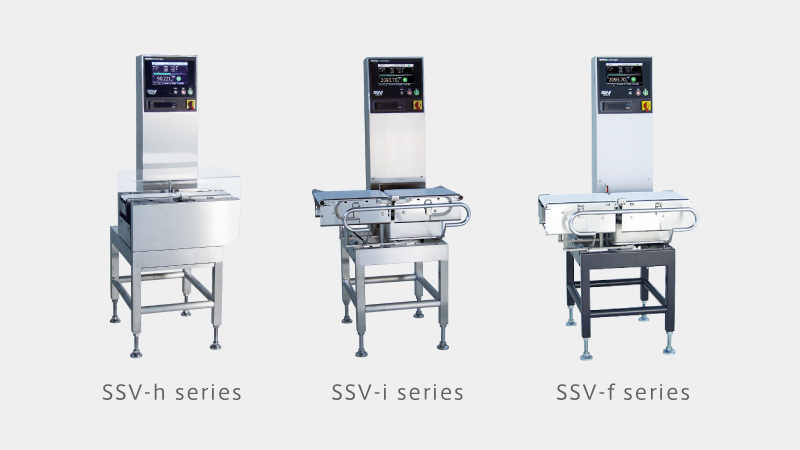

SSV Series in many variations
High Accuracy: SSV-h series
Equipped with a high speed/high accuracy force balance load cell. Meets stringent accuracy and reliability standards in industrial and pharmaceutical products.Control panel exterior: Stainlss steel / Painted
Conveyor: Non waterproof
Balance: Force balance
Frame: Stainless steel / Painted
Washdown: SSV-i series
Features waterproof and dustproof cabinet and components. Its hygienic design is perfect for unpackaged and fresh foods which require stringent sanitary control.Control panel exterior: Stainlss steel
Conveyor: Waterproof
Balance: Force balance / Strain gauge
Frame: Stainless steel
Economy: SSV-f series
Equipped with a highly versatile strain gauge load cell. Well suited for a variety of applications including heavy products.Control panel exterior: Stainlss steel / Painted
Conveyor: Non waterproof
Balance: Strain gauge
Frame: Stainless steel / Painted
![WP04_02](./product_file/file/checkweighingsystems_WP04_02.jpg)

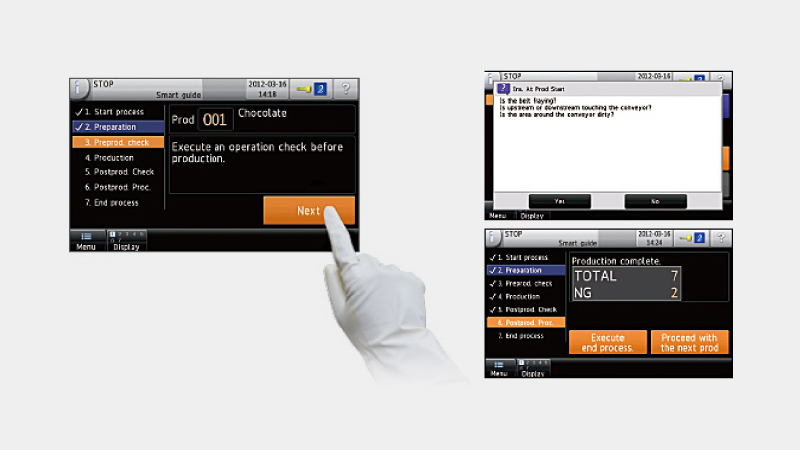

Smart Guide
For checkweighers to function properly, operation checking must be performed correctly at each stage of the daily operation: at start-up, during production, and at the end of production. These procedures, although necessary, are not always strictly followed due to the time and effort involved. Smart Guide navigates operation check and maintenance procedures in an easy-to-understand format. If a procedure was performed incorrectly, Smart Guide will not allow to proceed further, ensuring correct operation management.
![WP04_03](./product_file/file/checkweighingsystems_WP04_03.jpg)

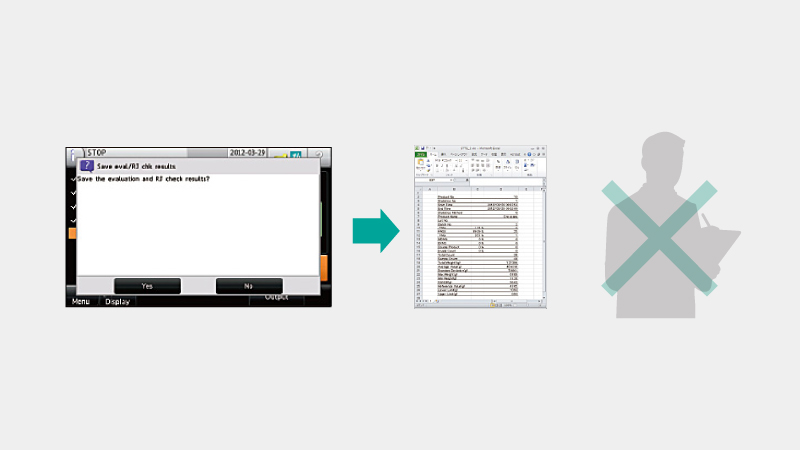

E-Daily Report
All checkweigher weight data and operation check (audit) records are saved local on the SSV checkweigher. At the end of production, the data and operation check log can be sent via E-Reports. The elimination of manual data collection minimizes possible errors and makes data and log management simple and efficient.
![WP04_04](./product_file/file/checkweighingsystems_WP04_04.jpg)

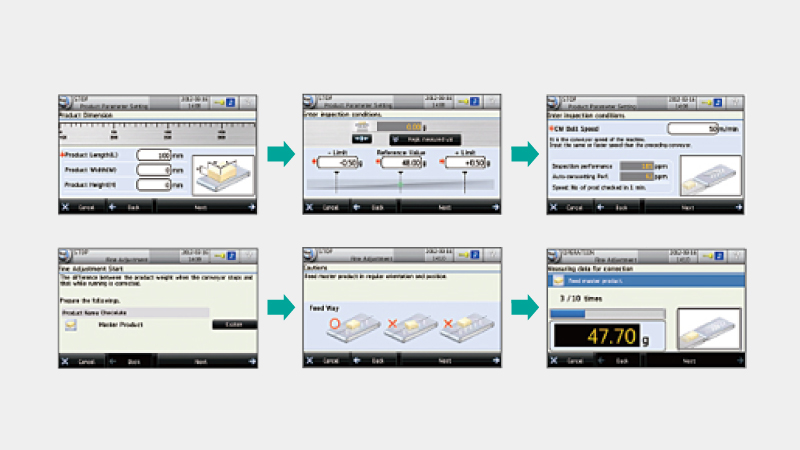

Product Registration Navigation
Product Registration Navigation simplifies parameter setting procedures with step-by-step illustrated instructions. On-screen illustrations help you understand each key procedure. If performed improperly, the navigation stops for corrective action.
![WP04_05](./product_file/file/checkweighingsystems_WP04_05.jpg)

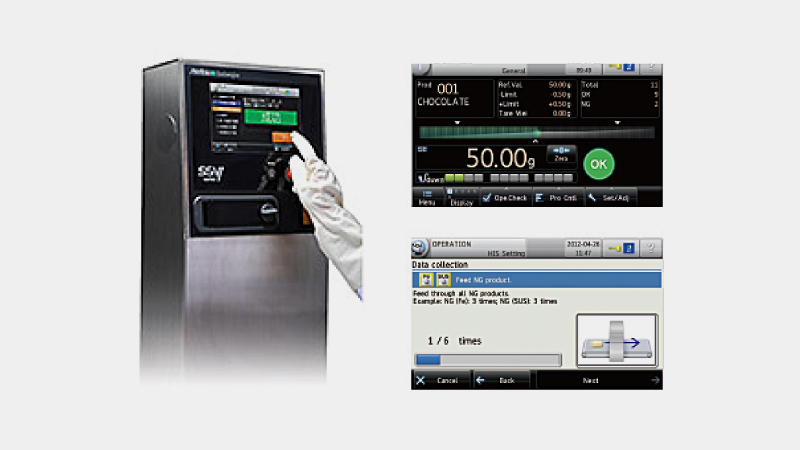

Colour LCD Touch Screen Interface
Color LCD touch screen interface
8.5" color LCD touch screen interface significantly improves daily use.
USB and Ethernet interfaces are equipped as standard features.
Specificaties
Afmetingen
SERIES | FEATURES | MAIN FUNCTION | |
---|---|---|---|
![]() |
High Accuracy [SSV-h series] | Equipped with high speed / high accuracy force balance load cell | Meets stringent accuracy and reliability standards in industrial and pharmaceutical products. |
![]() |
Washdown [SSV-i series] | For unpackages and fresh foods which require stringent sanitary control | Features waterproof and dust-proof cabinet and components. Its hygienic design is perfect for unpackaged and fresh foods which require stringent sanitary control. |
![]() |
Economy [SSV-f series] | Well suited for a variety of applications including heavy products | Equipped with a highly versatile strain gauge load cell. Well suited for a variety of applications including heavy products. |
![]() |

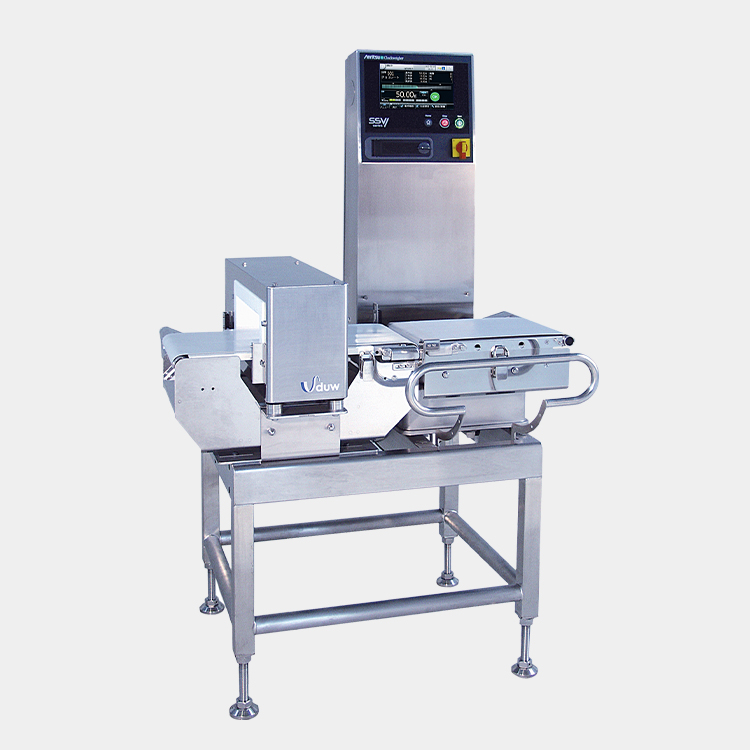

Checkweigher With Metal Detector | Both metal detection and checkweighing are combined in one system with a small footprint. | Compact and Reliable Inspection Possessing an extremely small foot print, line space requirements are minimized and line integration is simplified. |
![]() |
AW9 Series Ultra-Fast Type | Anritsu's flagship checkweigher compatible with ultra-high-speed packaging lines | Maximum throughput of 1,000 products/min |
![]() |

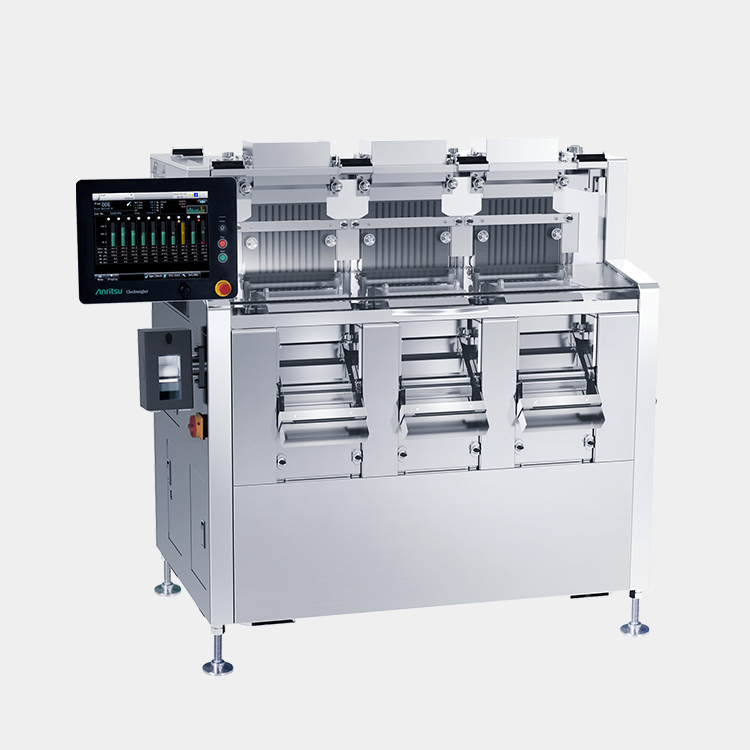

Capsule Checkweigher | Best weighing solution for capsules containing active pharmaceutical ingredients | 3 models are available according to the production scale - The most compact 10-lane model can process up to 75,000 capsules/hour, while 30-lane model can candle maximum 230,000 capsules/hour. |
![]() |
Multi-lane Inspection | Suitable for lines where dual lanes of products are inspected with just ine unit such as divided filling packaginf and tube filling lines. |
FAQ
-
How do the inspection systems work?Anritsu's major products are X-ray inspection systems, metal detectors, and checkweighers. Their working principles are similar to household appliances but these industrial inspection systems have a distinctive feature: As installed in manufacturing lines, they perform inspections at production line speeds as high as hundreds of items per minute. Furthermore, the systems identify and reject defective items automtaically.
Checkweighers
Just like kitchen scales, checkweighers measure the weight of an object but differ from household scales in the following points:
Automatically performs in-line weight measurement and rejection at production line speeds
Measure the weights of in-motion products in high-speed running production lines.
