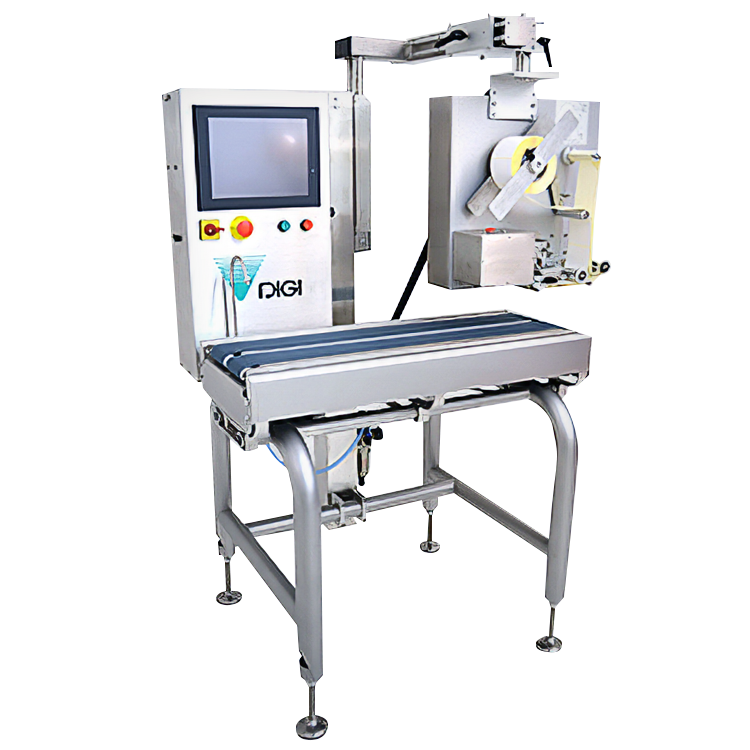

High speed print and apply system
HC-700E
IndustrieBelangrijkste kenmerken
The HC-700 series machines are a PC based high speed print and apply system. Variations cater for application of label to the top and the base of the product.
The flexibility of this PC based machine allows easy integration with existing machines and networking.
Color touch screen for easy and quick programming and plu selection.
![HC-700E-WP04-1](./product_file/file/hc700uk_WP04_01.jpg)

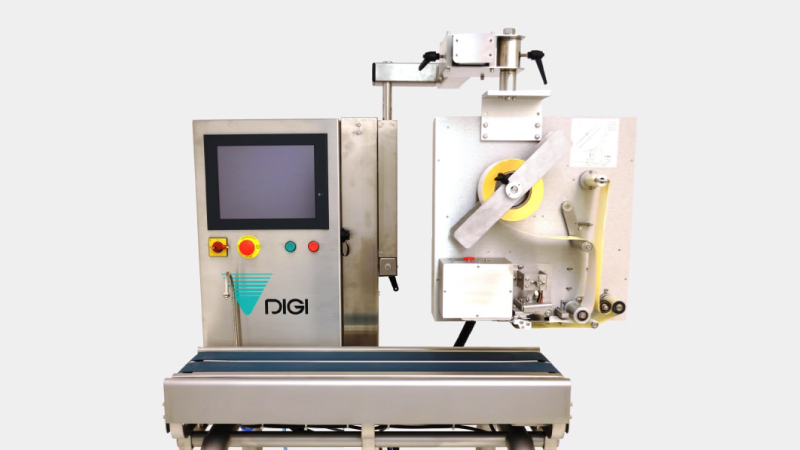

Compact strong design
The compact single frame design of the HC-700E allows this machine to be fitted into production lines where line length is limited. The stainless steel construction ensures a high quality, strong and durable structure.
![HC-700E-WP04-2](./product_file/file/hc700uk_WP04_02.jpg)

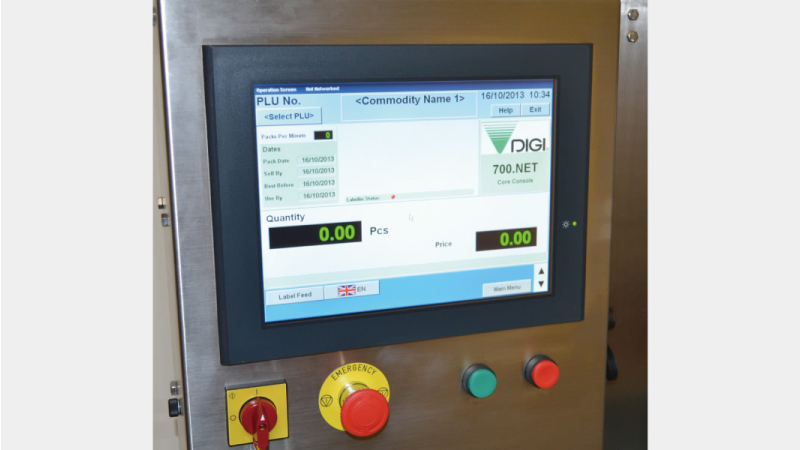

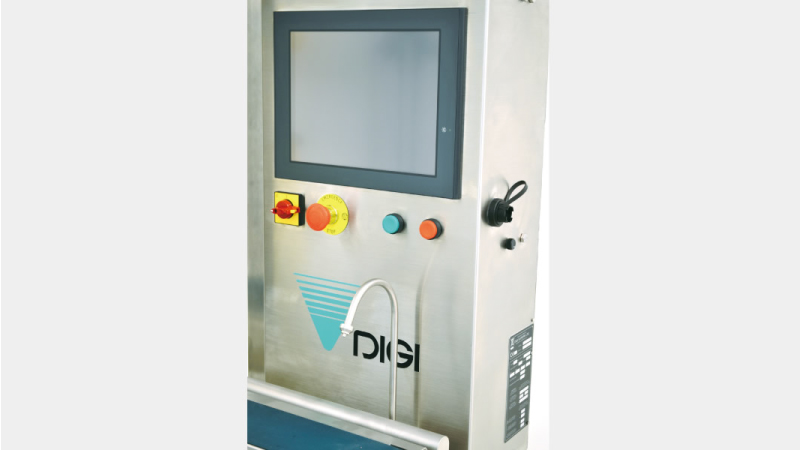

PC touch screen
PC touch screen mounted in strong stainless steel cabinet.
![HC-700E-WP04-3](./product_file/file/hc700uk_WP04_03.jpg)
HC-700E operation system
The HC-700E uses an industrial PC utilising embedded software on a Windows® operating system. This offers a flexible integration for bi-directional communication in XML format to back-office server data collection, programming and line monitoring.
![HC-700E-WP04-4](./product_file/file/hc700uk_WP04_04.jpg)

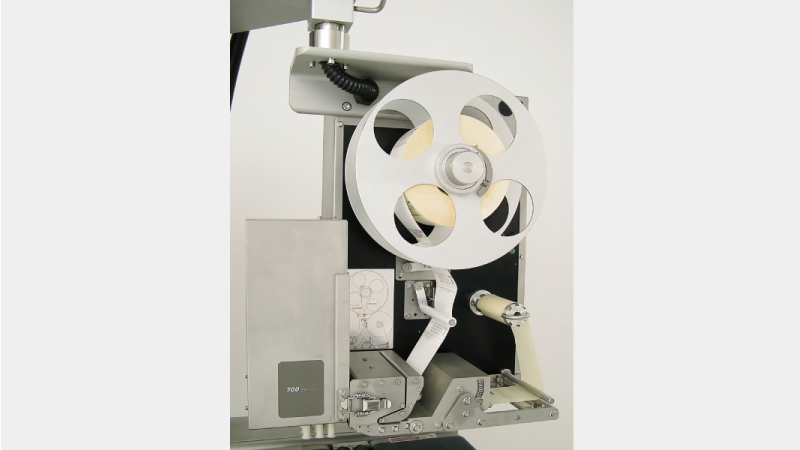

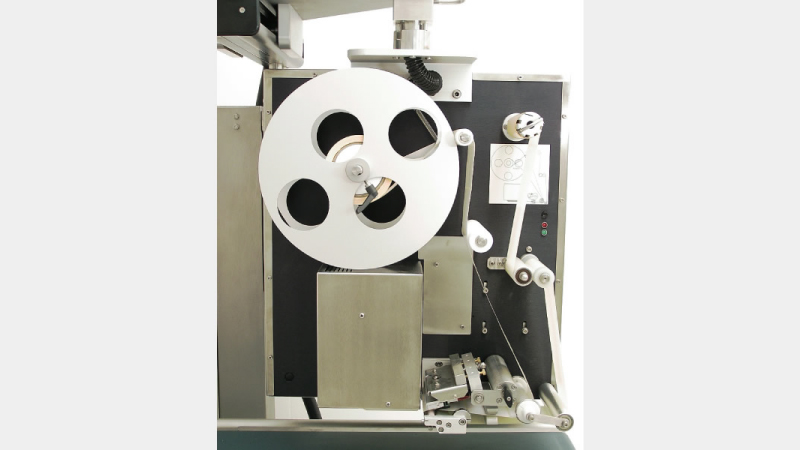

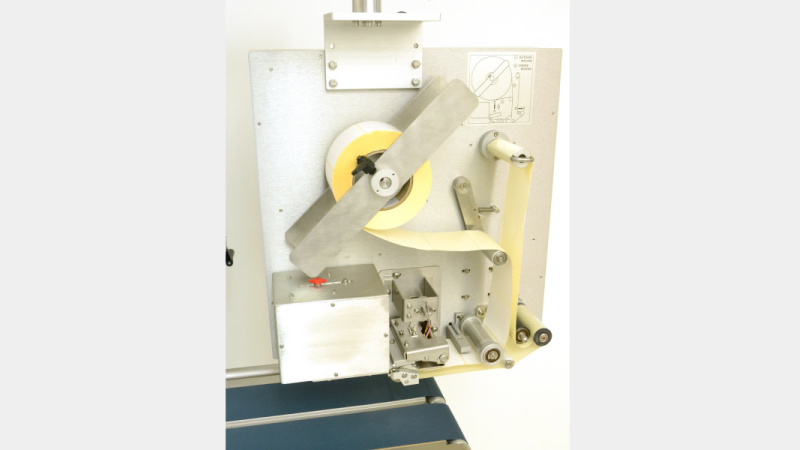

Low cost industrial printer

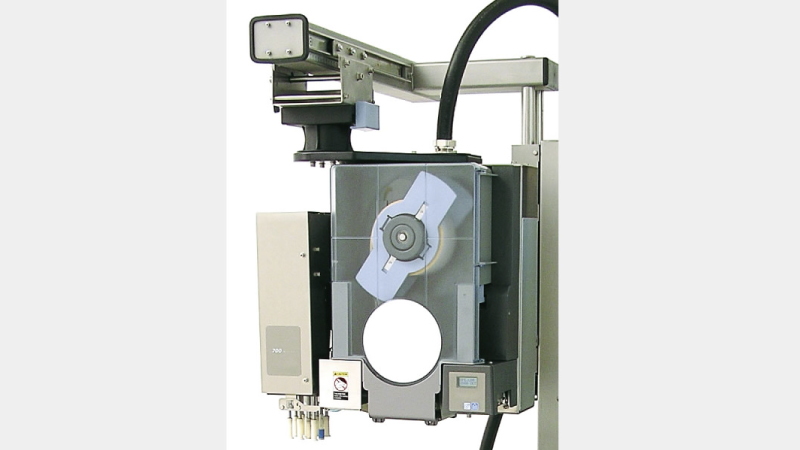

The LC labeler is the standard labeler for the HC-700E.

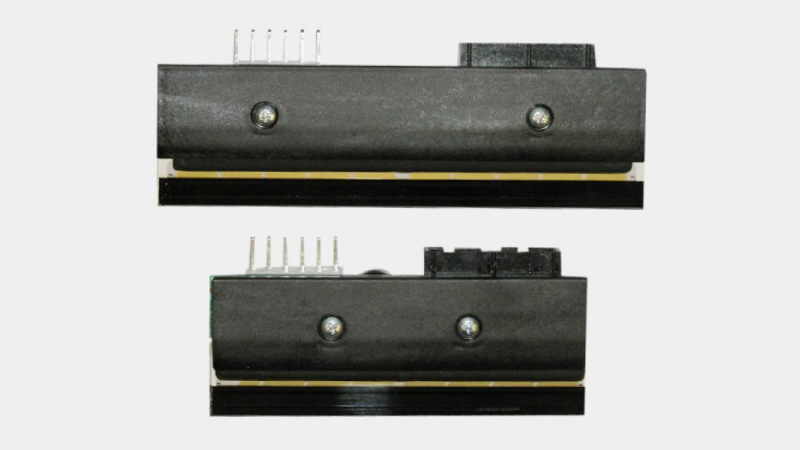

This labeler has an 80mm, 300dpi thermal head and air box applicator.
Specificaties

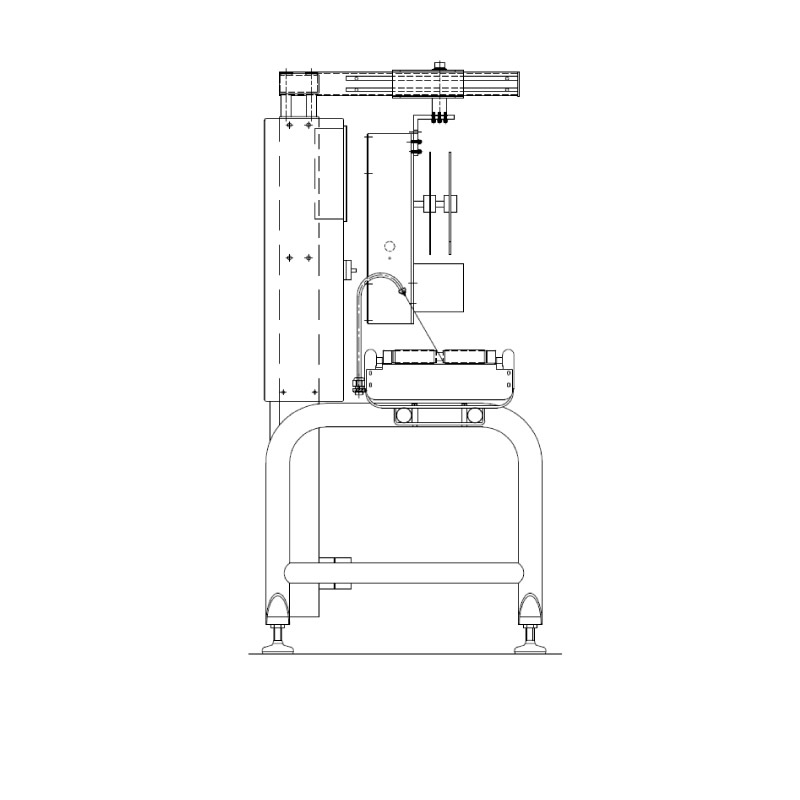

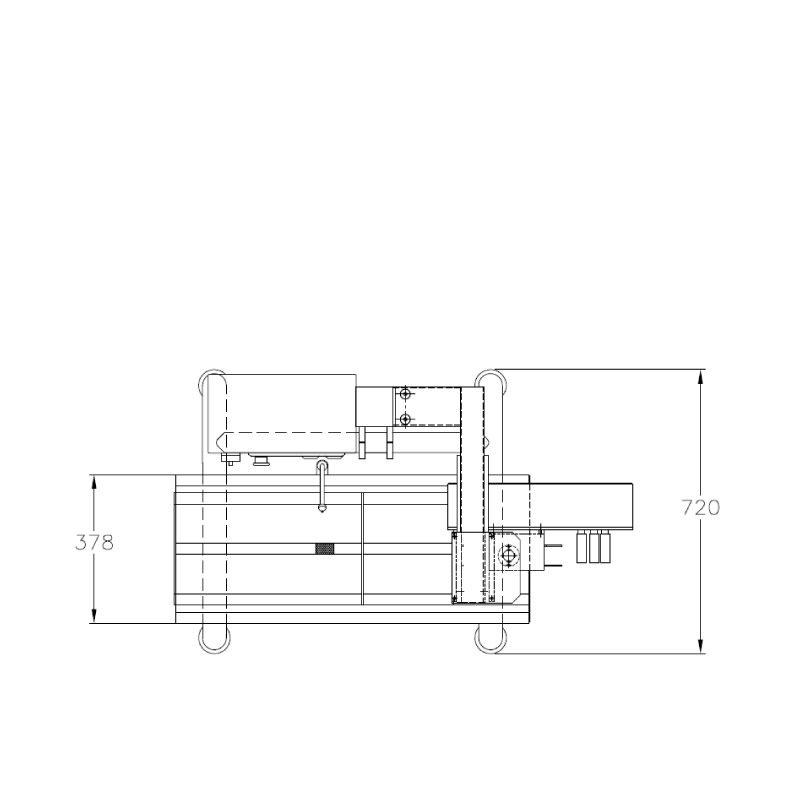

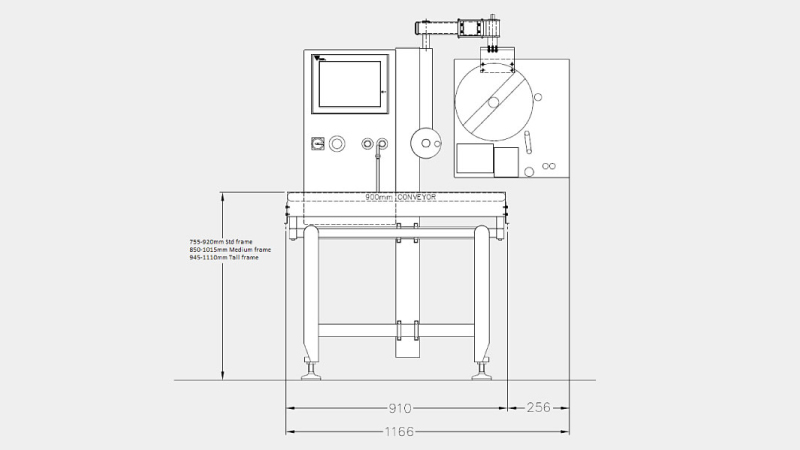

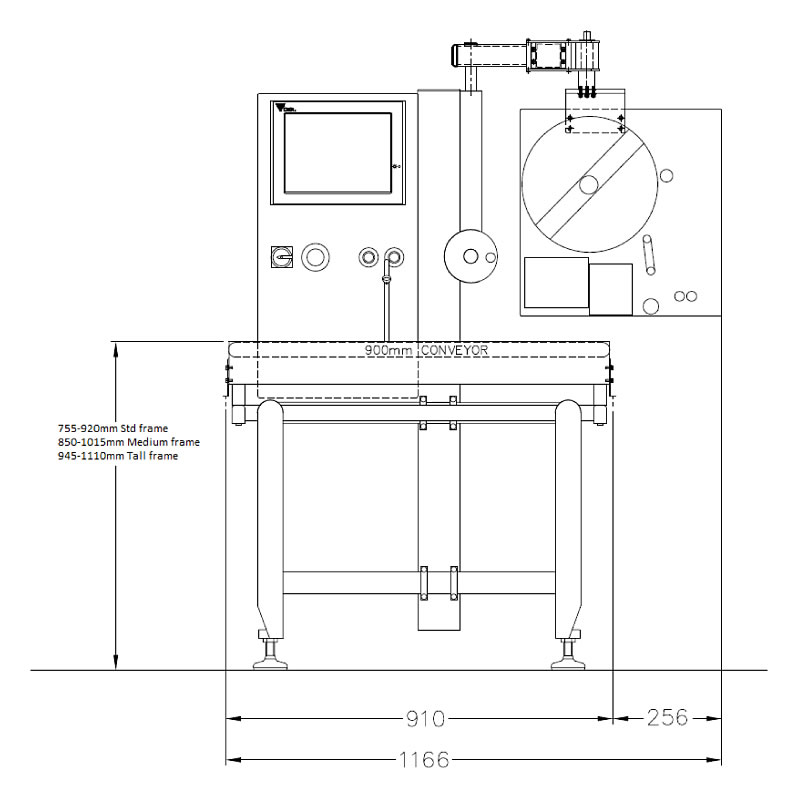

Afmetingen
Display
Screen | 12.1 colour high brightness TFT LCD |
---|---|
Touch panel | Sealed resistive touch screen |
Operation and general specification
Standard conveyor length | 900mm |
---|---|
Conveyor speed | Independent control via potentiometer 0 to 50m/min |
Pack size
Pack size capable | Width: 40 to 250mm, Height: 180mm maximum |
---|
Labeler-LC
Label size | Width: 36 to 90mm, Height: 40 to 105mm |
---|---|
Label roll | max 300mm diameter, 36mm & 76mm core, inside/outside wound |
Label application system | air box |
Print speed | 50 to 200mm/sec |
Print head | 80mm at 300dpi |
Variaties
![HC-700E-WP07-1](./product_file/file/hc700uk_WP07_01.jpg)

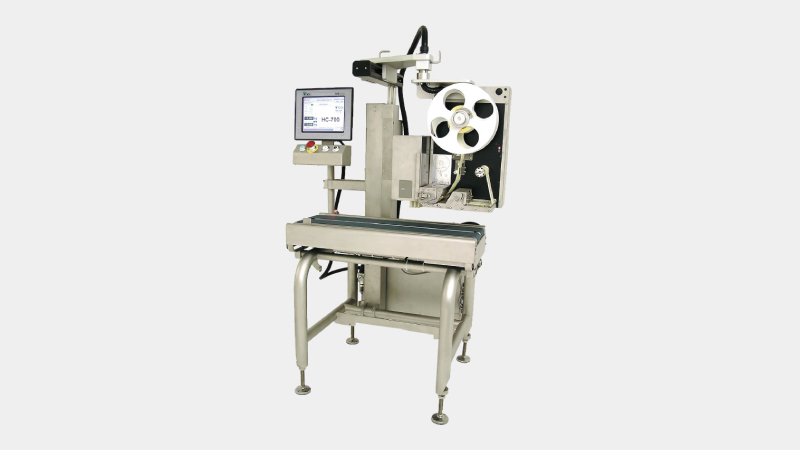

HC-700TF
HC-700TF
![HC-700E-WP07-2](./product_file/file/hc700uk_WP07_02.jpg)

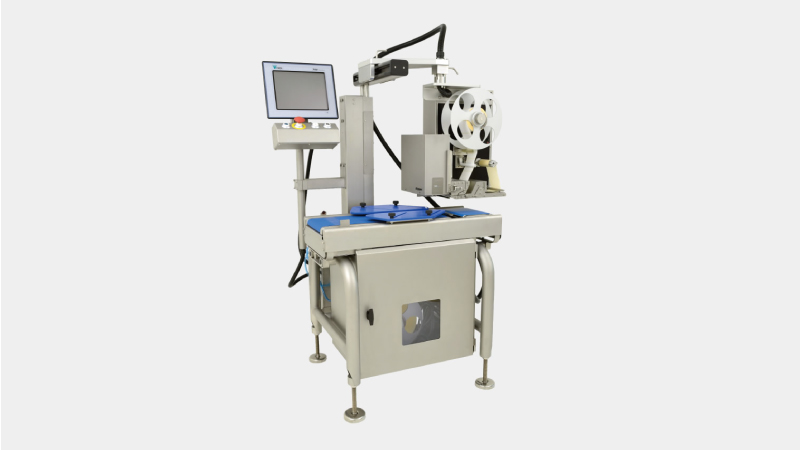

HC with top and bottom labeling
HC-700TB
The four transport belts of the base applicator carry the labels smoothly onto the bottom of the pack.
![HC-700E-WP07-3](./product_file/file/hc700uk_WP07_03.jpg)

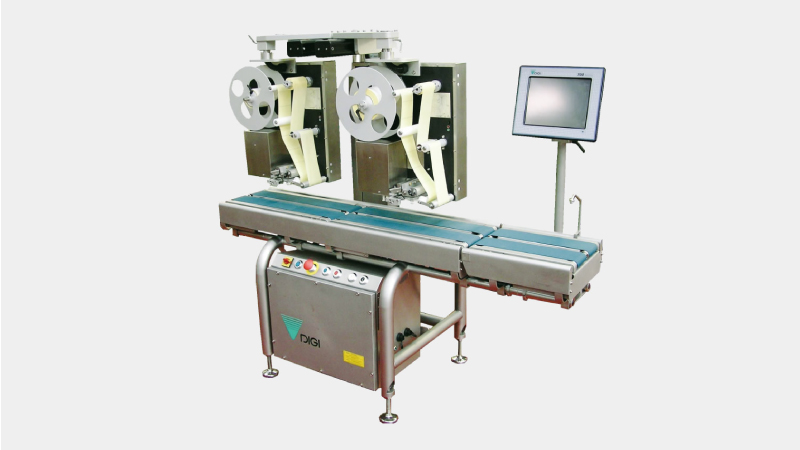

HC-700 with twin top labeling
HC-700 twin top
In de praktijk
In de praktijk
Conform de Europese richtlijn voor voeding dankzij (No.1169/2011) de DIGI HC-700
Barnies
Barnies is een onafhankelijke industriële bakkerij in het Verenigd Koninkrijk. Het is een producent van sadnwiches, cakes en brood. Ze leveren vooral aan kleine winkels en tankstations. Om aan de nieuwe Europese richtlijnen te voldoen contacteerde Barnies DIGI Europe (de industriële poot van DIGI) Deze leverde een nieuwe etiketteermachine zodanig dat Barnies ook in de toekomst conform blijft.FAQ
-
Can the flow direction of the machine be left to right or right to left?The machine can be built to either flow direction.
-
Can the labeler use thermal ribbon?A thermal transfer ribbon kit can be fitted to the Classic labeler to allow the use of thermal ribbon.
-
Is the HC a weighing machine?The standard range of HC machines do not weigh, they are a print and apply machine.
