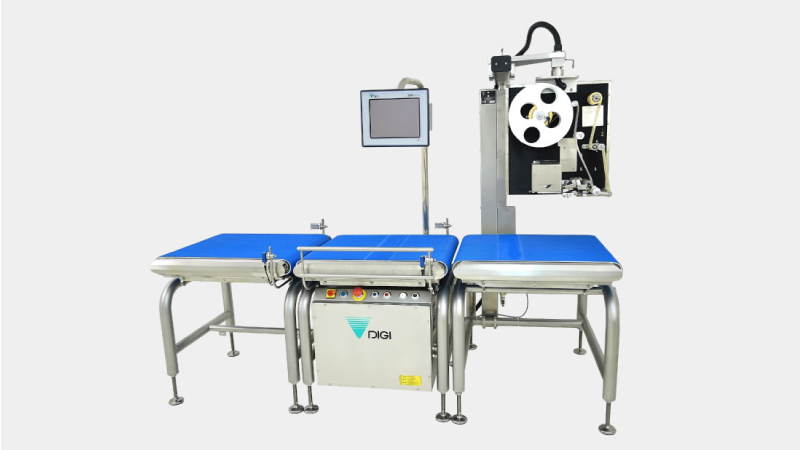

Automatic heavy duty weigh price labeler
WIW-700
IndustrieBelangrijkste kenmerken
The WIW-700 is a high capacity dynamic weigh price labeling machine. The powerful drum motor conveyors can carry large loads up to 60kg with a typical crate/tray size of 600mm long x 600mm wide. This PC based machine allows easy integration with existing machines and networking and comes with color touch screen for easy programming and plu selection.
![WIW-700-WP04-1](./product_file/file/wiw700_WP04_01.jpg)

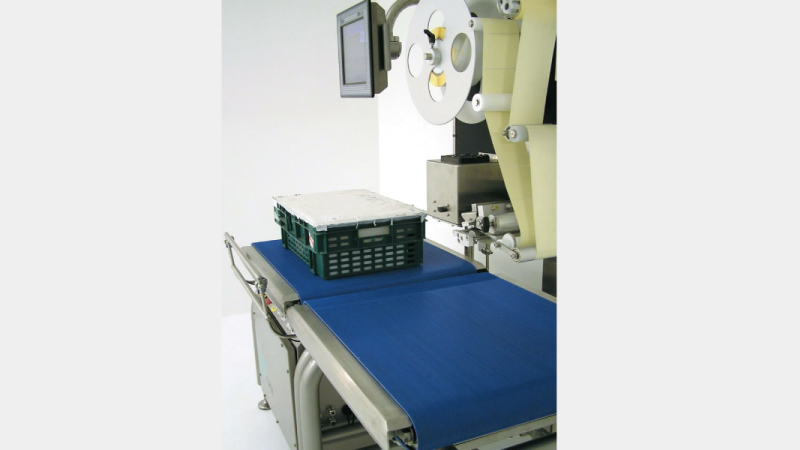

Large crate capacity
The powerful drum conveyor motors will transport products up to 60kg and with the large size deck a crate of up to 600mm long x 600mm wide can be weighed and labeled.
![WIW-700-WP04-2](./product_file/file/wiw700_WP04_02.jpg)
Wide sensors
The extra wide sensor positioning ensure the widest of products pass through the machine correctly.
![WIW-700-WP04-3](./product_file/file/wiw700_WP04_03.jpg)

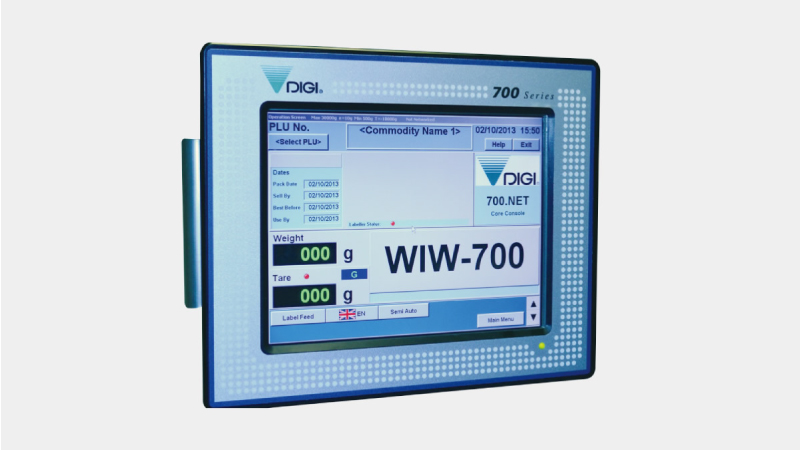

WIW-700 operation system
The DIGI-700 series uses an industrial PC utilising embedded software on a Windows® operating system. This offers a flexible integration for bi-directional communication in XML format to back-office server data collection, programming and line monitoring.
![WIW-700-WP04-4](./product_file/file/wiw700_WP04_04.jpg)

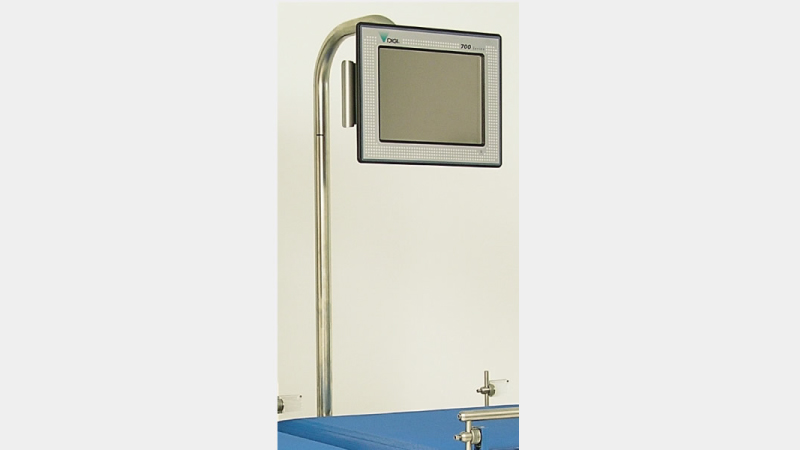

Adjustable screen position
The WIW-700 has the color touch screen mounted on a multi position swivel assembly. This allow the operator easy access to the screen without being restricted by the large conveyors.
Specificaties

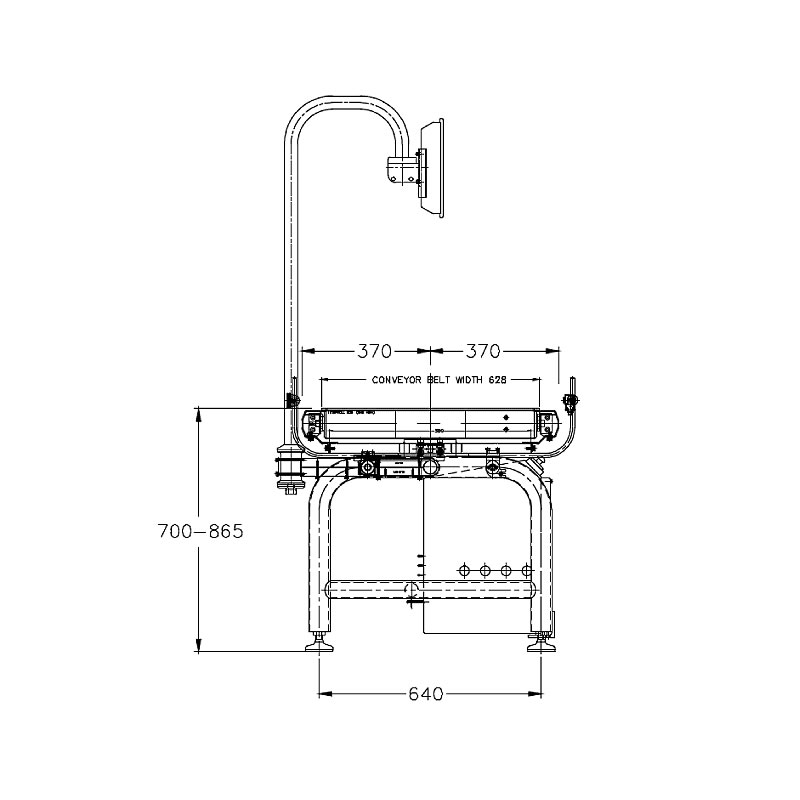

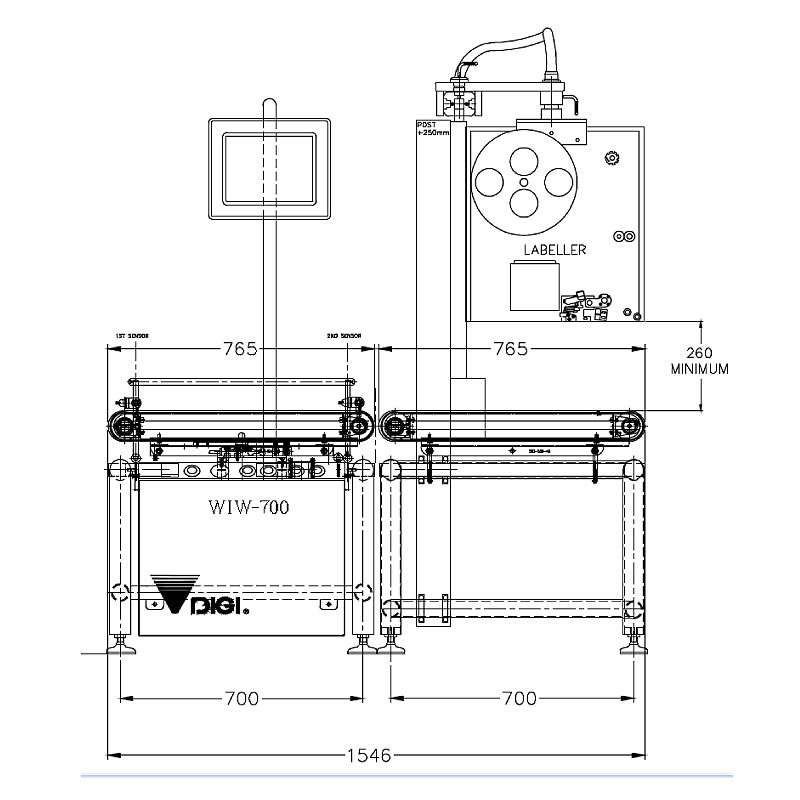

Afmetingen
Weighing
Capacity | Max 30 kg | Max 60 kg |
---|---|---|
Single Interval | e= 10g | e= 20g |
Display
Screen | 12.1 Color LED display |
---|---|
Touch panel | 12.1 pen/finger resistive type |
Operation and general specification
Conveyor speed | Pre-set fixed speed of 15 to 24m/min (18-30ppm) |
---|---|
Conveyor lengths | Infeed(option): 765mm, Scale: 765mm, Outfeed: 765mm (classic labeler) |
Pack size
Pack size capable | Length: up to 600mm, Width: up to 600mm, Height: 240 to 400mm |
---|
Labeler - Classic
Label size | Width: 30 to 120mm, Height: 28 to 150mm |
---|---|
Label roll | max 300mm diameter, 76mm core, inside/outside wound |
Label application system | 9 finger touch, Multijet air box |
Print speed | 50 to 260mm/sec |

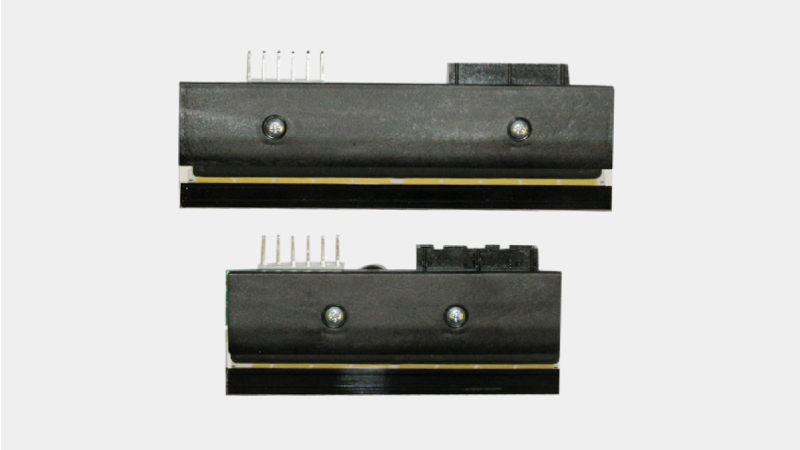

Print head | 80mm at 300dpi, 108mm at 300dpi |
FAQ
-
Can the flow direction of the machine be left to right or right to left?The machine can be built to either flow direction.
-
Can the labeler use thermal ribbon?A thermal transfer ribbon kit can be fitted to the Classic labeler to allow the use of thermal ribbon.
-
What is the longest pack the WIW can weigh?The WIW-700 can weigh a product up to 600mm long.
-
What is the widest pack the WIW can weigh?The WIW-700 conveyor can handle a pack up to 600mm wide.
-
What is the conveyor speed of the WIW?The WIW is a single fixed speed machine with a conveyor speed pre-set to between 15 and 24m/min which will give a maximum throughput of 30ppm.
