Nota: Dit product wordt niet meer verkocht en wordt mogelijk niet ondersteund. Neem contact op met uw lokale contactpersoon met betrekking tot het onderhoud van dit model of vervangende modellen.

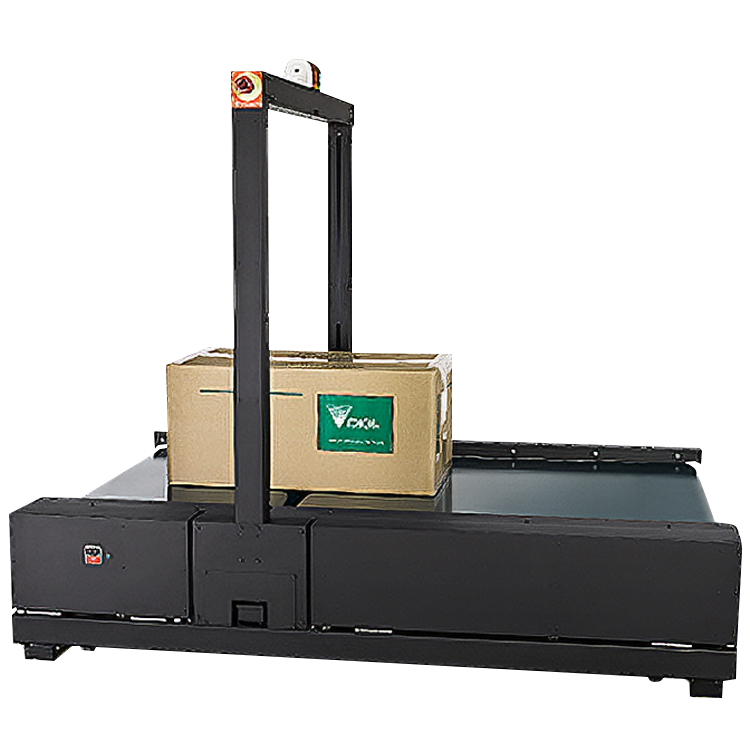

SPK-3000-WP02

An integrated in-motion dimensioning and weighing system

SPK-3000

Logistiek

Belangrijkste kenmerken

The SPK-3000 automatically measures the length, width, height and weight of packages flowing over its conveyor belt.
Packages are transported at a maximum rate of 70 m/minute. The system can measure packages measuring up to 153 cm in length, and a compensation function automatically corrects for errors resulting from diagonal package placement and returns correct measurements. RS-232C, RS-422, and Ethernet interfaces are a standard feature, making it easy to share data with upstream systems. With its ability to measure moving packages, the SPK-3000 finds application in busy distribution centers, such as those found in the air cargo, home delivery, warehousing, and transport industries.

Specificaties

Afmetingen

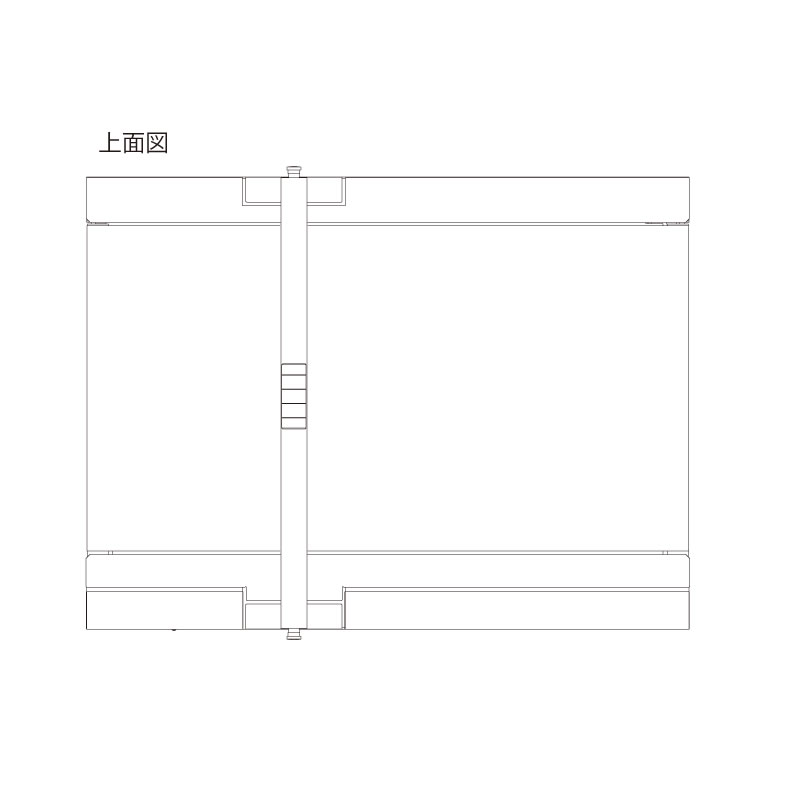

  • SPK-3000-WP05-1

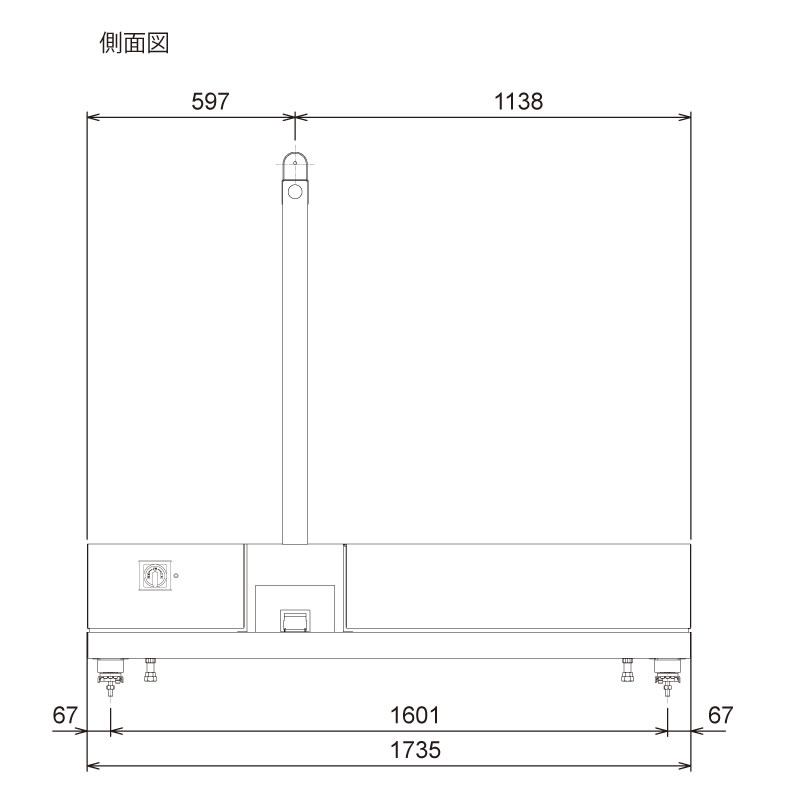

  • SPK-3000-WP05-2

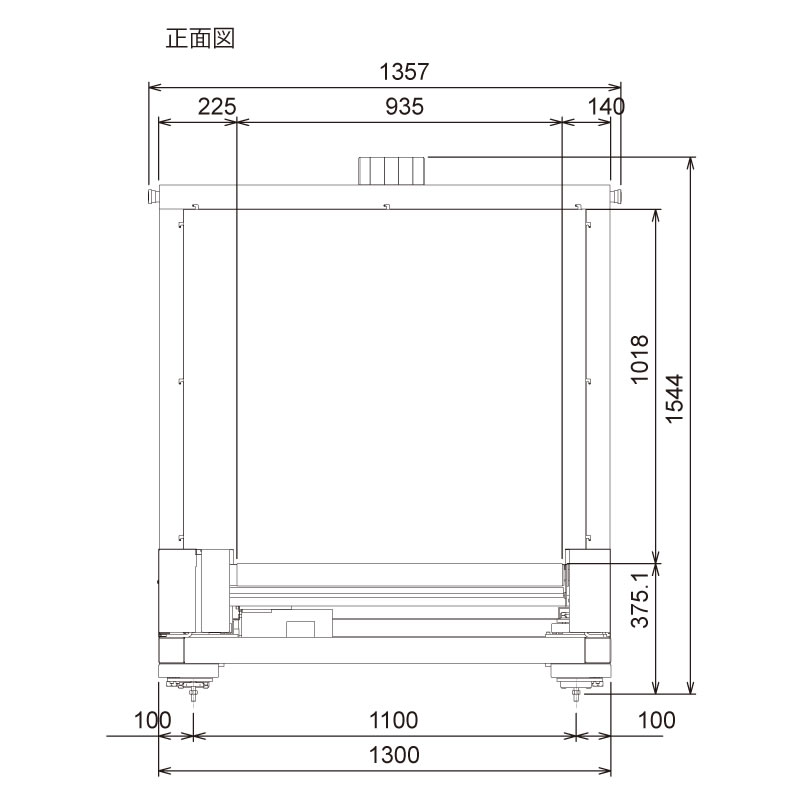

  • SPK-3000-WP05-3
Measuring range Length: 15 to 153 cm
Width: 10 to 90 cm
Height: 6 to 92 cm
Measurement increment:: 0.5 cm
Measuring sensor: Infrared transmission sensor
Weighing  Capacity:  5/50 kg
Increment: 0.05 kg/0.1 kg
Weight sensor: loadcell
Conveyor speed 30 to 70 m/min (variable)
Minimum package conveyor interval 70 cm
Physical dimensions (mm) L: 1735 x W: 1300 x H: 1544
Net weight 360 kg
Interfaces RS-232C, RS-422, 10/100baseT
Operating temperature 0 to 40 degrees C (no condensation)
Power supply AC 200 to 220 V, 3-phase, 50/60 Hz, 300 VA

FAQ

  • In what sort of applications is the SPK series used?
    It is mainly used in the logistics operations to measure the weight and external dimensions of freight packages. Since volume is easily calculated from measurements, it contributes to increased efficiency in warehouse and transport management.
  • What range of package sizes can be measured by the SPK-3000?
    It can measure packages measuring up to 120 cm wide by 153 cm long by 120 cm high, and weighing up to 50 kg. The minimum measureable package size is 10 cm wide by 15 cm long by 3 cm high. For details, please contact your nearest dealer.
  • Can it be used to measure items that are not in box form?
    It is possible depending on settings. In this case, it measures the greatest value in each dimension.
