Belangrijkste kenmerken

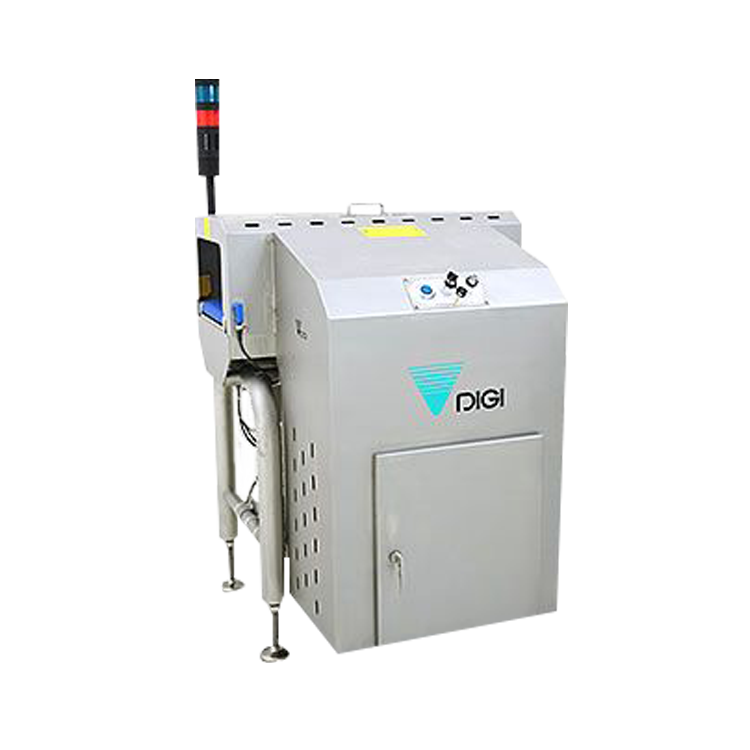

DIGI offers a range of rejectors that are easily linked to the 700 series of weigh / labeling machines. The modular design allows rejectors to be integrated onto the frame-work of the weigh/labeler or as a stand alone unit. An optional intelligent pack can be added to giving advanced features.
![RJ-700-WP04](./product_file/file/rj700_WP04_01.jpg)

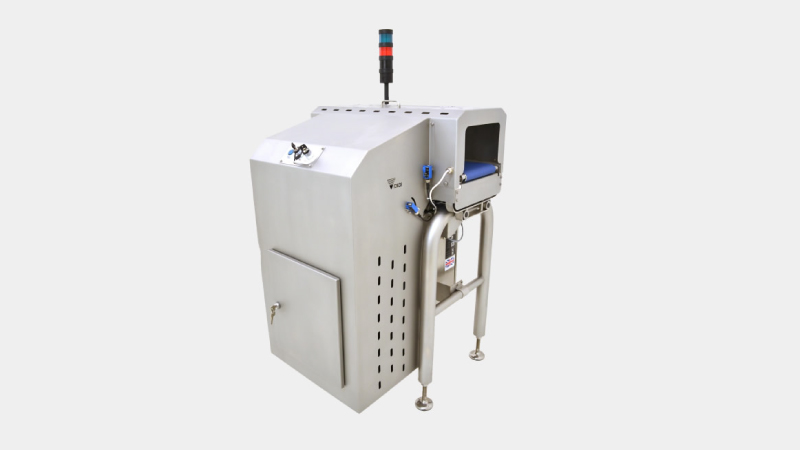

Stainless steel construction
The stainless steel tubular frame construction of these machines ensures a high quality, durable and strong structure.
![RJ-700-WP04](./product_file/file/rj700_WP04_02.jpg)

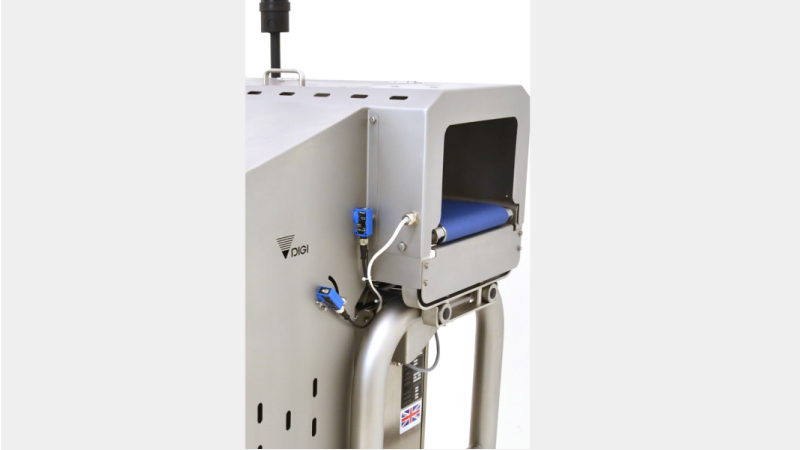

Intelligent detection
To ensure pack rejection, the unit can have advanced features such as reject confirmation, bin full and low air detection. Other features include on/off of rejector and reset of rejector, both operated and protected by key lock.
![RJ-700-WP04](./product_file/file/rj700_WP04_03.jpg)

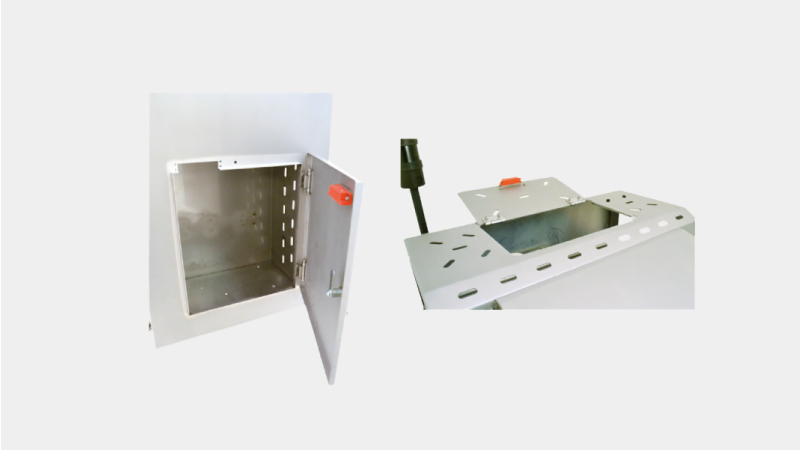

Rejector security
The rejector has a enclosed top guard with interlock and lockable bin with interlock. The high level warning light system ensures any visual alarm is seen. An audible alarm is also present
![RJ-700-WP04](./product_file/file/rj700_WP04_04.jpg)

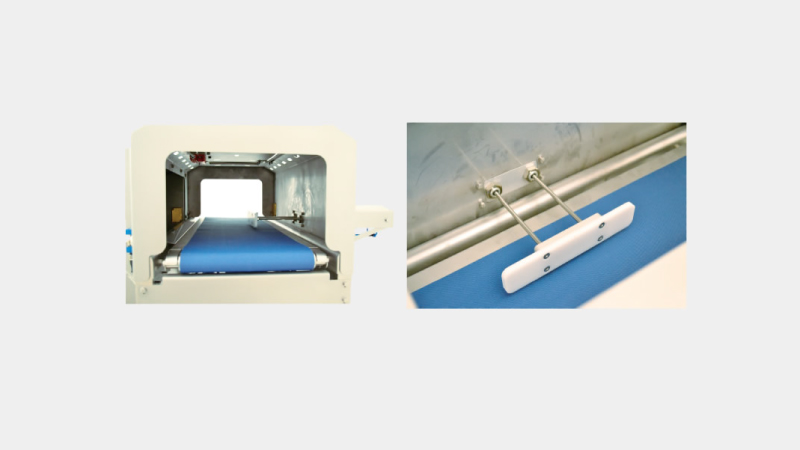

Push arm rejection
The twin cylinder push arm type rejection offers a high speed, accurate and reliable method to reject a wide range of packs.
Specificaties
Afmetingen
Pack speed | up to 150ppm (dependant on pack size) |
---|---|
Pack size (for 800mm conveyor) | Length: 80 to 475mm, Width: 40 to 250mm |
Pack size (for 425mm conveyor) | Length: 80 to 300mm, Width: 40 to 250mm |
Alarms - audible & visual (intelligent pack) | Open guard/bin, bin full, pack confirmation, low air pressure |
Cover | Stainless steel / polymer |
Variaties
![RJ-700-WP07-1](./product_file/file/rj700_WP07_01.jpg)

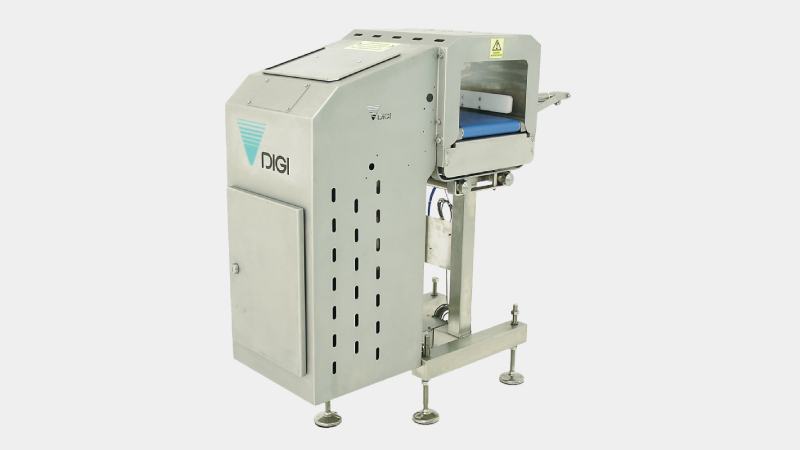

RJ-700 with 425mm long conveyor
RJ-700 425mm conveyor
The standard 800mm and 425mm. The two sizes are build to the same specification with both having the option to be intelligent or non-intelligent.
![RJ-700-WP07-2](./product_file/file/rj700_WP07_02.jpg)

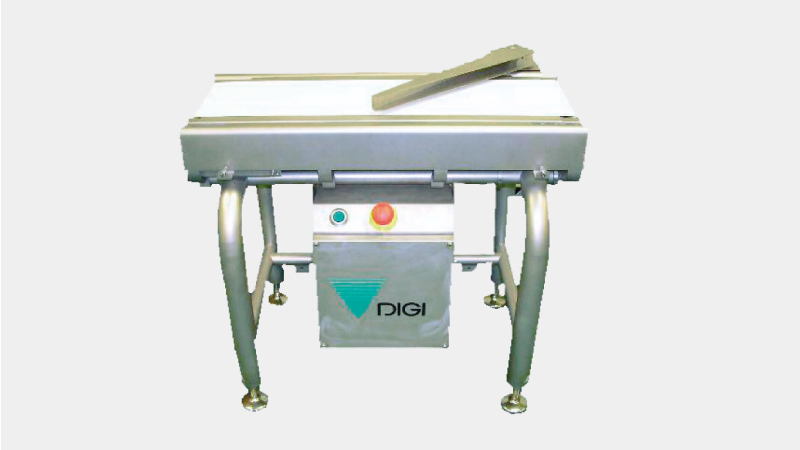

Sweep arm rejector (Diverter)
Sweep arm rejector
![RJ-700-WP07-3](./product_file/file/rj700_WP07_03.jpg)

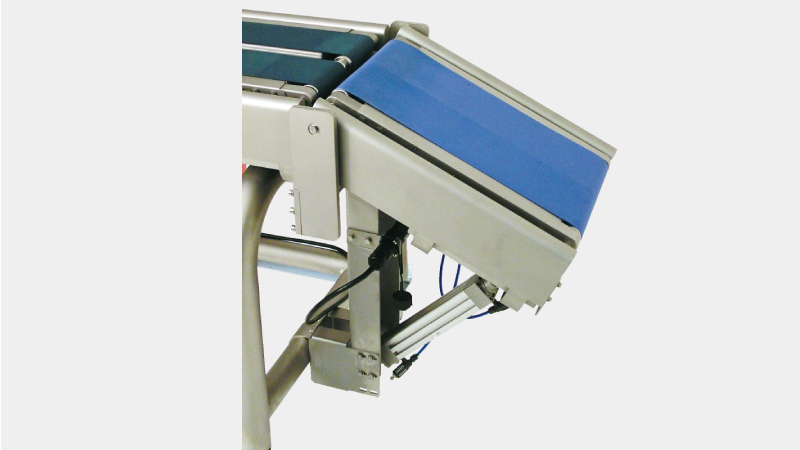

Drop flap rejector
Drop flap rejector
FAQ
-
Are the machines stand alone?The RJ-700 ( 425mm & 800mm) and sweep arm are independent framed units but must be connected to the weigh unit (E.G. HI-700) for conveyor motor speed power and control. The Drop flap rejector is mounted to the chassis of the 700 series weigh price labeler.
-
Does the machine stop if there is no air pressure?If the optional intelligent pack is fitted, when the air pressure falls below the pre-set value to operate the machine, the machine will stop and an alarm will sound.
-
Will the machine stop if reject pack is not rejected?If the optional intelligent pack is fitted, a reject pack must be seen by the pack confirmation sensor when rejected, if not the machine will stop and alarm will sound.
