Nota: Dit product wordt niet meer verkocht en wordt mogelijk niet ondersteund. Neem contact op met uw lokale contactpersoon met betrekking tot het onderhoud van dit model of vervangende modellen.

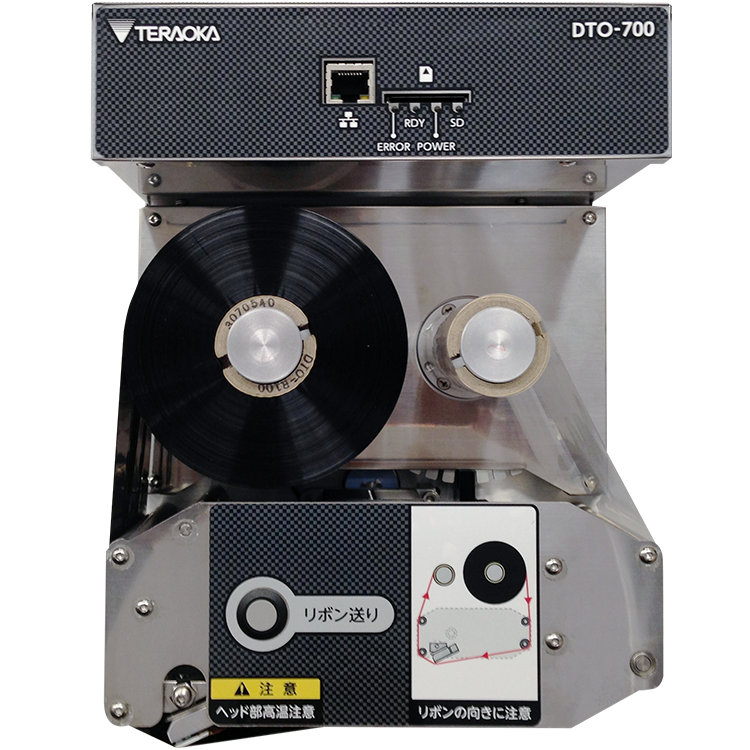

Thermal transfer printer that can be built into various systems
DTO-700
IndustrieBelangrijkste kenmerken
DTO-700 is thermal transfer printer to be built into various machines. You can print data on the package on-demand without increasing the foot print of the packaging system. DTO-700 will increase operation efficiency by eliminating label stock or manual label application.
Built in printing system
DTO-700 increases the efficiency of packaging operation by direct print on the packages. Large roll of 1,000m ink ribbon will reduce frequency of ribbon roll exchange. Print data can be easily created from the large color monitor.
Specificaties
Afmetingen
Main features
| Print method | Thermal transfer |
|---|---|
| Print width | 74.6mm |
| Ribbon width | 80mm |
| Print density | 300dpi(12dot/mm) |
| Measurement (mm) | W: 190 x D: 135 x H: 240 |
| Temperature | 10℃ to 35℃ |
| Air supply | 0.4MPa |
| Power consumption | 100V 180W max. |
