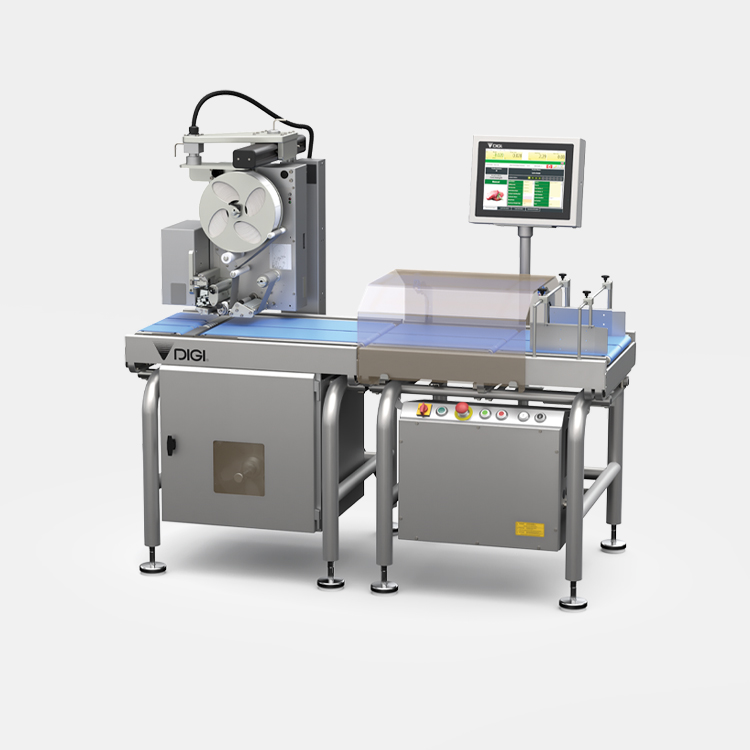

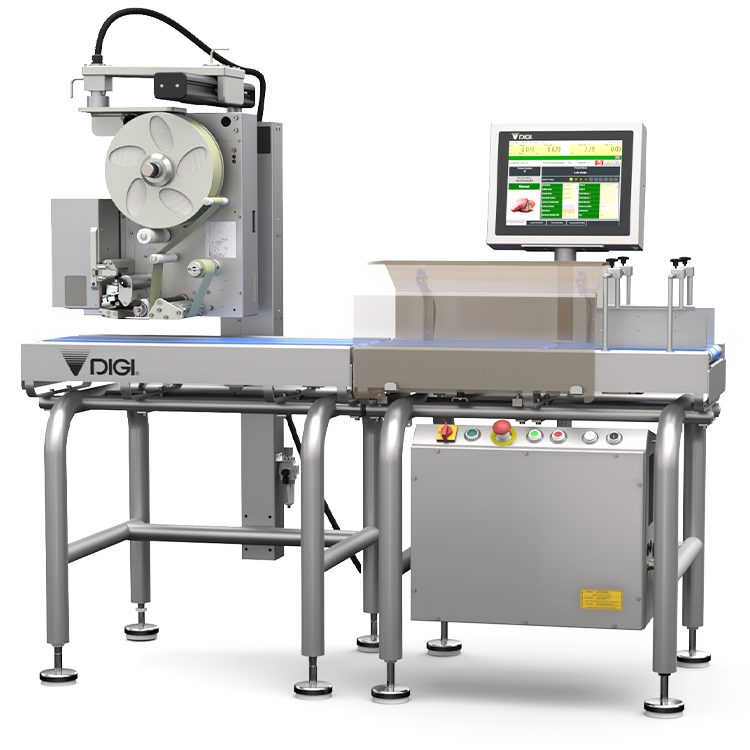

High Speed Dynamic Weigh Price Labeller
HI-700 II
Industrie agroalimentairePrésentation
The HI-700 ll Weigh Price Labeller offers increased efficiency and flexibility. Powered by PC-based software, the HI-700 II is easily networked and integrated with existing machines and back office systems. Dynamic weighing coupled with DIGI’s high speed Signature labeller allows processing at a speed of up to 120ppm.
![hi700-2_WP04_01](./product_file/file/hi700-2_WP04_01.jpg)

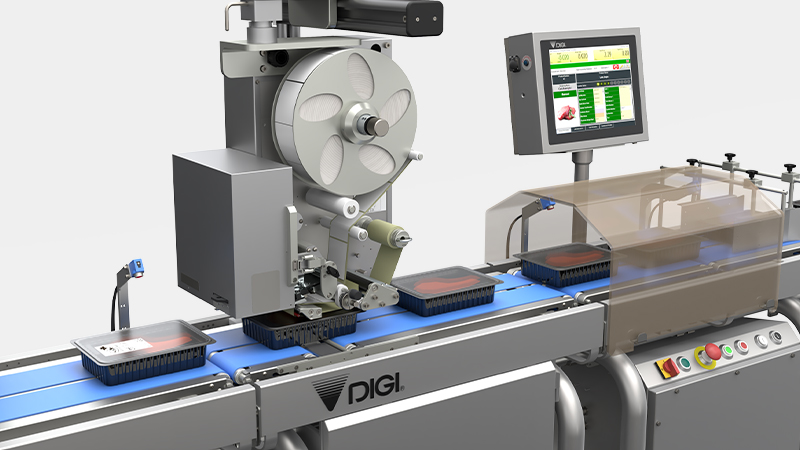

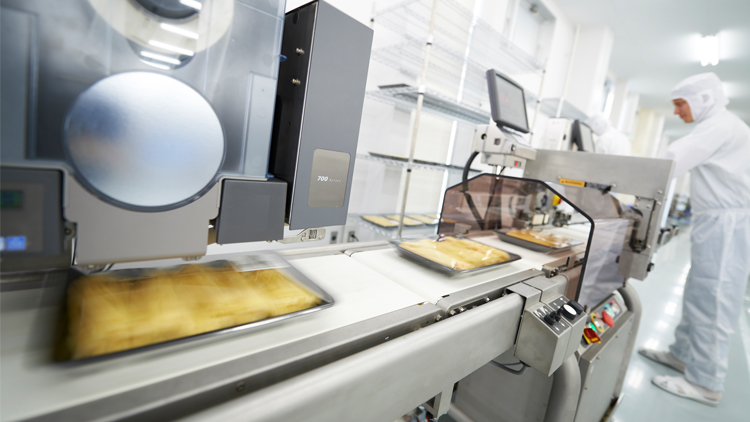

High Productivity
When an additional labelling unit is added, downtime can be further limited by auto-swapping of the labelling stations. Additional labelling units can also operate in ‘ping pong’ mode, alternating application between labellers to maintain higher throughput with larger labels.
![hi700-2_WP04_02](./product_file/file/hi700-2_WP04_02.jpg)

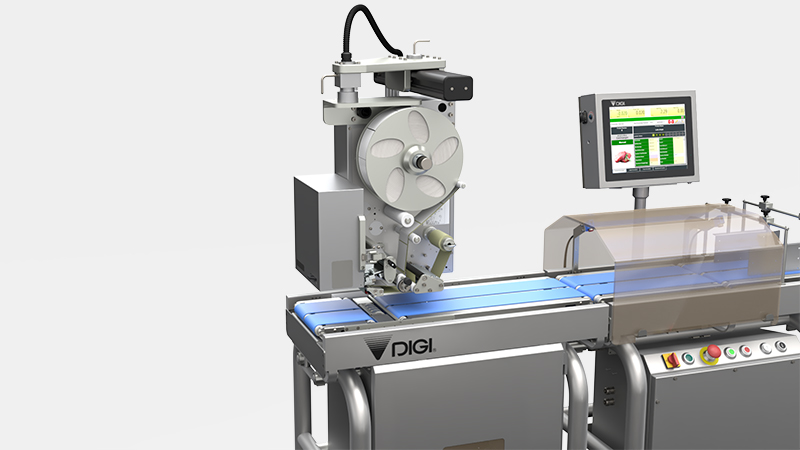

Signature Labeller
The high speed signature labeller provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.
![hi700-2_WP04_03](./product_file/file/hi700-2_WP04_03.jpg)

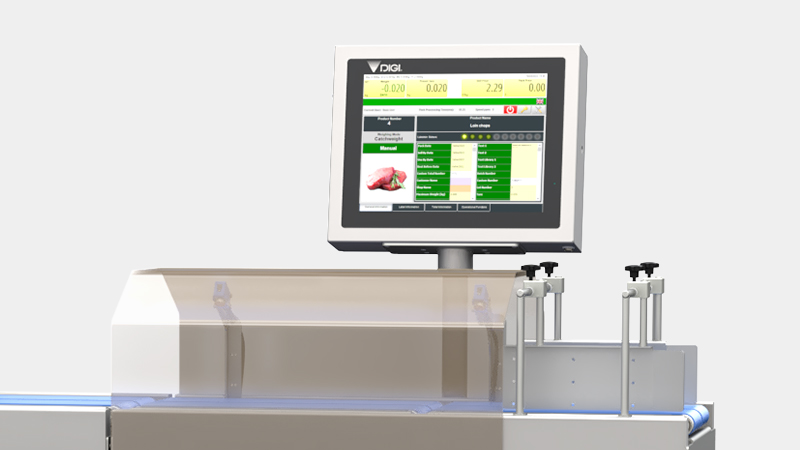

WorldView Operating Software
The HI-700 ll series uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labellers.
![hi700-2_WP04_04](./product_file/file/hi700-2_WP04_04.jpg)

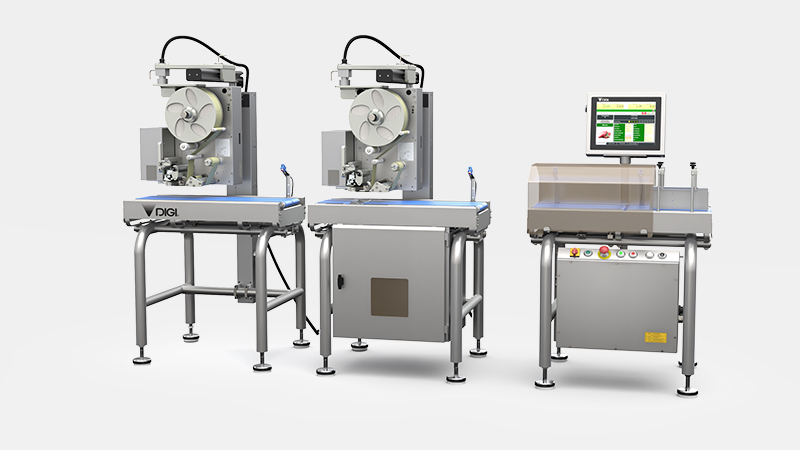

Modular design
The modular design allows for the addition of extra labelling stations. Add more top and bottom labellers as required, providing a flexible solution to meet your requirements.
Caractéristiques

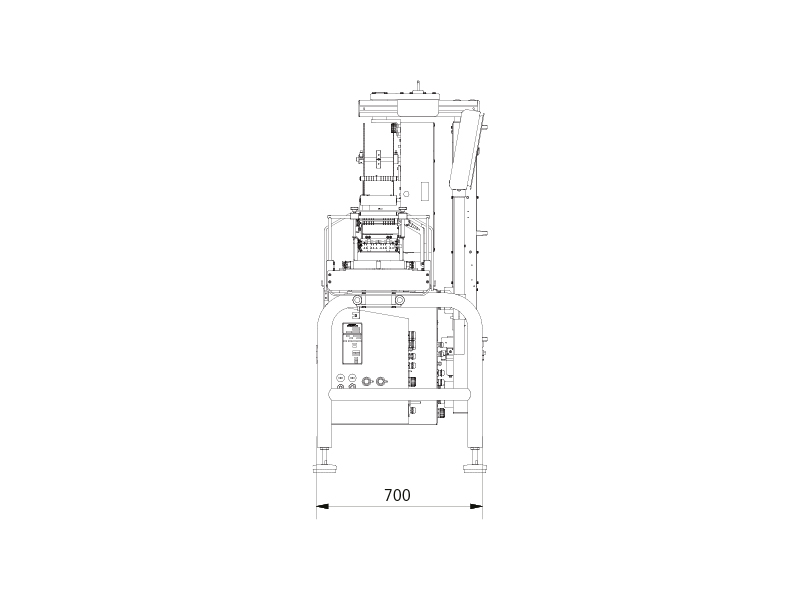

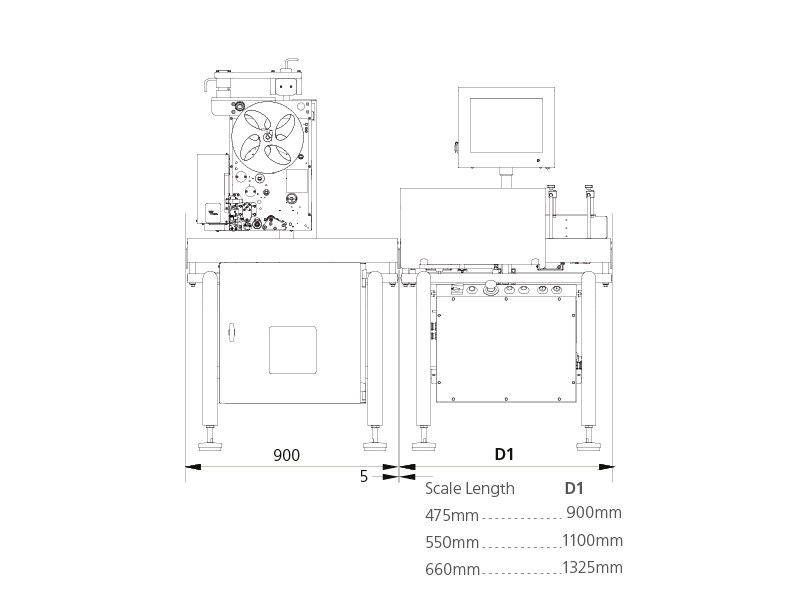

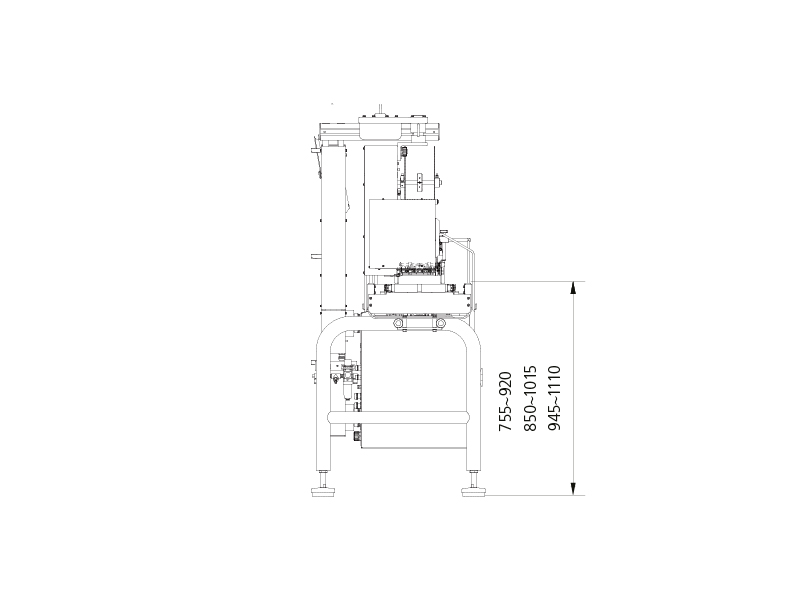

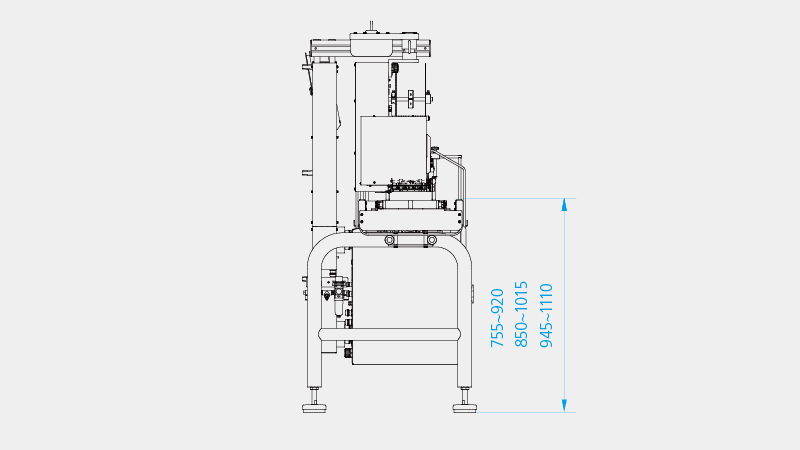

Dimensions
Weighing
Capacity | Max 6 kg | Max 6 kg | Max 12kg |
---|---|---|---|
Single Interval | e= 1g | e= 2g (660mm scale) | e= 2g |
Pack Speed | up to 120 packs per minute | ||
Pack Size | 475mm scale | L80-300mm x W40-250mm x H180mm | |
550mm scale | L80-375mm x W40-250mm x H180mm | ||
660mm scale | L80-485mm x W40-250mm x H180mm |
Throughput dependant on product weight and size and scale length.
Display
Screen | 15" Colour LCD touchscreen |
---|---|
Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
Weighing Modes | Catch Weight, Fixed Weight/Price, Average (Emark) |
---|---|
Labellers | Multiple labellers/printers |
Communication | Ethernet, USB, RS232 |
Operating System | Windows 10 OS |
Language | Multi-lingual Unicode |
Software | WorldView (embedded application) |
Database | SQL |
Connectivity | Remote programming and control |
Connectivity to meet industry standards | |
Customisable output data | |
Interconnectivity to back-office data management |
General
Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
---|---|
Operating Temperature | 0 to +30°C |
Standard Features
Scale Length | 475mm, 550mm or 660mm |
---|---|
Scale Cover | 'lift-off' formed poycarbonate |

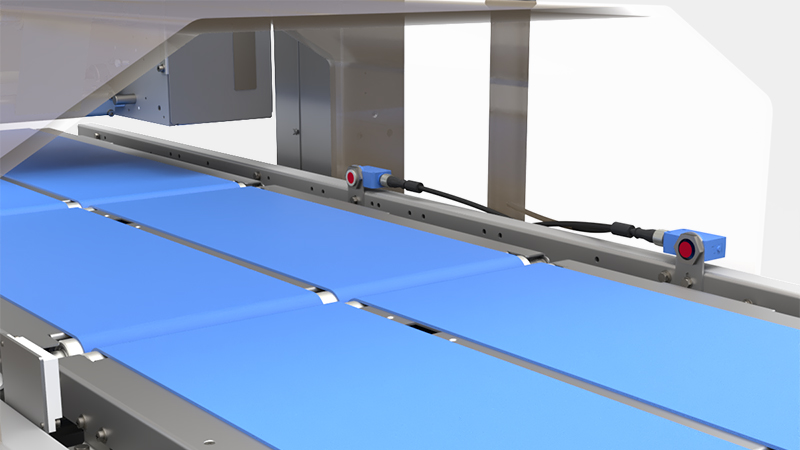

Sensors | Overhead retro reflective |
Labellers | Signature |

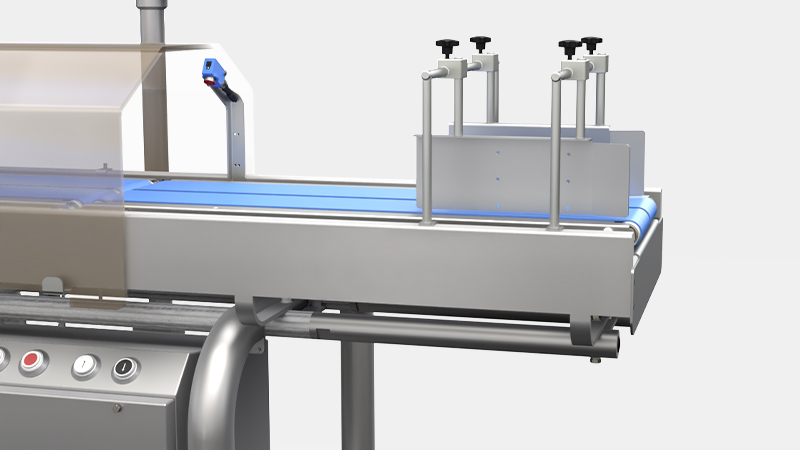

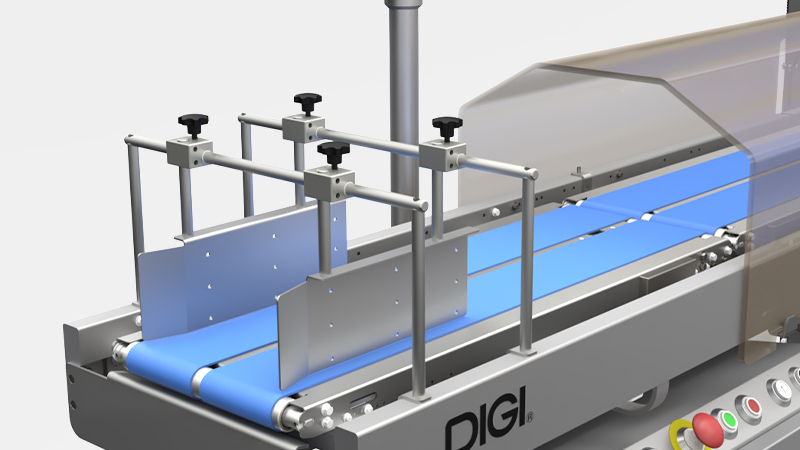

Pack Guides | S100 tall guides |
Conveyors | 2 or 3 conveyors |
Split blue belts |
Modèles
![hi700-2_WP07_01](./product_file/file/hi700-2_WP07_01.jpg)

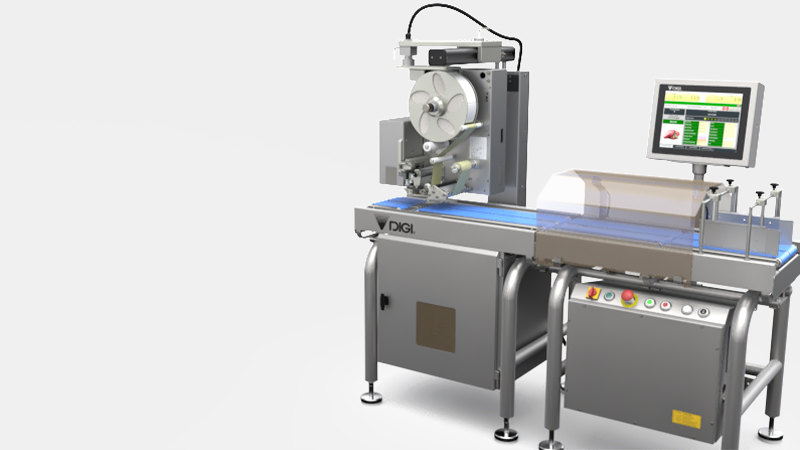

Top and bottom labelling
![hi700-2_WP07_02](./product_file/file/hi700-2_WP07_02.jpg)

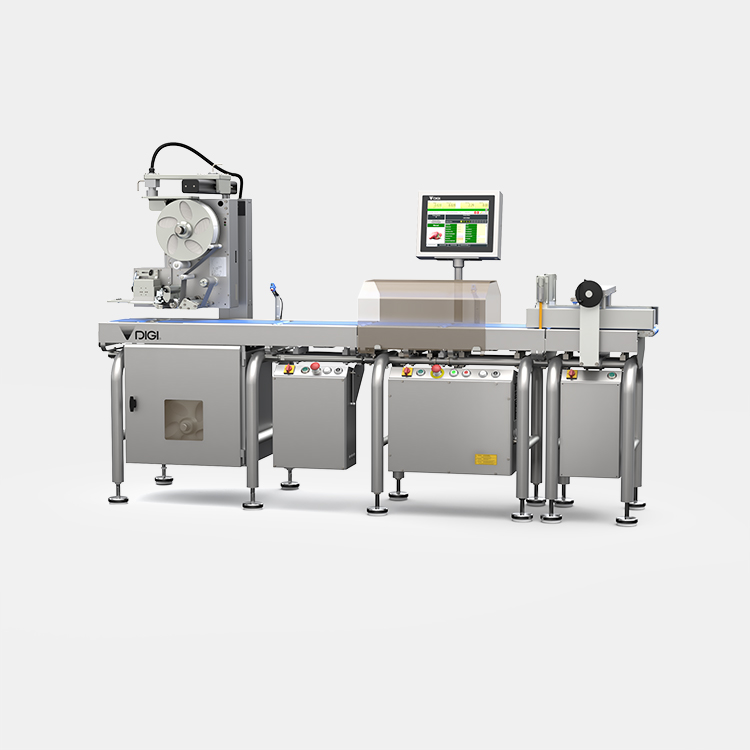

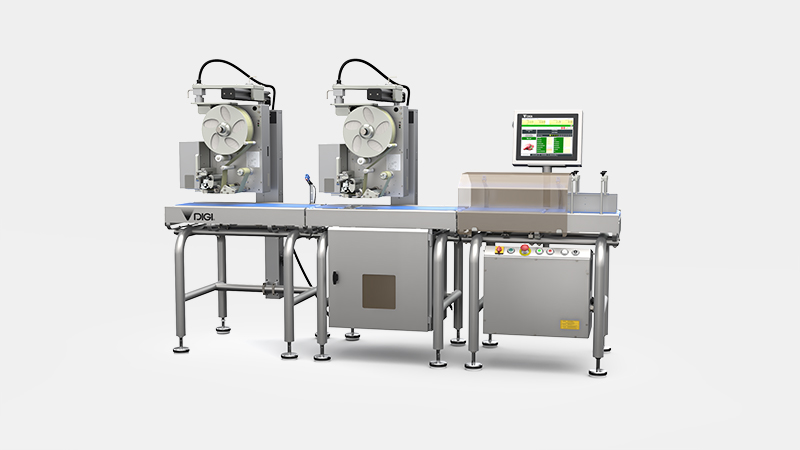

Multi Labeller
![hi700-2_WP07_03](./product_file/file/hi700-2_WP07_03.jpg)
