Présentation

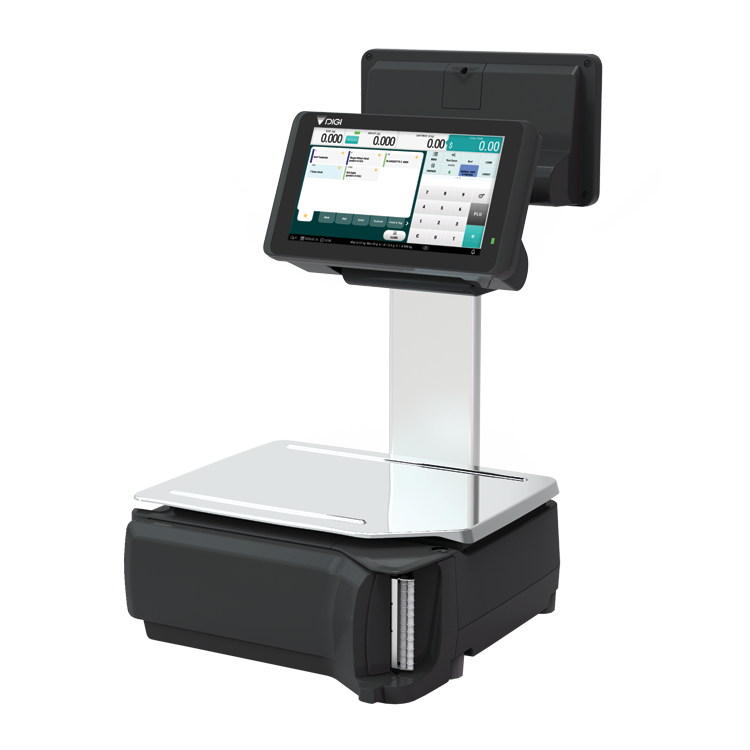

Rewrite expectations with the SM-5300 X.
Combining high performance and versatility, this modern weighing solution is capable of fulfilling different retail purposes.
- Easy-to-use and function-oriented user interface
- Scalable configuration with future-ready solutions
- Video playback for in-store promotions and advertisements
- High resolution 300 dpi label printing
Rewriting Expectations
The all-new SM-5300 X marries exquisite design with exceptional performance, bringing a modern weighing solution that exceeds all expectations.
![sm5300x_WP04_02](./product_file/file/sm5300x_WP04_02.jpg)
Queue Management & Collection System
Maintain social distancing by keeping in-store queues virtual. When combined with the collection system, retailers can offer a contactless pickup experience to ensure the safety of customers and employees.
- Minismises physical clustering
- Customisable queue and collection ticket
- Optimise waiting time with multi-department queue
- Supports API integration with third-party mobile queue app
![sm5300x_WP04_03](./product_file/file/sm5300x_WP04_03.jpg)

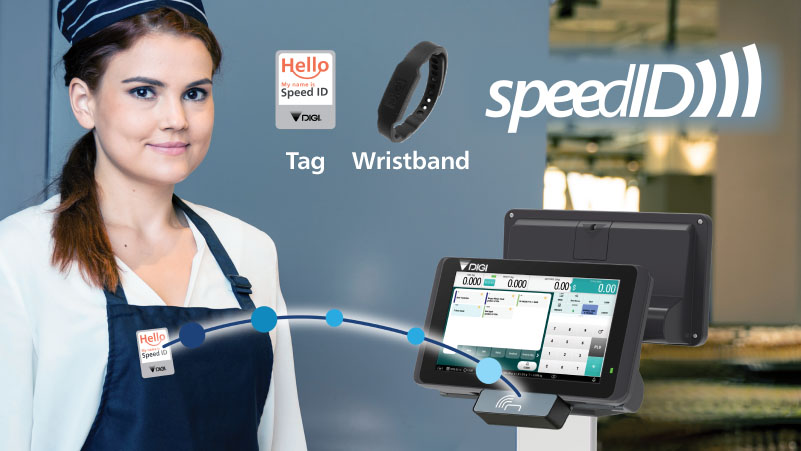

Automatic Clerk Identification
Speed ID taps on RFID technology for a contactless user login to the scale while keeping the scale safe from unauthorised usage. Its touchless nature helps to safeguard the workplace by limiting physical contact amongst operators.
- Available in 2 variants: tag or wristband
- Built-in clerk log report allows contact tracing and reduces shrinkage
![sm5300x_WP04_04](./product_file/file/sm5300x_WP04_04.jpg)
DIGI Management Console
DIGI Management Console enables remote management of scale data and label design in real-time. Scale and printer status can be monitored at a glance with its dashboard overview. This cloud-based service also provides remote access to sales reports and other remote services such as network wide configuration and software updates.
- Remote operation eliminates unnecessary physical interactions
- Reduce downtime and increase productivity
![sm5300x_WP04_05](./product_file/file/sm5300x_WP04_05.jpg)

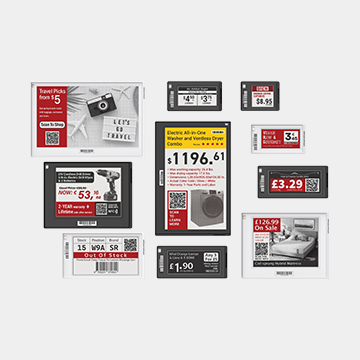

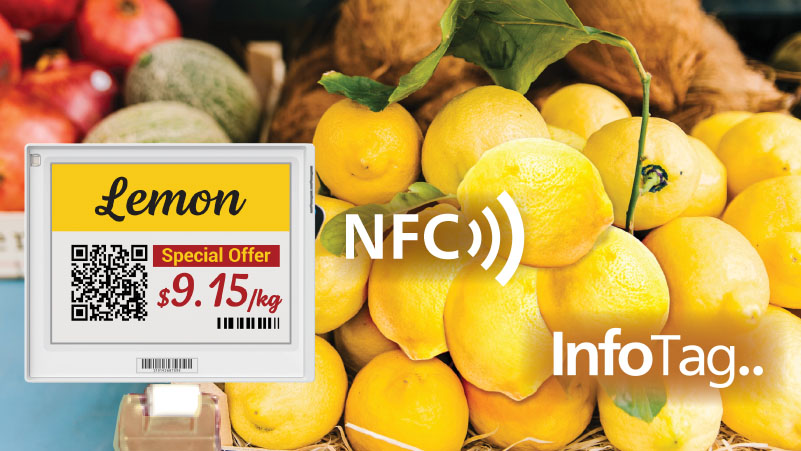

Electronic Signage Label - InfoTag
InfoTag is an enterprise-grade electronic shelf label that grants pricing automation via wireless updates. Its QR code and NFC- Near Field Communication capabilities make product information readily available to customers via their mobile devices.
- Ensures social distancing with remote price update
- Promote product and speed up order picking with LED flash indicator
- Low temperature variant available for freezer environment
![sm5300x_WP04_06](./product_file/file/sm5300x_WP04_06.jpg)

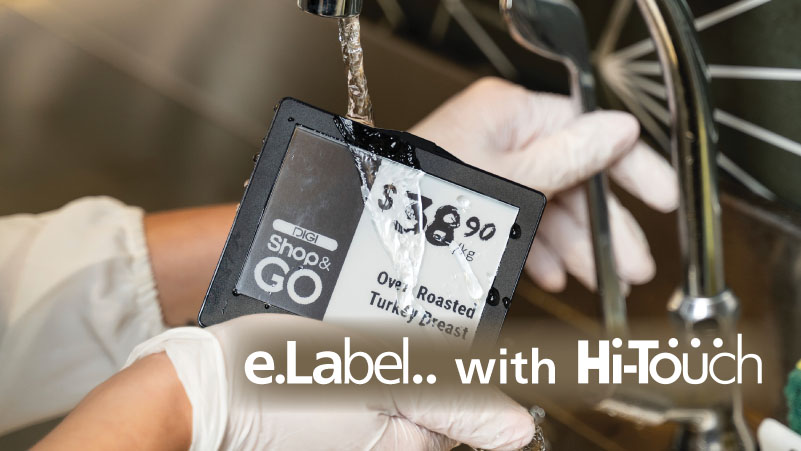

Electronic Signage Label - e.Label with Hi-Touch
e.Label combines a high definition e-Paper display with the tap-activated Hi-Touch feature to achieve maximum readability and fast PLU call-up. Designed for wet environments, the IP67-certified electronic labels are water-resistant and washable to help retailers maintain high hygiene standards.
- Reduce in-store physical interactions with remote price updates
- Hi-Touch delivers error-free PLU call-up to boost operational efficiency
- Available in 3 sizes (1.54”, 2.7”, 4.2”)
![sm5300x_WP04_07](./product_file/file/sm5300x_WP04_07.jpg)

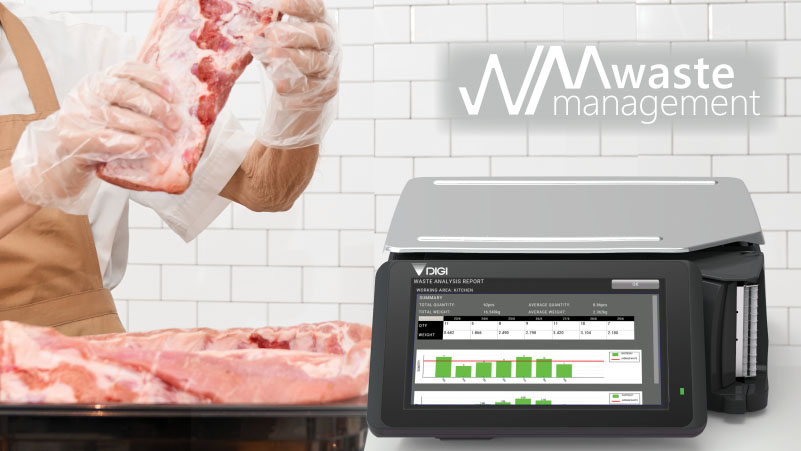

Waste Management - Accurate Waste Tracking
DIGI’s waste management solution accurately tracks and measures wastage by capturing its data according to type, quantity and location of disposal.
- Improve procurement planning with insights from the analysis report
- Identify near-expiry products for markdowns
![sm5300x_WP04_08](./product_file/file/sm5300x_WP04_08.jpg)

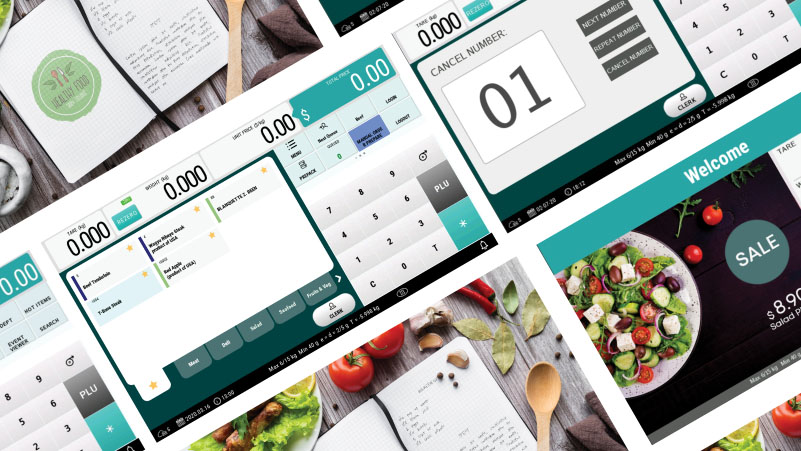

User Interface & Interactive Displays
SM-5300 X features a new user interface that is easy on the eyes and maximises screen usage, displaying only the necessary function keys related to each specific mode.
Its full touchscreen display eliminates the need for a physical keypad while its native video playback capability allows personalised content to be showcased on its customer display to boost engagement.
- Favourites Tab
- Video playback capability
- Support dynamic advertisements
![sm5300x_WP04_09](./product_file/file/sm5300x_WP04_09.jpg)

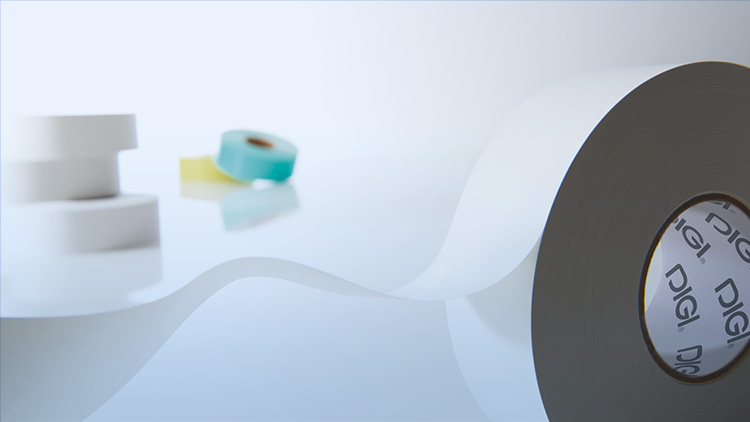

Linerless Label with Auto-Cutter
With no backing paper and twice as many label prints on a single label roll, this sustainable solution helps businesses to maximise inventory space while reducing logistic costs.
- Quick and easy roll replacement
- Flexible label design
- Crisp and appealing label presentation
Caractéristiques

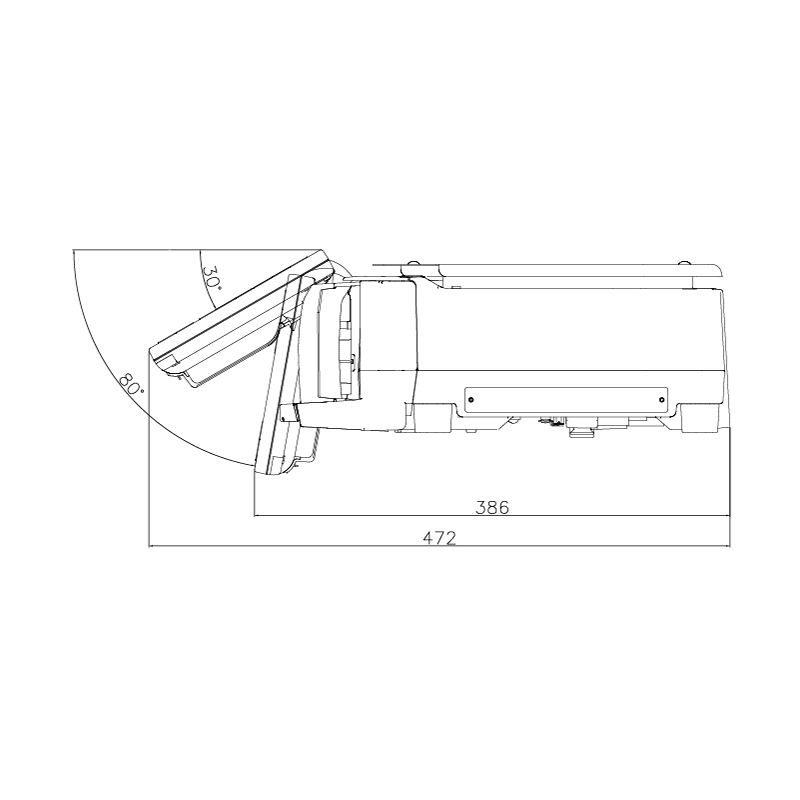

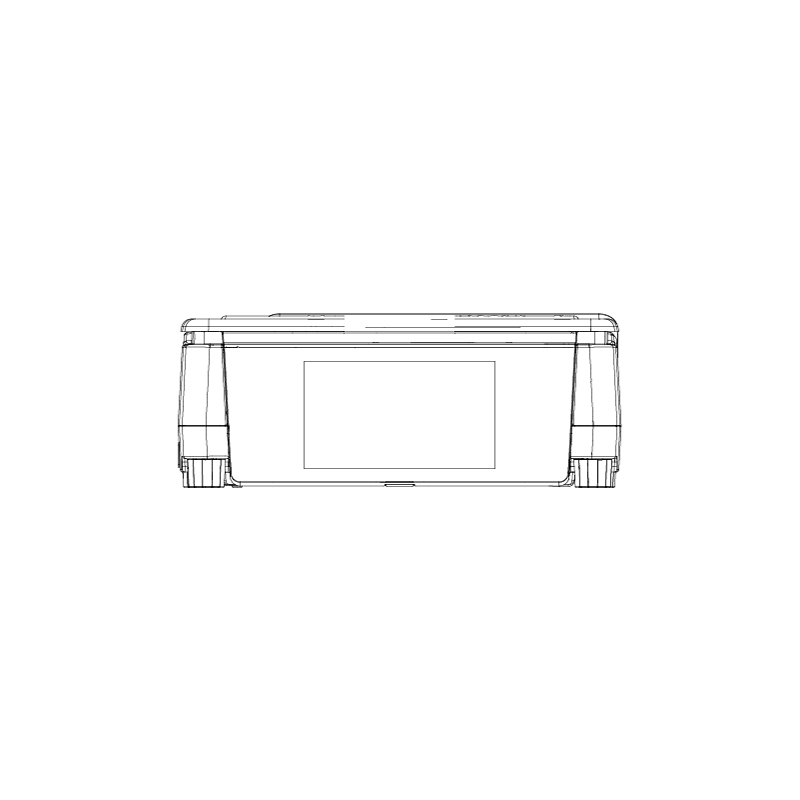

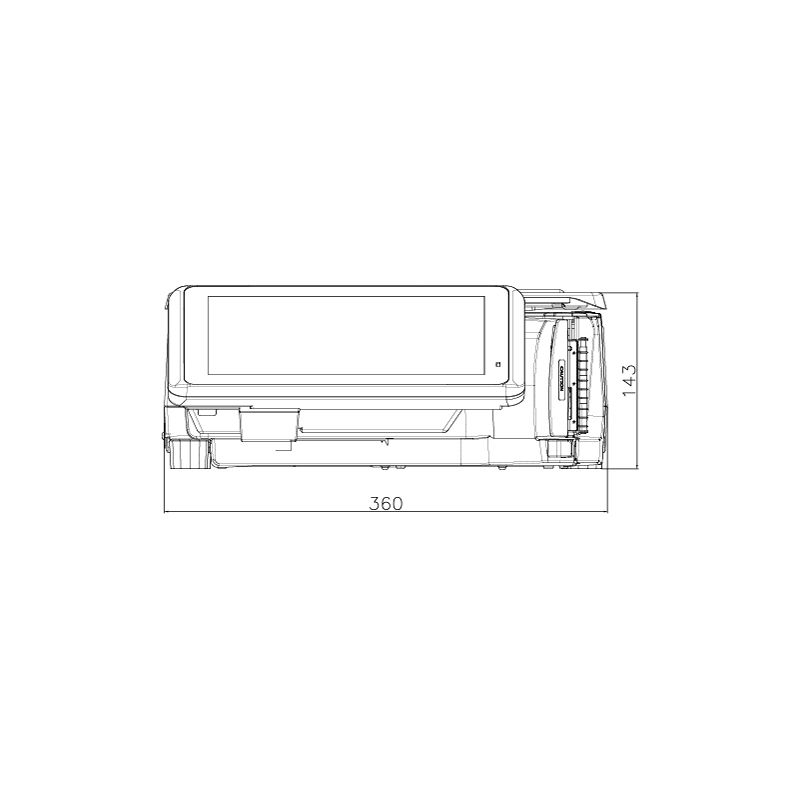

Dimensions
Specification
Capacity | Max 6kg | Max 15kg/ 30lb | Max 30kg | |
---|---|---|---|---|
Single Interval | 1/ 3,000 | e= 2g | e= 5g/ 0.01lb | e= 10g |
1/ 6,000 or 1/ 7,500 | e= 1g | e= 2g | e= 5g | |
Capacity | Max 3/ 6kg | Max 6kg/ 15kg | Max 15kg/ 30kg | |
Multi Interval | 1/ 3,000 | e= 1/ 2g | e= 2/ 5g | e= 5/ 10g |
SM-5300 X Model |
Bench | Pole | Elevated | Hanging | Self-Service 12.1" |
Self-Service 19" |
|||
---|---|---|---|---|---|---|---|---|---|
Dimension W x D x H (mm) |
360 x 472 x 143 | 360 x 500 x 542 | 360 x 510 x 574 | 400 x 339 x 816 | 360 x 481 x 637 | 442 x 480 x 761 | |||
Operator Display | 10.1" WSVGA with Capacity Touch (1024 x 600) |
◯ | ◯ | ◯ | ◯ | ― | ― | ||
12.1" TFT SVGA with Touch (800 x 600) | ― | ― | ― | ― | ◯ | ― | |||
19" TFT SVGA with Touch (1280x1024) |
― | ― | ― | ― | ― | ◯ | |||
Customer Display | 7" WVGA (800 x 480) | ◯ | ◯ | ― | ― | ― | ― | ||
10.1" WVGA (1024 x 600) | ― | ― | ◯ | ◯ | ― | ― | |||
Display Resolution | 1/3000, 1/6000, 1/7500 | ||||||||
Label / Receipt |
Types | Liner | Linerless with Auto-cutter | ||||||
Roll Diameter | Max 125mm | Max 95mm | |||||||
Roll Width | Max 73mm | Max 62mm | |||||||
Print Width | 60mm | 61mm | |||||||
Printing Speed | Up to 150mm / second* | ||||||||
Print Resolution | 300 dpi | ||||||||
Power Source | AC 100 / 110 or 220 / 230 / 240 Volts (50/ 60 Hz) Auto Switch | ||||||||
Operating Temperature | -10℃ to +40℃ | ||||||||
Humidity | 15% to 85% RH | ||||||||
Standard Interface | Ethernet 10 /100 Base T, 4 x USB 2.0, 1 x RJ11 | ||||||||
Net Weight | 10.7 kg | 11.7 kg | 13.2 kg | 14.0 kg | 13.3 kg | 17.0 kg |
* To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for more details.
** Console variant is available.
Modèles
![sm5300x_WP07_01](./product_file/file/sm5300x_WP07_01.jpg)

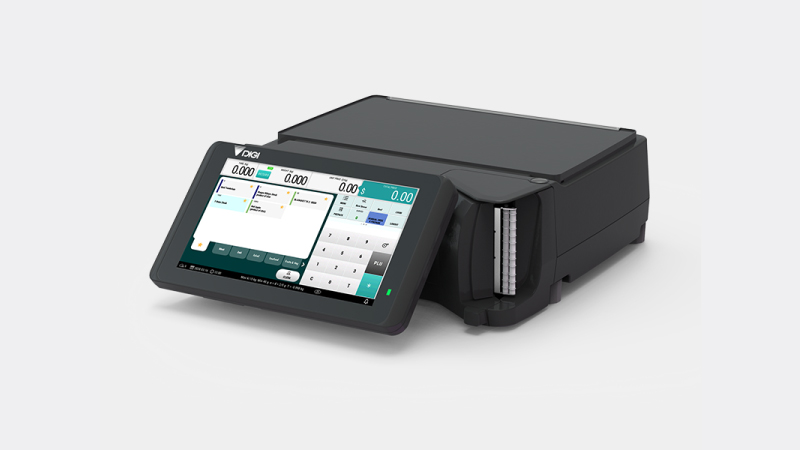

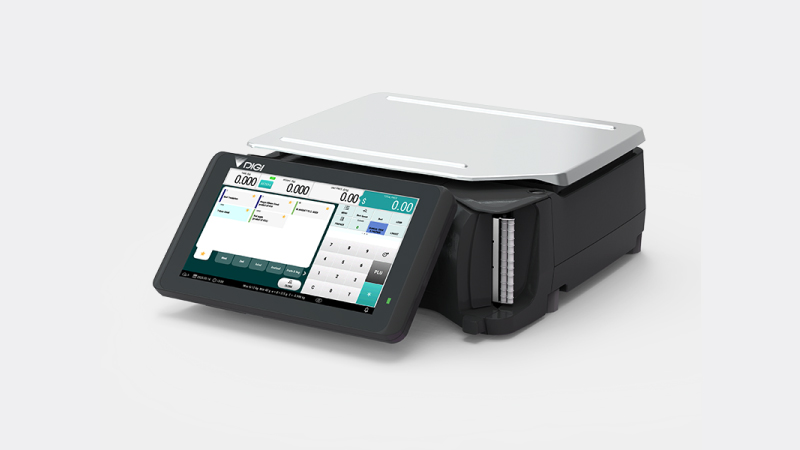

Bench Type
SM-5300 B X
![sm5300x_WP07_03](./product_file/file/sm5300x_WP07_03.jpg)

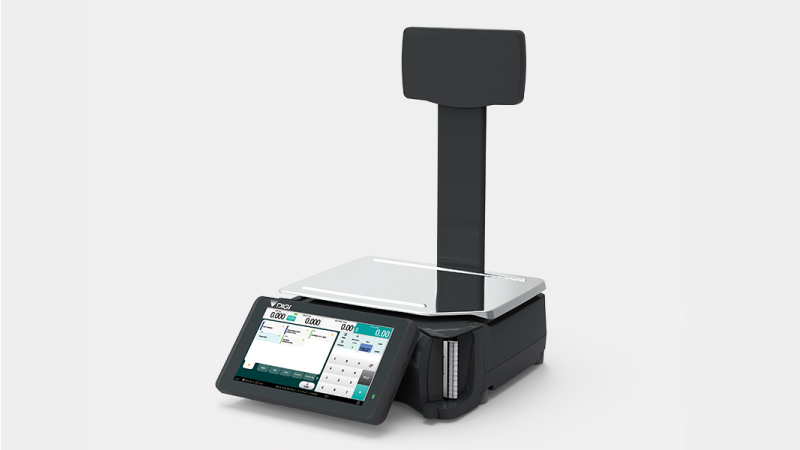

Pole Type
SM-5300 P X
![sm5300x_WP07_05](./product_file/file/sm5300x_WP07_05.jpg)

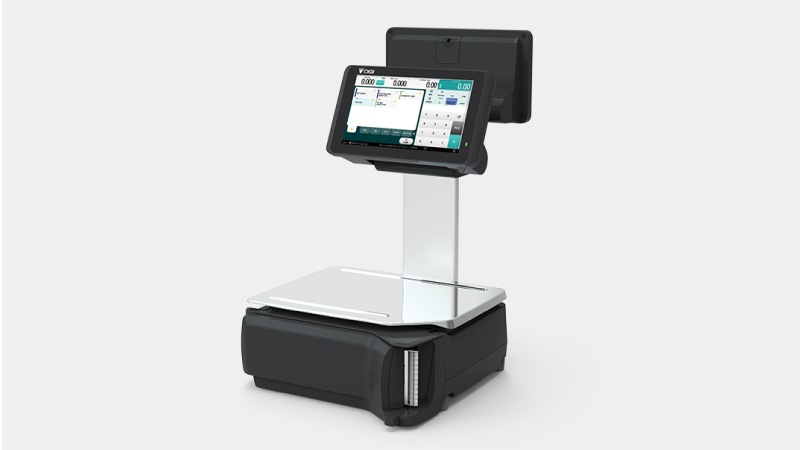

Elevated Type
SM-5300 EV X
![sm5300x_WP07_07](./product_file/file/sm5300x_WP07_07.jpg)

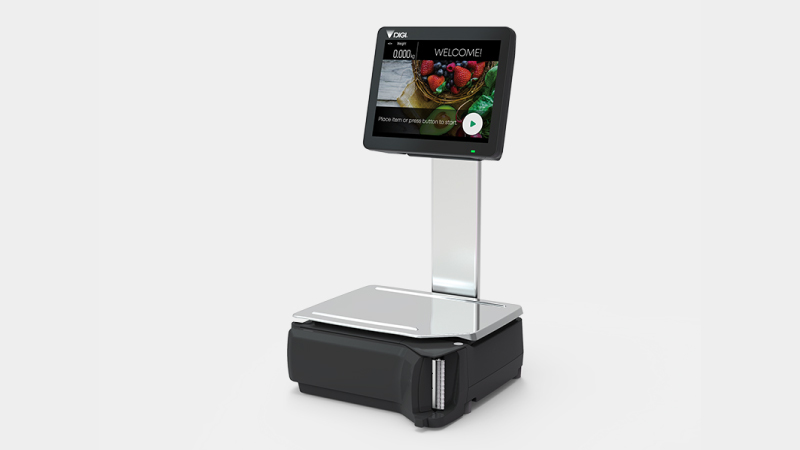

12.1" Self-Service Type
SM-5300 SSP X 12.1"
![sm5300x_WP07_09](./product_file/file/sm5300x_WP07_09.jpg)

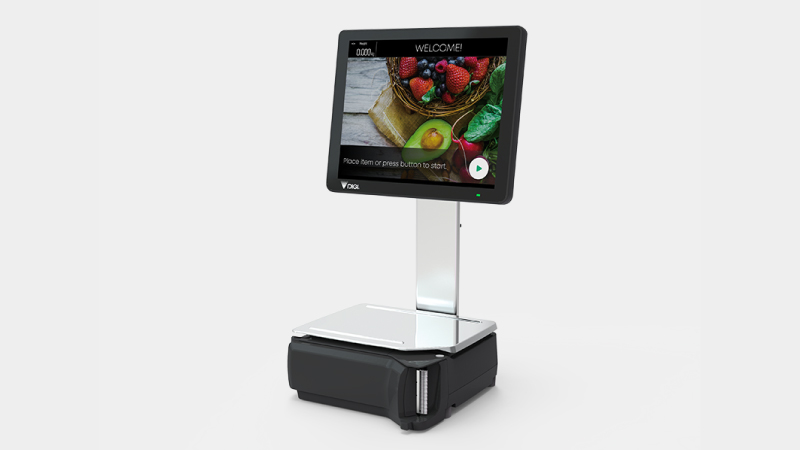

19" Self-Service Type
SM-5300 SSP X 19"
![sm5300x_WP07_11](./product_file/file/sm5300x_WP07_11.jpg)

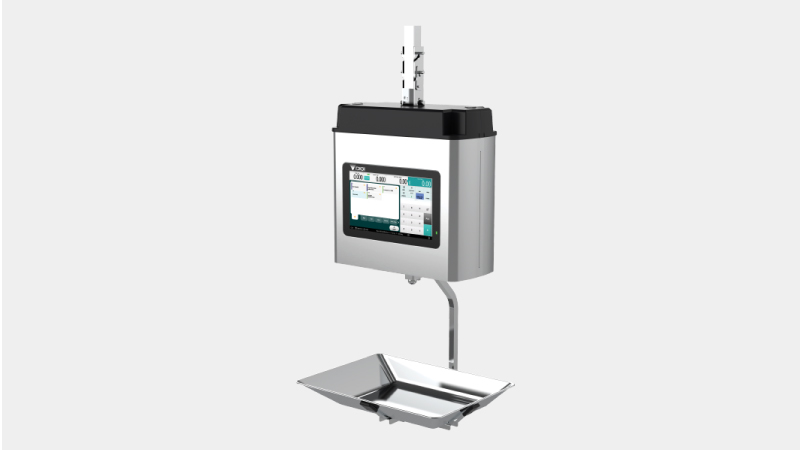

Hanging Type
SM-5300 H X
