Not: Bu ürün artık satılmamaktadır. Lütfen bu modelin bakımı veya değişim modelleriyle ilgili olarak yerel temsilcinize danışın.

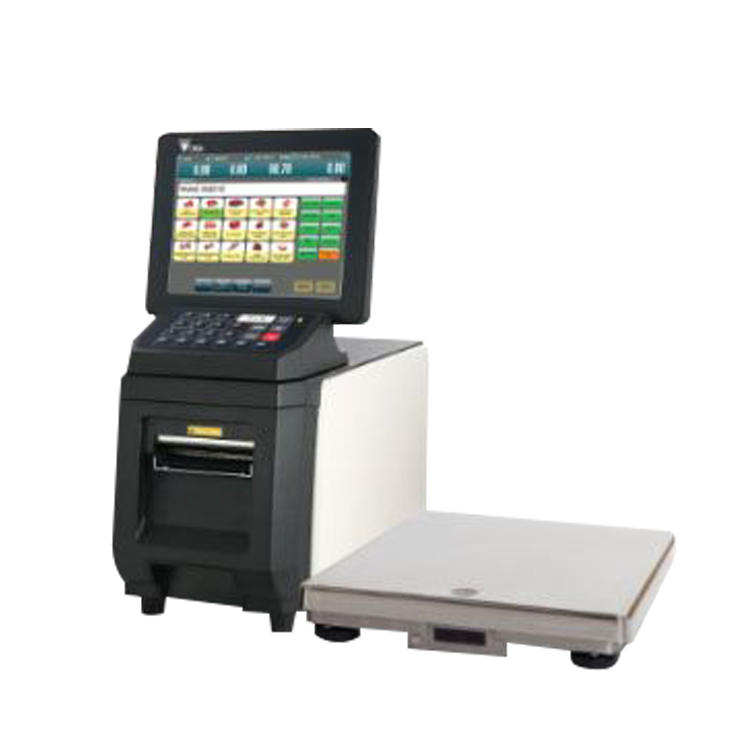

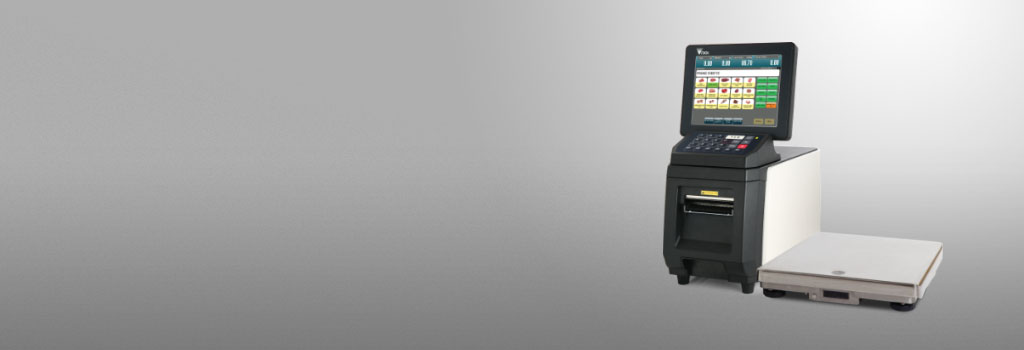

dps5000e_WP02_01

Versatile prepack scale designed for small work spaces

DPS-5000e

Perakende

Ana Özellikler

The DPS-5000e PC based compact printer offers a versatile printing solution with a space-saving design. With a high speed performance printer, it alleviates prepacking operation to achieve high efficiency without compromising floor space.

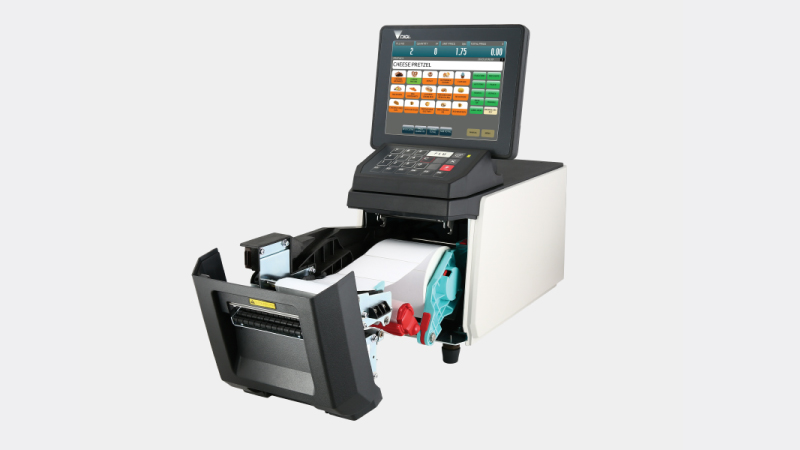

dps5000e_WP04_01

Front Label Loading

The loading mechanism of the DPS-5000 is designed at the front to cater for easier and faster label change. This feature greatly bolsters operation efficiency during the prepacking process.

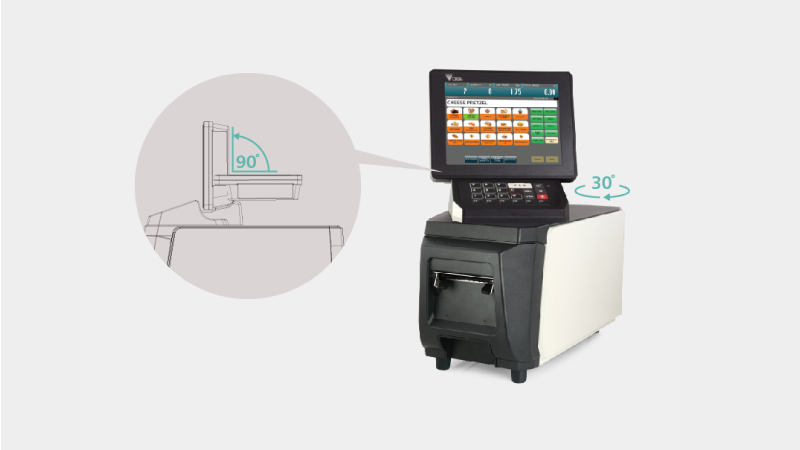

dps5000e_WP04_02

Flexible Operator Display

The 8.4" TFT touch screen can be adjusted easily to offer eye-catching details at optimal viewing comfort. The ergonomic user interface comes with a customisable screen layout that further enhances the operation process.

dps5000e_WP04_03

Fast and Efficient Printing

Built for both speed and performance, DPS-5000e delivers high-resolution 300dpi printing with a crisp and appealing presentation for high readability.

dps5000e_WP04_04

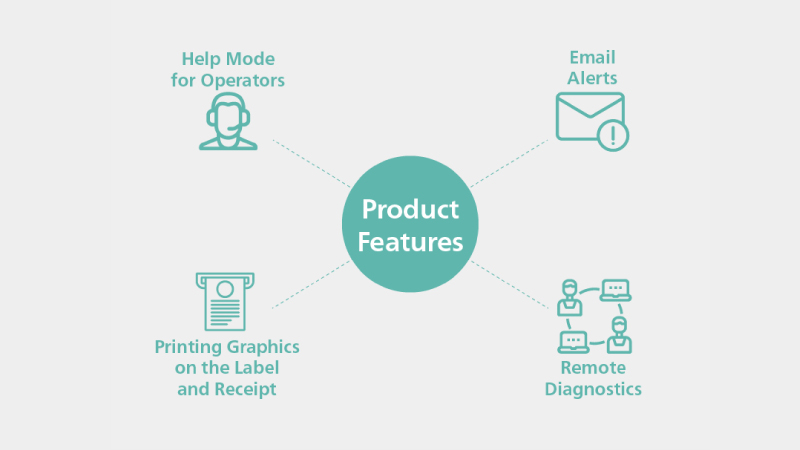

Other Features

The DPS-5000e also includes notable features like remote diagnostics, email alerts, printing graphics on the label and receipt, and help mode for operators.

dps5000e_WP04_05

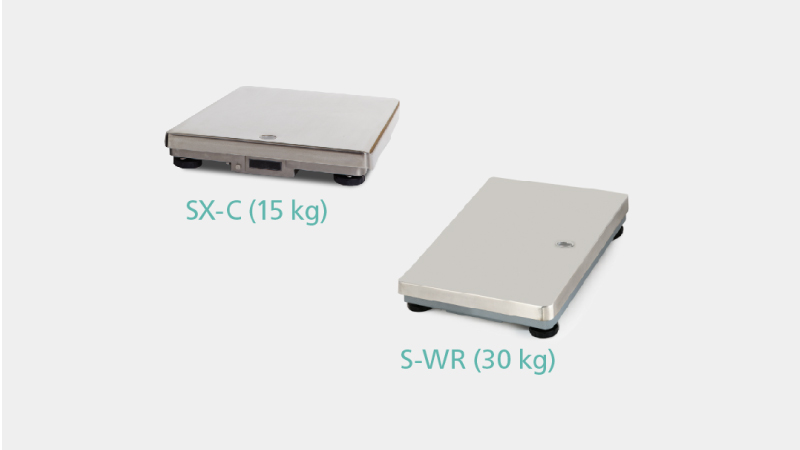

External Platform

The DPS-5000e can also be linked up with an external SX-C and S-WR platform for operations that require high precision weighing capability.

dps5000e_WP04_06

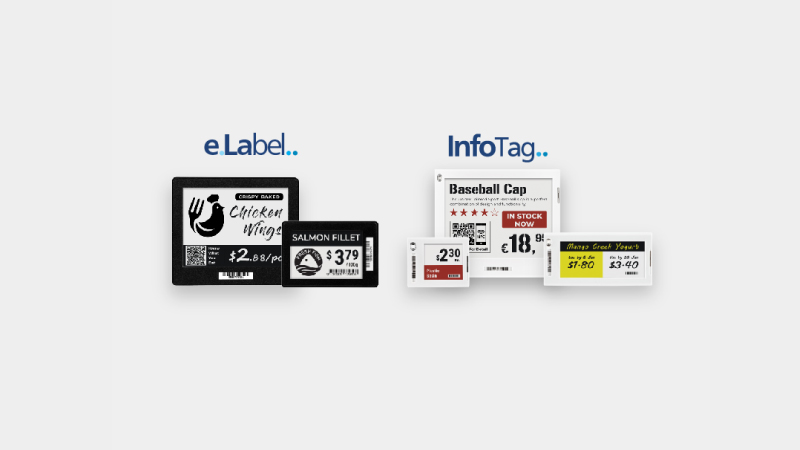

Electronic Shelf Label (ESL)

DIGI's enterprise-grade electronic shelf label (ESL) is developed to accelerate in-store digitisation with its error-free wireless price updates.

• Integrated QR code and Near Field Communication (NFC) capabilities
• Seamless integration with scale via USB base station for automatic price synchronisation

Teknik Özellikler

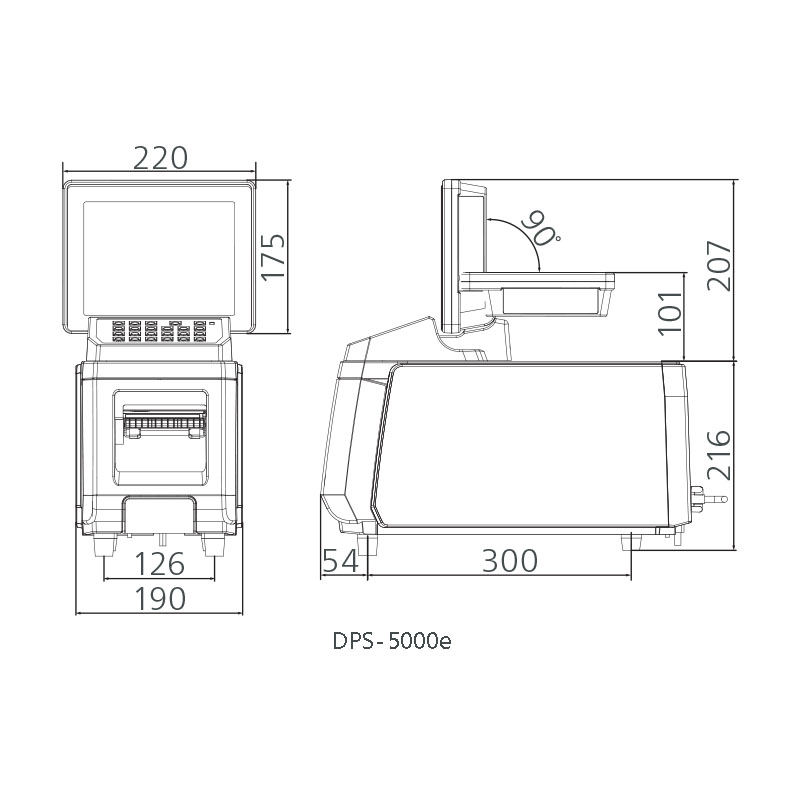

Dimensions

  • dps5000e_WP05_01

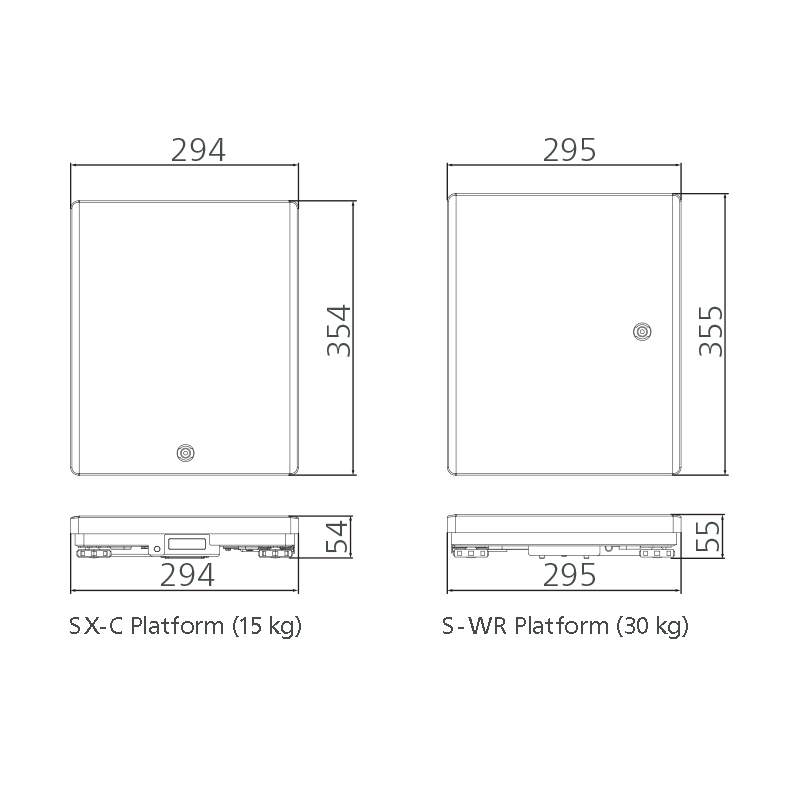

  • dps5000e_WP05_02
  • dps5000e_WP05_03

Specification

Capacity Max 15kg/ 30lb Max 30kg
Single Interval 1/ 3,000 e= 5g/ 0.01lb e= 10g
1/ 6,000 - e= 5g
1/ 7,500 e= 2g -
Capacity Max 6kg/ 15kg Max 15kg/ 30kg
Multi Interval 1/ 3,000 e= 2/ 5g e= 5/ 10g




Model DPS-5000e
Dimension W x D x H (mm) DPS-5000e 220 x 423 x 423
Platform  SX-C (15kg): 294 x 354 x 54 S-WR (30kg): 295 x 355 x 55

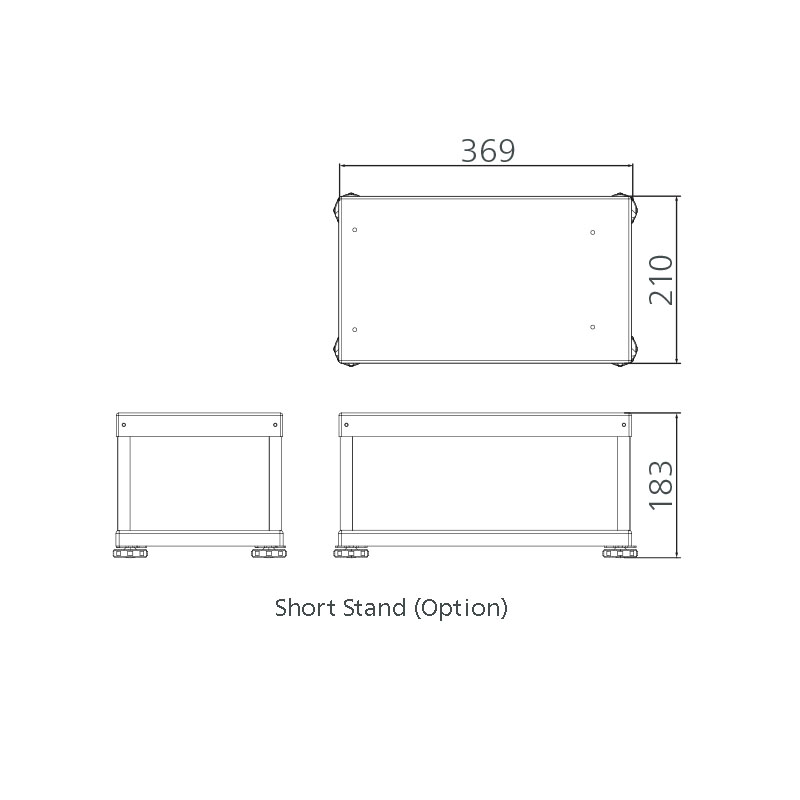

Short Stand (Option) 210 x 369 x 183
Operation Display 8.4" TFT SVGA with Touch Panel
  Display Size W x D (Pixels) 800 x 600
Display Rotatable Degree + / - 30 degree left and right ; 90 degree up and down
Label / Receipt Types Liner Linerless with Auto-Cutter
Roll Diameter Max 125mm Max 125mm
Roll Width Max 80mm Max 80mm
Print Width Max 80mm Max 80mm
Printing Speed Max 150mm / second* Max 150mm / second*
Print Resolution 300 dpi 300 dpi
Barcode Type Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, RSS, PDF417 (For Receipt Only), GS1, QR Code, Datamatrix
Power Source AC 100V / 220V
Power Consumption 80W
Operating Temperature -10℃ to +40℃
Humidity 15% to 85% RH Non-Condensation
Standard Interface 2 x RS232C, Ethernet 10 / 100 Base T, 4 x USB 2.0, SD Socket
Net Weight DPS-5000e 11.2 kg
Platform SX-C: 6.65 kg S-WR: 4.5 kg
Short Stand (Option) 3.4 kg
*To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for more details.


Seçenekler

dps5000e_WP09_01

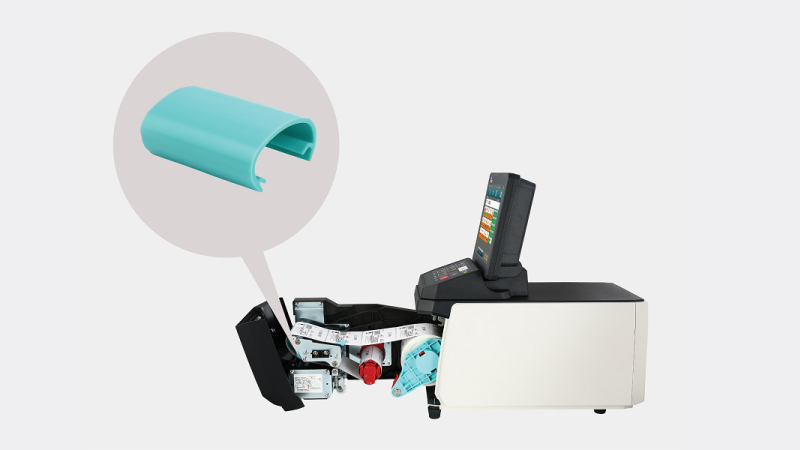

Internal Rewinder Kit

Accomodates batch printing by winding up dispensed labels into a neat roll.

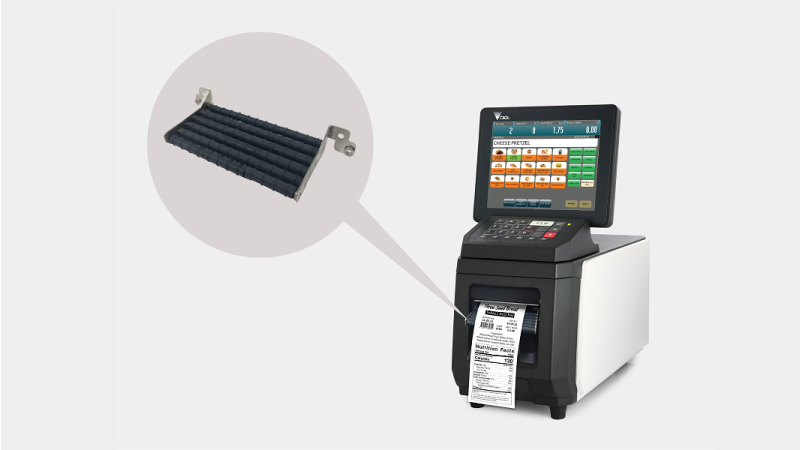

dps5000e_WP09_02

Long Label Holder

Prevents long label from falling off when dispensed.
dps5000e_WP09_03

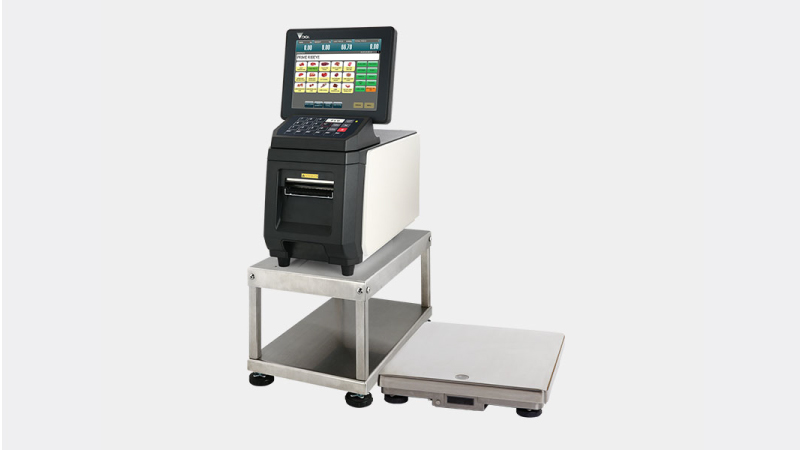

Short Stand

Stainless steel short stand elevates scale for better comfort.

Option

Options Wireless LAN IEEE 802.11 a / b / g / n / ac, InfoTag, e.Label with Hi-Touch, Base Station
Factory Option  Linerless Printer with Auto-Cutter
