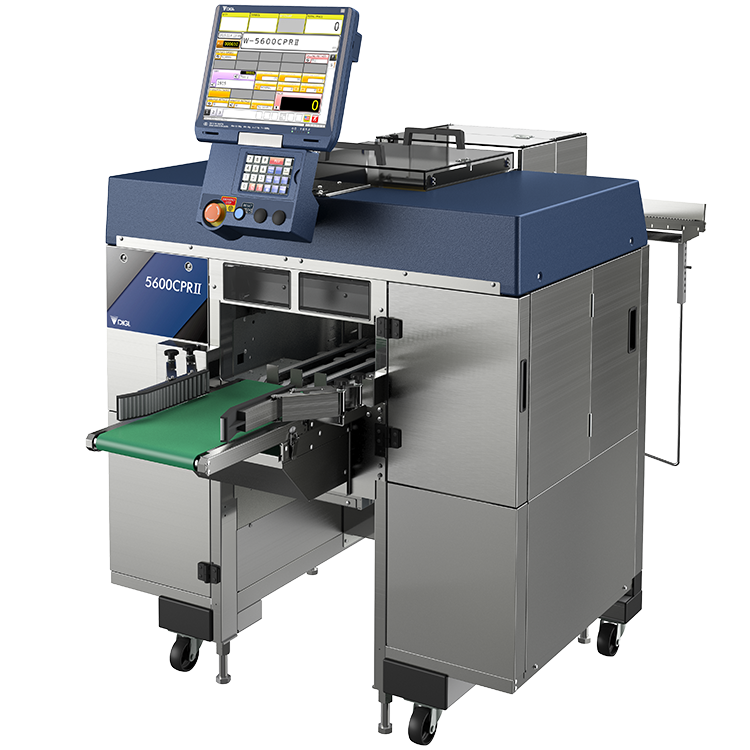

w5600cpr-2_WP02_01

The latest in-line automatic wrapping solution

W-5600CPRII

Perakende

Ana Özellikler

The W-5600CPRII is an automatic in-line wrapping solution offering a maximum 30 packages/minute throughput, with the wrapped items discharged at the machine's rear side.
It is ideal solution for producers, mushroom farms, meat plants, supermarket processing centers and others who need to wrap large amount of products with high efficiency and reliability. The W-5600CPRII provides great flexibility in implementing production lines to maximize productivity and efficiency.
The easy and quick film change, as well as easy cleaning and daily maintenance ensures user-friendly operation, stable performance, high level hygienic condition and extraordinary user satisfaction.

In-line automatic wrapping system

The latest in-line automatic wrapping system to meet various layout options.

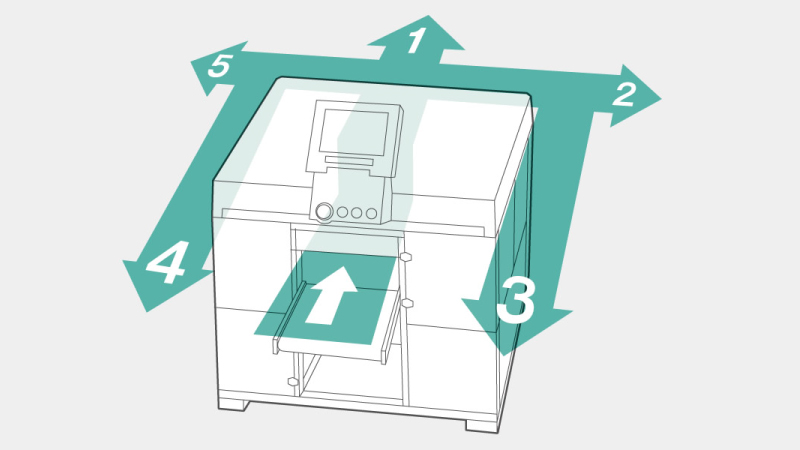

w5600cpr-2_WP04_01

Flexible production layout

The W-5600CPRII enables flexible production layout by providing various package discharging options in order to meet customer demands to achieve the most efficient operation and productivity.

w5600cpr-2_WP04_02

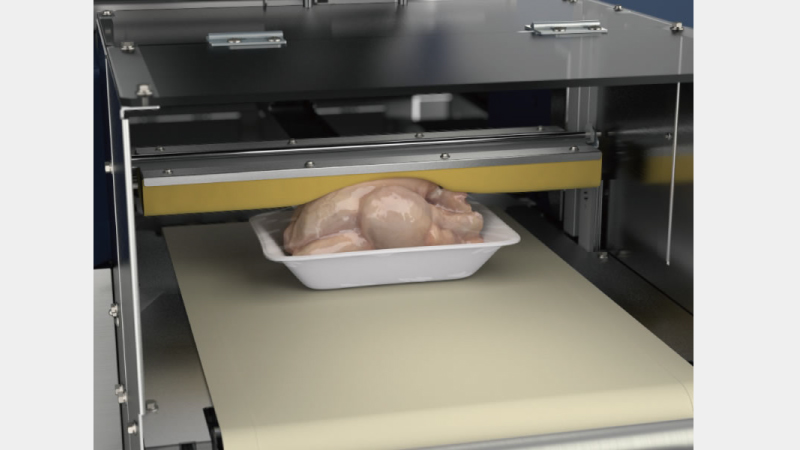

Secure and beautiful finish

On top of the long heater conveyor that provides sufficient heat on package bottom, a tray press is also used to push down packages on the heater conveyor to ensure that the bottom is properly sealed.  This prevents the opening and loosening of the packages during transportation, as well as to maintain tight and beautiful presentation.

w5600cpr-2_WP04_03

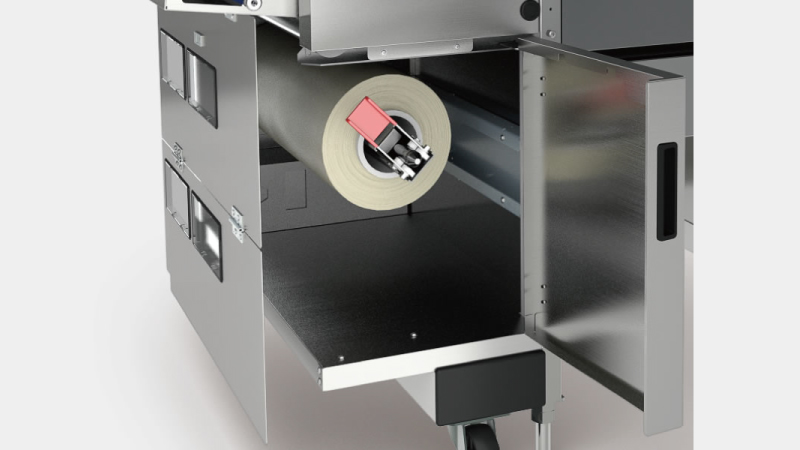

Easy film replacement

The simple mechanical design makes it extremely easy to change film rolls, needing less than a minute, which minimizes machine down time and ensures  maximum efficiency.  It also makes shifting to different film sizes for different trays and products very easy and fast, without the need for any tools.  This adds flexibility, optimizes film usage, and guarantees consistently beautiful wrapping finish.

w5600cpr-2_WP04_04

Easy cleaning and daily maintenance

Parts that have contact with the package are easily accessible and detachable for cleaning and daily maintenance, which guarantees the W-5600CPRII's reliable and consistent performance as well as its superb hygienic condition.

Teknik Özellikler

Dimensions

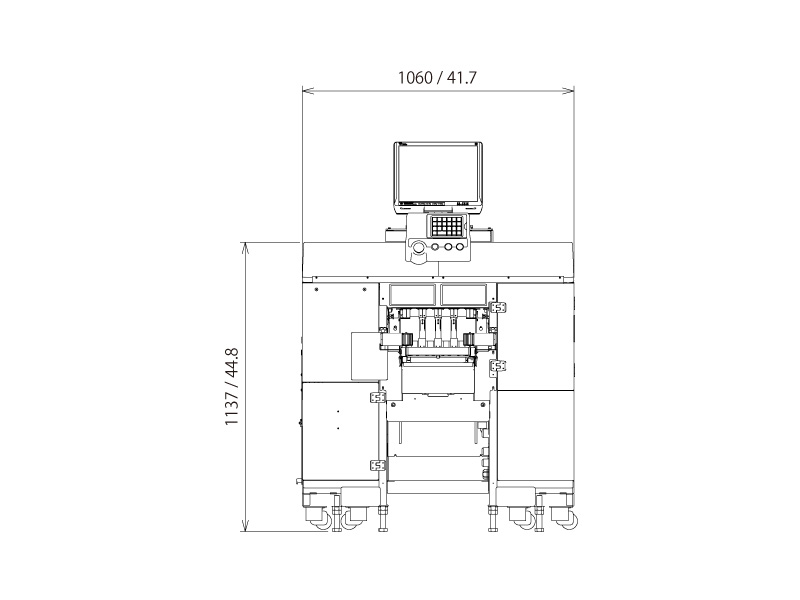

  • w5600cpr-2_WP05_01

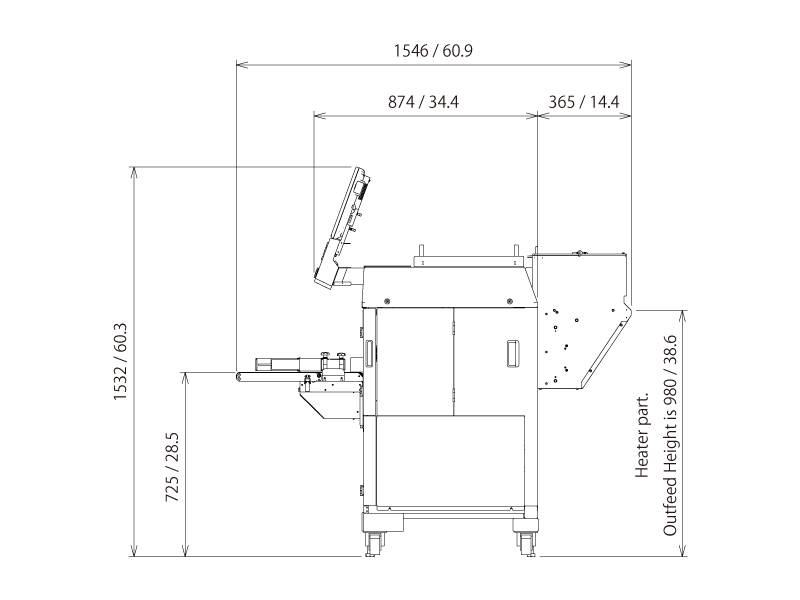

  • w5600cpr-2_WP05_03

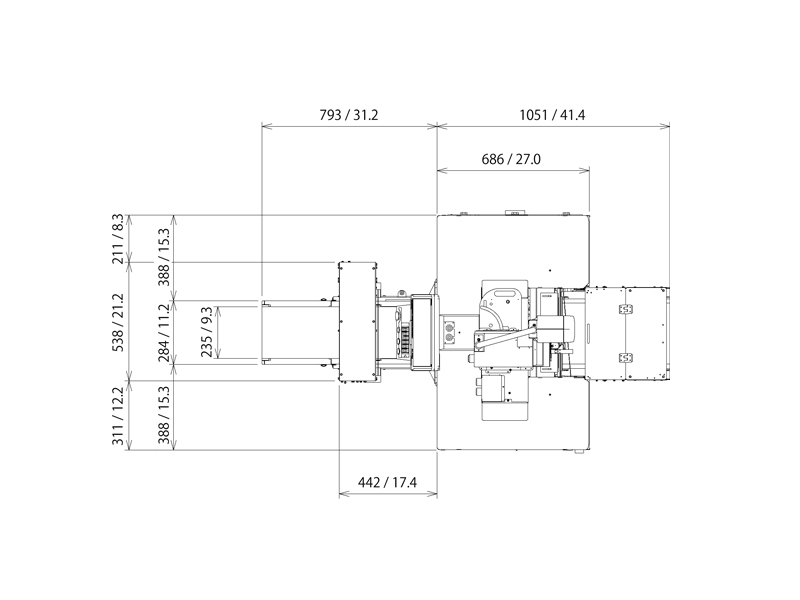

  • w5600cpr-2_WP05_02

Wrapping

Wrapping Speed Max. 30 packages/min.
Package Size Width: 130-350 mm/ 5.1-13.8 inches
Height: 10-150 mm/ 0.4-5.9 inches
Depth: 80-230 mm/ 3.1-9.0 inches
Packages with the combined maximum measurements of the 3 dimensions cannot be accommodated.
The available sizes of package also depends on the film size.
Film width One
Film Size 300  to 500 mm

Operation console

Display panel TFT LCD color (15 inches) touch panel
Operation keys Mechanical keys and touch screen
Mechanical keys and touch screen 18 GB

General

Power source and power consumption 208-240 V; 1 φ/3 φ; 60 Hz; 2.2 kVA,2.0 kW
220-240 V; 1 φ; 50/60 Hz; 2.2 kVA,2.0 kW
Net Weight Approx. 340 kg

Seçenekler

Infeed options

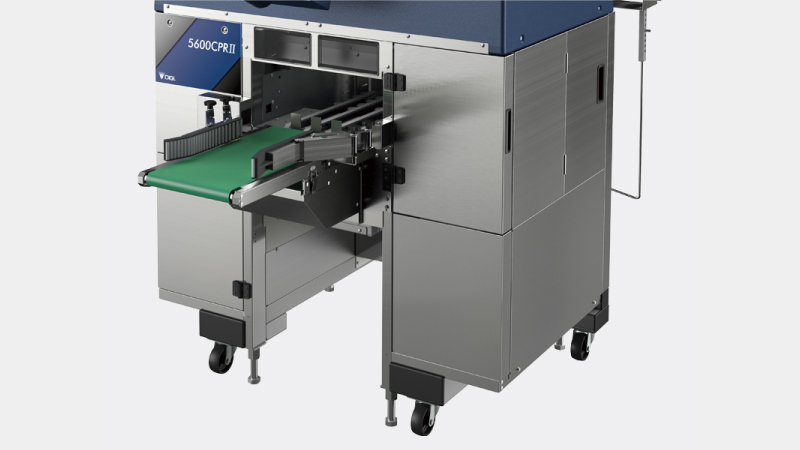

  • w5600cpr-2_WP09_01

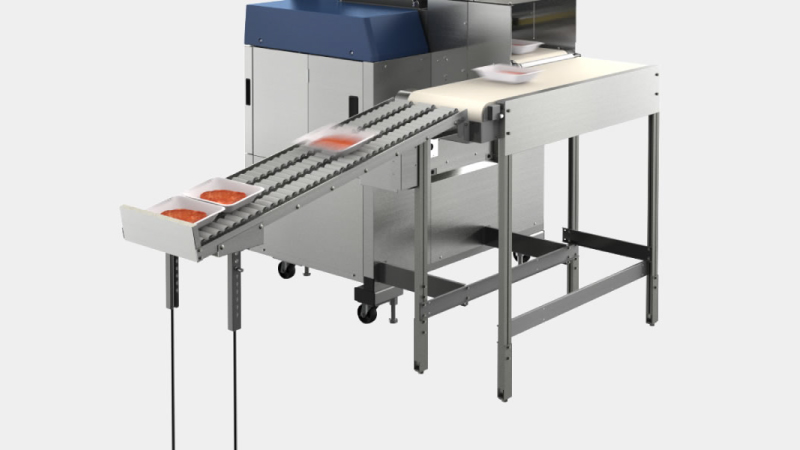

Outfeed option

Outfeed options can be selected according to production layout.

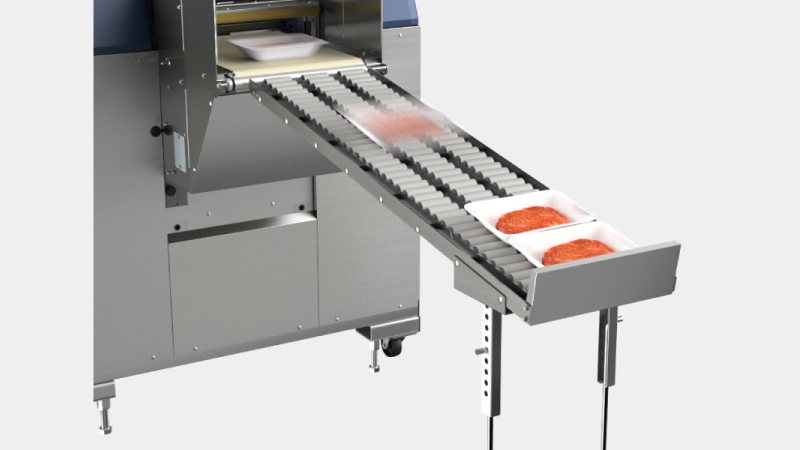

  • w5600cpr-2_WP09_02
  • w5600cpr-2_WP09_03

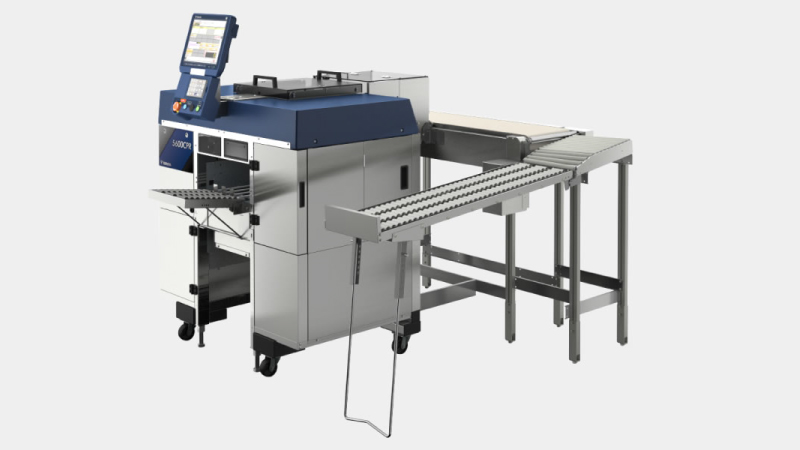

  • w5600cpr-2_WP09_04
