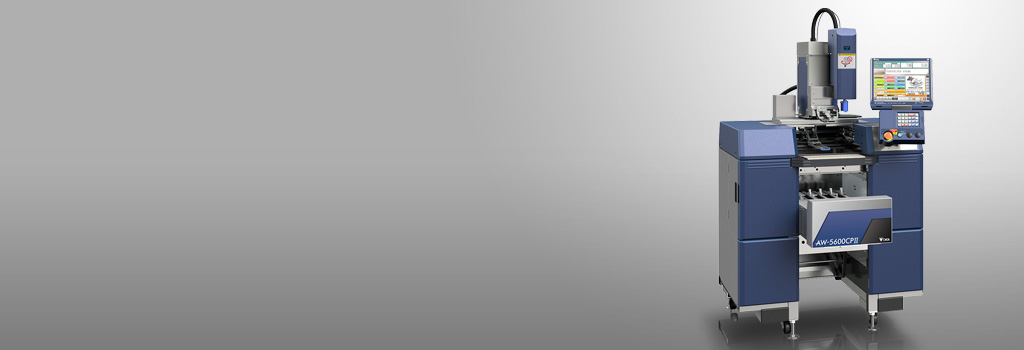

aw5600cp-2_WP02_01

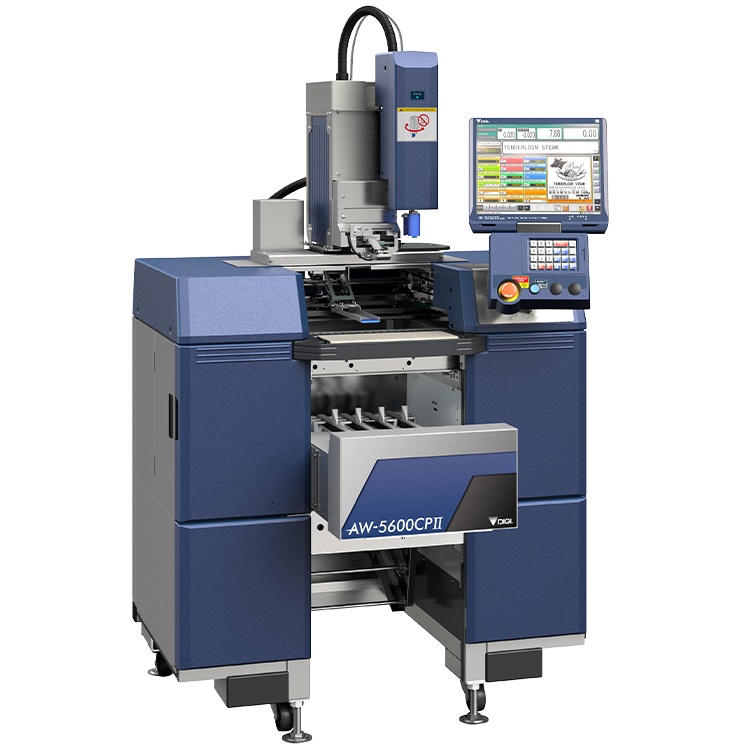

Compact integrated weigh-wrap-label system

AW-5600CPII

Perakende

Ana Özellikler

AW-5600CPII is the basic model of the 5600 series, providing an impressive 30 packages/minute throughput in a reduced-cost design. Its compact form retains the full-spec 300dpi high-resolution printer and extra-large full-color touchscreen display that are standard with the 5600 series. The newly developed rotational labeler arm allows fully automatic application of linerless labels. Variations include models with manual or automatic label application.

Compact integrated weigh-wrap-label system

The basic model of the 5600 series, providing an impressive 30 packages/minute throughput in a reduced-cost design.

aw5600cp_WP04_04

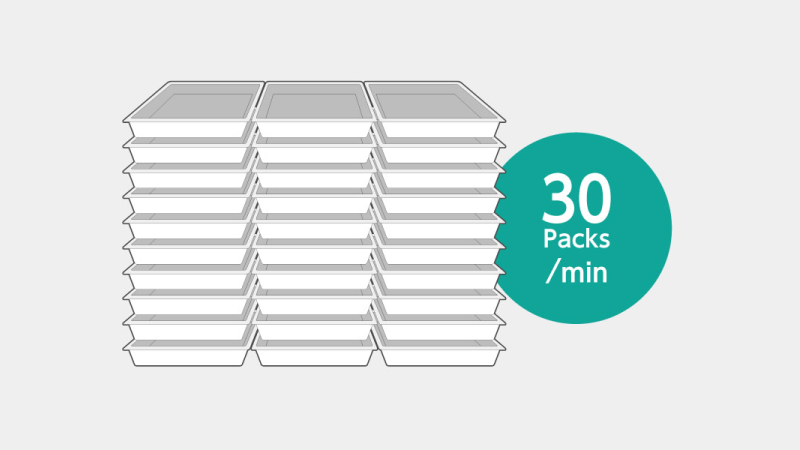

High Productivity & User-friendly

Weighing, wrapping, and labeling can be done in one step at a maximum processing speed of 30 packages/minute. The user-friendly extra-large 15" full color touch screen allows label print contents to be previewed on the display, helping to prevent labeling errors.

aw5600cp_WP04_01

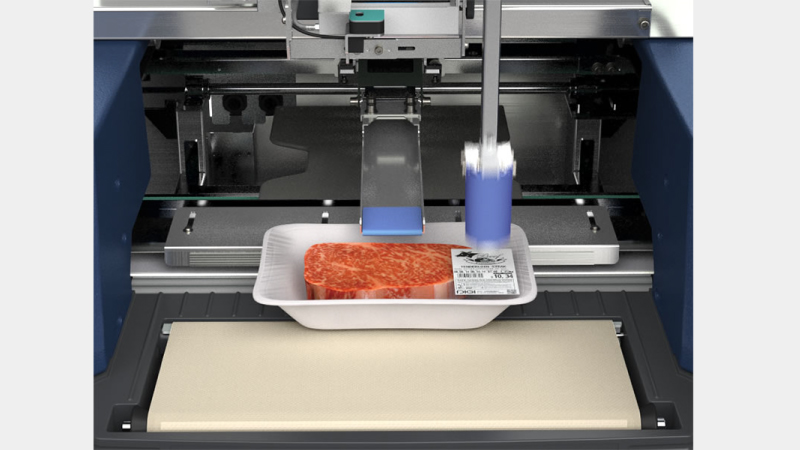

Economical & Ecological

The linerless auto-label-sizing feature eliminates void spaces on the label and automatically adjusts the label size.  Use of linerless labels minimizes waste, thereby integrating environmental friendliness into your everyday work process. AW-5600CPII AUTO integrates a newly designed rotational labeler arm to enable automatic label placement of linerless labels.

aw5600cp-2_WP04_03

Easy Clean-Up, Every Time

AW-5600CPII is designed to be incredibly easy to clean. The parts that come into direct contact with food can be removed in seconds and washed with water. Also, the main unit sits well above the floor to allow mopping and sweeping.

Teknik Özellikler

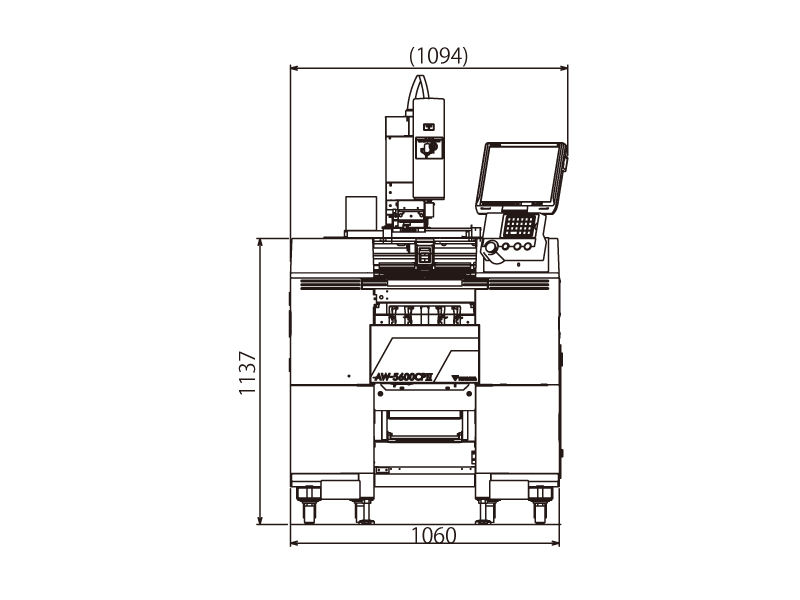

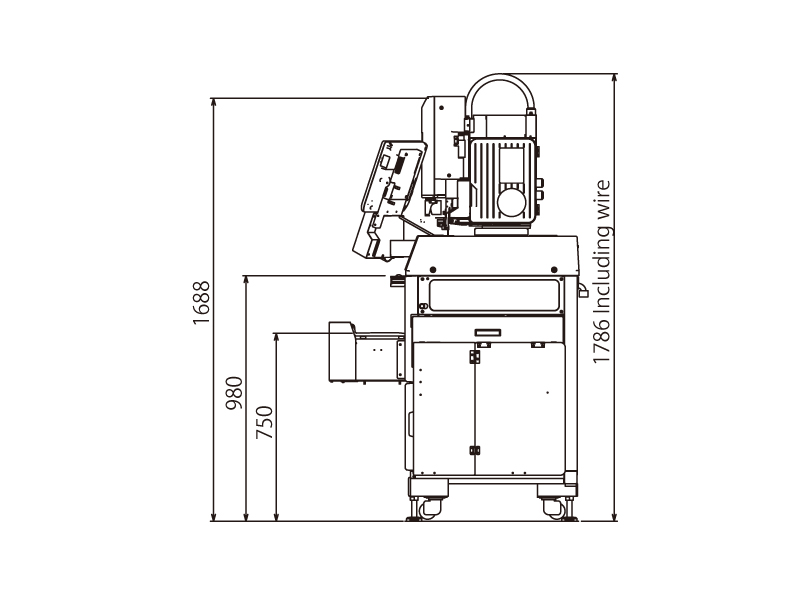

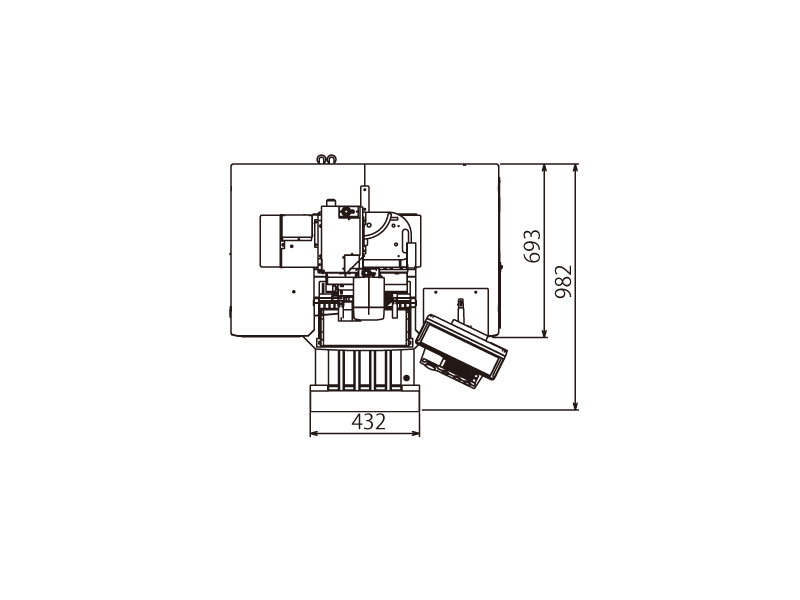

Dimensions

  • aw5600cp-2_WP05_01
  • aw5600cp-2_WP05_02
  • aw5600cp-2_WP05_03


Wrapping

Wrapping speed Max. 30 packages/min.
Package size Width: 130 to 350 mm/5.1-13.8 inches
Height :  10 to 130 mm/0.4-5.1 inches
Depth :  80 to 230 mm/3.1-9.0 inches

* The combination of maximum size of each dimension cannot be used.
The size of the package that can be wrapped also depends on the film used.
Film width 300 to 500 mm


Weighing

Interval type Multi interval Single inerval
Capacity Max 3/6 kg Max 6/15 kg Max. 30 lb
Scale interval e=1/2 g e=2/5 g e=0.01 lb
Weighing range 20 g - 6 kg 40 g - 15 kg 0.20 - 30 lb
Max. wrapping capacity 5 kg 5 kg 11 lb


Labeling

Labeling application Automatic application Manual application
Die-cut Label Linerless Label Die-cut Label Linerless Label
Label width 40 - 80 mm/
1.6-3.1 inches
44 - 59 mm/
1.73-2.3 inches
25 - 80 mm/
0.98-3.1 inches
44 - 59 mm/
1.73-2.3 inches
Label length 28 - 105 mm/
1.1-4.1 inches
28 - 105 mm/
1.1-4.1 inches
20 - 150 mm/
0.79-5.9 inches
20 - 500 mm/
0.79-19.7 inches*
* Maximum printing length is 300 mm/11.8 inches


Operation console

Display panel TFT LCD color (15 inches) touch panel
Operation keys Mechanical keys and touch screen
Memory for programmable files 18 GB


General

Power source and power consumption 208-240 V; 1 φ/3 φ; 60 Hz; 1.8 kVA,1.5 kW
220-240 V; 1 φ; 50/60 Hz; 1.8 kVA,1.5 kW
Net weight Approx. 360 kg


Modeller

WP07

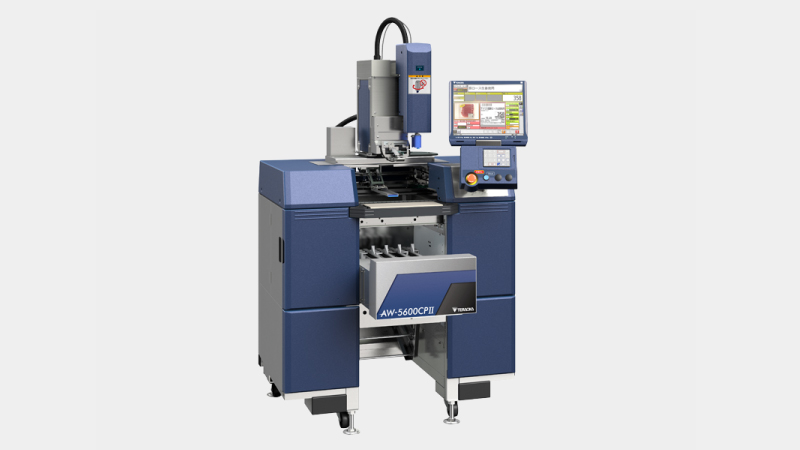

Automatic label application

AW-5600CPII AUTO

For fast and accurate labeling, AW-5600CPII AUTO offers a newly designed rotational labeler arm for automatic label placement on packages.  This enables fast and accurate labeling, even with linerless labels. An automatic twin labeler model is also available.
WP07

Twin labeler

AW-5600CPII TWIN AUTO

For situations where you wish you had a second label, AW-5600CPII TWIN offers  two label rolls in the configuration of your choice. An extra label format lets you quickly respond to in-store promotion needs, product discounts, and more.
WP07

Manual labeler

AW-5600CPII MANUAL TWIN

For situations where you wish you had a second label, AW-5600CPII MANUAL TWIN can apply two kind of labels at the same time by hand. An extra label format lets you quickly respond to in-store promotion needs, product discounts, and more.
