hc800_WP02_01

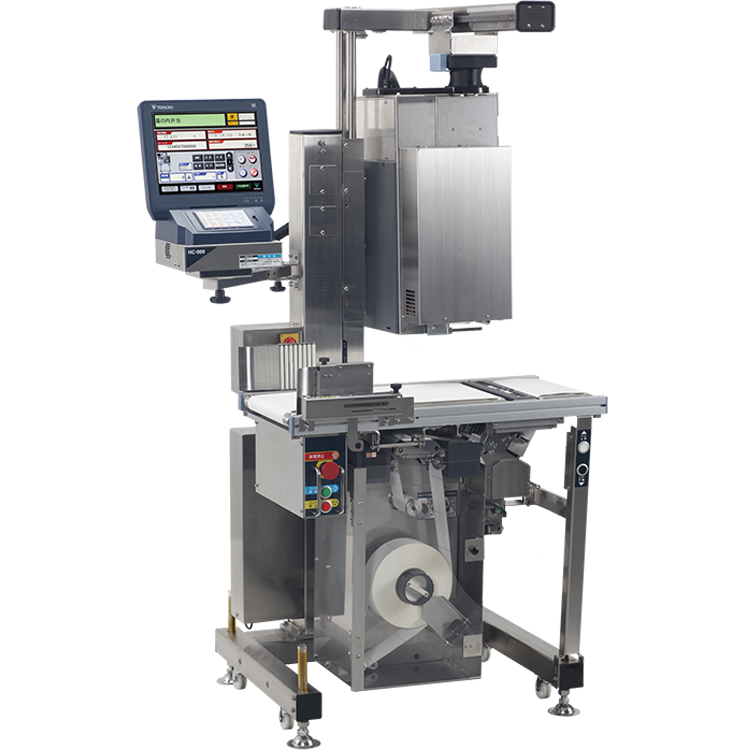

The latest model in the industry's top-selling lineup of automatic thermal labelers for food processing lines

HC-800

Gıda Endüstrisi

Ana Özellikler

Taking advantage of know-how cultivated from a large installed user base, HC-800 is a label printer with great ease of use and convenience, making it ideal for convenience stores and volume retailer vendor systems.  By installing a special application, the printer is able to display and print a variety of labels for processed foods, such as bento lunch boxes and side dishes. We completely revamped the basic functionality to allow more accurate and efficient operation in an easy-to-clean, space-saving form factor.

hc800_WP04_01

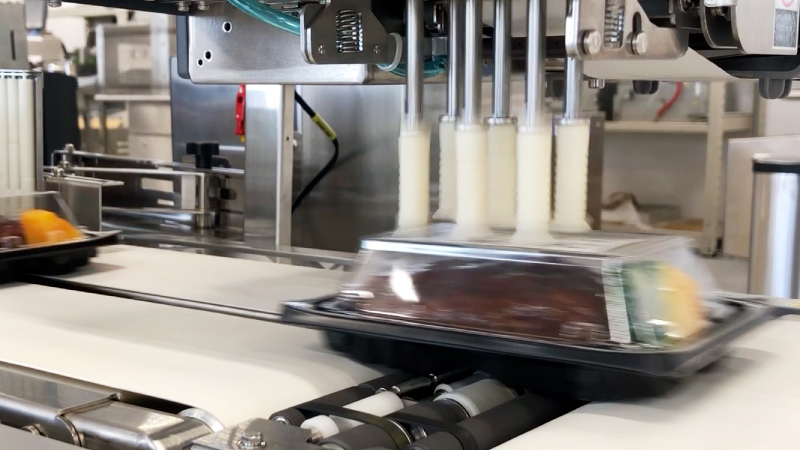

Realizing more advanced labeling

HC-800 realizes improved performance over conventional labelers in terms of cleaning, space-savings, speed, and precision. The top labeler uses a rotating applicator, so a label angle can be set for each master. We also added an array of features to fundamentally improve the performance of the print/apply functionality, to further advance daily labeling operations.

hc800_WP04_02

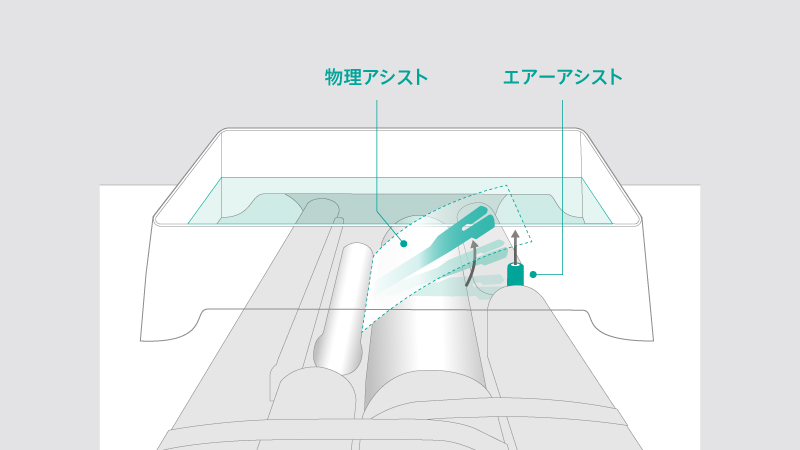

Compatible with raised bottom trays

With tray shapes becoming more varied, certain tray types, such as raised-bottom trays, may pose a challenge when applying a label to the tray bottom. In addition to making the conveyor flat to stabilize tray movement, HC-800 includes two additional mechanisms,  a  physical assist and an air blow assist, for applying bottom labels. You can select which to use according to the product weight and the shape of the tray bottom; the unit can handle trays with raised bottoms of up to 15 mm.

hc800_WP04_03

Easy to replace consumables and easy cleaning!

A dedicated mode for replacing the platen roller has been added, where the roller moves to a position where it can be easily replaced without special tools.
In addition, a flat-panel LCD with excellent visibility and operability is adopted, making cleaning that much easier.

hc800_WP04_04

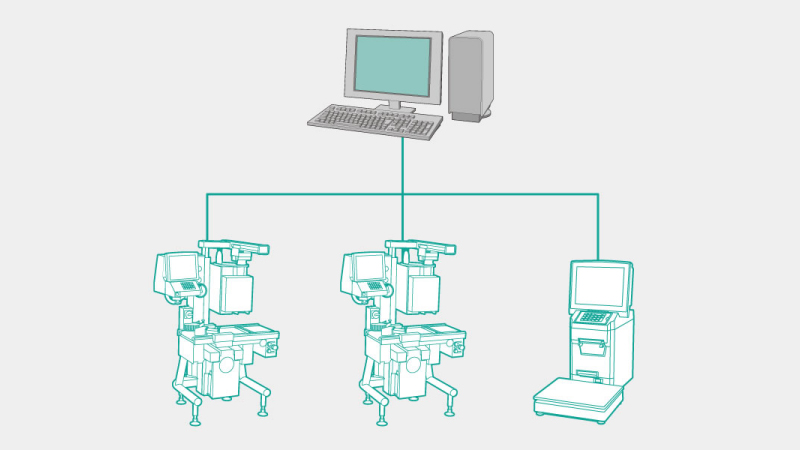

Network connectivity for centralized data management

Connecting the labeler to a your LAN using the PCS-L700 labeler controller allows you to:
1. Centrally manage label masters
2. Manage printing dates
3. Manage printing orders
4. Monitor labeling progress
5. Centrally manage printing history

Teknik Özellikler

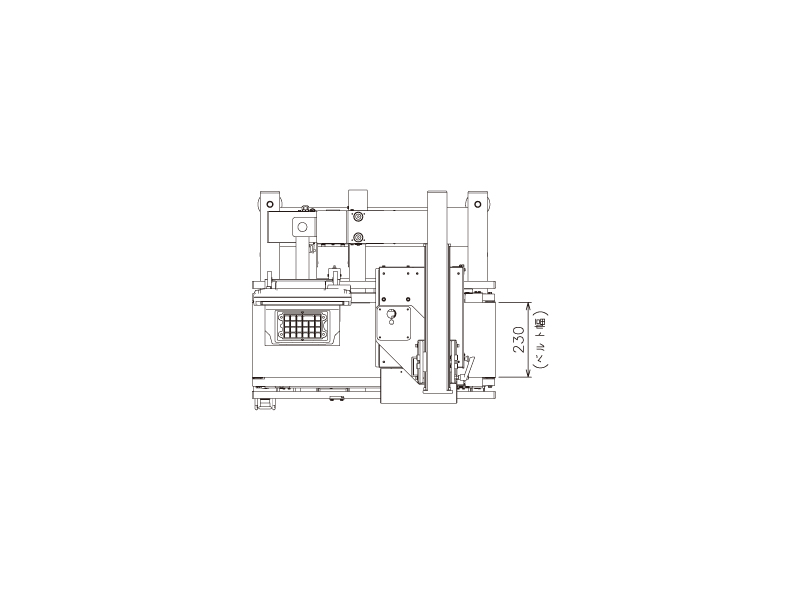

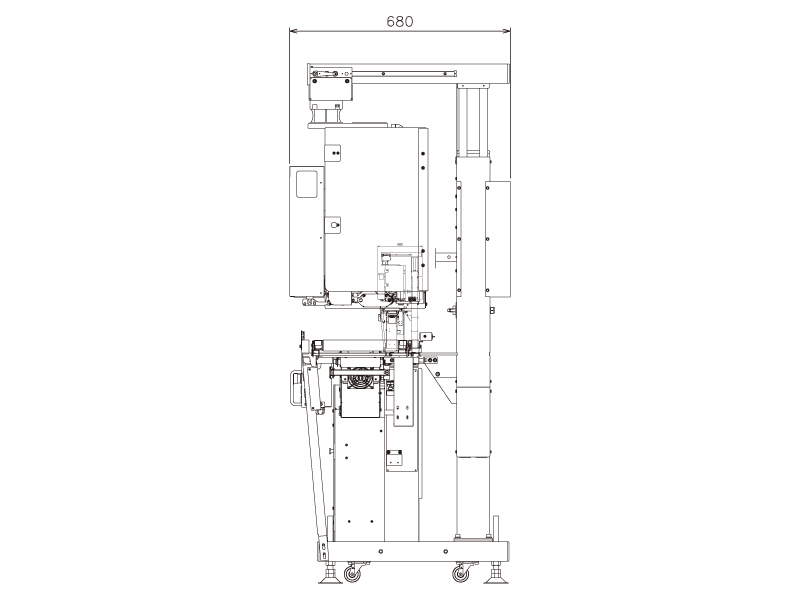

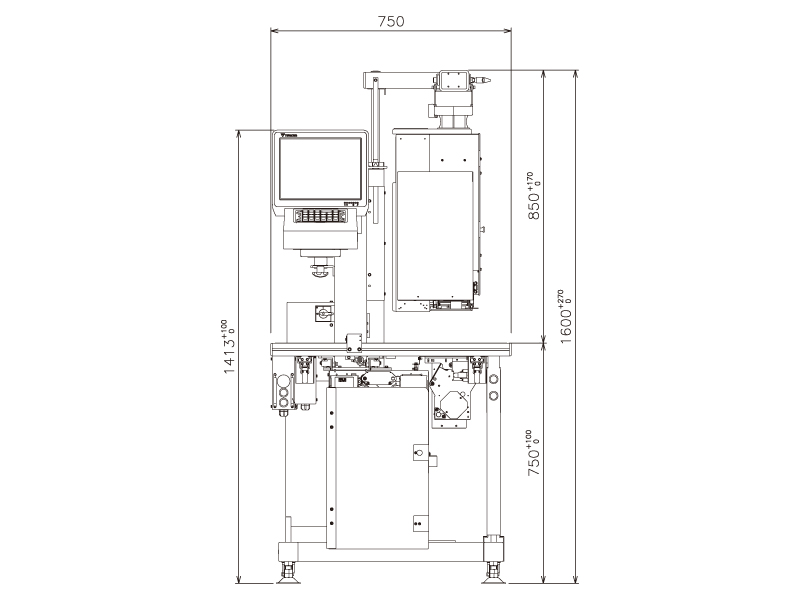

Dimensions

  • hc800_WP05_01
  • hc800_WP05_02
  • hc800_WP05_03
Labeler Cassette type Cassette type Non-cassette type
Printing method Thermal printing (300 dpi)
Label print speed Max. 200 mm/sec Max. 300 mm/sec
Package size Width 50 to 240 mm
Length (Upper Applicator) 50 to 240 mm
Length (Bottom Applicator) 70 to 350 mm
Height 15 to 190 mm
Label size Upper Applicator
*Non-cassette type
Rotary applicator
Width 40 to 80 mm
Length 28 to 100 mm
Upper Applicator
Rotary applicator
Width 40 to 80 mm
Length 28 to 100 mm
Bottom Applicator
Non-cassette type
Width 40 to 80 mm
Length 28 to 130 mm
Dimensions of main unit Width 750 mm
Length 680 mm
Height Max. 1824 mm Max. 1870 mm
Conveyor Height 800 mm ±50 mm
Direction of product flow Right flow or Left flow
Power supply 100V Single phase
Power consumption 260 W 390 W
Conveyor speed (m/min.) 5.5 to 50 (Variable)
Air consumption Upper Applicator Max. 1.61 ℓ/sheet
Bottom Applicator Max. 2.36 ℓ/sheet
Weight of main unit 130 kg 150 kg
Operating temperature 5℃ to 35℃ (without condensation)

Seçenekler

hc800_WP09_01

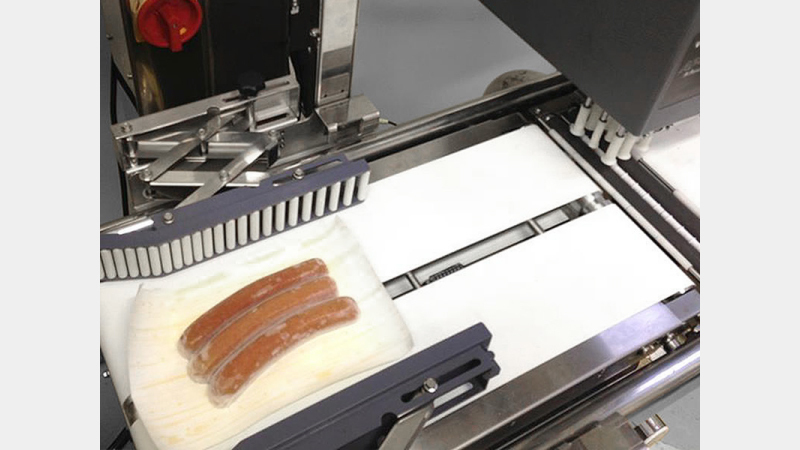

Split conveyor

Suitable for bags and thin products.

Option Features
Head checker Checks for thermal head wear to help ensure good quality printing.
