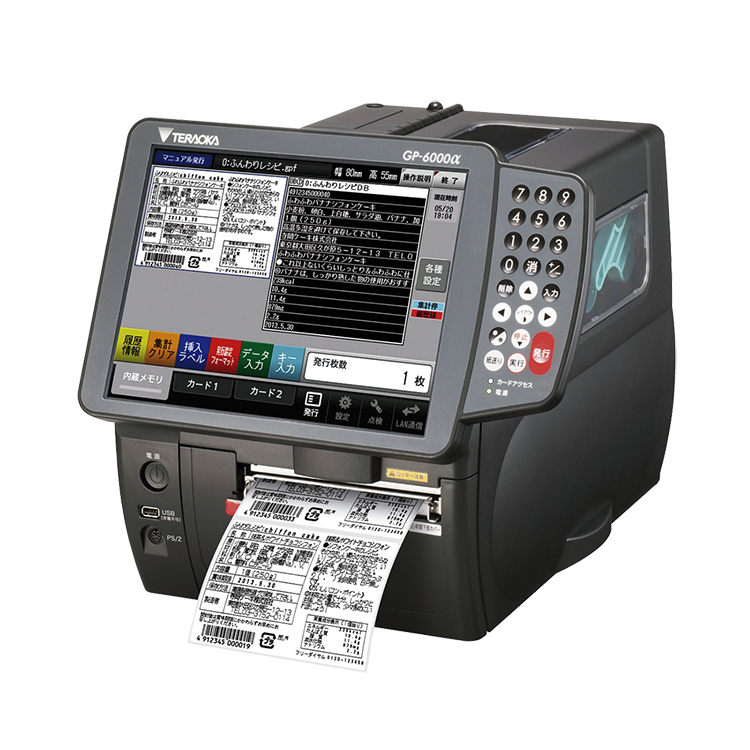

GP-6000α-WP02

Standalone-type multi-function labeler with large screen for enhanced usability

GP-6000α

Lojistik

Ana Özellikler

Mounts a backlit 12.1-inch SVGA color LCD screen. Screen functions help reduce input errors, and help on recovering from errors can be displayed in video form. Greatly enhanced readability and ease of use. Up to 5,000 data records can be stored in this unit's 4-MB memory. Graphic data can easily be saved using SD cards. All steps, from label design to printing, can be accomplished with this single unit.

Teknik Özellikler

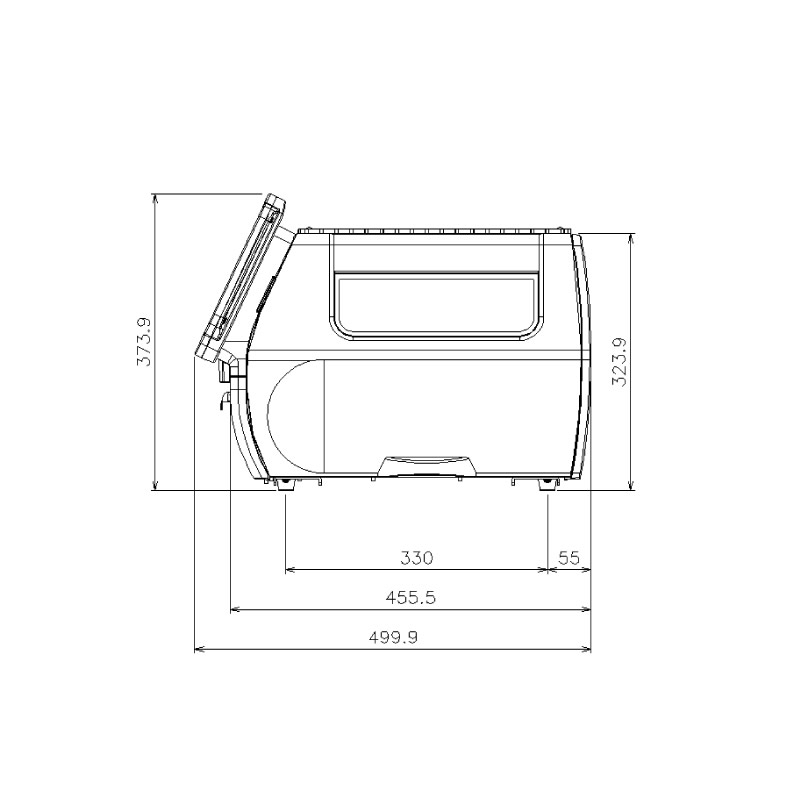

Dimensions

  • GP-6000α-WP05-1
Type Normal type Auto-cutter built-in type
Method Direct thermal/thermal transfer
Display panel 12.1 inches LCD color with backlight, 600 x 800 dots
Speed 70 to 200mm/sec.
Print head width 128mm
Thermal head density 12 dots/mm (300 dots/inch)
Label size Width: 40 to 130mm, Length: 40 to 500mm
Modes Present, Tear-off, Rewind (optional) Auto-cutting, Tear-off
Barcodes EAN/UPCA/UPCE/CODE39/ITF/NW-7/MATRIX2 of 5/CODE128/EAN128/GS1 Databar(Expanded)/QR Code/PDF417
Communication interface LAN, RS-232C, 2 x PS/2, USB
Operating temperature 5 ℃ to 35℃(10℃ to 35℃ for thermal transfer)
Operating humidity Under 80% RH (non-condensing)
Power supply AC100V±10%(50/60Hz)/Max. 265W
Net weight 18.3kg 20.2kg

Modeller

GP-6000α-WP07-1

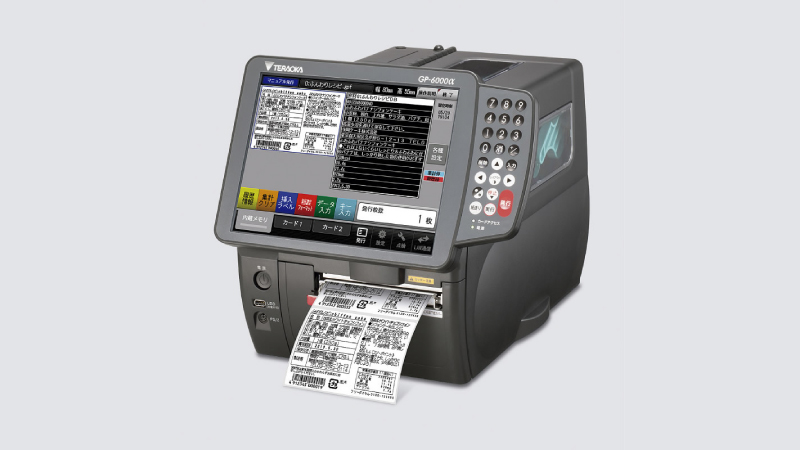

Model with auto cutter

GP-6000α with auto cutter

This model us equipped with an auto-cutting function that automatically cuts specified quantities of labels printed. Specify this option at time of order.

Seçenekler

GP-6000α-WP09-1

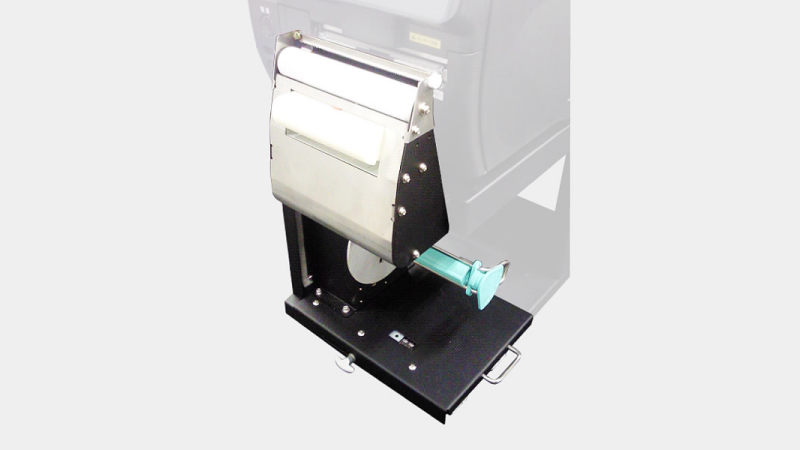

External label winder for GP-6000α

This is an external winding device for labels printed out by the printer. Available in floor and front-placed versions.
GP-6000α-WP09-1

DC・GP LAN Server

Management software for making use of data on a personal computer. Data created can be transferred to this server for batch updating. Printing history can also be verified, and individual records retrieved.
GP-6000α-WP09-1

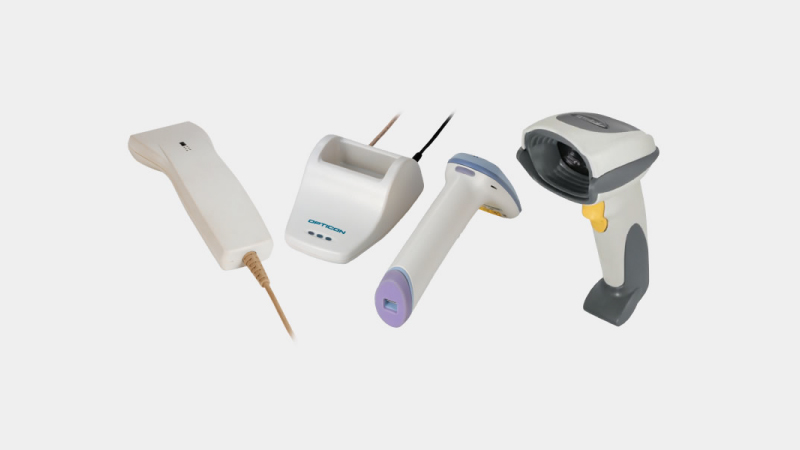

Scanner for connection to GP-series printers

Using the scanner to read barcode eliminates the need to enter data manually and reduces data entry errors. Available in a number of variations, including a wired type (using P/S connection), a wireless type (using RS-232C connection), and a type for reading 2D barcode (QR code).

SSS

  • Can printing history be viewed in CSV format?
    Yes, histories stored on a CompactFlash card can be checked. Checking can be done either by sending data to a PC by FTP transfer, or using optional software (DC・GP LAN Server).
  • What is the approximate operating life of the auto cutter the model with auto cutter?
    Under normal usage conditions, about 5 years (2 million cuts).For details, please contact your nearest dealer.
