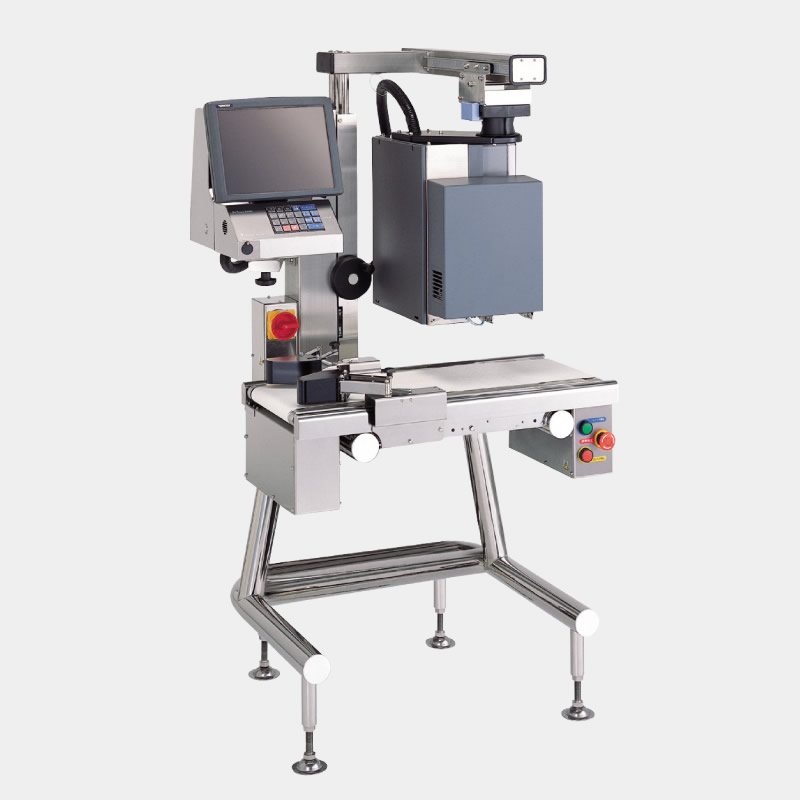

Versatile automatic thermal labeler
AP-700
Gıda EndüstrisiAna Özellikler
AP-700 is a general purpose automatic labeler with easy to use large color display. Flexibly meets various demands for new label layout and format.

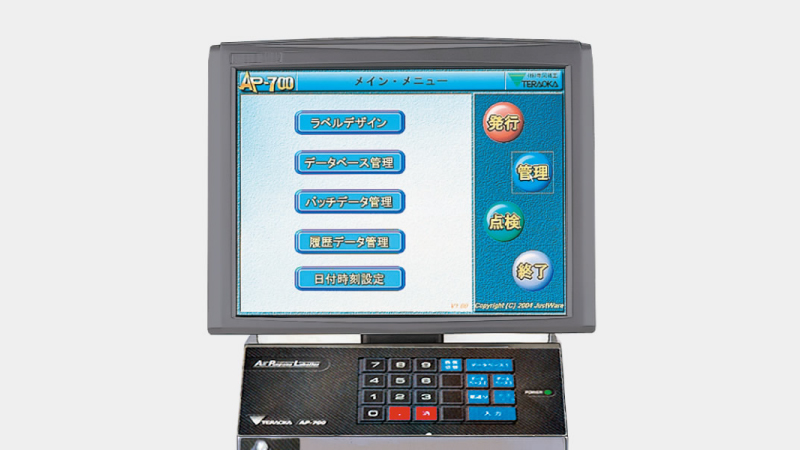

Large display for easy operation
A 12.1-inch LCD display has high visibility and makes operation very easy. Label format design can be done flexibly by following instructions on the screen.
Clear print image
A 300dpi thermal print head together with a wide variety of fonts provides excellent printing. Also prints QR codes.

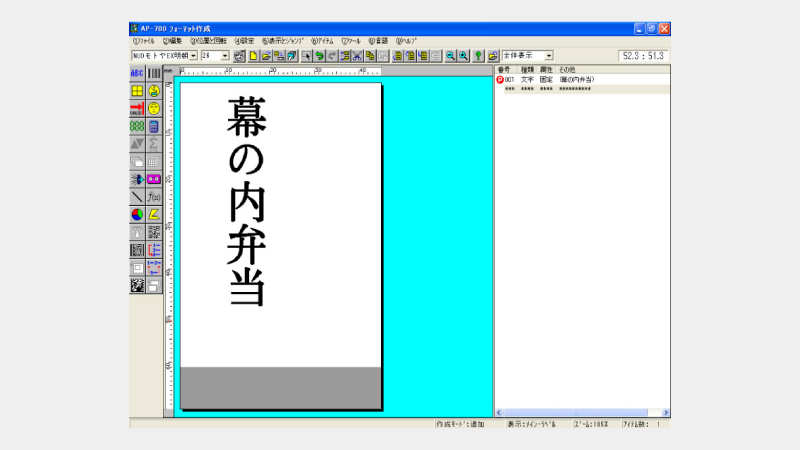

Flexible and easy label designing
Designing new label formats is very easy for anybody. Labels and product databases can be created on a computer, and then transferred to the labeler via a USB memory.
Teknik Özellikler

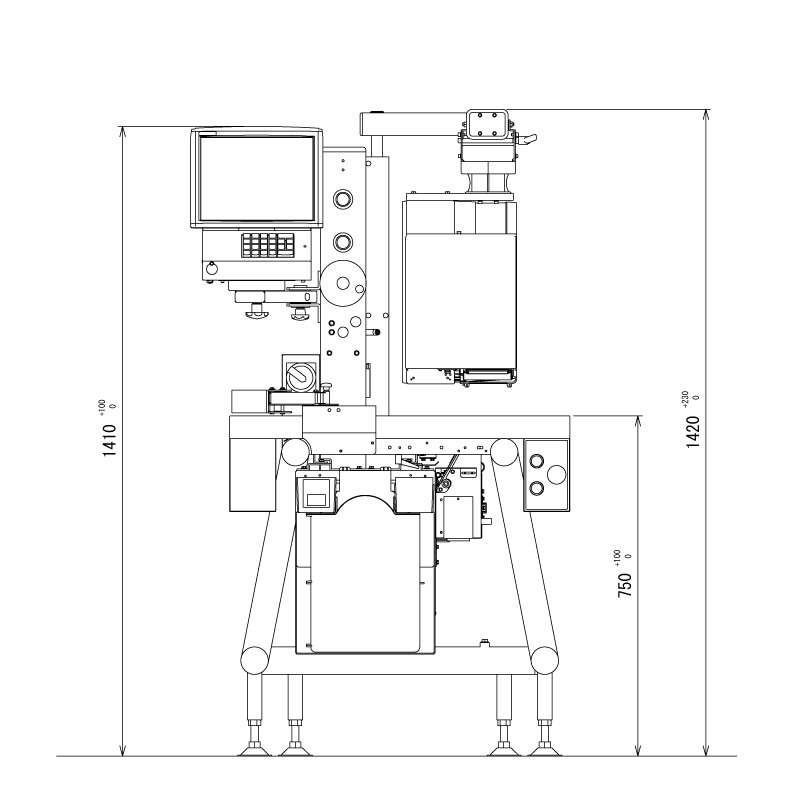

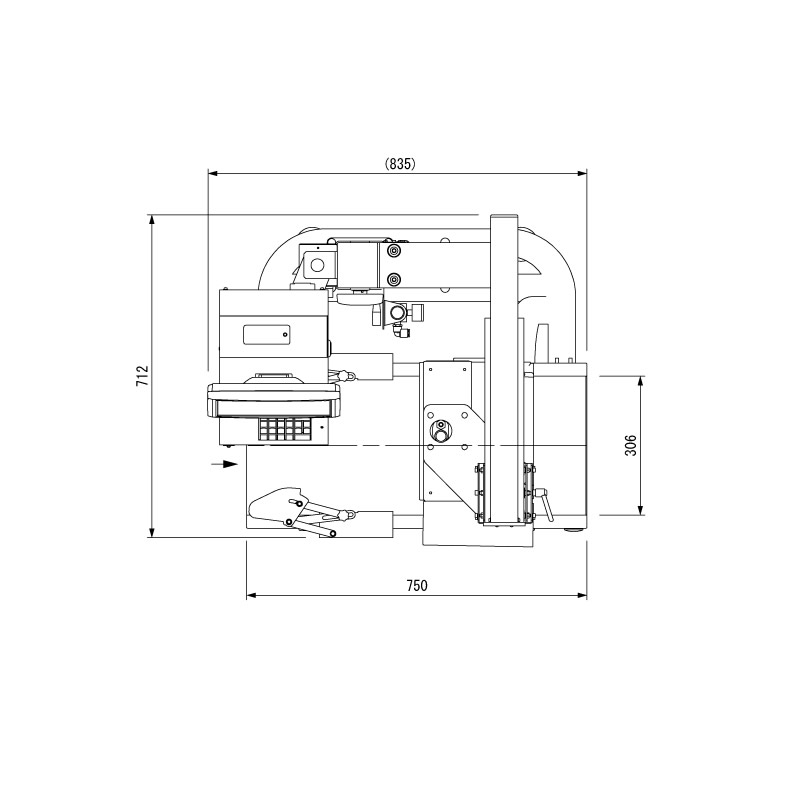

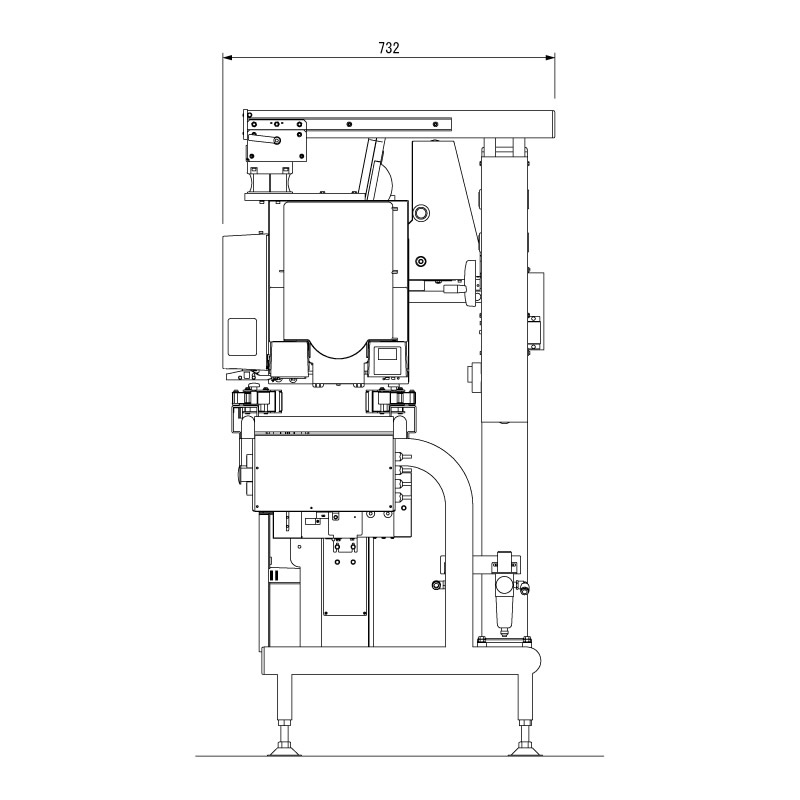

Dimensions
| Printing method | Thermal printing |
|---|---|
| Label print speed | max. 200mm/sec. |
| Package size | Width: 50 to 240 mm |
| Length: 70 to 350mm | |
| Height: 15 to 190mm | |
| Label size (for U type) | Width: 40 to 80mm |
| Length: 28 to 100mm | |
| Label size (for U type/High precision applicator) | Width: 20 to 80m |
| Length: 20 to 100mm | |
| Label size (for B type) | Width: 40 to 80mm |
| Length: 28 to 80mm | |
| Label outer diameter | 200mm with 76mm core |
| Power consumption | 59.2 to 86.5W/270 to 540W (dependig on configuration) |
| Measurement (mm) | W: 681 x L: 750 x H: 1545 |
| Conveyor height | 800±50mm |
| Power supply | 100V or 220 to 240V single phase |
| Conveyor speed | 0 to 50mm/min.(adjustable) |
| Air source | Top application max. 1.61ℓ/label Bottom application max. 2.36ℓ/label |
Modeller

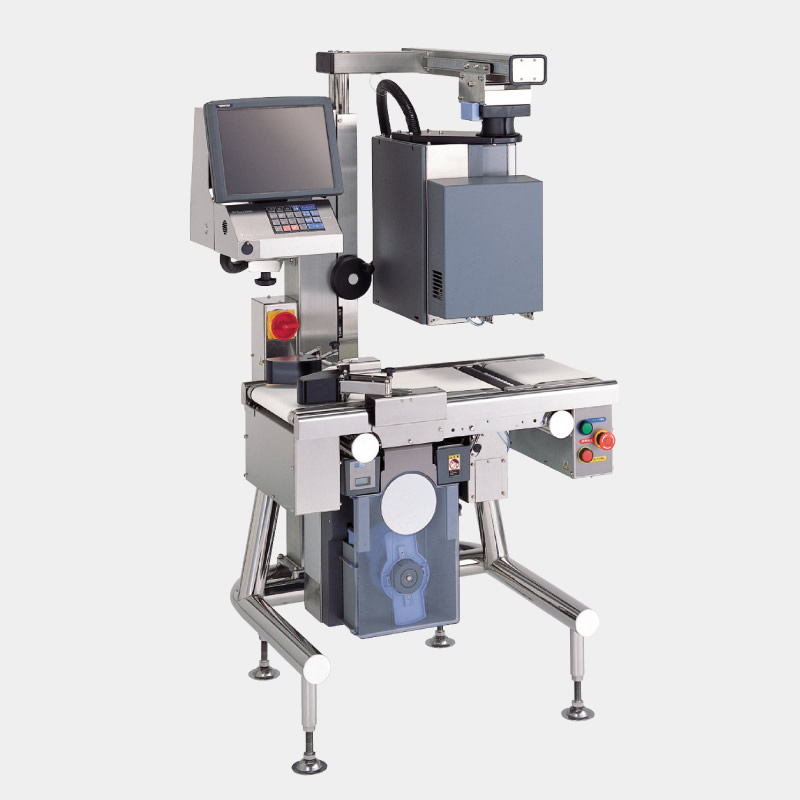

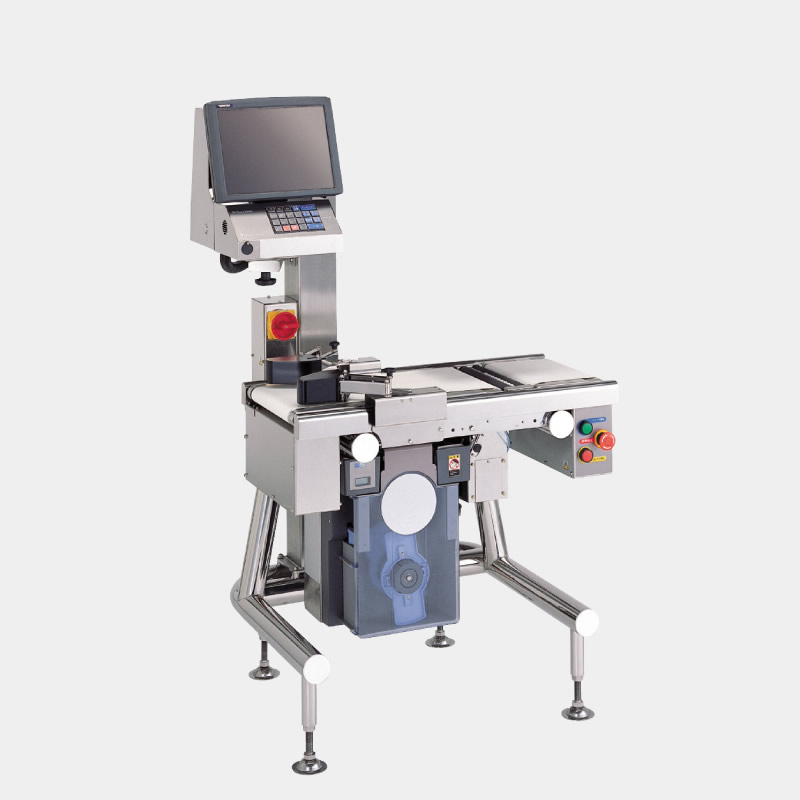

Top and bottom applicator
| Model | AP-700UB | AP-700U | AP-700B |
|---|---|---|---|
 |
 |
 |
|
| Top applicator | ● | ● | |
| Bottom applicator | ● | ● |
Seçenekler

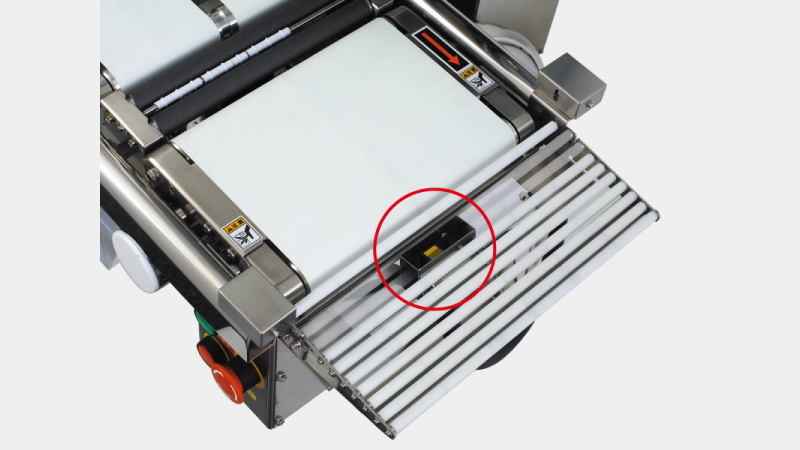

Split conveyor
