A convenient and complete solution for a wide range of in-store applications

LI-5600C

Industria Alimentaria

Características principales

The LI-5600C maximizes the efficiency of in-store pre-packaging operation.  It provides opportunities in various applications that require a simple, unique solution for automatic labeling. The LI-5600C is also highly compatible with existing equipment such as MAP/SKIN packaging machines in the pre-packaging area.

li5600c

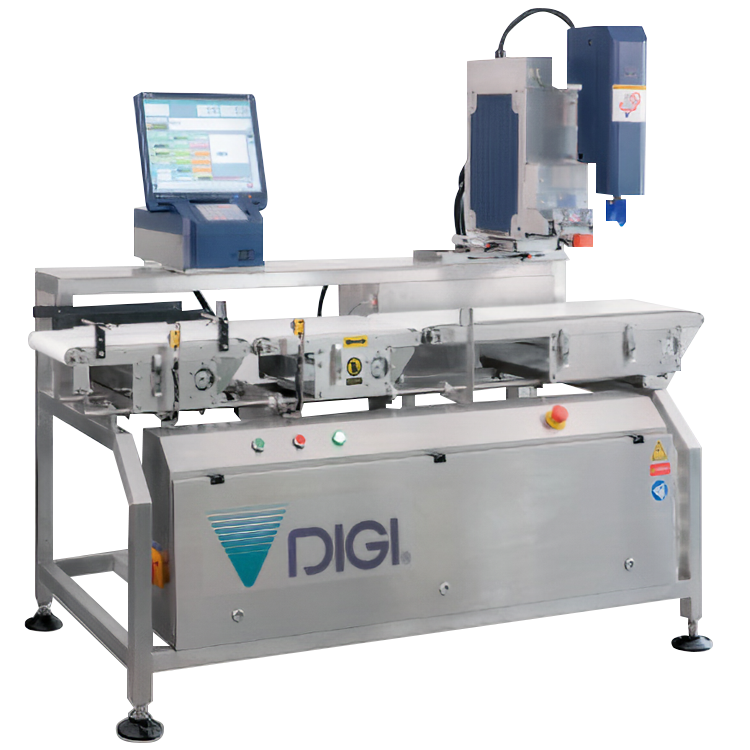

Automatic weigh-label-system, a convenient and complete solution for a wide range of in-store applications

The LI-5600C, automatic weigh-label system, maximizes efficiency in the pre-packing operation. Easy to be combined into existing equipment in the pre-packing area.

li5600c

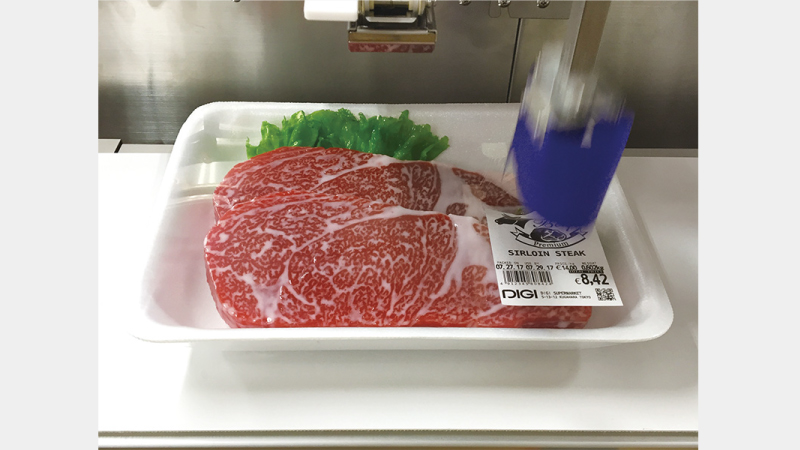

Fast, accurate and flexible labeling

The newly designed 360° rotating labeler arm offers automatic label placement on packages even with long-cut linerless labels.

li5600c

Catch the Shoppers' Eyes While Generating Savings on Labels

Linerless Label (LL) allows automatic adjustment of the labels to fit various lengths of texts and graphics. Custom labels are printed on a continuous roll of LL and are cut according to the sizes needed. With the new 300dpi label printers, high-resolution prints can be produced while maintaining high readability even for very small characters (e.g. nutrition and allergen information).

li5600c

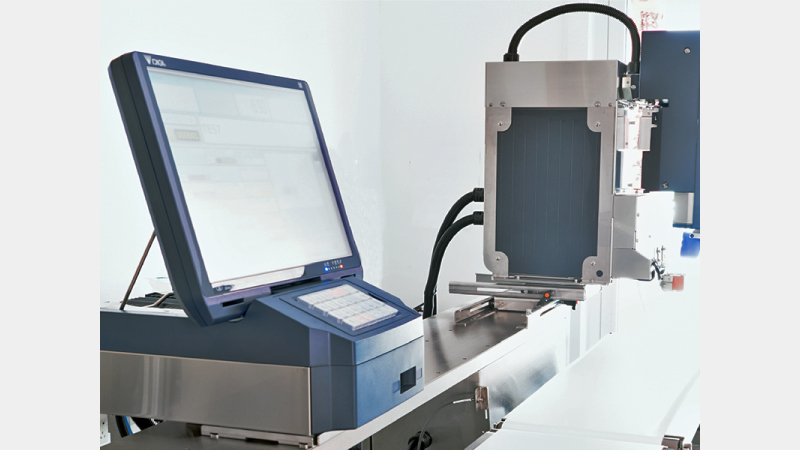

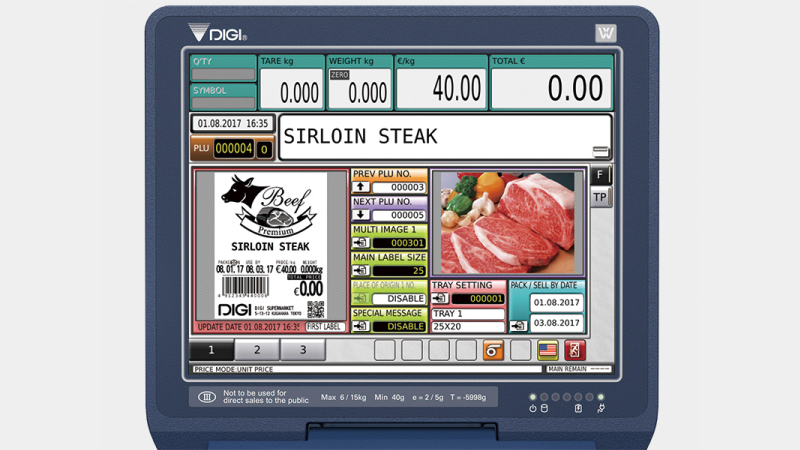

User-friendly operation

Wide color touch screen displays various functions such as PLU search to simplify operation, and provides convenient print viewing and free key layouts to increase speed and efficiency.

Especificaciones

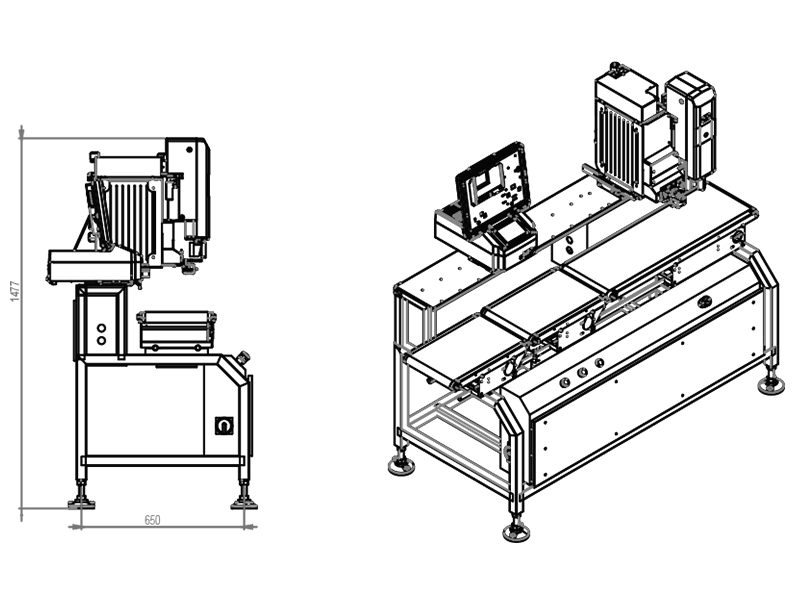

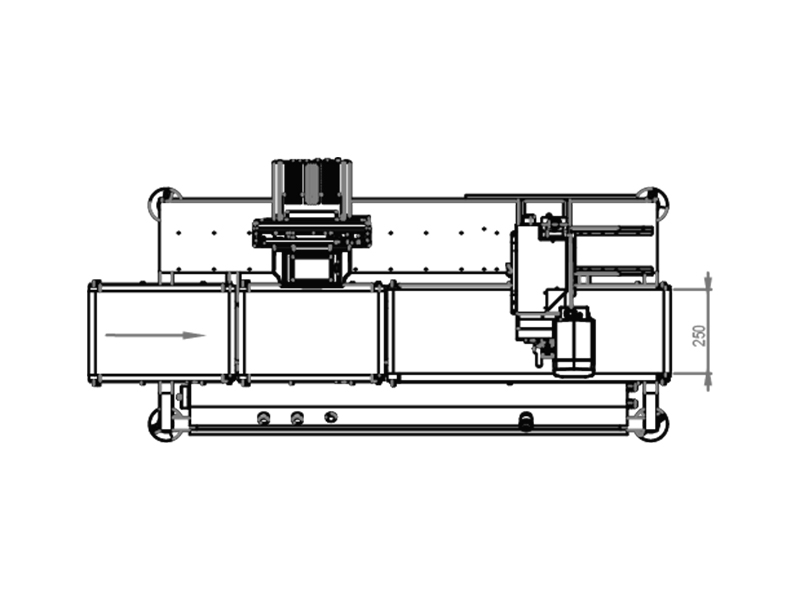

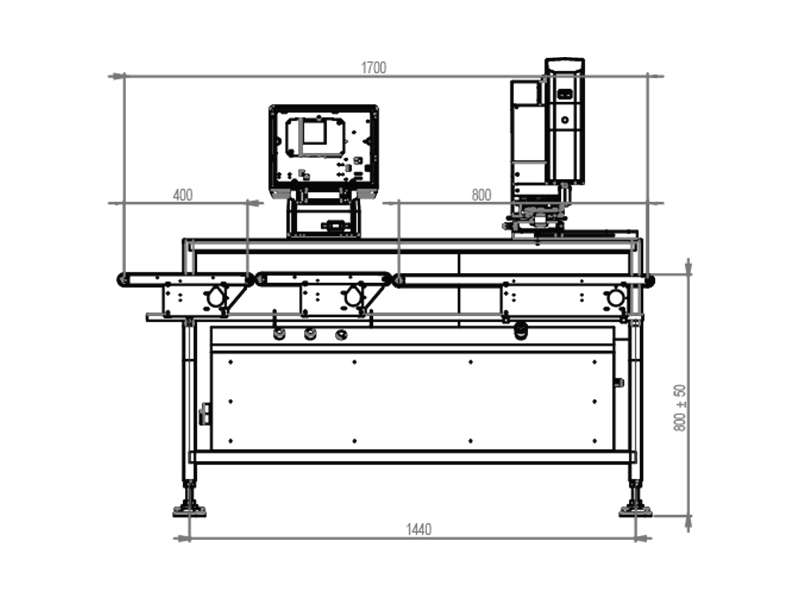

Dimensiones

  • li5600c
  • li5600c
  • li5600c

Weighing

* Unit varies by country
Interval type Single-interval
Capacity Max 3kg
Scale interval e=1g
Weighing range 20g to 3kg
Conveyor capacity Max 3kg

Thermal printer

* Maximum printing length is 300 mm/11.8 inches
Labeling application Automatic application
Label type Die-cut Label Linerless Label
Label size Width: 40-80 mm/ 1.57-3.15 inches
Length: 28-105 mm/ 1.10-4.13 inches
Width: 44-78 mm/ 1.73-3.07 inches
Length: 28-105 mm/ 1.10-4.13 inches
Labeling angle 0 or 90 or 180 or 270 degree
Font True type font

Operation console

Display panel TFT LCD color (15 inches) touch panel
Memory for programmable files 32 GB

General

Power source and power consumption 230 V;1 φ;50/60 Hz;0.75kw
Net Weight Approx. 135kg
Operation humidity 90%RH (Max.) with no condensation

Variaciones

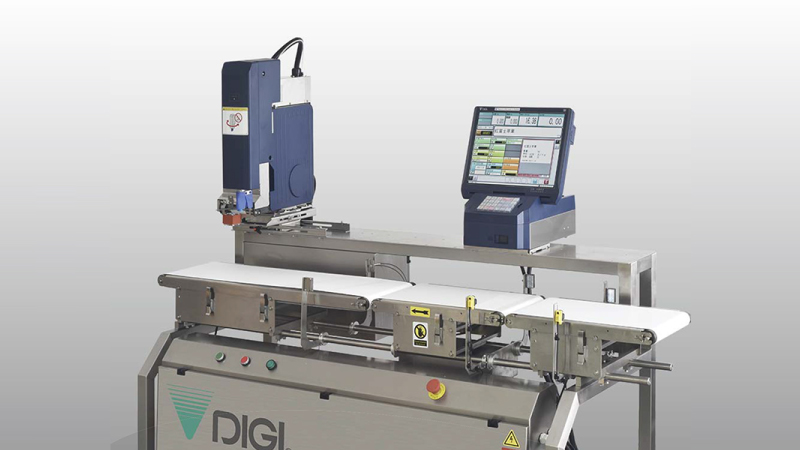

Single labeler type

LI-5600C Single labeler type

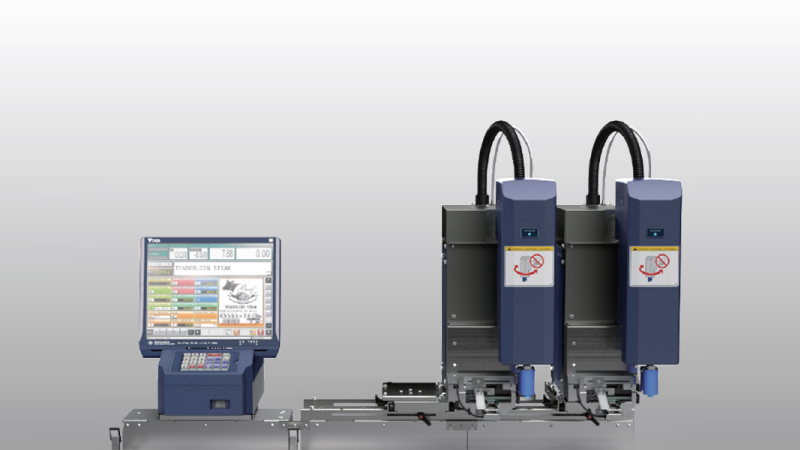

Single labeler with POP labeler

LI-5600C Single labeler with POP labeler type

Opciones

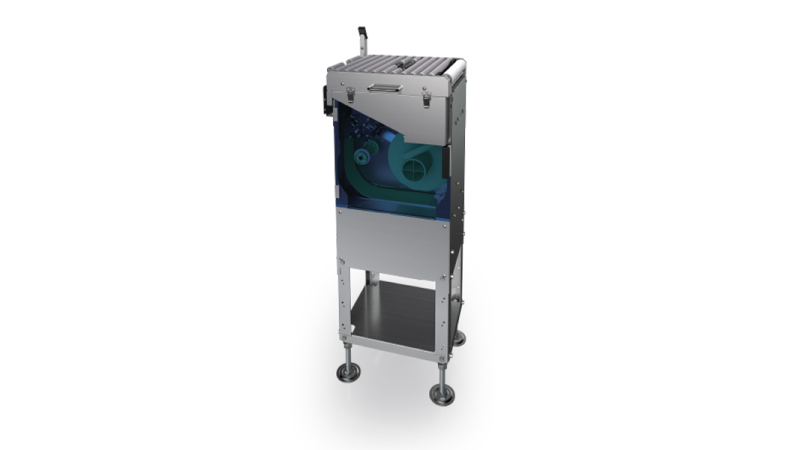

Auto BP LL Labeler

Auto BP LL Labeler can be installed
