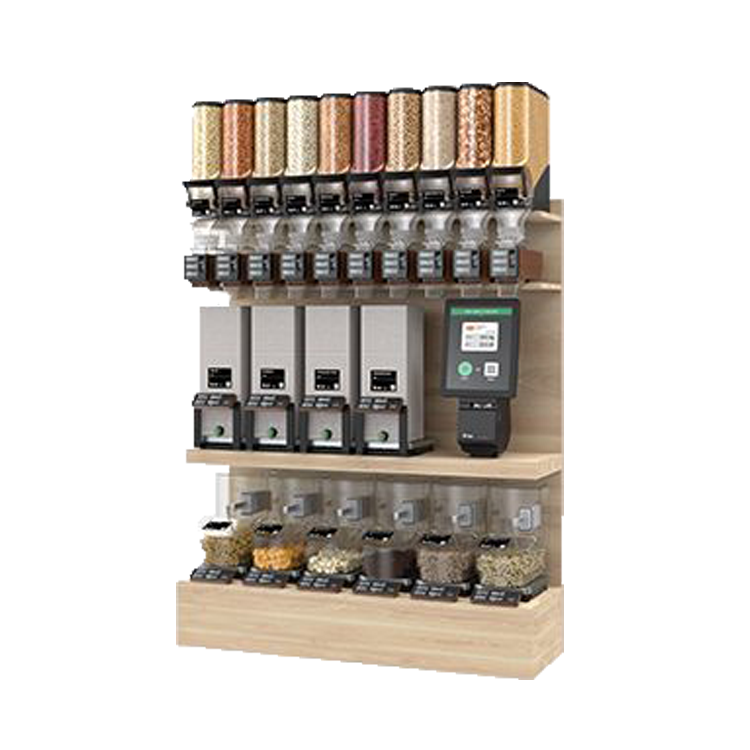

aiobs_WP02_01

No Tare, No Fuss, More Fun.

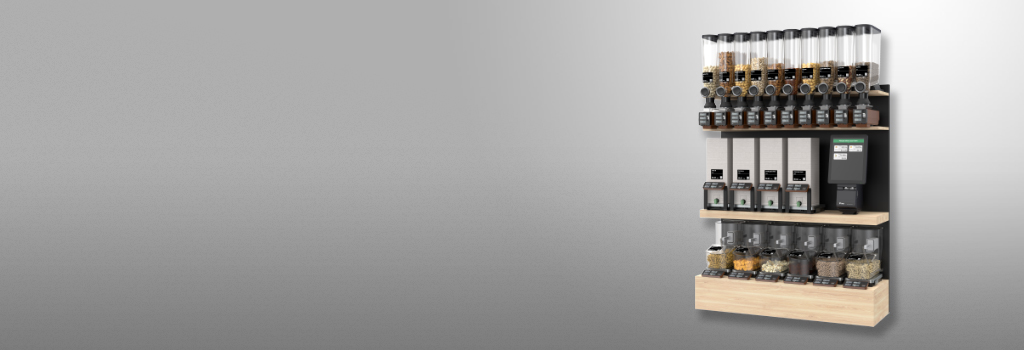

All-In-One Bulk System

Retail

Características principales

Introducing the All-In-One Bulk System, DIGI's tare-free streamlined solution for the bulk area. From pantry staples to spices, herbs and even vinegars, customers can view product weight and price in real-time directly on the Hopper, Scoop and Liquid Scales while purchasing only the amount they need.

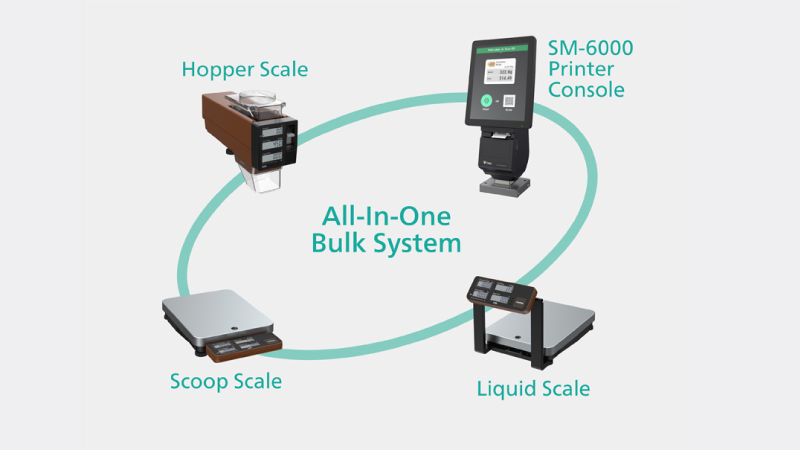

aiobs_WP04_01

Frictionless Bulk Shopping

With the All-In-One Bulk System, weight and pricing information of the dispensed item are automatically displayed on the console's screen for label printing, thus simplifying the operation process.


  • Ease of operation by eliminating the need to search for PLU
  • Multiple shoppers can operate simultaneously
  • No taring of container weight needed

aiobs_WP04_02

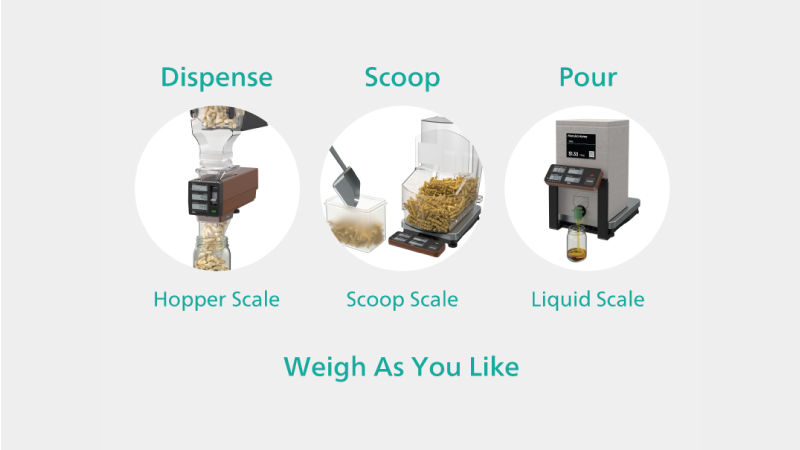

Weigh as You Dispense/ Scoop/ Pour

To accommodate different container-filling methods and dispenser types, this sustainable solution incorporates 3 types of scales so that customers can weigh as they like.

aiobs_WP04_03

Packaging-Free Shopping

The All-In-One Bulk System redefines the standards for zero waste shopping at the bulk station as it encourages customers to bring their own containers while offering hygienic product handling.

aiobs_WP04_04

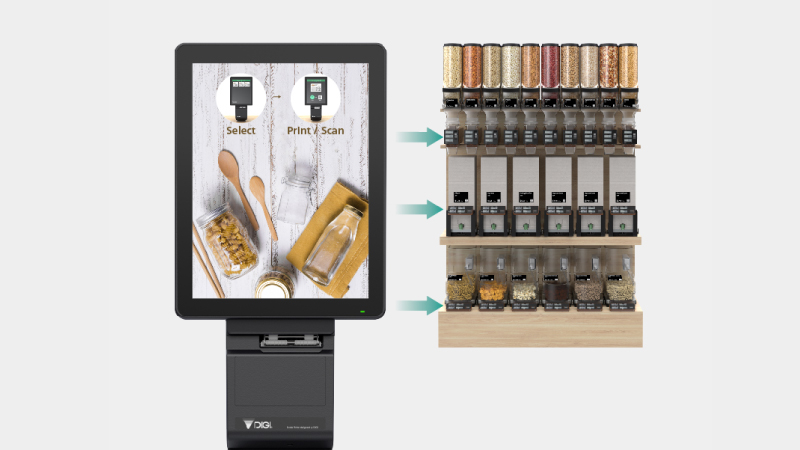

Flexible Configuration

Each setup consists of only a single SM-6000 Printer Console that can be linked to multiple Hopper, Scoop and Liquid Scales, allowing retailers to mix and match different types of dispensers while offering a wider selection of packaging-free products.

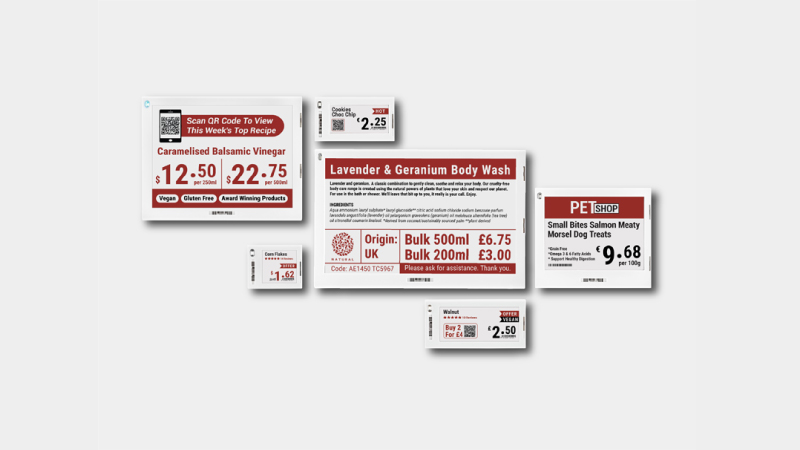

aiobs_WP04_05

Electronic Signage Label - InfoTag

DIGI's InfoTag is an enterprise-grade electronic shelf label that grants pricing automation via wireless updates. It can be easily incorporated on the Hopper, Scoop and Liquid Scales to display product informations or promotions with agile price updates.

Especificaciones

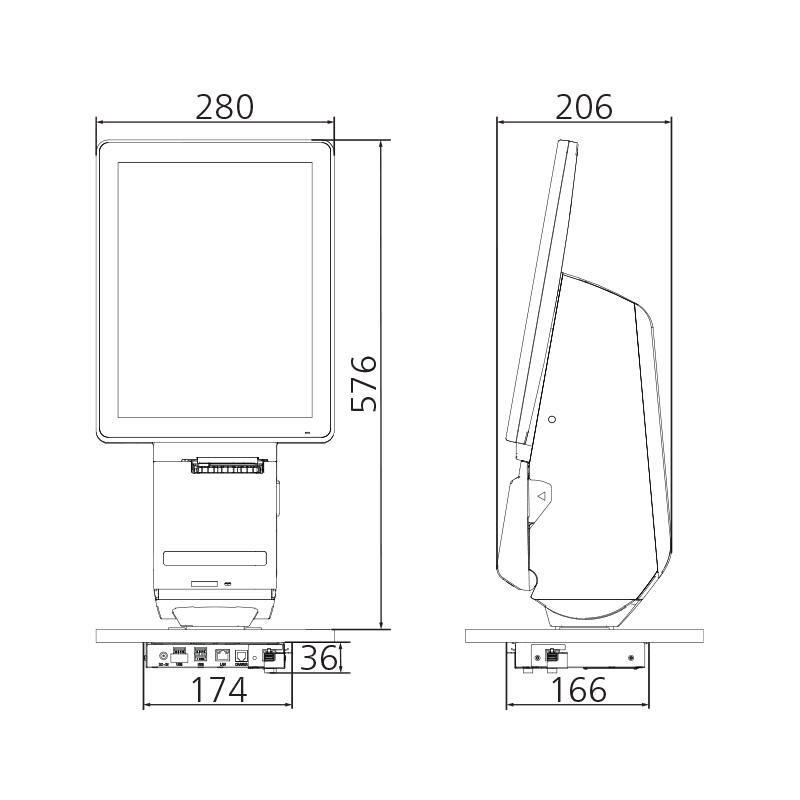

Dimensiones

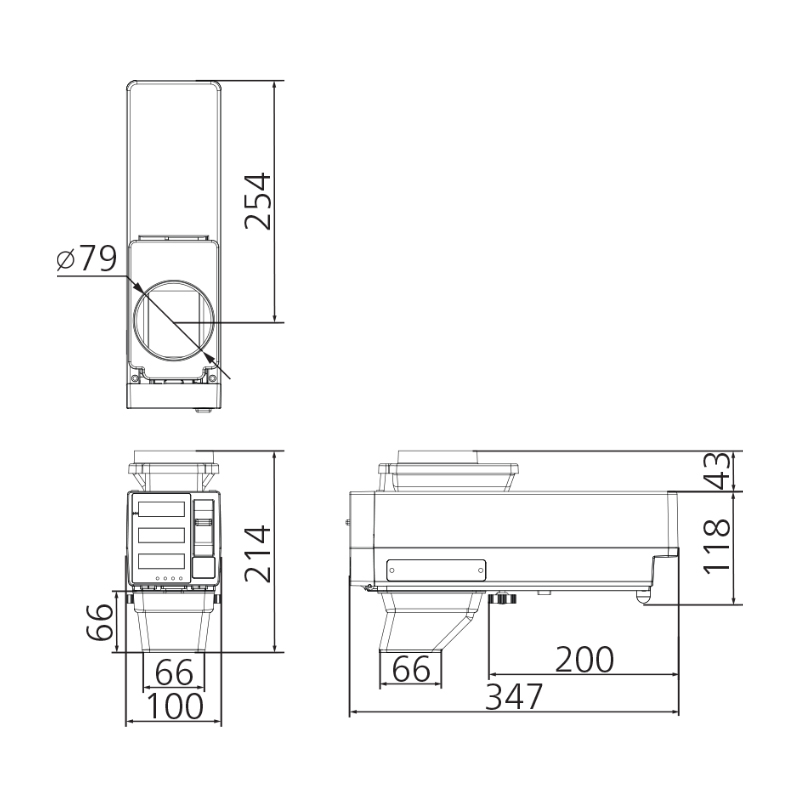

  • aiobs_WP05_01

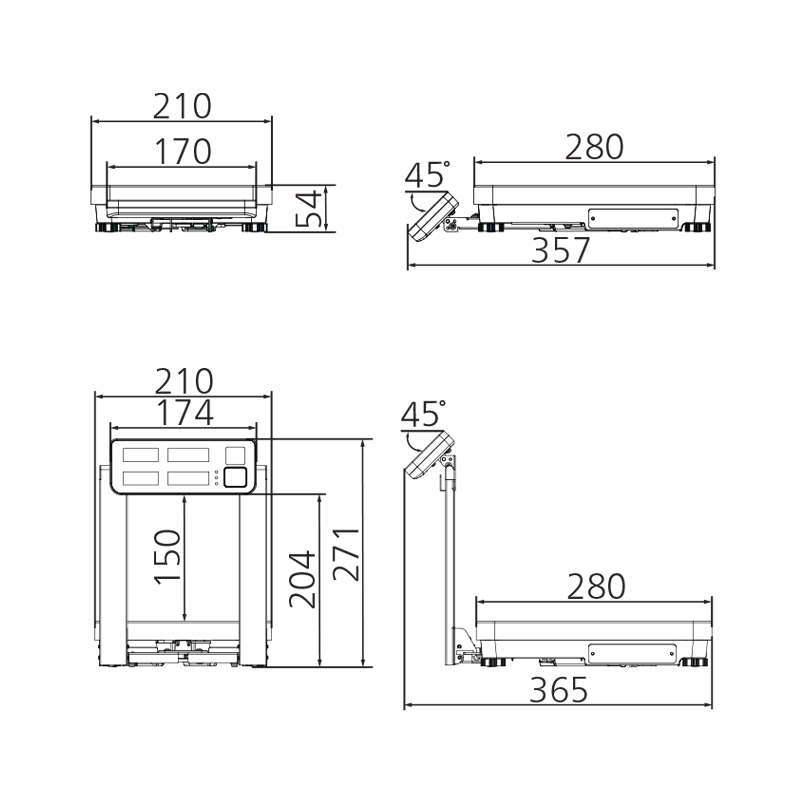

  • aiobs_WP05_02
  • aiobs_WP05_03

Specification

Capacity Model Resolution Weighing Range Deviation
Max 1.5kg Hopper Scale 1 / 1,000 0 - 0.5kg e = 0.5g
1 / 1,500 0.5 - 1.5kg e = 1g
Max 30kg Scoop and Liquid Scale 1 / 6,000 0 - 30kg e = 5g


Model Hopper Scale Scoop Scale Liquid Scale SM-6000 Printer Console
Dimension W x D x H (mm) 100 x 347 x 214 210 x 357 x 54 210 x 365 x 271 280 x 206 x 576
Display  3 x 7 Segments LCD
(6 digits)
4 x 7 Segments LCD
(5 digits and 6 digits x 2 each)
15" TFT XGA with Capacitive Touch
(768 x 1024)
Keyboard 1 x Confirm Button
Label / Receipt Types Linerless With Auto-Cutter
Roll Diameter Max 95mm
Roll Width Max 62mm
Print Width Max 61mm
Printing Speed  Max 150mm / second*
Print Resolution 300 dpi
Power Source DC 7V (Max 100mA) AC - DC Power Adapter
Interface (with DC Power) RS-485 (RJ-45 Connector)
Maximum Connection Support up to 100 units of Hopper, Scoop and Liquid Scales per SM-6000 Printer Console
Operating Temperature -10℃ to +40℃
Humidity 15% to 85% RH Non-Condensation
Net Weight 1.4 kg 3.3 kg 3.7 kg 8 kg
*To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for more details.


Variaciones

aiobs_WP07_01

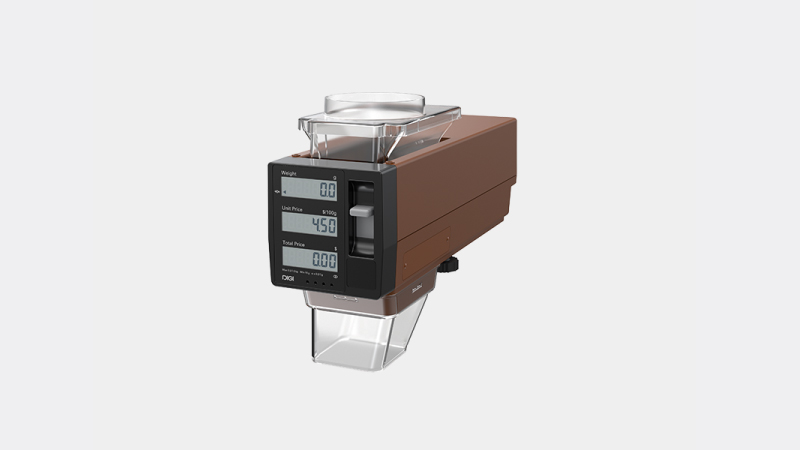

Hopper Scale

Scale installed under the gravity bin for bulk products

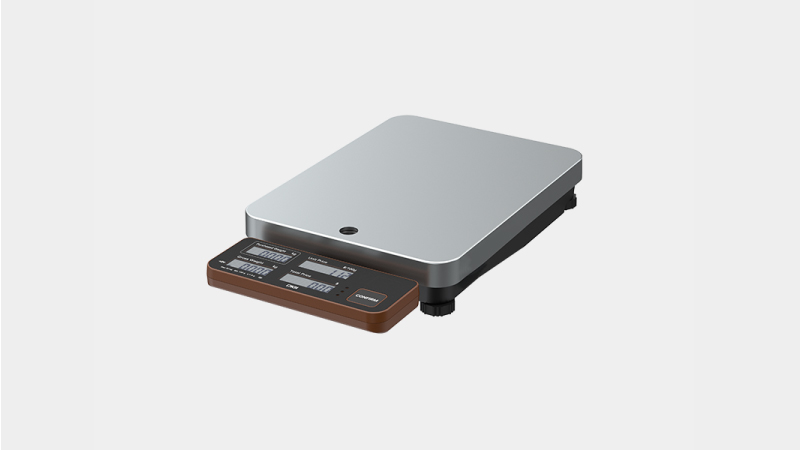

aiobs_WP07_03

Scoop Scale

Scale installed under the scoop bin for bulk products
aiobs_WP07_05

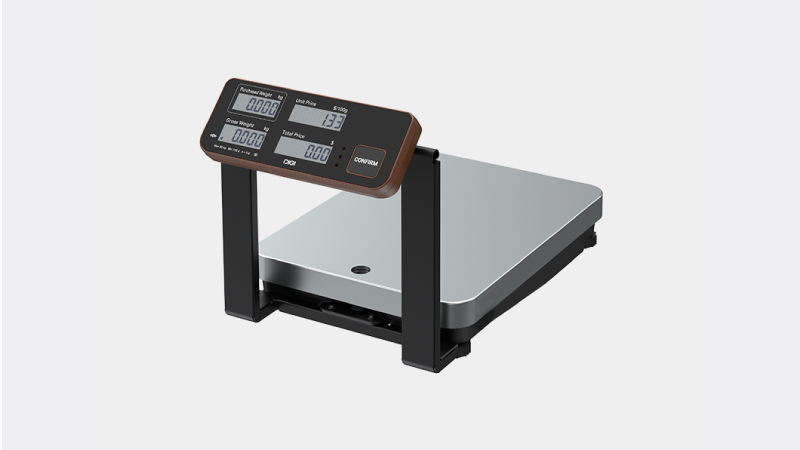

Liquid Scale

Scale installed under the bag-in-box for liquid products

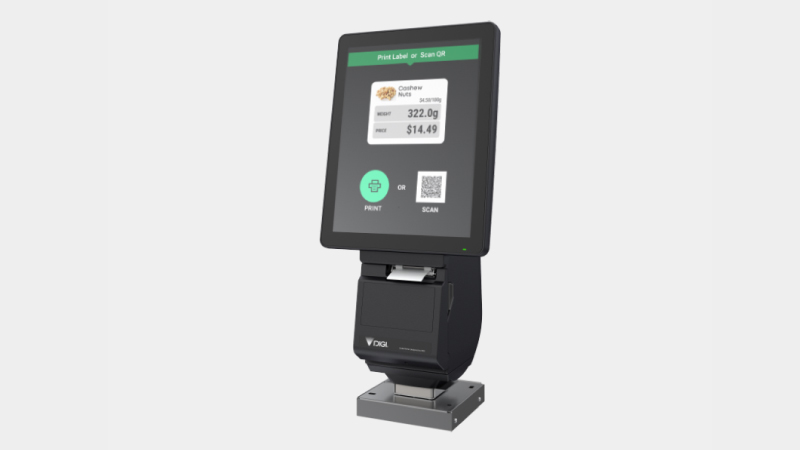

aiobs_WP07_07

SM-6000 Printer Console

Touch console for product labelling

Opciones

Option

Options Wireless LAN IEEE 802.11 a / b / g / n / ac, InfoTag, Base Station
Compliance  OIML, NTEP, MC, CE, OSHA (NRTL)
