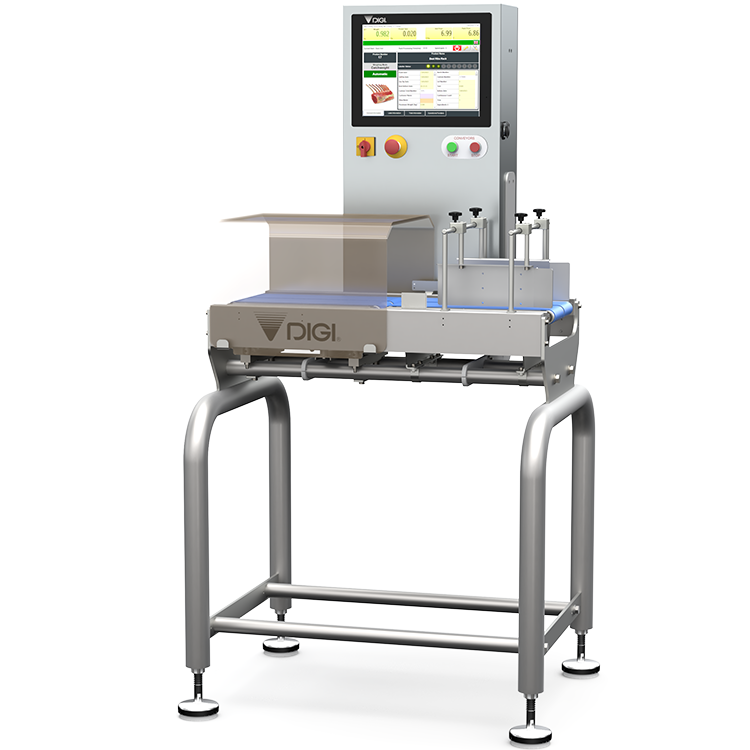

cw800_WP02_01

Compact, Single-Framed Checkweighing System For High Productivity

CW-800

Food Industry

Main Features

The CW-800's compact, single-framed design makes it ideal for integration into existing lines. With a pack speed of up to 150ppm, its high productivity will ensure targets are met.

Download brochure here

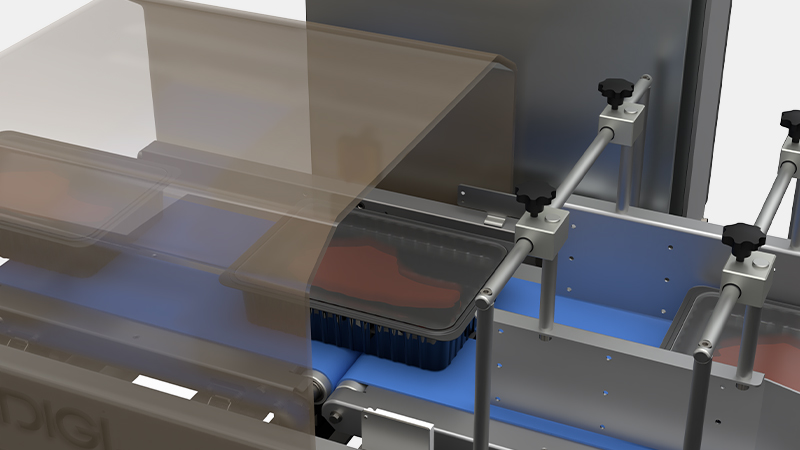

cw800_WP04_01

Automatic Checkweighing of up to 150ppm

Understanding the demands of the modern production environment, the CW-800 has been designed with a direct drive conveyor system that provides reliable processing of up to 150 packs per minute.

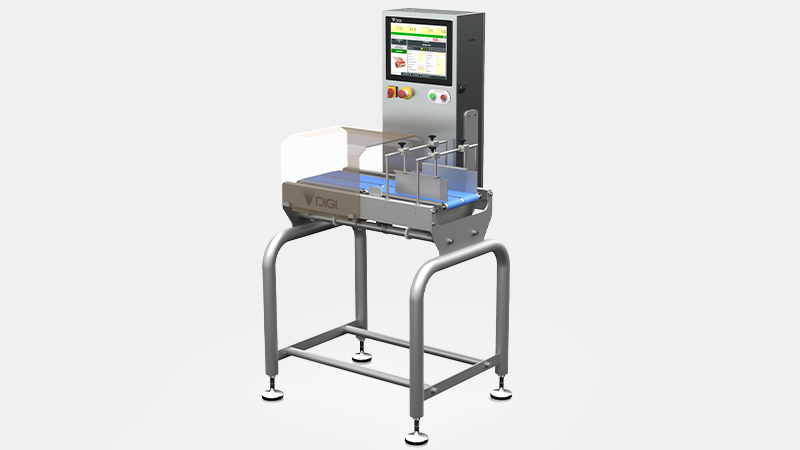

cw800_WP04_02

Compact Design

The CW-800 is based on a single 304L grade stainless steel frame, ensuring that valuable floor space is not used unnecessarily. Please refer to 'specifications' for all dimensions.

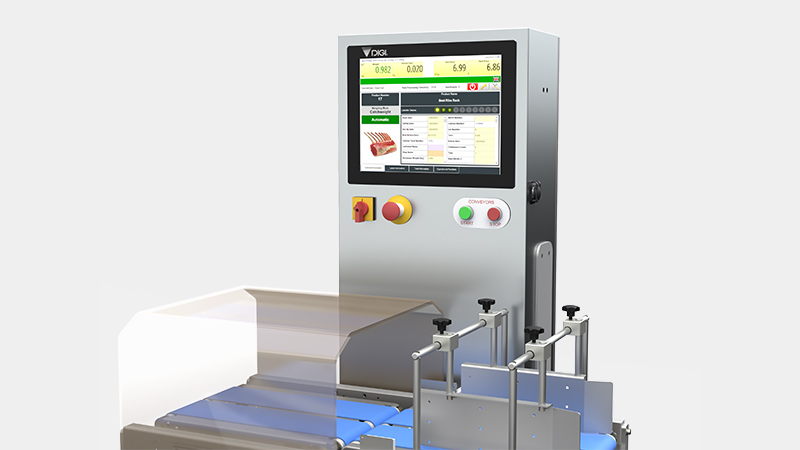

cw800_WP04_03

User-Friendly Interface

The CW-800 uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows®  operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labelers.

Specifications

Dimensions

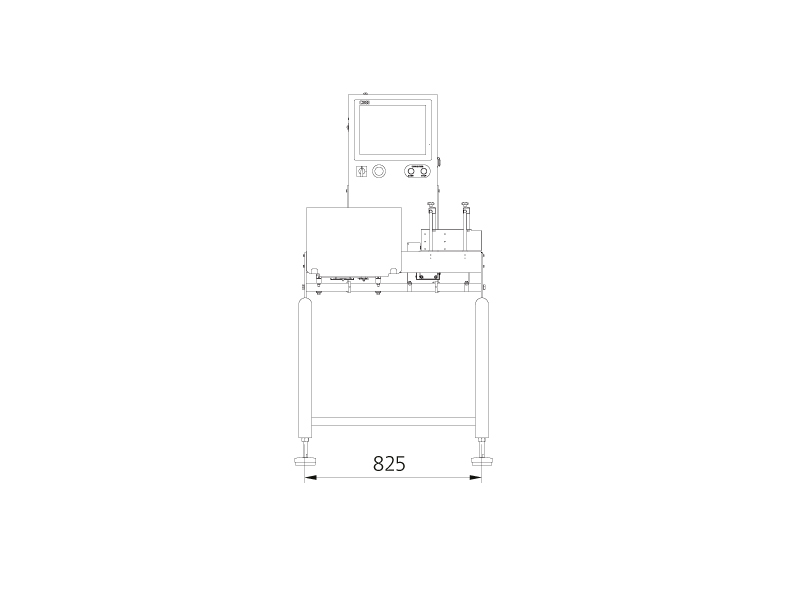

  • cw800_WP05_01

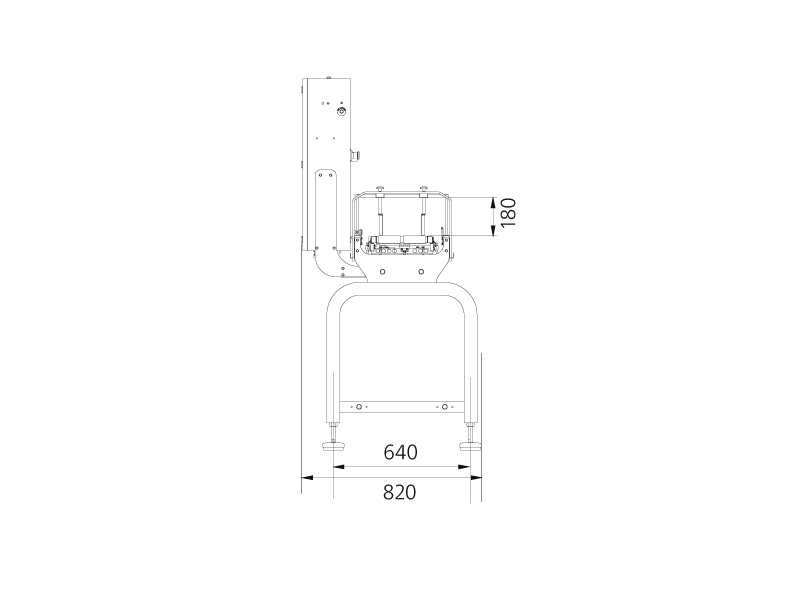

  • cw800_WP05_02

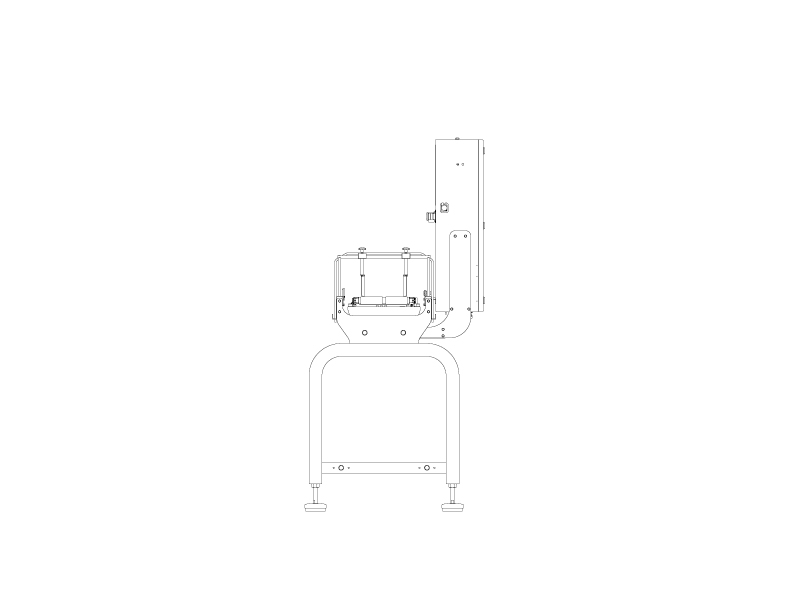

  • cw800_WP05_03

Weighing


Capacity Max 6 kg
Single Interval e= 1g
Pack Speed up to 150 packs per minute
Pack Size   L80-300mm x W40-250mm


Throughput dependant on product weight and size.

Display


Screen 15" Colour LCD touchscreen
Touch panel XGA a-Si TFT LCD Resistive touch


Operation

Weighing Modes Fixed Weight, Average (Emark)
Communication Ethernet, USB, RS232
Operating System Windows 10 OS
Language Multi-lingual Unicode
Software WorldView (embedded application)
Database SQL
Connectivity Remote programming and control
Connectivity to meet industry standards
Customisable output data
Interconnectivity to back-office data management


General


Power Supply 220-240V(115V Option) 50/60Hz AC Single Phase
Operating Temperature 0 to +30°C


Standard Features

Scale Cover 'lift-off' formed polycarbonate
Sensors Overhead retro reflective
Pack Guides Adjustable width pack guides
Conveyors Blue belts

Variations

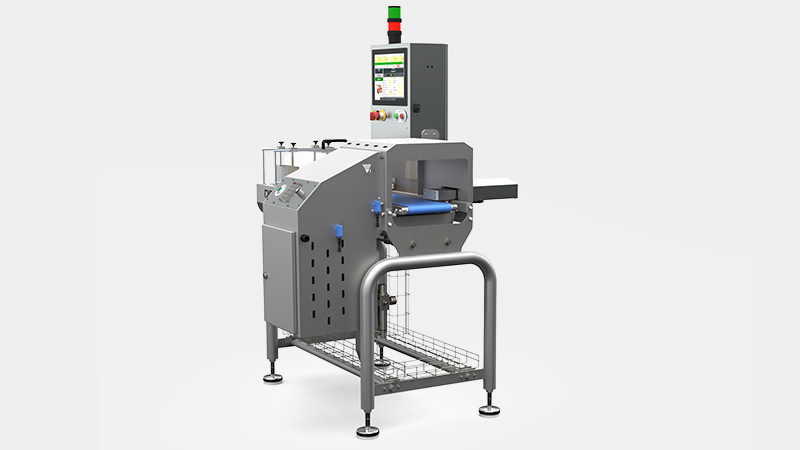

cw800_WP07_01

CW-800 with Rejection (CW-800RJ)

An automated solution that allows you to control the exact weight of your batches, accepting all that meet your specified weight and rejecting those that do not. Visit the CW-800RJ web page for full details.

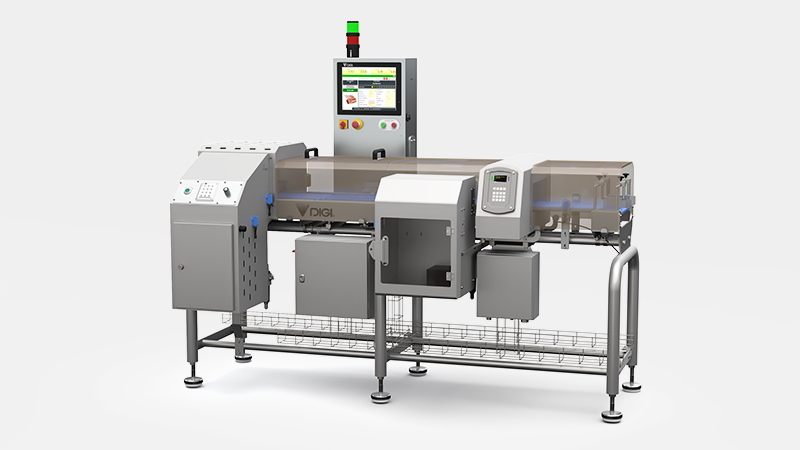

cw800_WP07_02

CW-800 with Metal Detection and Rejection (CW-800 Combi)

Fully automated weighing, metal detection and rejection of your products. Protect your brand by ensuring target weight is met and foreign contaminants are kept out. Visit the CW-800 Combi web page for full details.

Options

Options

Options Barcode scanners/controllers, Metal detection, Rejection, Pack sensors, Pack guides
