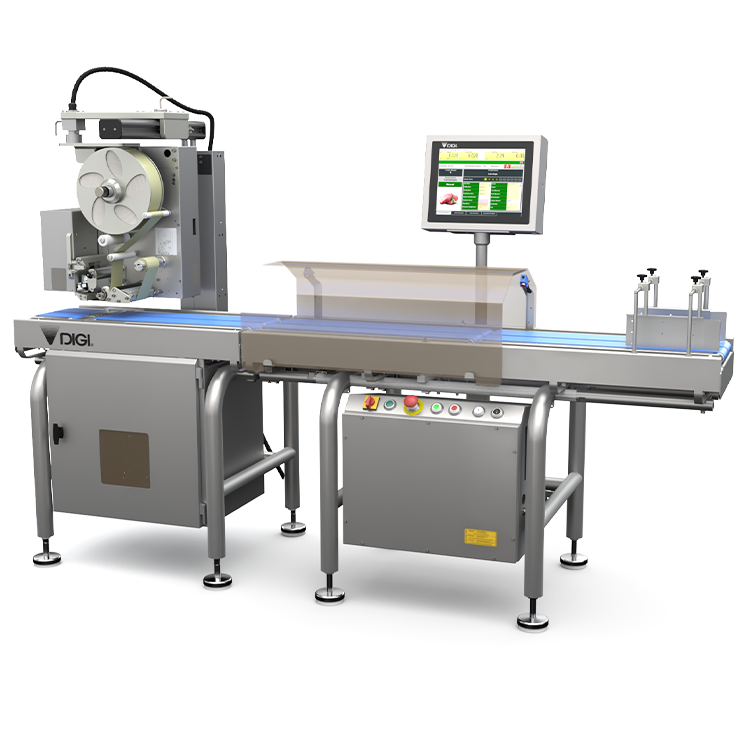

Long Scale Dynamic Weigh Price Labeler

HI-700L II

Food Industry

Main Features

The HI-700L ll Weigh Price Labeler offers both increased efficiency and flexibility, designed for dynamic weighing and labelling of longer packs at up to 60ppm.

Download brochure here
hi700l-2_WP04_01

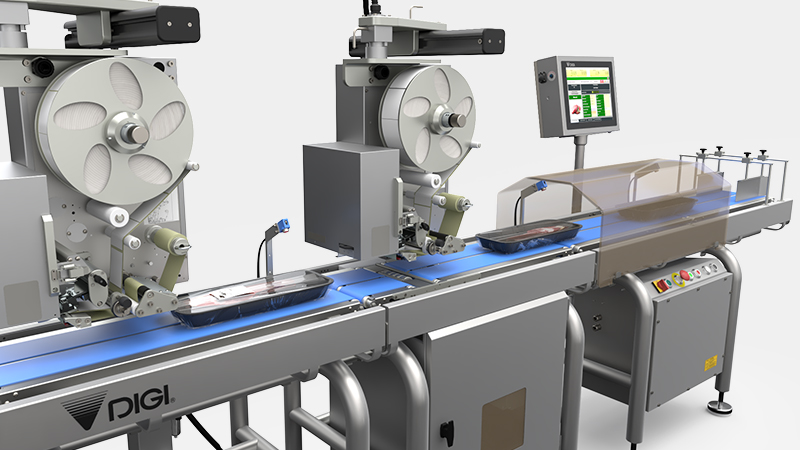

Long Conveyor

The 780mm long conveyor of the HI-700L II allows processing of packs up to 605mm in length, at a speed of up to 60ppm.

hi700l-2_WP04_02

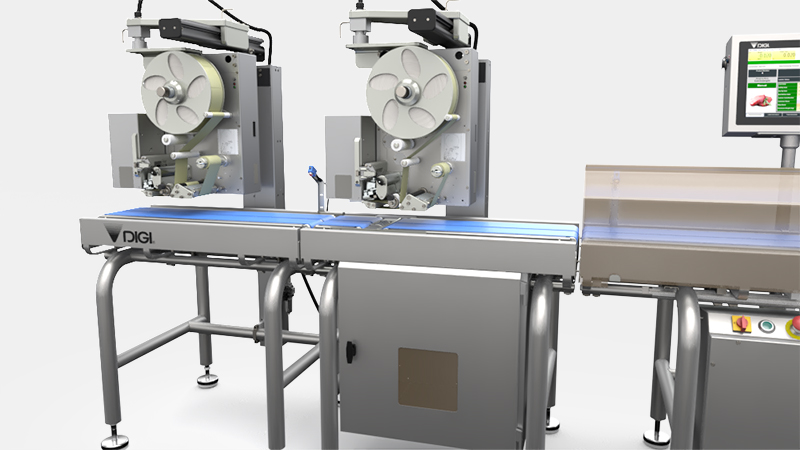

Signature Labeler

The high speed signature labeller provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.

hi700l-2_WP04_03

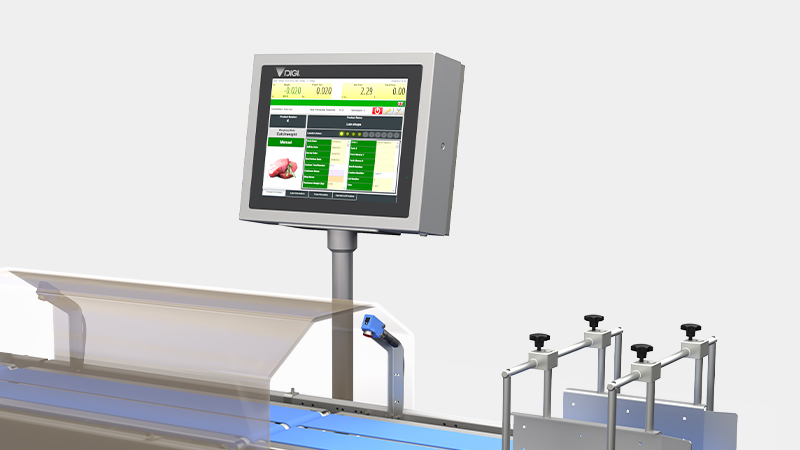

WorldView Operating Software

The HI-700L ll uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labelers.

hi700l-2_WP04_04

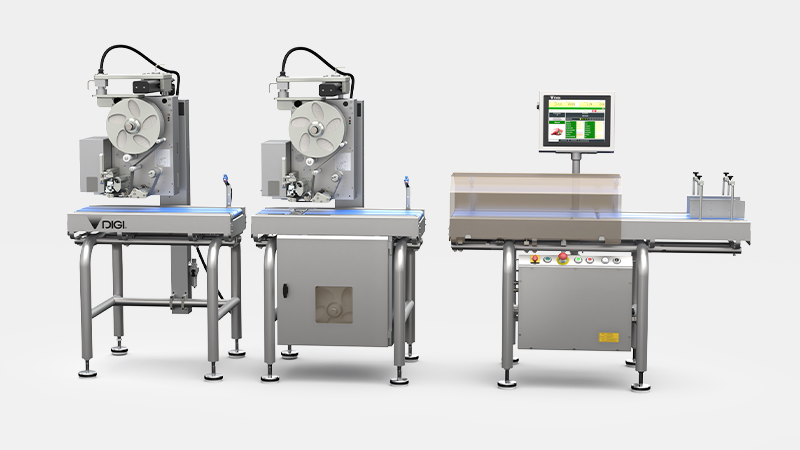

Modular Design

The modular design allows for the addition of extra labeling stations. Add more top and bottom labelers as required, providing a flexible solution to meet your requirements.

Specifications

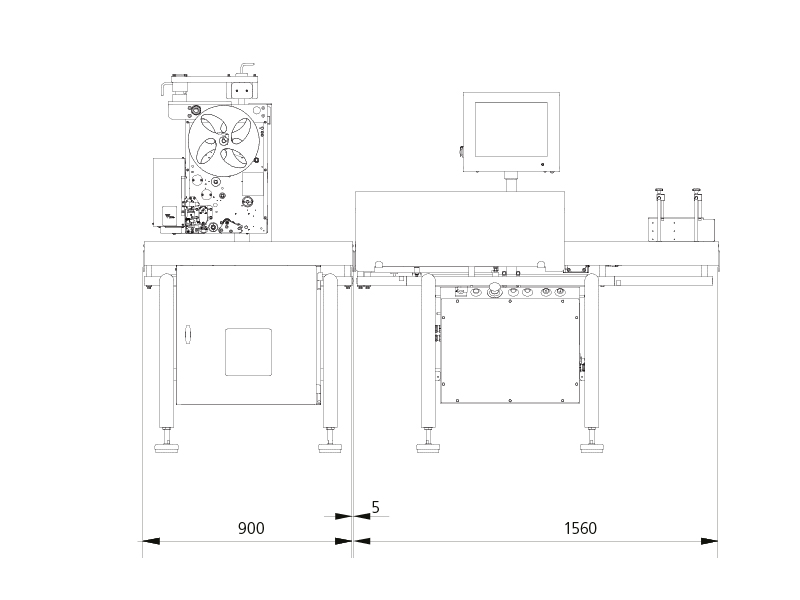

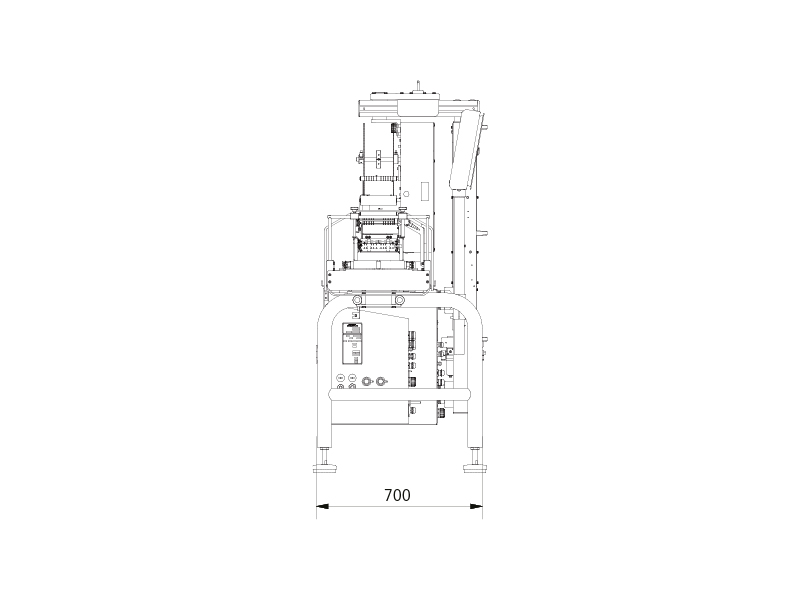

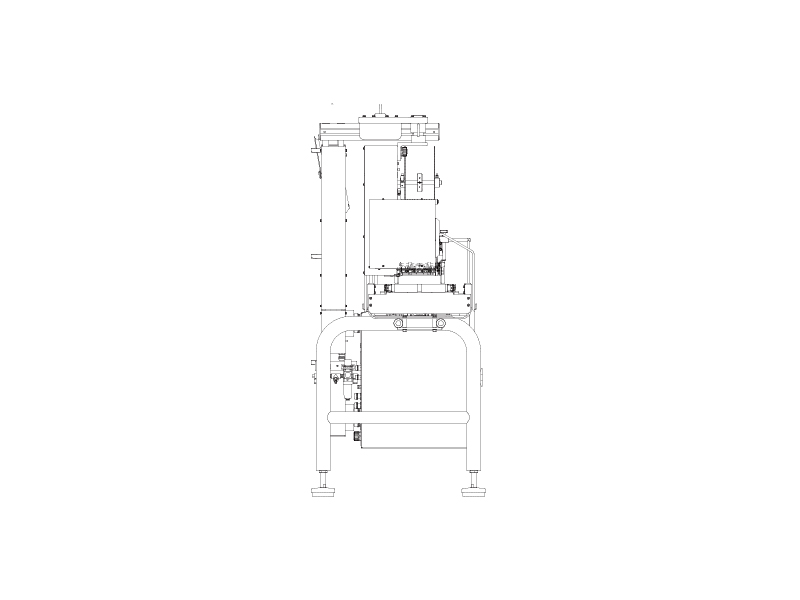

Dimensions

  • hi700l-2_WP05_01
  • hi700l-2_WP05_02
  • hi700l-2_WP05_03

Weighing


Capacity Max 12 kg
Single Interval e= 2g
Pack Speed up to 60 packs per minute
Pack Size   L80-605mm x W40-250mm x H180mm


Throughput dependant on product weight and size.

Display


Screen 15" Colour LCD touchscreen
Touch panel XGA a-Si TFT LCD Resistive touch


Operation

Weighing Modes Catch Weight, Fixed Weight/Price, Average (Emark)
Labelers Multiple labelers/printers
Communication Ethernet, USB, RS232
Operating System Windows 10 OS
Language Multi-lingual Unicode
Software WorldView (embedded application)
Database SQL
Connectivity Remote programming and control
Connectivity to meet industry standards
Customisable output data
Interconnectivity to back-office data management


General


Power Supply 220-240V(115V Option) 50/60Hz AC Single Phase
Operating Temperature 0 to +30°C


Standard Features

Scale Length 780mm
Scale Cover 'lift-off' formed polycarbonate
Sensors Overhead retro reflective
Labellers Signature
Pack Guides S100 tall guides
Conveyors Split blue belts

Variations

hi700l-2_WP07_01

Top and Bottom Labeling

Additional labelers can be integrated into the Weigh Price Labeler, giving extra flexibility to label both the top and under side of each pack simultaneously.
hi700l-2_WP07_02

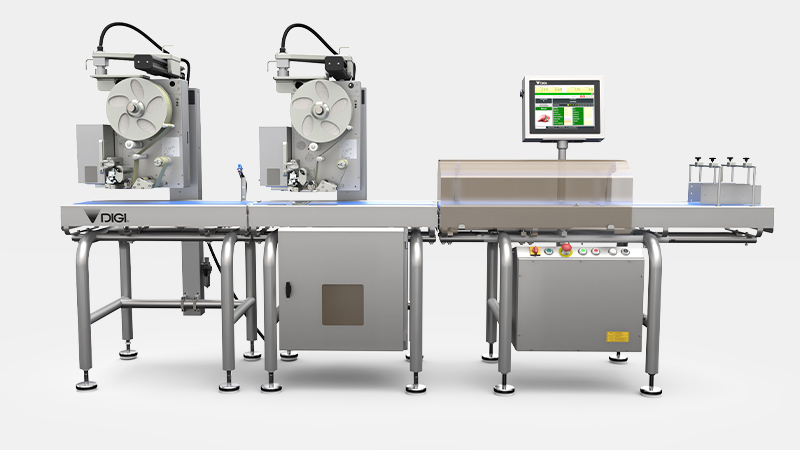

Multi Labeler

Adding additional labelers will allow automatic switching of labelers when one has run out of labels, further limiting the amount of downtime.

Options

hi700l-2_WP09_01

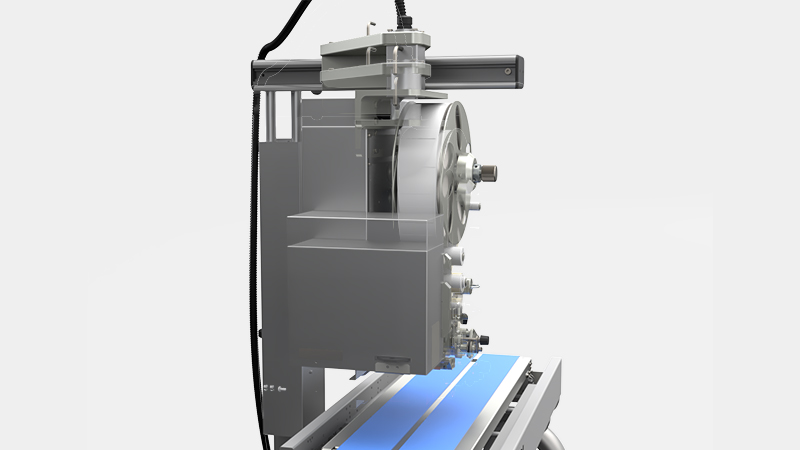

Auto Labeler Height Adjustment

The height of the Signature labeller can be automatically adjusted via the Product Look Up (PLU).
hi700l2_WP09_02

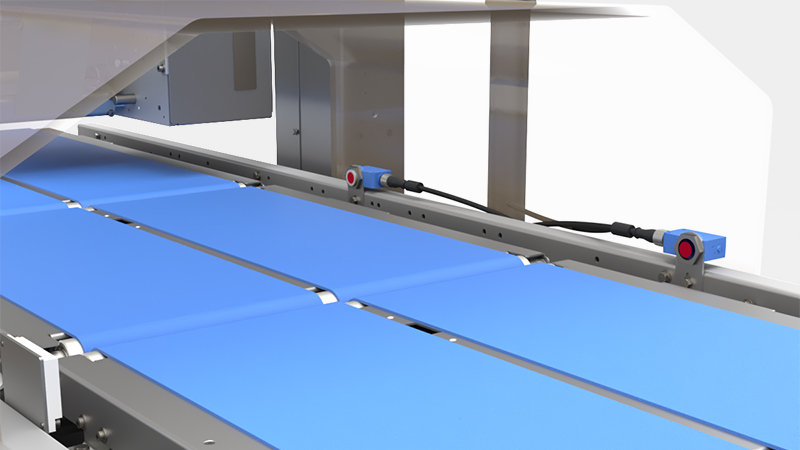

Pack Sensors

Different pack sensors can be chosen, depending on the size and shape of your packs.

Options

Options Pre-printed label applicator, Direct protocol Honeywell (PM43/45), Direct protocol Zebra (ZPL II), Windows printers, High level warning beacon, Rejector, Gravity infeed/outfeed rollers, Salami belts
