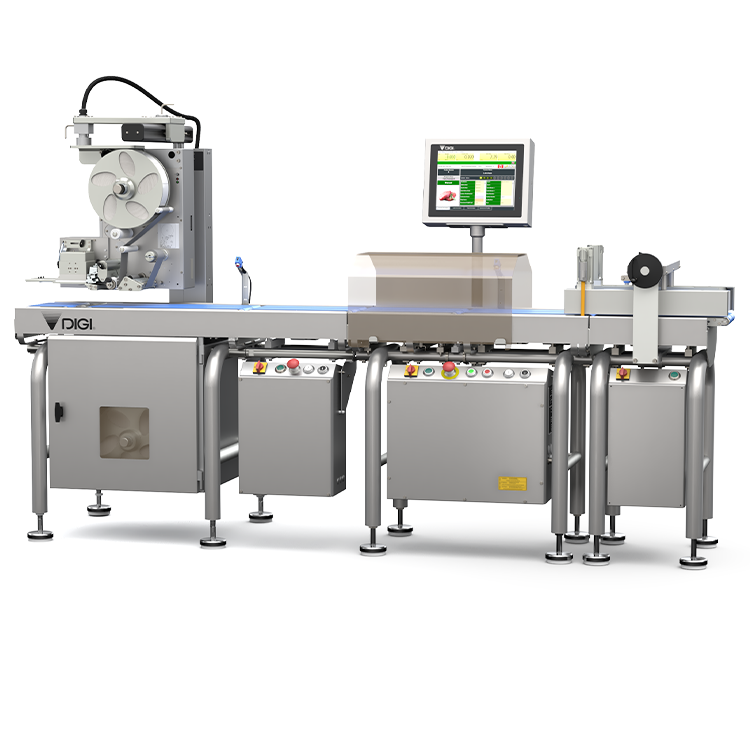

Multi-Labeling High Speed Dynamic Weigh Price Labeler

HI-700HS II

Food Industry

Main Features

The HI-700HS ll high speed Weigh Price Labeler offers both increased efficiency and flexibility. Being powered by PC-based software means networking and integration with existing machines and back office systems is straightforward. Dynamic weighing coupled with DIGI’s high speed Signature labeler allows powerful weigh-price-labelling at up to 160ppm.

Download brochure here
hi700hs-2_WP04_01

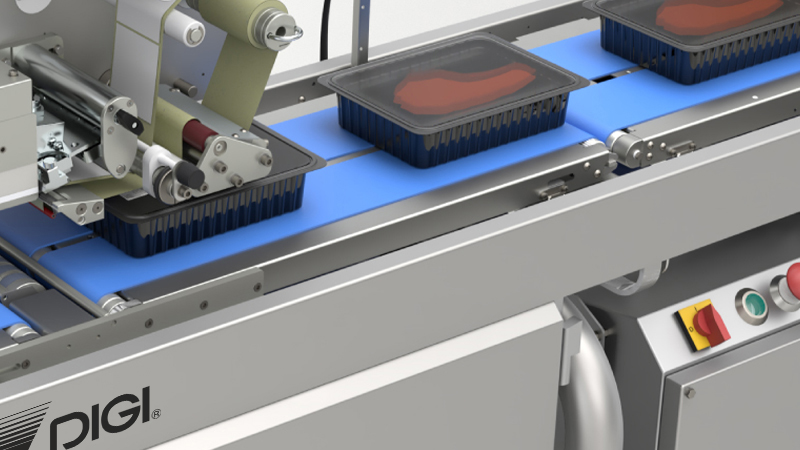

Fast Throughput

The HI-700HS II is designed to meet the fast-throughput required in many factory settings, and this is achieved thanks to features such as a servo belt driven infeed, direct drive conveyor system and DIGI's Signature labeler.

hi700hs-2_WP04_02

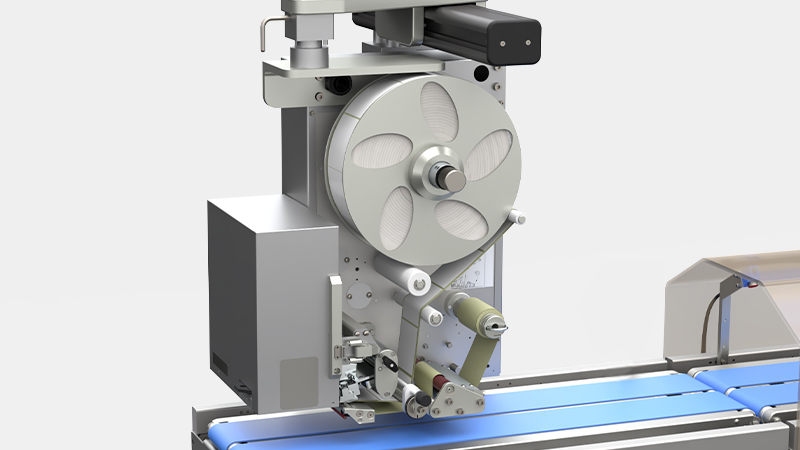

Signature Labeler

The high speed signature labeler provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.

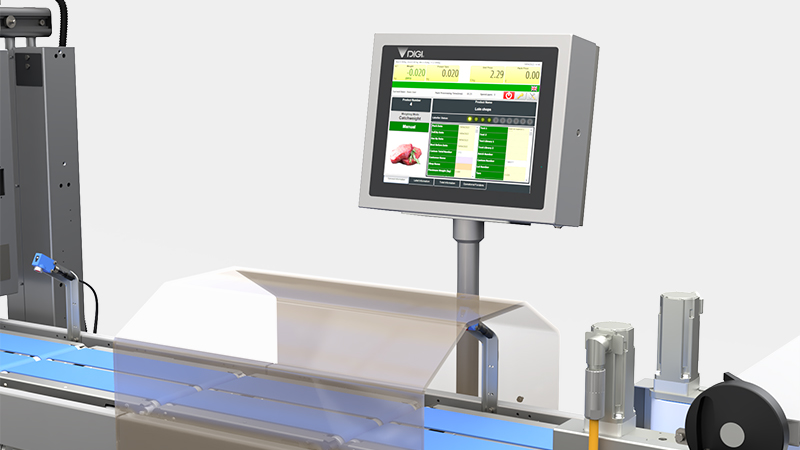

hi700hs-2_WP04_03

WorldView Operating Software

The HI-700HS ll uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labellers.

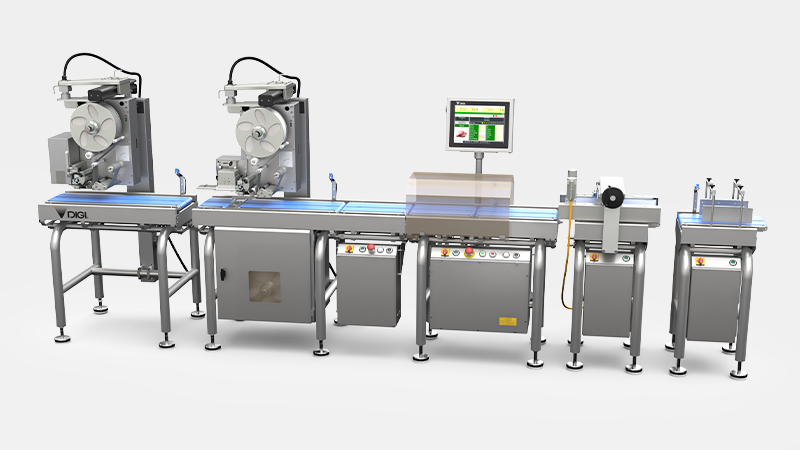

hi700hs-2_WP04_04

Modular Design

The modular design allows for the addition of extra labelling stations. Add more top and bottom labelers as required, providing a flexible solution to meet your requirements.

Specifications

Dimensions

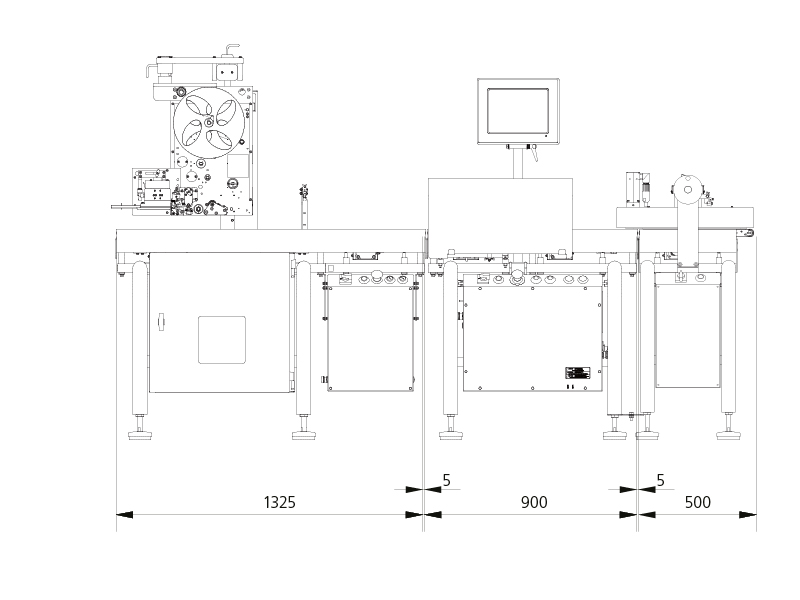

  • hi700hs-2_WP05_01

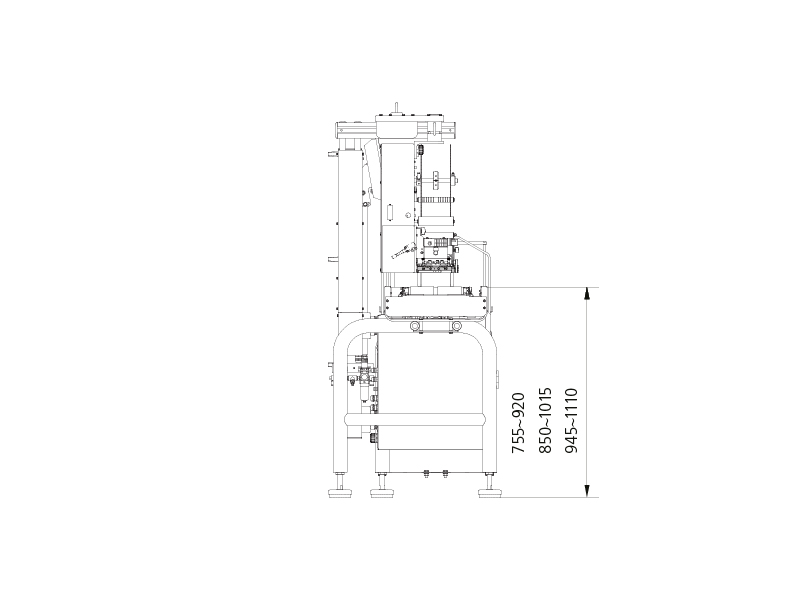

  • hi700hs-2_WP05_02

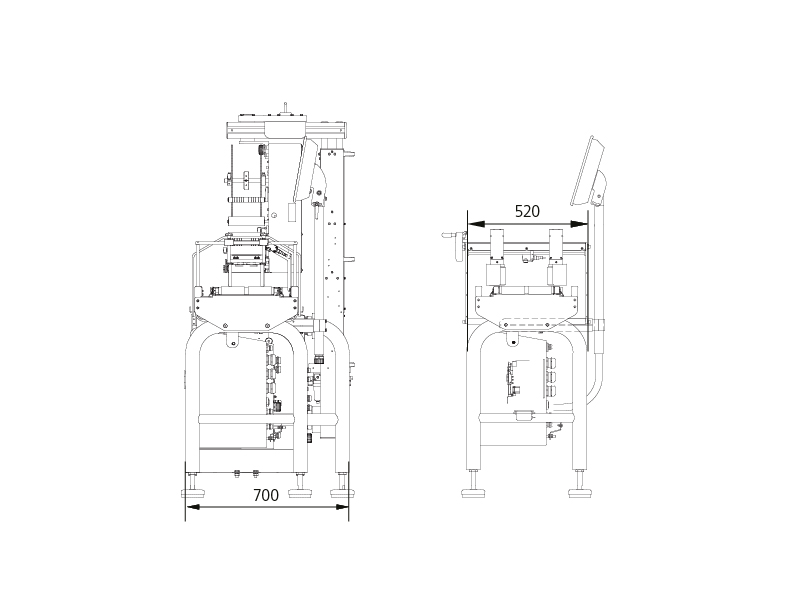

  • hi700hs-2_WP05_03

Weighing


Capacity Max 6 kg
Single Interval e= 1g
Pack Speed up to 160 packs per minute
Pack Size   L80-300mm x W40-250mm x H180mm


Throughput dependant on product weight and size.

Display


Screen 15" Colour LCD touchscreen
Touch panel XGA a-Si TFT LCD Resistive touch


Operation

Weighing Modes Catch Weight, Fixed Weight/Price, Average (Emark)
Labelers Multiple labelers/printers
Communication Ethernet, USB, RS232
Operating System Windows 10 OS
Language Multi-lingual Unicode
Software WorldView (embedded application)
Database SQL
Connectivity Remote programming and control
Connectivity to meet industry standards
Customisable output data
Interconnectivity to back-office data management


General


Power Supply 220-240V(115V Option) 50/60Hz AC Single Phase
Operating Temperature 0 to +30°C


Standard Features

Scale Length 400mm
Scale Cover 'lift-off' formed polycarbonate
Sensors Overhead retro reflective
Labelers Signature
Pack Guides S100 tall guides
Conveyors Split blue belts

Variations

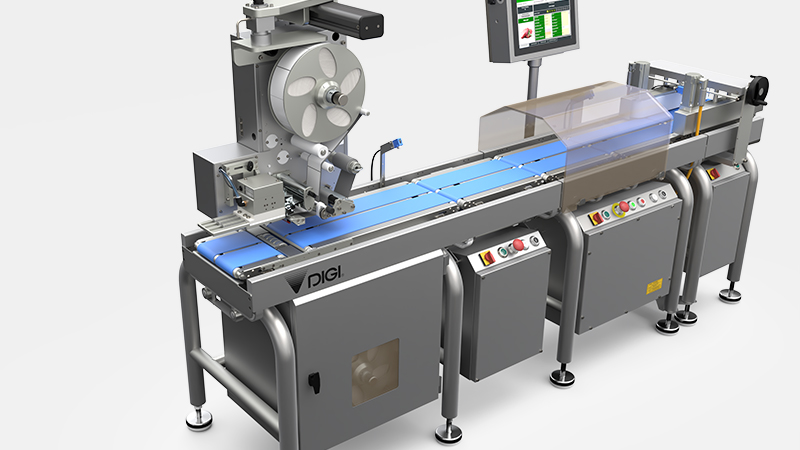

hi700hs-2_WP07_01

Top and bottom labeling

Additional labelers can be integrated into the Weigh Price Labeler, giving extra flexibility to label both the top and under side of each pack simultaneously.
hi700hs-2_WP07_02

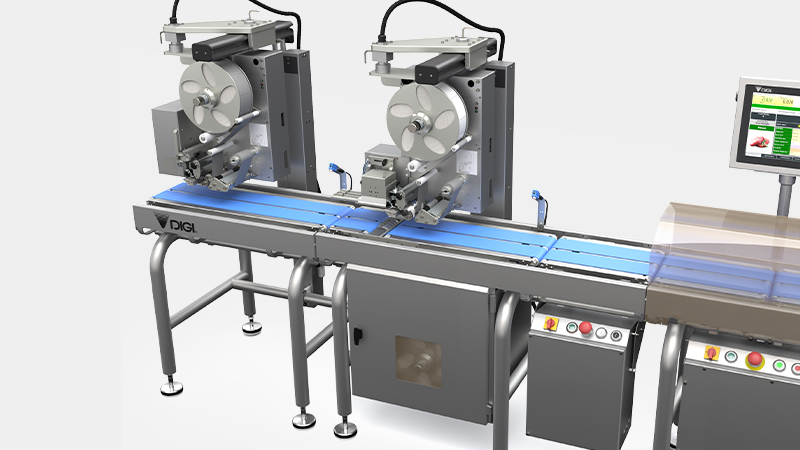

Multi Labeler

Adding additional labelers will allow automatic switching of labelers when one has run out of labels, further limiting the amount of downtime.

Options

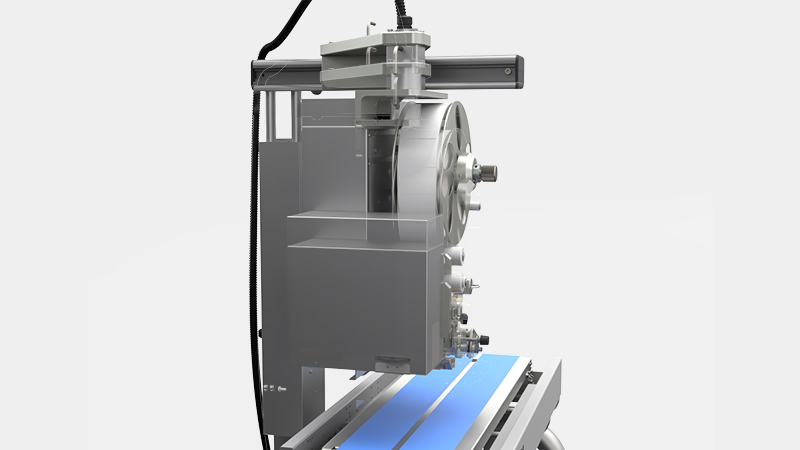

hi700hs-2_WP09_01

Auto Labeler Height Adjustment

The height of the Signature labeller can be automatically adjusted via the Product Look Up (PLU).

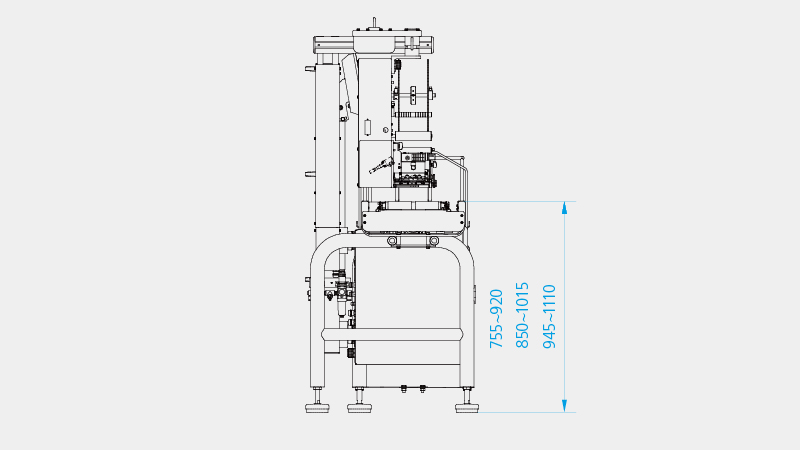

hi700hs-2_WP09_02

Frame Height Adjustment

The height of the HI-700 II's frame can be adjusted to better integrate with existing lines.
hi700hs-2_WP09_03

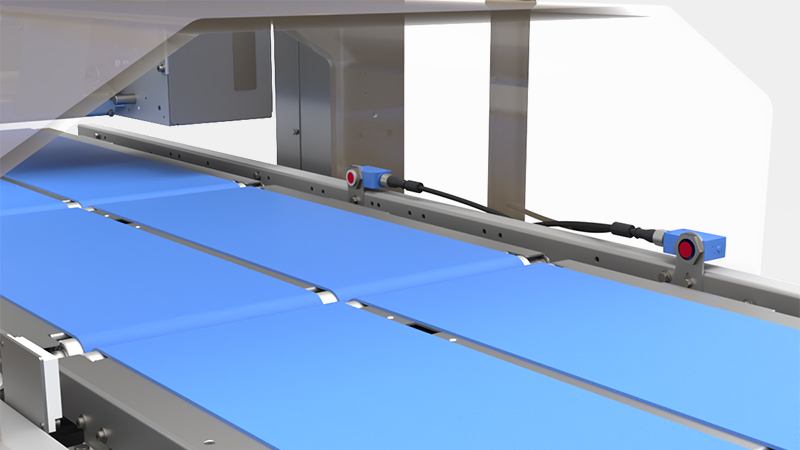

Pack Sensors

Difference pack sensors are available, further optimising the HI-700HS II to suit the desired factory setting.

Options

Options Pre-printed label applicator, Direct protocol Honeywell (PM43/45), Direct protocol Zebra (ZPL II), Windows printers, High level warning beacon, Rejector
