Main Features
Let SM-6000 redefines user experience with our state-of-the-art innovation! Fully equipped with the latest technologies and enchanting features that provides smooth and efficient practicality for both operators and shoppers. Generate additional revenue and brand awareness with 15” high contrast colour customers display.
Relish in the swift updating speed of e.Labels with Hi-Touch or InfoTags. The low-profile platter and anti-stick operator screen with capacitive touch is one of the many features designed for this model.
Reinvent the daily experience with the latest SM-6000 scale today!

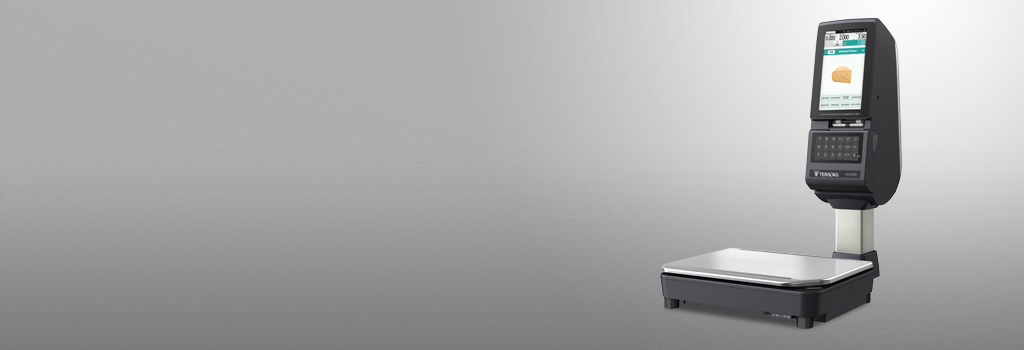

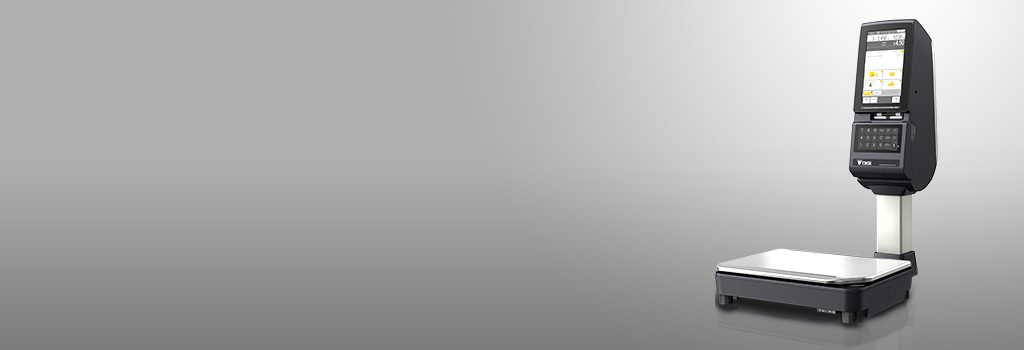

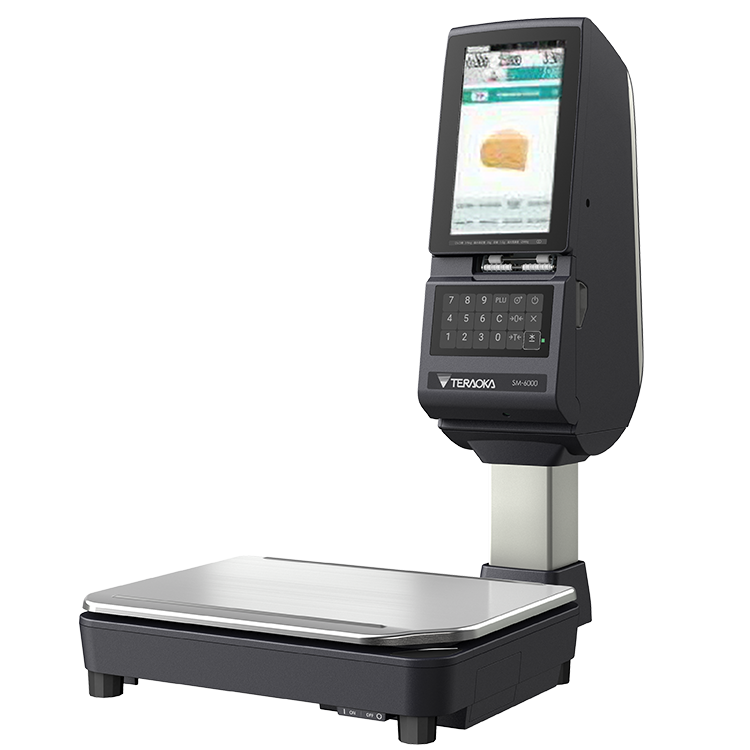

SM-6000 – A PC scale with innovative design and three groundbreaking technologies
Be Free from Limits, the SM-6000 is equipped with 3 unique technologies that free up end users’ time and space, challenging the status quo. The SM-6000’s unique and functional design allows for a pleasant and customer-centric shopping experience.
e.Sense
e.Sense is a motion-activated sensor that can be installed on container or dispenser to transmit the PLU code automatically to the SM-6000.
Easy to set up, this eliminates error and effectively reduces shrinkage while allowing ground staff to be deployed to other high-value activities such as inventory management.
Bring-Your-Own-Container
With the SM-6000, customers can enjoy a sustainable and packaging-free shopping experience by bringing their own containers. The SM-6000 uses radio frequency identification technology to detect the container's registered tare weight through its RFID sticker label, allowing customers to purchase only the amount they need, preventing unnecessary wastage for both retailers and consumers.

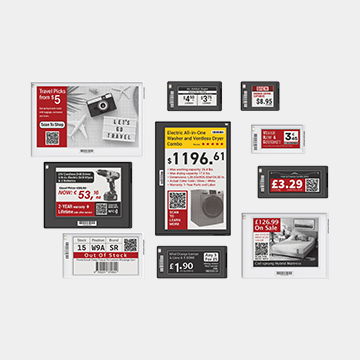

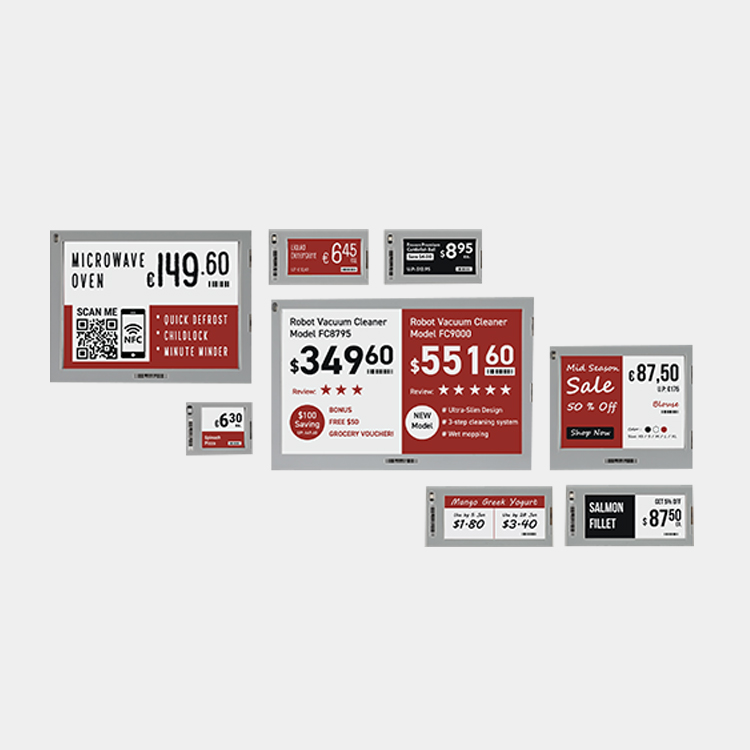

e.Label Hi-Touch remote preset keys
Do away with preset keys by using the tap sensor technology. Operators can now easily call up the correct PLU via the e.Label with Hi-Touch. The responsive and competent system reduces human errors and eliminates the need to memorise PLU numbers.
Equipped with the IP67 rating, e.Label is dust and water resistant and is compatible for use with all DIGI PC scales. It is designed with a high contrast ePaper display, ensuring high screen readability for your customers. Engage with your customers by customising with QR codes that can be accessed through a smartphone.

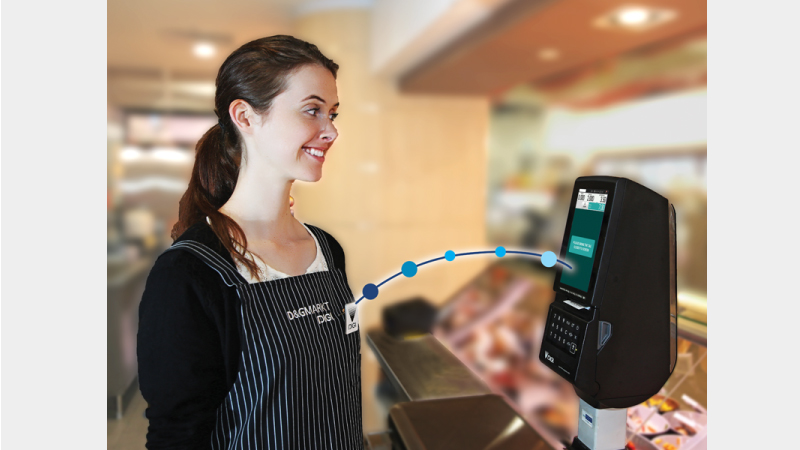

Speed ID
Replace manual key in of a clerk password with the near field identification feature that offers a hassle-free user login. It also prevents unauthorised access while the built-in operational log ensures accountability and transparency.
Linerless labels with auto-cutter
Fit in twice as many label prints on a single label roll without the liner film sheet and enjoy zero backing paper waste at work! Create different label prints of variable lengths at ease and reduce roll replacement for workplace efficiency.
Revel in extra savings on storage and logistics costs as linerless labels require lesser storage space.

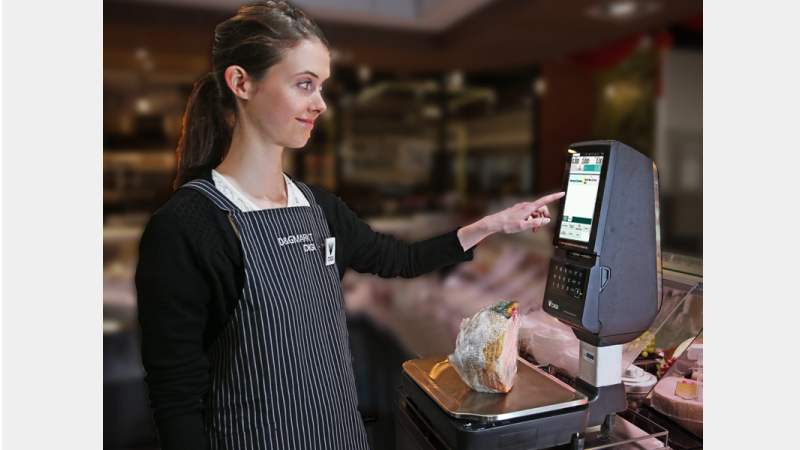

Portrait screen with Capacitive touch
Portrait display has never been more comfortable! Operators can now fully utilise the display screen with videos for advertisements and branding.
Designed to mimic user's daily experience with smartphone and electronic gadgets, the capacitive touch is highly responsive and is easy to clean.
Queue management
Redefine customers’ queuing experience with effective queue management solution! Queue management keeps customers informed of their queue status, cutting down waiting time and minimises walkaways.
Operators can also monitor queue status through queue indicator to manage customer flow efficiently.

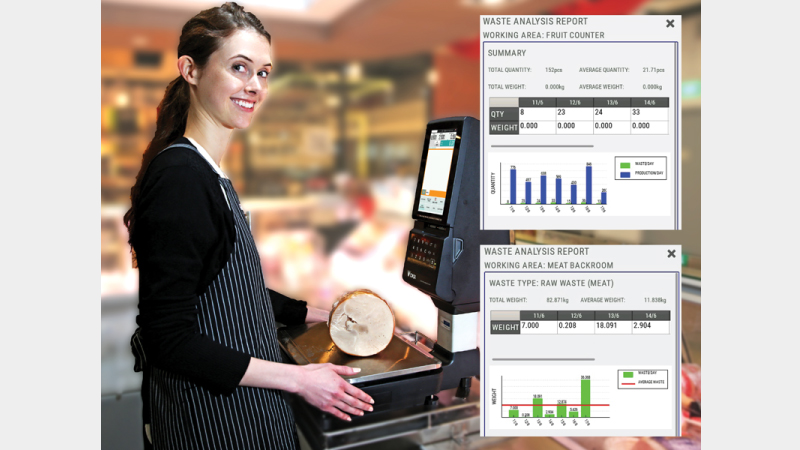

Waste management
Track and managed wastage effortlessly with indicative reports from SM-6000! Wastage can be accurately captured by expiry date or weight of items.
Our solution helps your business boost profitability and reduce unnecessary waste with an in-depth understanding of customers shopping patterns with these reports.
Power saving
In line with the 80PLUS silver credential, SM-6000 let businesses enjoy savings on electricity during operation hours!
Specifications

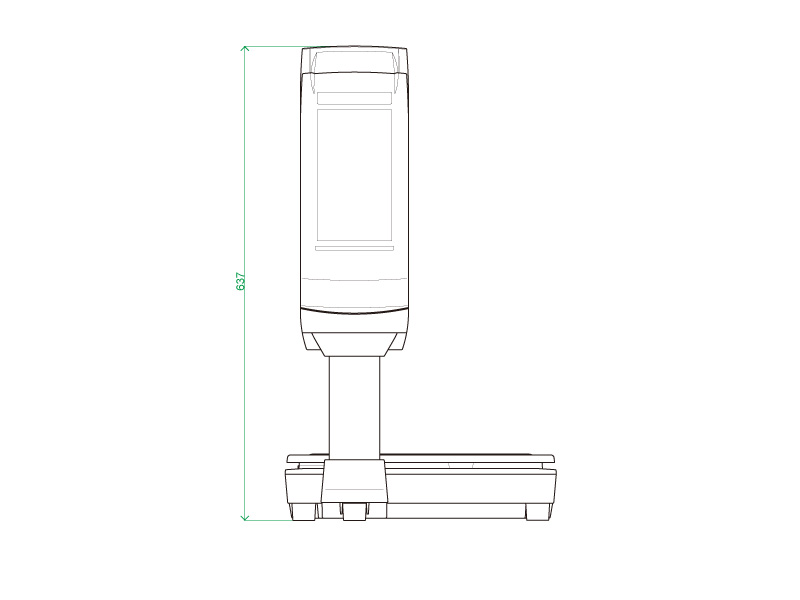

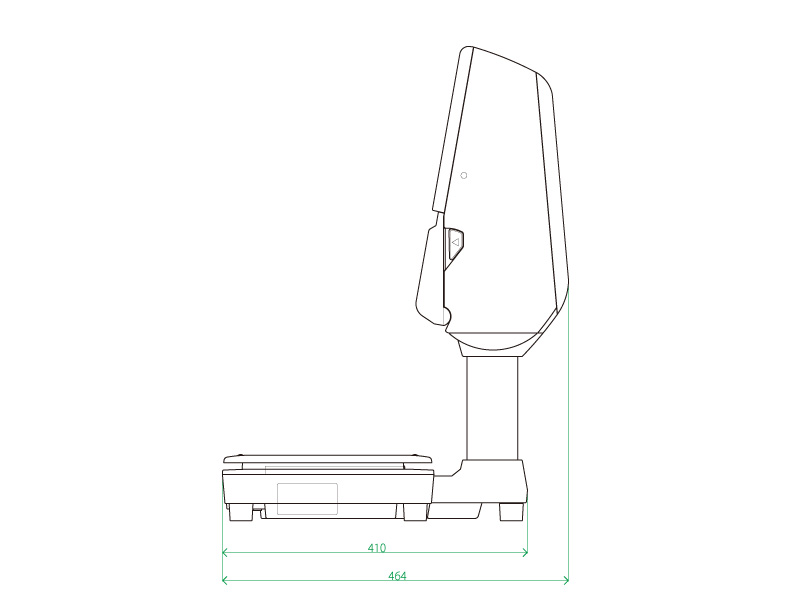

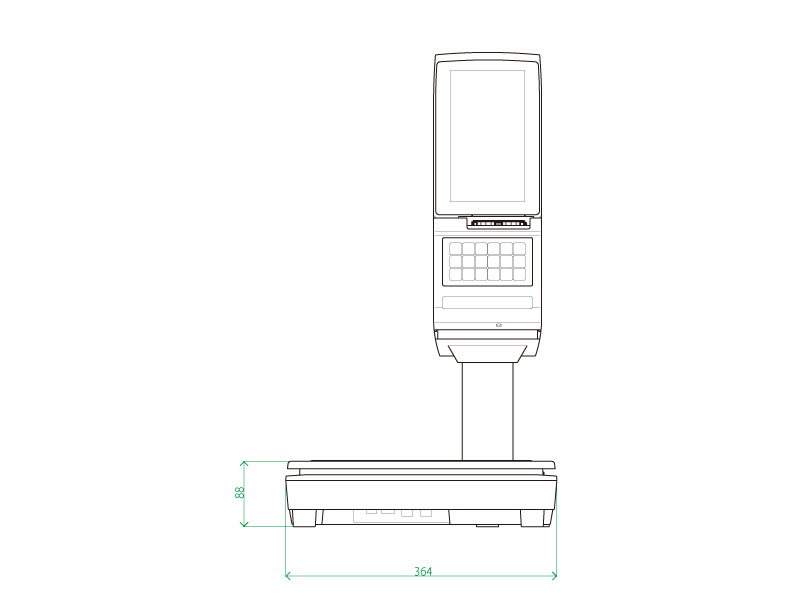

Dimensions
Weighing
| Capacity | Max 6kg | Max 15kg/ 30lb | Max 30kg | |
|---|---|---|---|---|
| Single Interval | 1/ 3,000 | e= 2g | e= 5g/ 0.01lb | e= 10g |
| 1/ 6,000 | e= 1g | - | e= 5g | |
| 1/ 7,500 | - | e= 2g | - | |
| Capacity | Max 3/ 6kg | Max 6kg/ 15kg | Max 15kg/ 30kg | |
| Multi Interval | 1/ 3,000 | e= 1/ 2g | e= 2/ 5g | e= 5/ 10g |
General
| Display Resolution | 1/ 3,000, 1/ 6,000, 1/ 7,500 | ||||
|---|---|---|---|---|---|
| Keyboard | 18 x Keypad (For 8" Operator only) | ||||
| Label / Receipt Types | Linerless With Auto-Cutter | ||||
| Label / Receipt Roll Diameter | Max 95mm | ||||
| Label / Receipt Roll Width | Max 62mm | ||||
| Label / Receipt Print Width | Max 61mm | ||||
| Label / Receipt Printing Speed | Max 150mm / second* | ||||
| Label / Receipt Print Resolution | 300 dpi | ||||
| Power Source | Compiled to 80PLUS Power Saving** | ||||
| Operating Temperature | -10°C to +40°C | ||||
| Humidity | 15% to 85% RH Non-Condensation | ||||
| Standard Interface | Ethernet 10/ 100 Base T, 4 x USB 2.0, RJ11 | ||||
** 100-120Vac Gold (North America, Canada and Japan)
210-240Vac Silver (European, UK and most of Asia)
| Model | Type | Dimension W x D x H (mm) |
Operator display | Customer display | Net weight |
|---|---|---|---|---|---|
| SM-6000 EV | Elevated | 364 x 464 x 606 | 8" TFT WVGA with Capacitive Touch (480 x 800) |
8" TFT WVGA (480 x 800) |
13.3 kg |
| SM-6000 EV PLUS | 411 x 478 x 645 | 15" TFT XGA (768 x 1024) |
14.9 kg | ||
| SM-6000 EV (15) | 411 x 464 x 762 | 15" TFT XGA with Capacitive Touch (768 x 1024) |
8" TFT WVGA (480 x 800) |
14.9 kg | |
| SM-6000EV(15) PLUS | 411 x 460 x 766 | 15" TFT XGA (768 x 1024) |
21 kg | ||
| SM-6000 EV HC | High Counter | 518 x 284 x 429 | 8" TFT WVGA with Capacitive Touch (480 x 800) |
8" TFT WVGA (480 x 800) |
12.5 kg |
| SM-6000 EV HC PLUS | 636 x 284 x 459 | 15" TFT XGA (768 x 1024) |
14.1 kg | ||
| SM-6000 SSP SMART | AI Self-Service | 364 x 464 x 762 | 15" TFT XGA with Capacitive Touch (768 x 1024) |
― | 16.7 kg |

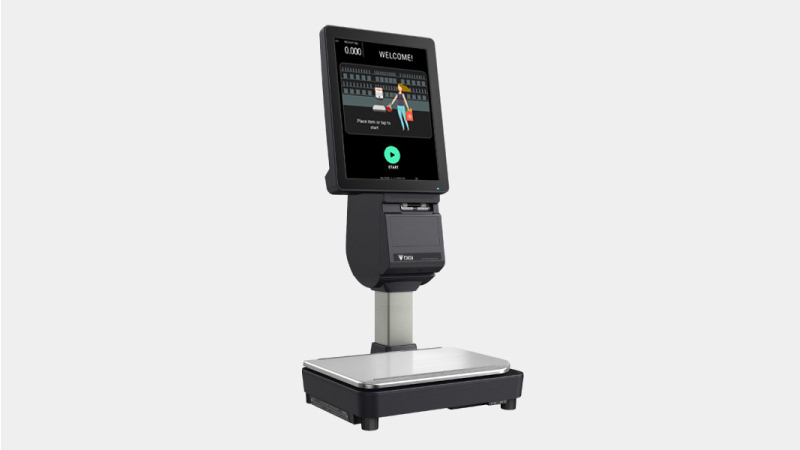

| SM-6000 SSP (8) | Self-Service | 364 x 464 x 606 | 8" TFT WVGA with Capacitive Touch (480 x 800) |
― | 13.3 kg |
| SM-6000 SSP (15) | 364 x 464 x 762 | 15" TFT XGA with Capacitive Touch (768 x 1024) |
14.9 kg | ||
| SM-6000 SSR (8) | 515 x 284 x 552 | 8" TFT WVGA with Capacitive Touch (480 x 800) |
― | 13.7 kg | |
| SM-6000 SSR (15) | 583 x 284 x 708 | 15" TFT XGA with Capacitive Touch (768 x 1024) |
15.6 kg |
Variations

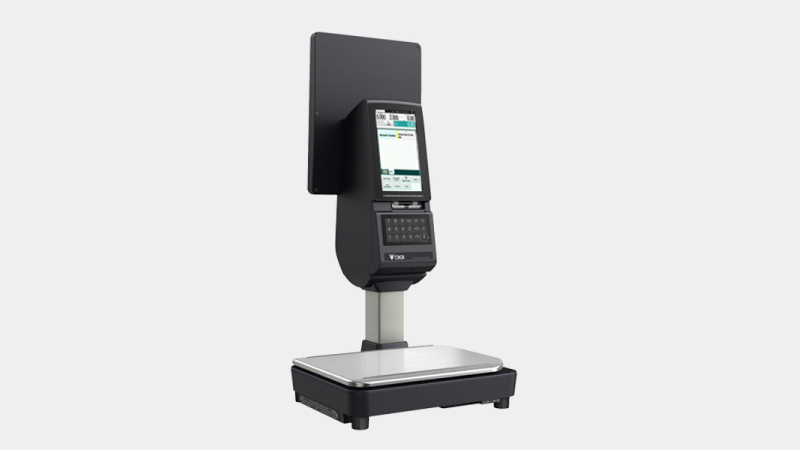

Elevated type with high-mount customer display
SM-6000 EV PLUS
Options
Factory options
