Mid-Speed Weigh Price Labeller For Wider Products
MI-700W II
Food IndustryMain Features

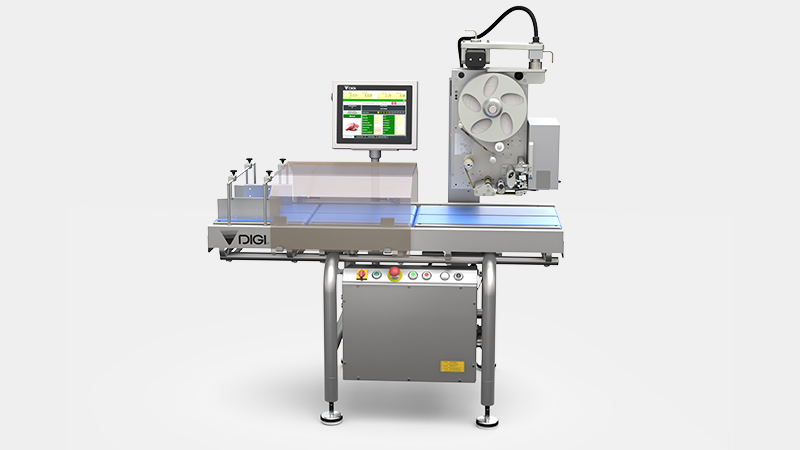

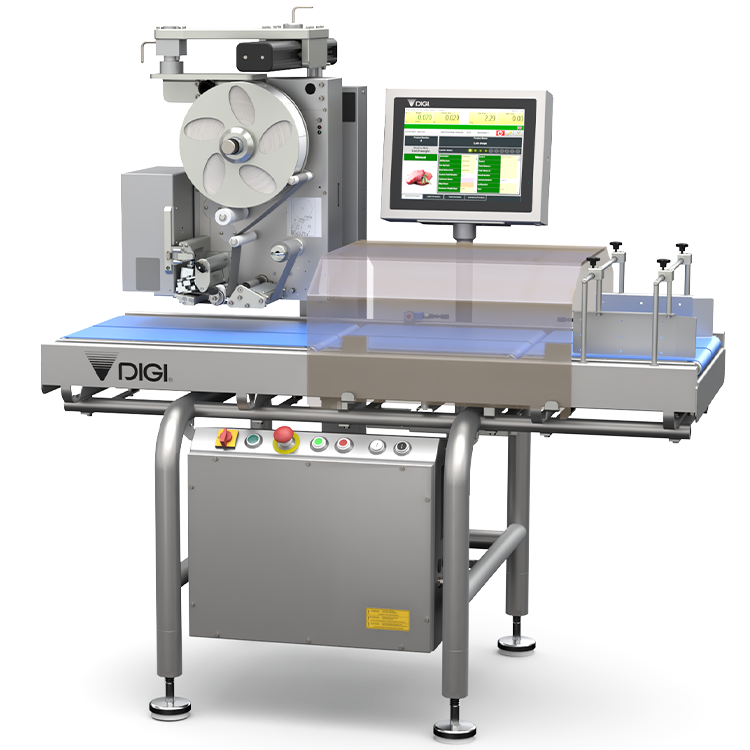

The MI-700W ll is a mid-range Weigh Price Labeller, featuring a single frame design and wider conveyors, processing wider products at a speed of up to 80ppm. Running PC-based software, networking and integration with existing machines and back office systems is straightforward.

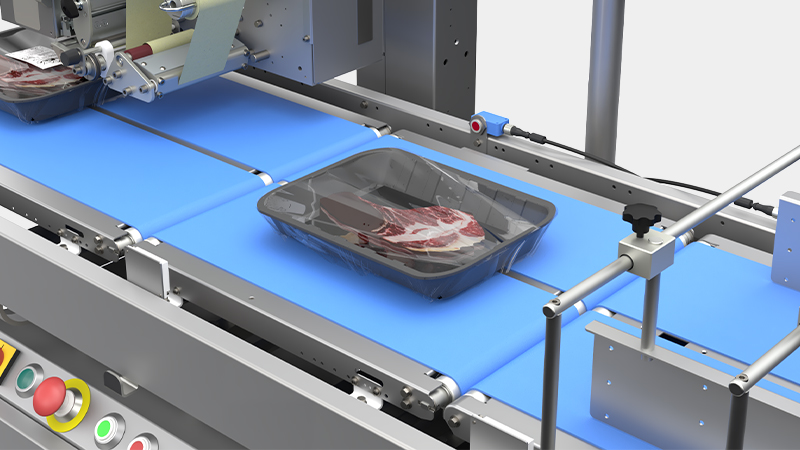

Wide Conveyors
The 400mm wide conveyor allows the processing of packs up to 400mm wide at a speed of up to 80ppm.
Signature Labeller
The high speed signature labeller provides fast application, large label roll diameter and 300dpi thermal print head. Different label applicators are available.
Specifications

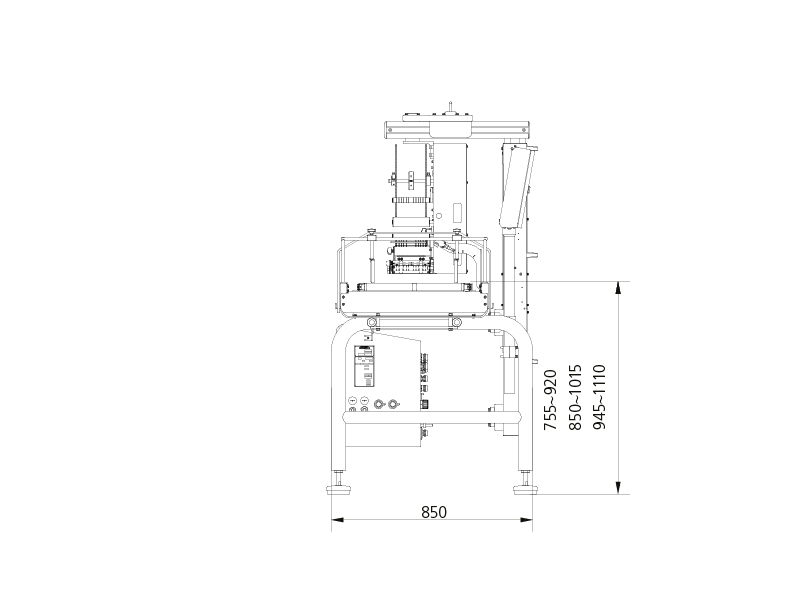

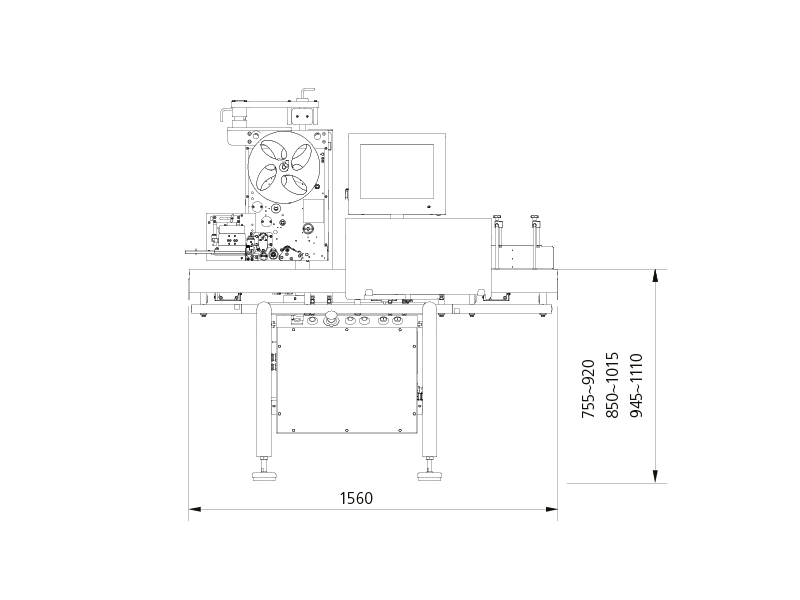

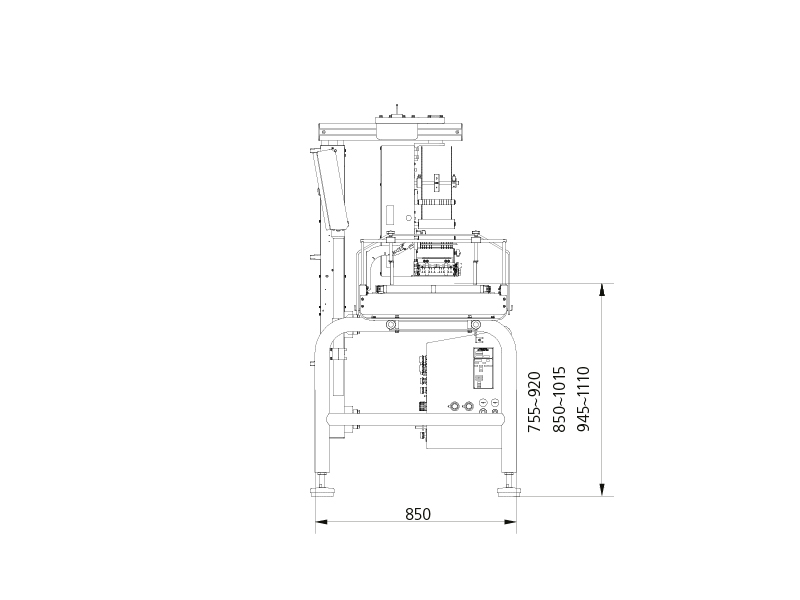

Dimensions
Weighing
| Capacity | Max 6 kg (or greater) | Max 12kg (or greater) | ||||
|---|---|---|---|---|---|---|
| Single Interval | e= 1g | e= 2g | ||||
| Pack Speed | up to 80 packs per minute | |||||
| Pack Size | L80-300mm x W40-400mm x H180mm | |||||
Display
| Screen | 15" Colour LCD touchscreen |
|---|---|
| Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
| Weighing Modes | Catch Weight, Fixed Weight/Price, Average (Emark) |
|---|---|
| Labellers | Multiple labellers/printers |
| Communication | Ethernet, USB, RS232 |
| Operating System | Windows 10 OS |
| Language | Multi-lingual Unicode |
| Software | WorldView (embedded application) |
| Database | SQL |
| Connectivity | Remote programming and control |
| Connectivity to meet industry standards | |
| Customisable output data | |
| Interconnectivity to back-office data management |
General
| Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
|---|---|
| Operating Temperature | 0 to +30°C |
Standard Features
| Scale Length | 400mm |
|---|---|
| Scale Cover | 'lift-off' formed polycarbonate |
| Sensors | Overhead retro reflective |
| Labellers | Signature |
| Pack Guides | S100 tall guides |
| Conveyors | Split blue belts |
Options
Auto Labeller Height Adjustment
The height of the Signature labeller can be automatically adjusted via the Product Look Up (PLU).

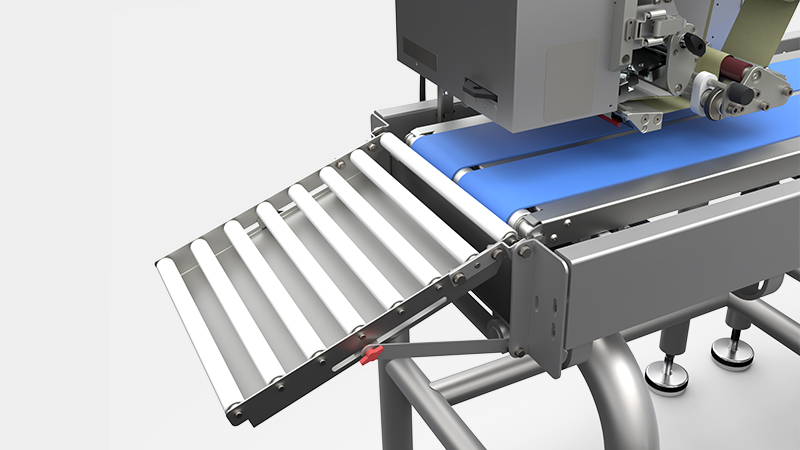

Gravity Infeed/Outfeed Rollers
Gravity infeed/outfeed rollers can be added to the MI-700W II for transport of your products without the need for power.
