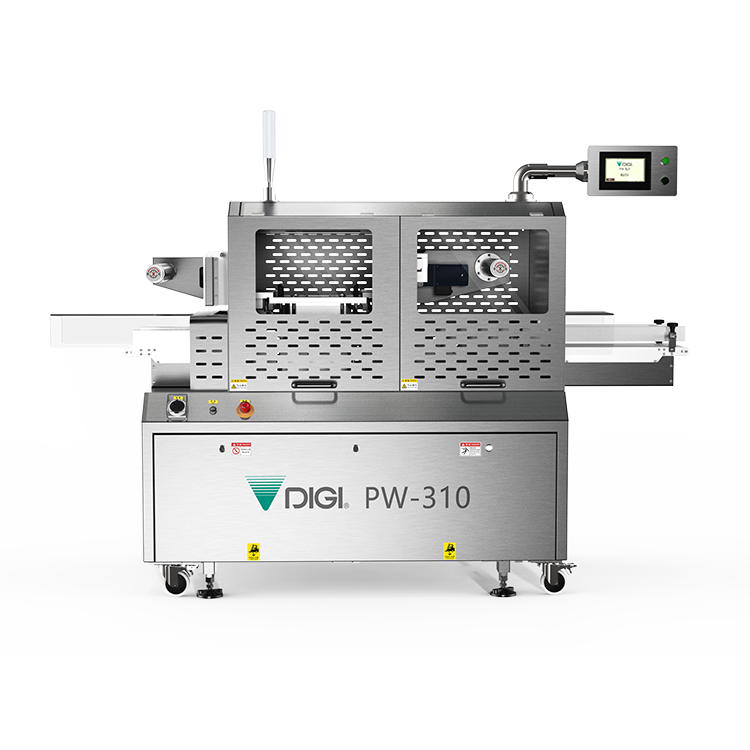

pw310ma_WP02_01

Compact Gas Flushed MAP Packaging Machine

PW-310MA

Gıda Endüstrisi

Ana Özellikler

PW-310MA is a compact gas flush MAP packaging machine ideal for packaging meat, seafood, vegetables and cooked foods. MAP packaging effectively extends the shelf life of food while protecting its original freshness, flavor, and appearance.

Extend Product Shelf Life

MAP packaging for food preservation can greatly extend the product shelf-life, lock in the nutritional components, and retain natural flavor of the food - reducing food-loss and creating a more sustainable retail ecosystem.

pw310ma_WP04_02

Improve Productivity

Compared to traditional vacuum pump equipment, the PW-310MA's gas flush design can achieve the required gas percentage in the tray faster - Using MAP mode the maximum production capacity is 12 cycles per minute, while switching to normal mode (seal only) the maximum production capacities 15 cycles per minute.

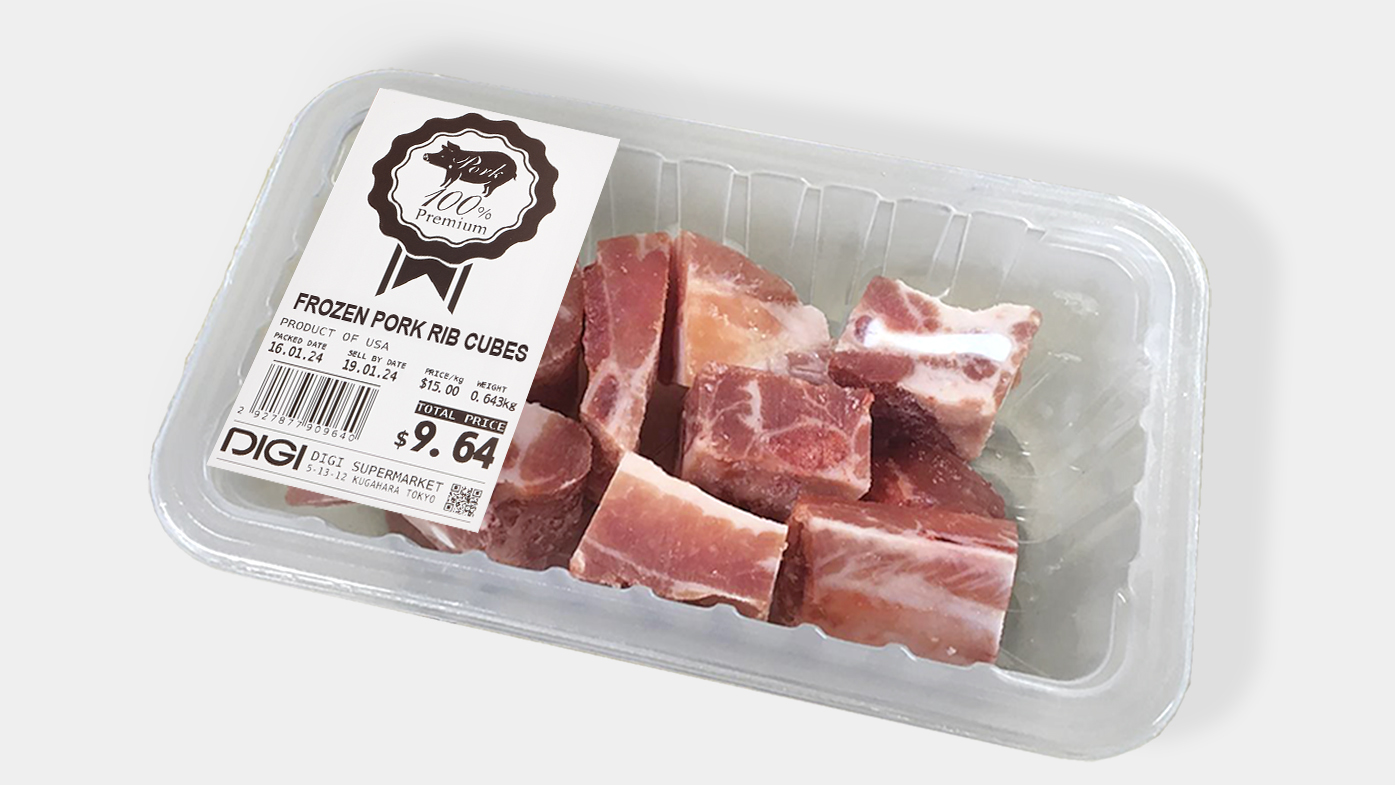

pw310ma_WP04_03

Seamless integration with DIGI labelers

The PW-310MA integrates smoothly with DIGI's labeling solutions, enabling efficient and sustainable operations through the implementation of eco-friendly, versatile length Linerless Labels.

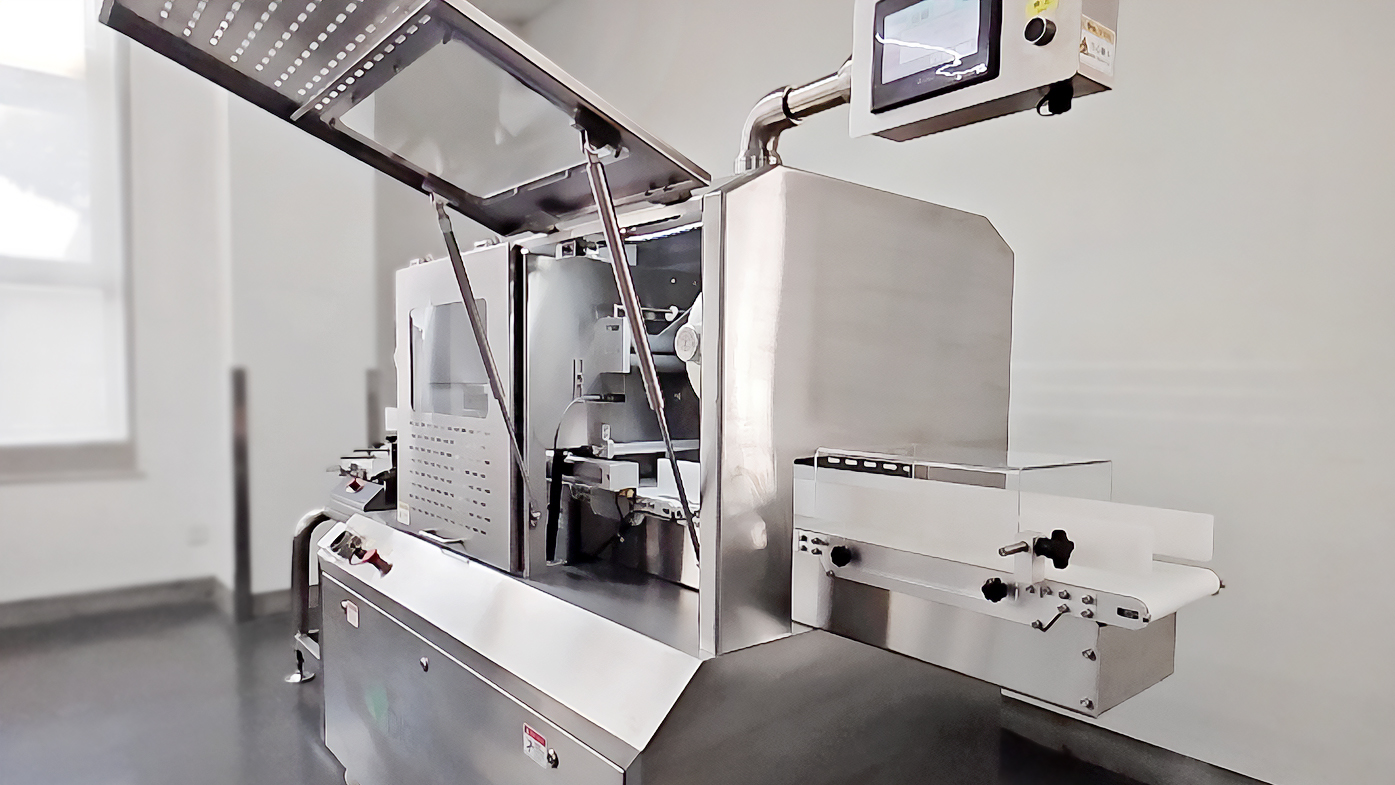

pw310ma_WP04_04

Easy maintenance

The machine's casing features large access panels for swift maintenance and troubleshooting.

Teknik Özellikler

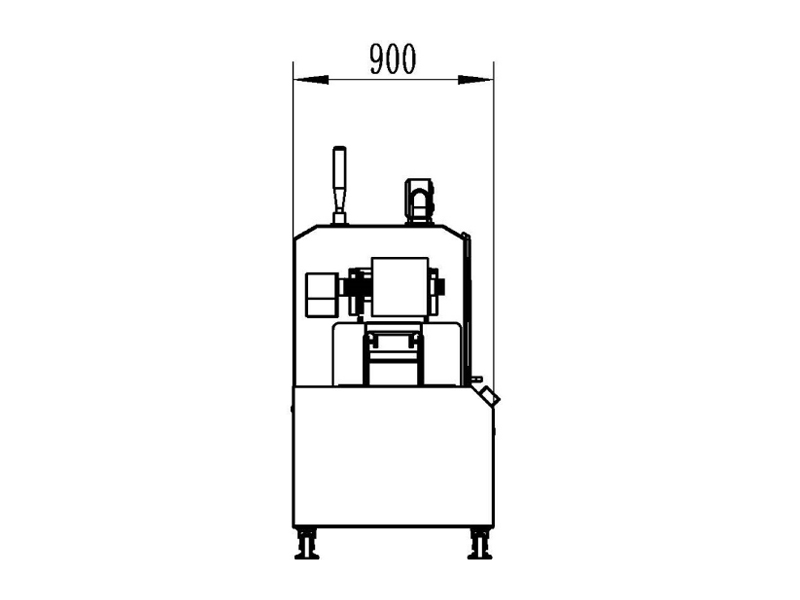

Dimensions

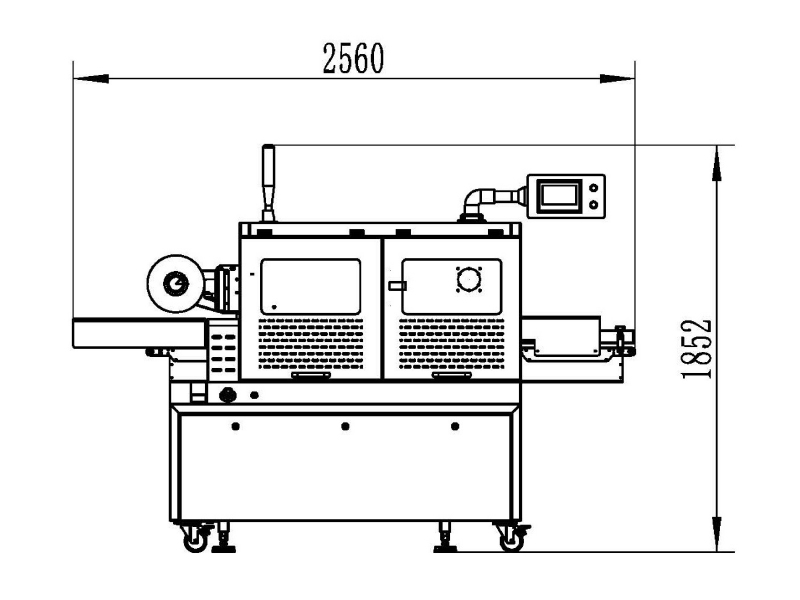

  • pw310ma_WP05_01
  • pw310ma_WP05_02

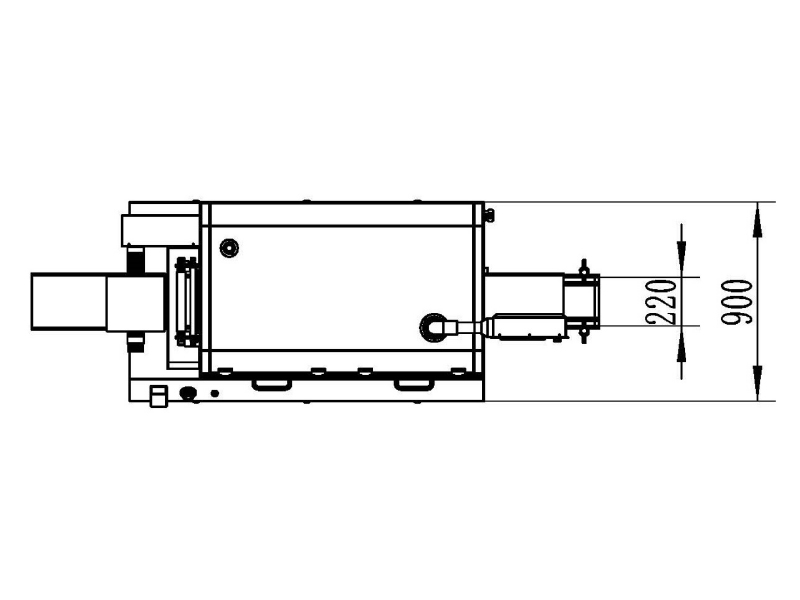

  • pw310ma_WP05_03
Packaging Type Gas Flush MAP, Seal Only
Packaging Item Tray
Packaging Speed Cycles/min MAP: 10-12
Cycles/min SEAL ONLY: 12-15
Power Supply AC 220V/100V
Power Consumption 3 kW
Film
Film Material Composite Film
Film Width (mm) Max. 250
Film Thickness 25 µm
Diameter of Film Roll (mm) Max. 260
Core Diameter of Film Roll (mm) 76
Tray
Mold 1 set of die
Size of Packed Tray (L mm x W mm) Max. 260 x 177
Min. 180 x 120
Machine Weight (kg) 570
Machine Size (L mm x W mm x H mm) 2550 x 900 x 1852

Seçenekler

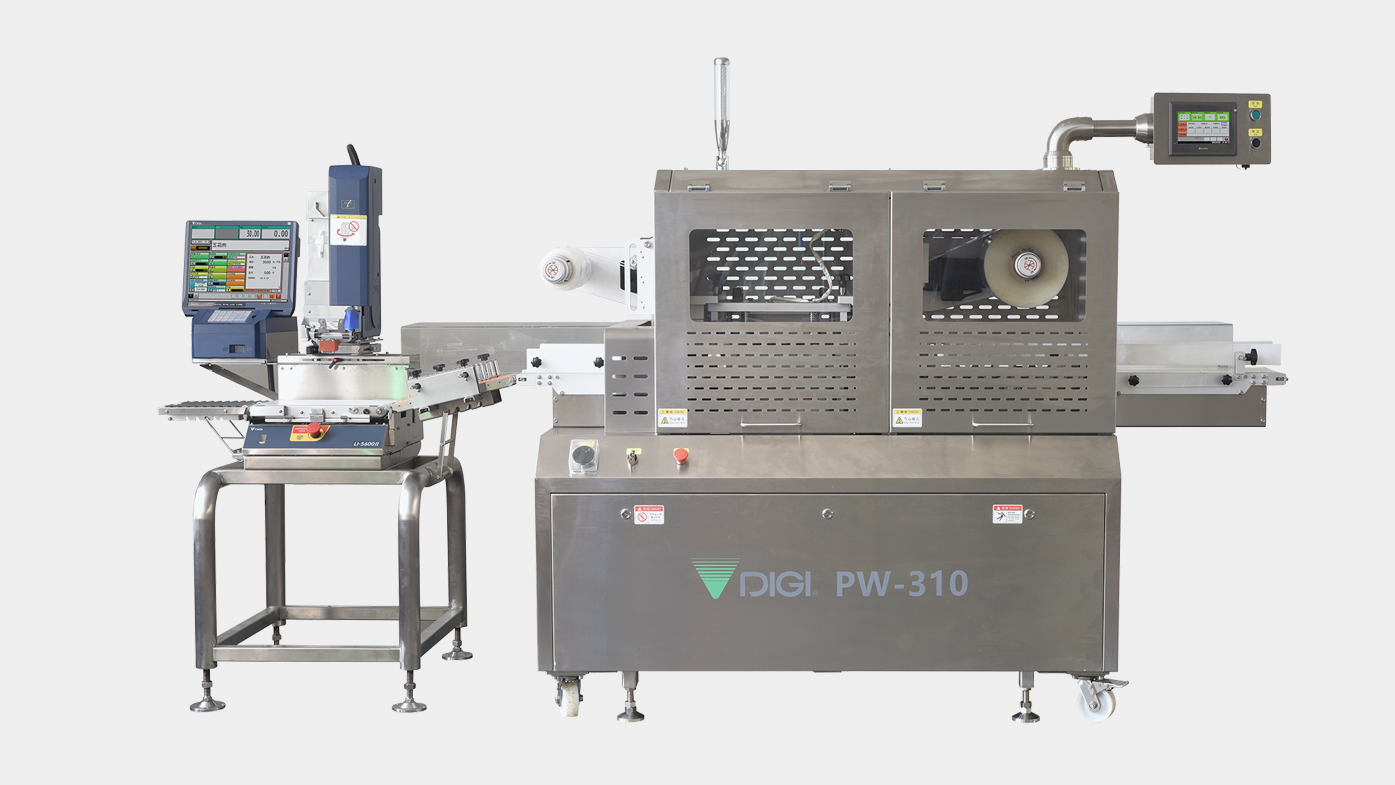

pw310ma_WP09_01

Automatic Weigh-Labeler

LI-5600A
