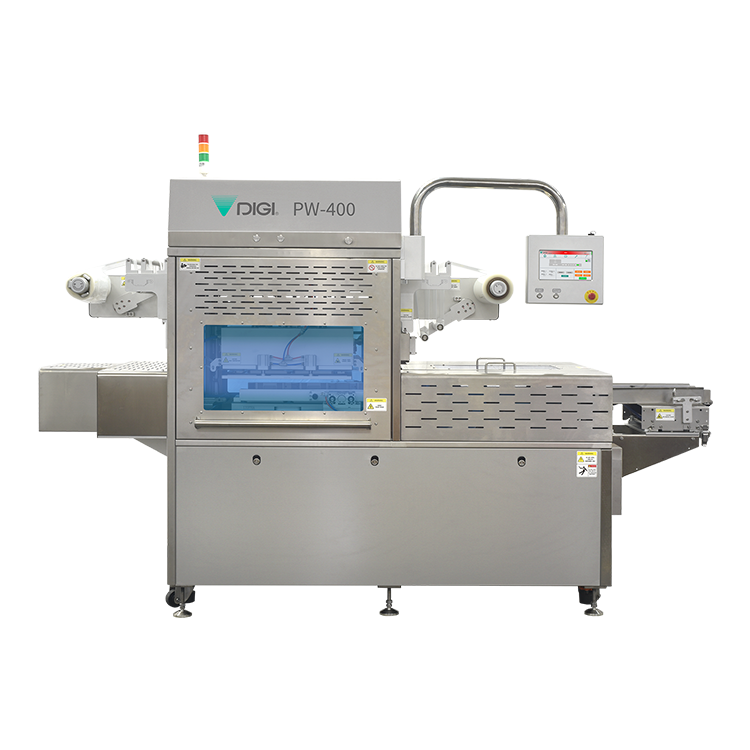

pw400_WP02_01

Cardboard and Tray Skin Packaging Machine

PW-400

Gıda Endüstrisi

Ana Özellikler

PW-400 is a fully automatic cardboard and tray skin packaging machine that can be applied to various industries and products, including meat, seafood, personal care, and daily chemical products.

pw400_WP04_01

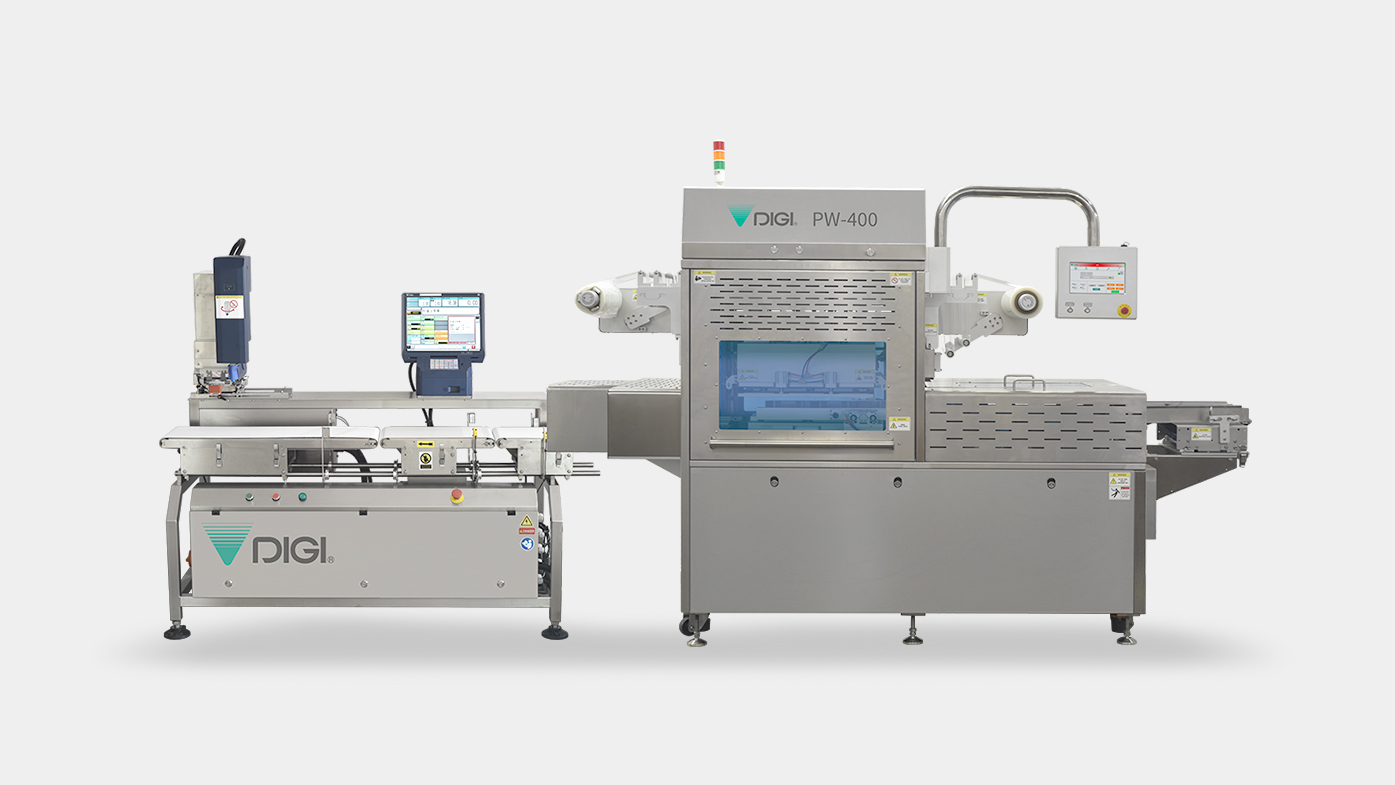

One operator, maximum output

This machine is ideally suited to the demands of seafood and meat processing facilities. When integrated with DIGI's automated weighing and labeling equipment, a single operator can efficiently execute the packaging, weighing, and labeling procedures - Boosting efficiency and reducing labor costs.

pw400_WP04_02

Maximize shelf life and product appeal

Skin packaging is the perfect response to today's consumer demands for premium quality presentation and food safety. Its exceptional clarity and luster vividly showcase product freshness, while its barrier properties can greatly extend shelf life, lock in nutrients, and maintain the natural flavor of food.

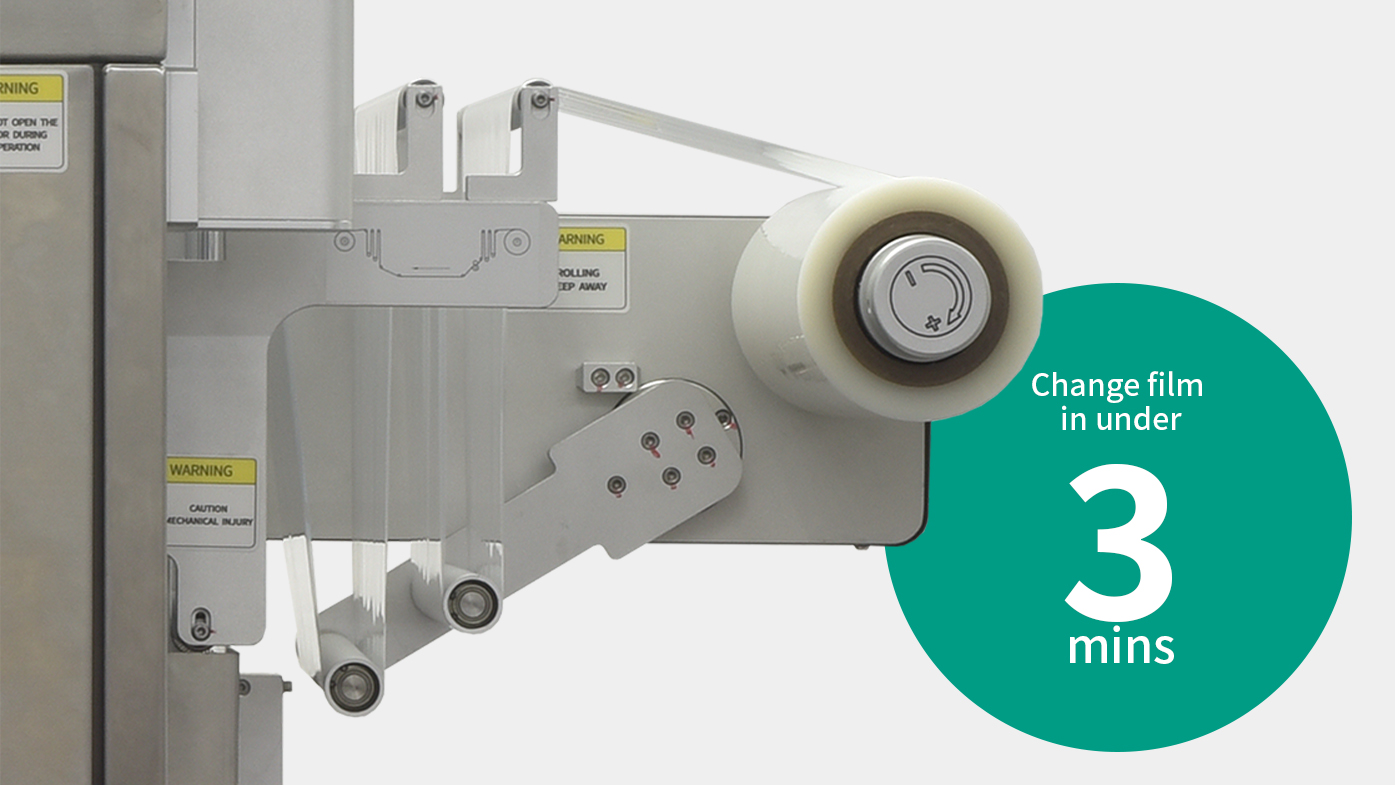

pw400_WP04_03

Quick, easy film change

Clear instructions and a simple design mean just one operator can replace the film in under three minutes after minimal training, reducing machine downtime.

pw400_WP04_04

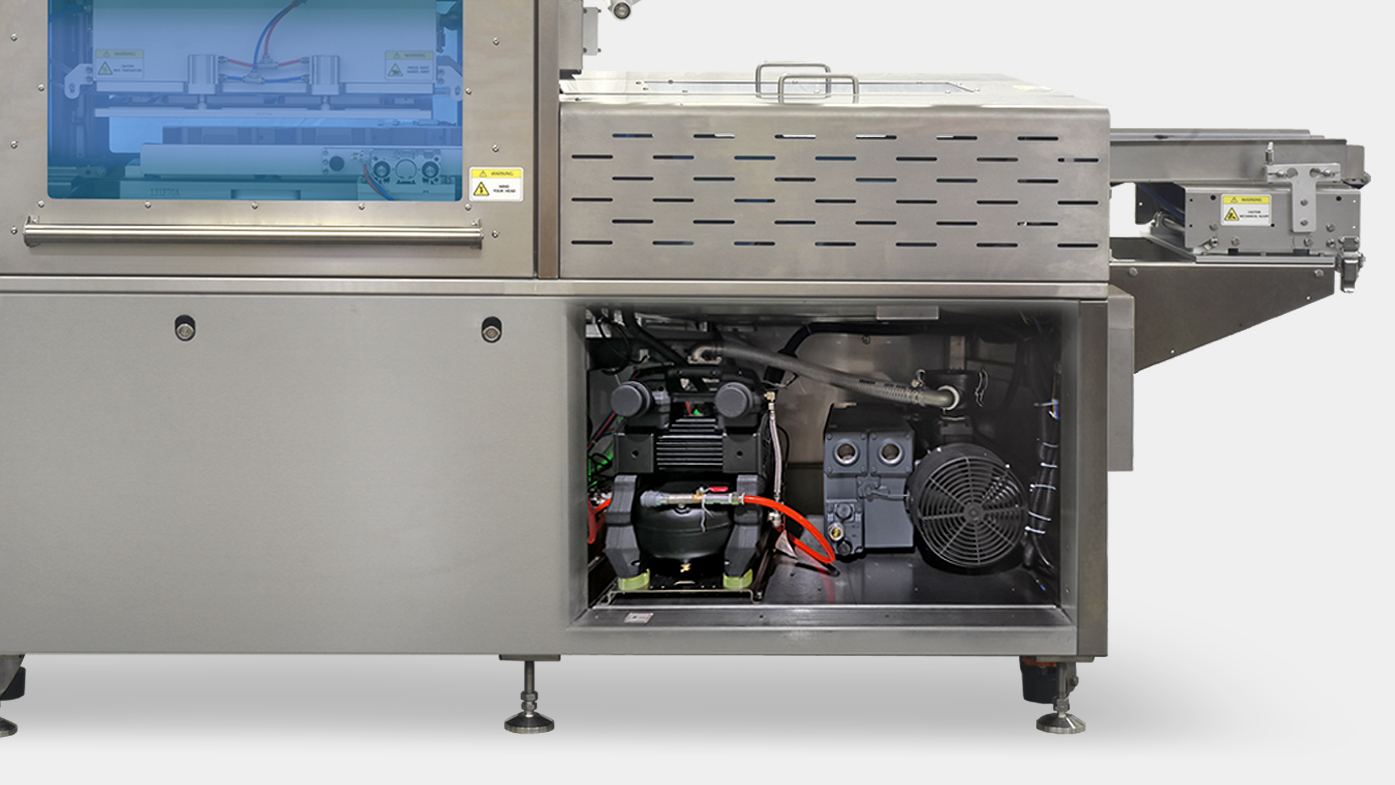

Integrated air compressor

This machine features a built-in air compressor, eliminating the need for external air supply. Simply plug it in and start working. This streamlined design reduces setup costs and simplifies operation.

Teknik Özellikler

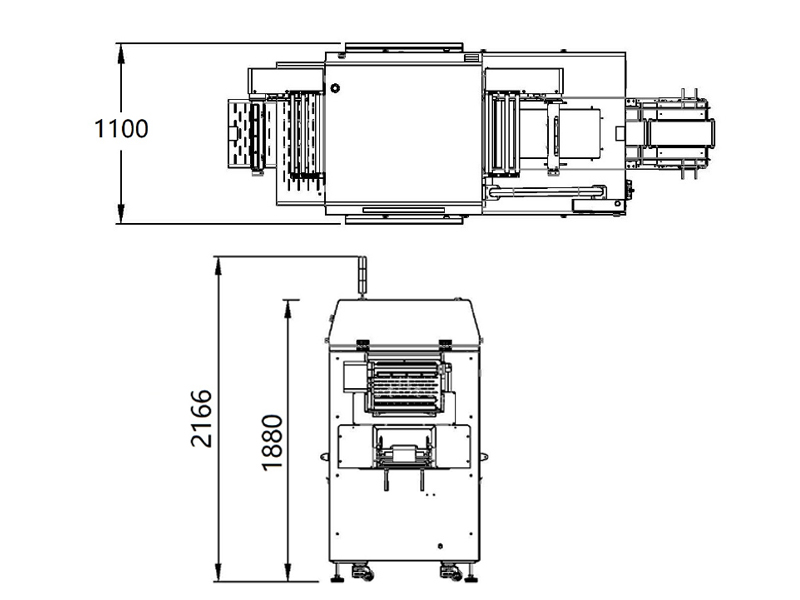

Dimensions

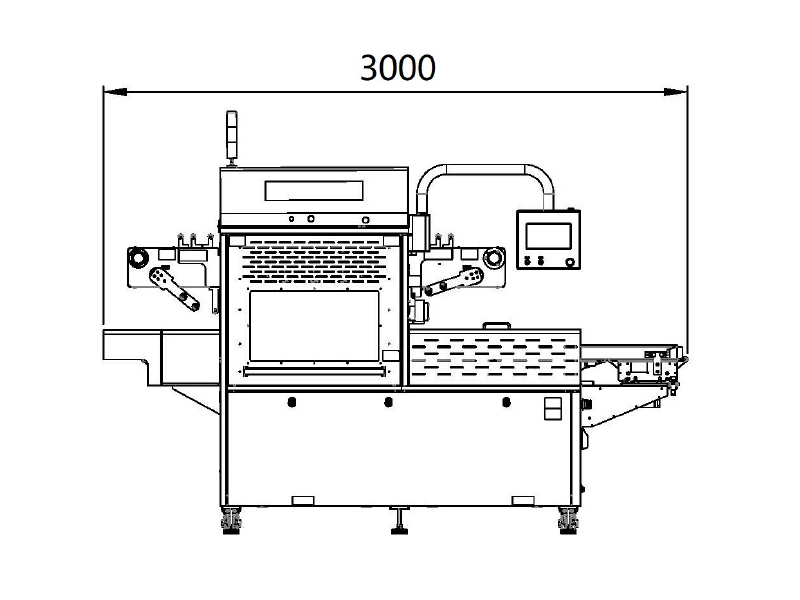

  • pw400_WP05_01
  • pw400_WP05_02

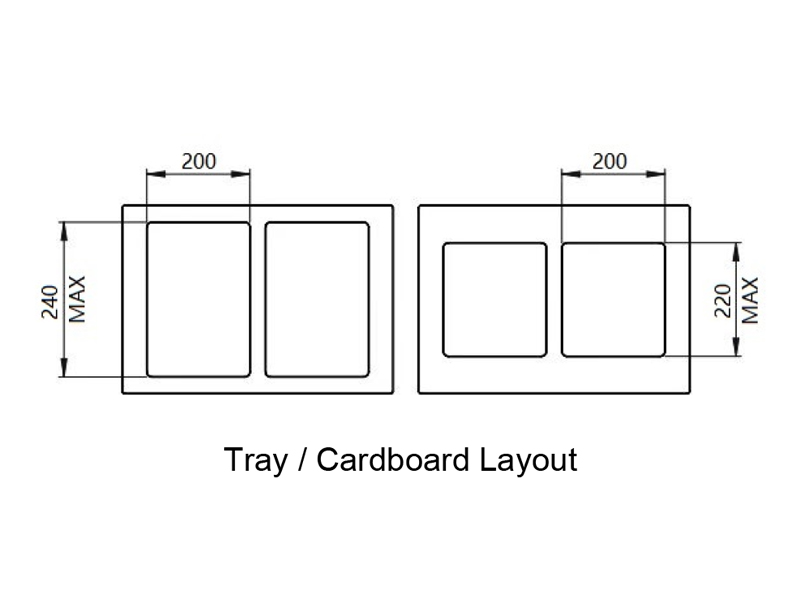

  • pw400_WP05_03
Packaging Type Skin Packaging Film Material Skin Film
Packaging Item Tray and Cardboard Film Width (mm) 340-390
Cycle Time (seconds) 20-25 Film Thickness (um) 100
Packaging Speed (PC S/Hour) 290-360 Diameter of Film Roll (mm) Max. 260
Power Supply AC 380V, 50Hz/60Hz Core Diameter of Film Roll (mm) 76
Power Consumption (kW) 10 Size of Tray/Cardboard Two Cavities (W x L mm) Max. 200 x 240
Gas Supply (MPa) 0.6~0.8 (Air compressor integrated) Max. Packing Height of Cardboard (mm) 30
Machine Weight (kg) 1044 Max. Packing Height of Tray (mm) 70 (Max. deep of tray 40+ Max. protruding surface 30)
Overall Dimensions of Machine (L x W x H mm) 3000 x 1100 x 2166 Machine Height When Cover Opens (mm) 2520

Seçenekler

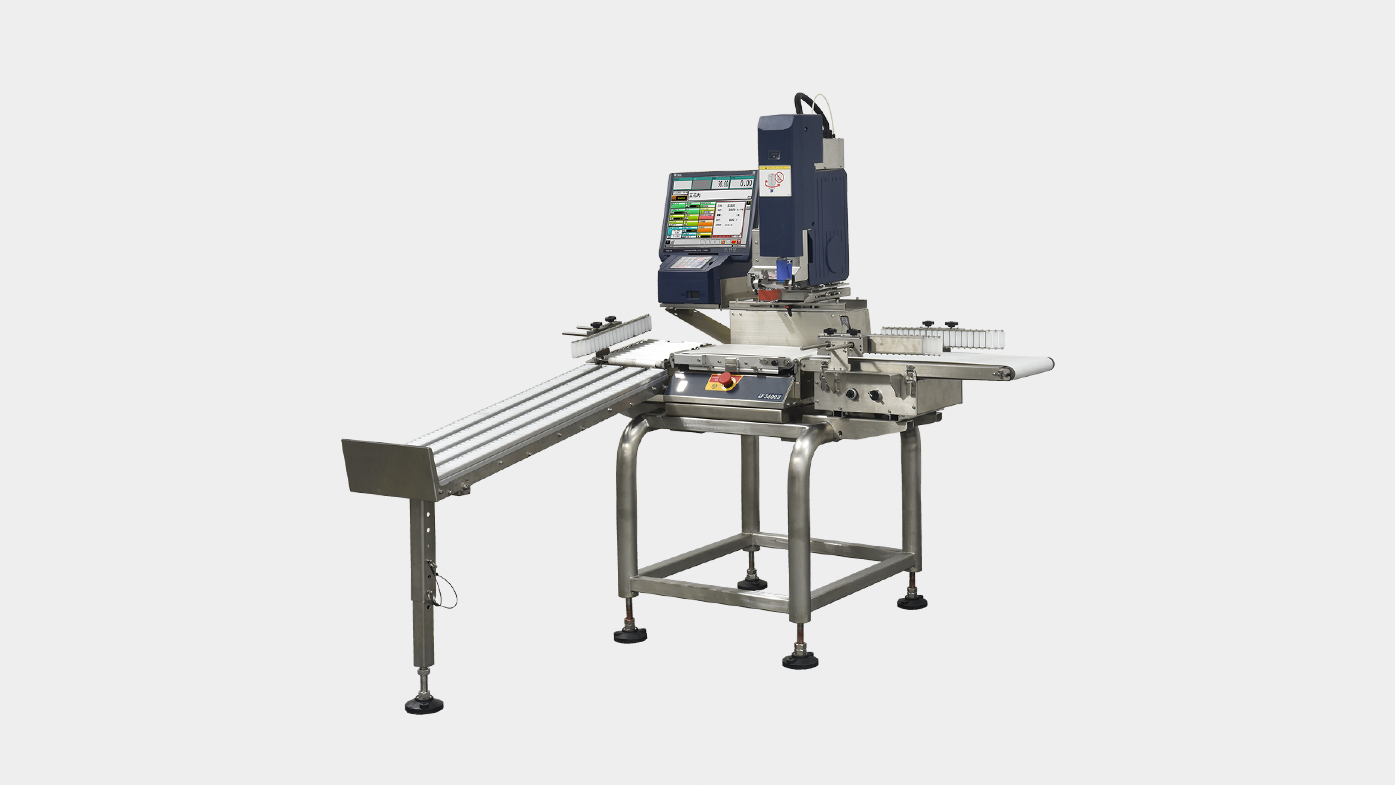

pw400_WP09_01

Automatic Weigh-Labeler

LI-5600A

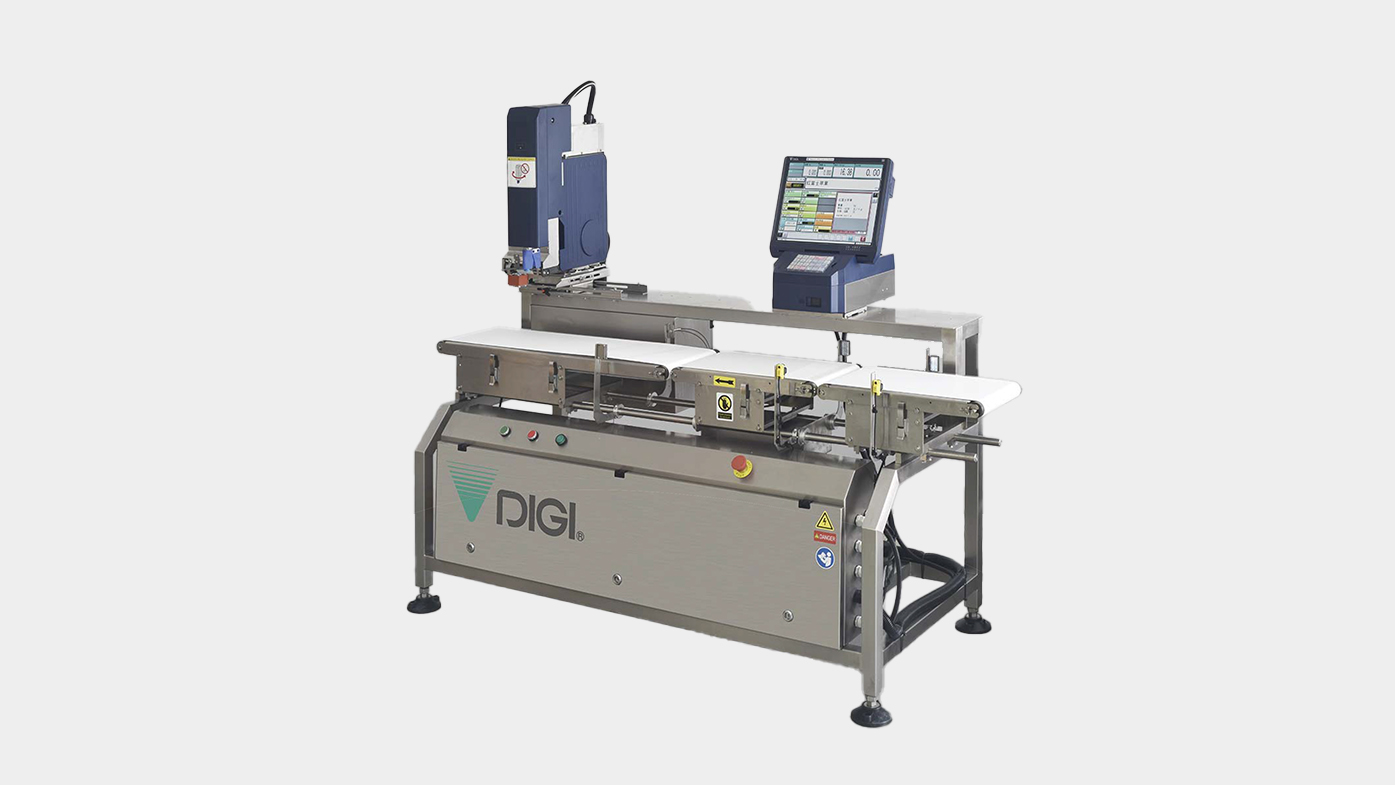

pw400_WP09_02

Automatic Weigh-Labeler

LI-5600C
